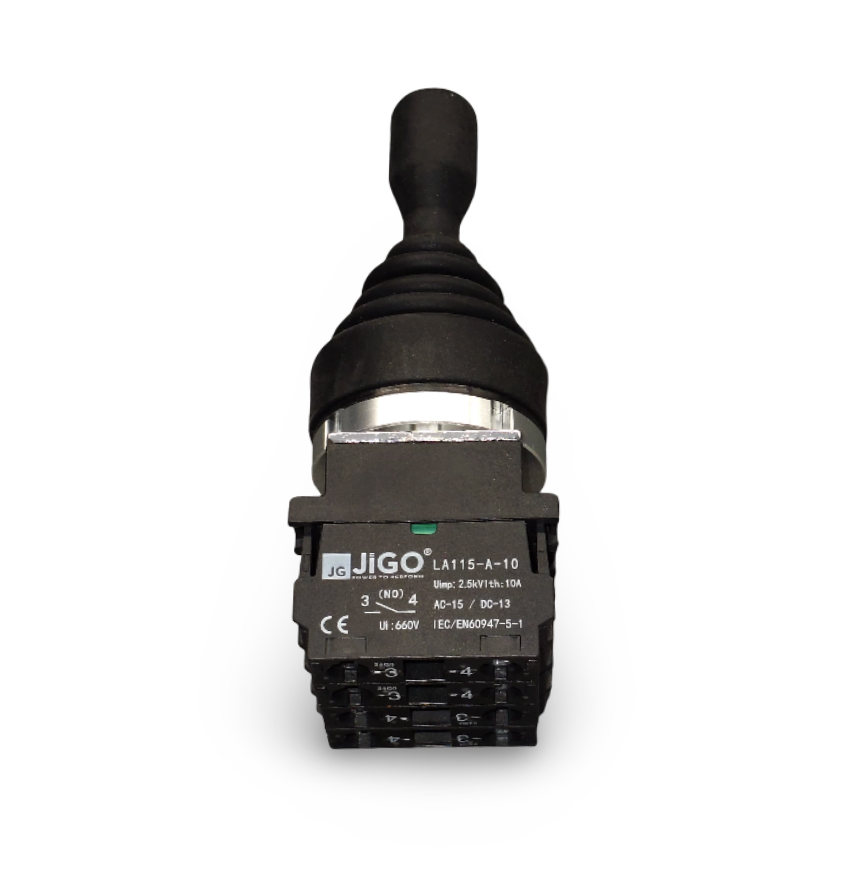

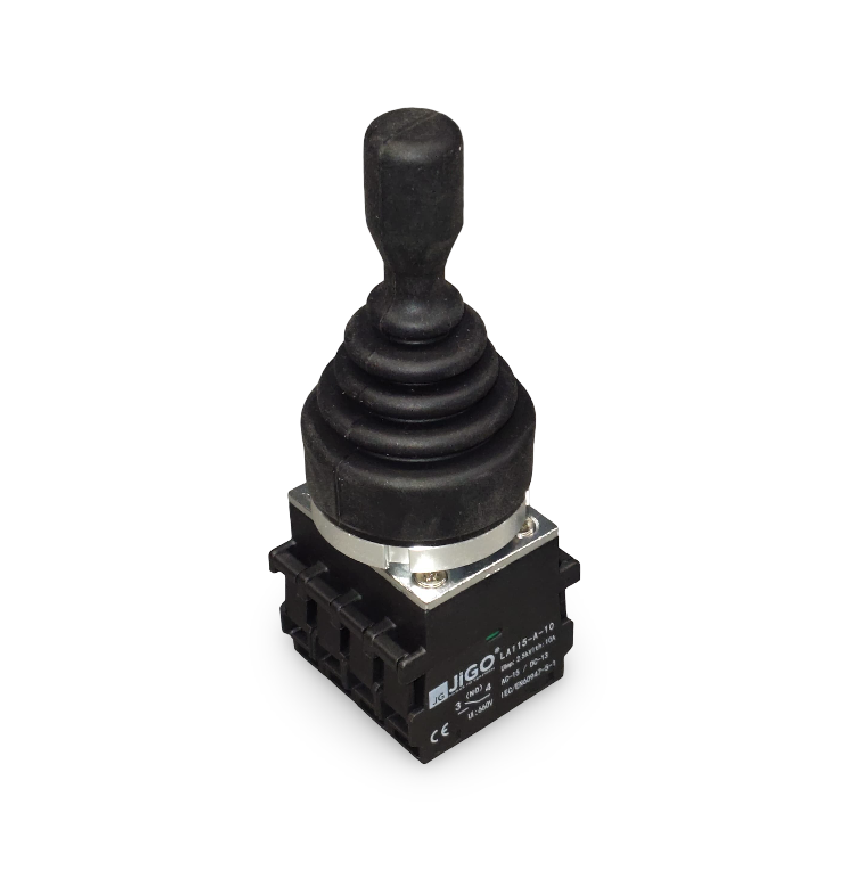

LA115-C402-30MM

    Category: MONO LEVER SWITCH
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 1000

The LA115-C402 is a robust 30mm mono-stable lever switch with a wide handle for industrial control applications, offering reliable momentary control and high durability.



Product Details:

Model: LA115-C402

Cut-Out Size: 30mm

Operation Type: Mono-stable (momentary)

Contact Configuration: 2NO (Two Normally Open contacts)

Rated Insulation Voltage: 660V

Conventional Thermal Current (Ith): 10A

Actuator Type: Wide Lever Handle

Build Material: Durable thermoplastic with metal bezel

Mounting: Panel mount with locking nut

Protection Rating: IP65 (front panel, with proper sealing)

Terminals: Screw type

Key Features:

Large 30mm lever for better grip and control

High mechanical life for repeated operations

Simple panel installation with secure locking

Supports high voltage and current operations

Resistant to oil, dust, and water (IP65 front protection)

Reliable spring-return action

Applications:

Industrial control panels

Machine start/stop systems

Operator stations

Automation equipment interfaces

Safety interlocks and manual override systems
