LA115-C4022-22MM

    Category: MONO LEVER SWITCH
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 1000

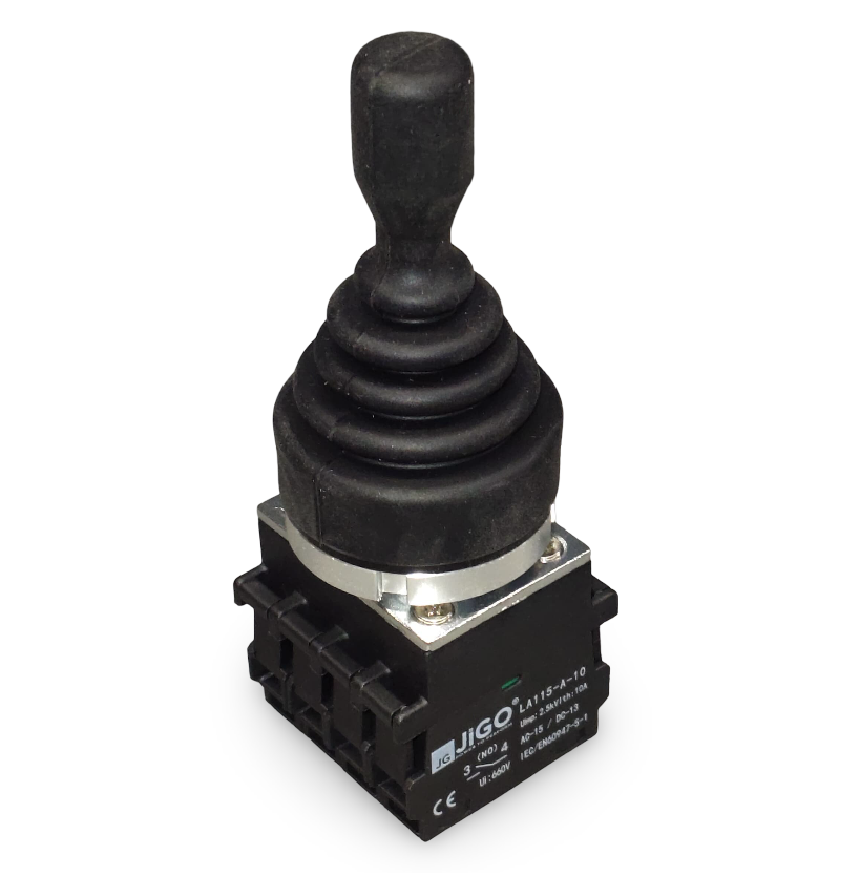

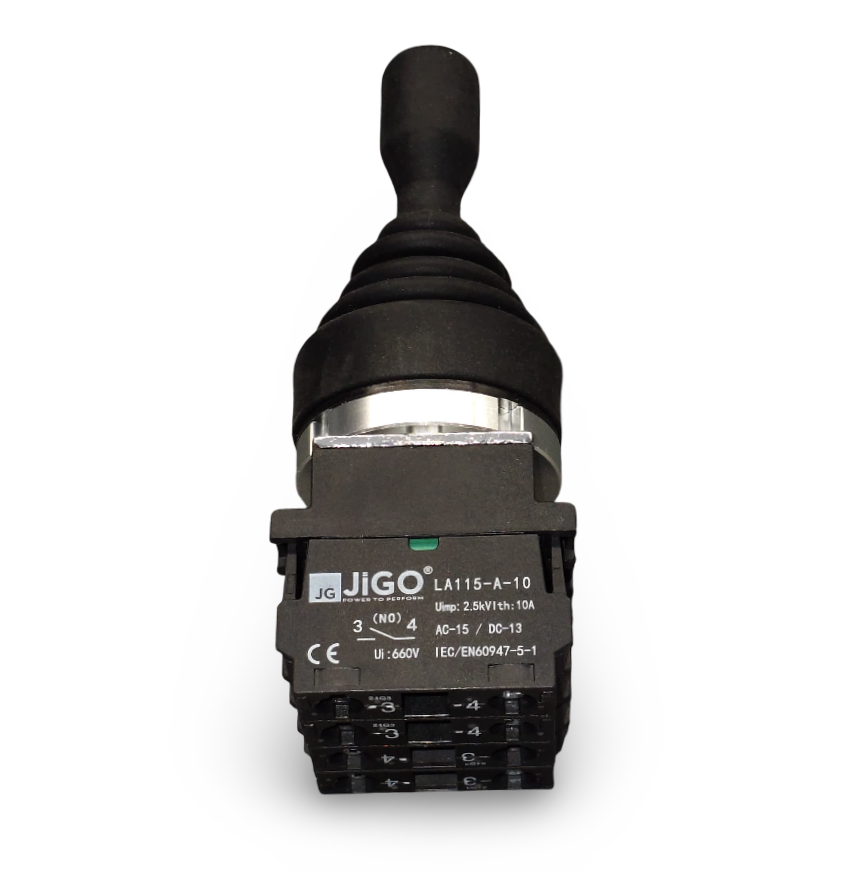

The LA115-C4022 is a 22mm mono-stable lever switch designed for industrial control panels, offering spring return functionality and reliable performance in demanding environments.



Product Details:

Model No.: LA115-C4022

Mounting Hole Size: 22mm

Type: Mono-stable (momentary return to center)

Contact Configuration: 2NO (Two Normally Open)

Rated Insulation Voltage: 660V

Thermal Current (Ith): 10A

Material: High-quality thermoplastic body

Actuator Type: Lever (center-off)

Terminal Type: Screw clamp

Panel Mounting: Lock nut fastening

Ingress Protection: IP65 (front panel, with seal)

Key Features:

Ergonomic mono-lever design with spring return

Space-saving 22mm panel cut-out size

Double contact for dual circuit control

Durable construction for industrial use

High mechanical and electrical endurance

Water & dust resistant front with IP65 rating

Applications:

Industrial machinery control panels

Process control systems

Operator control stations

Automation & assembly lines

Electrical equipment with momentary switching functions
