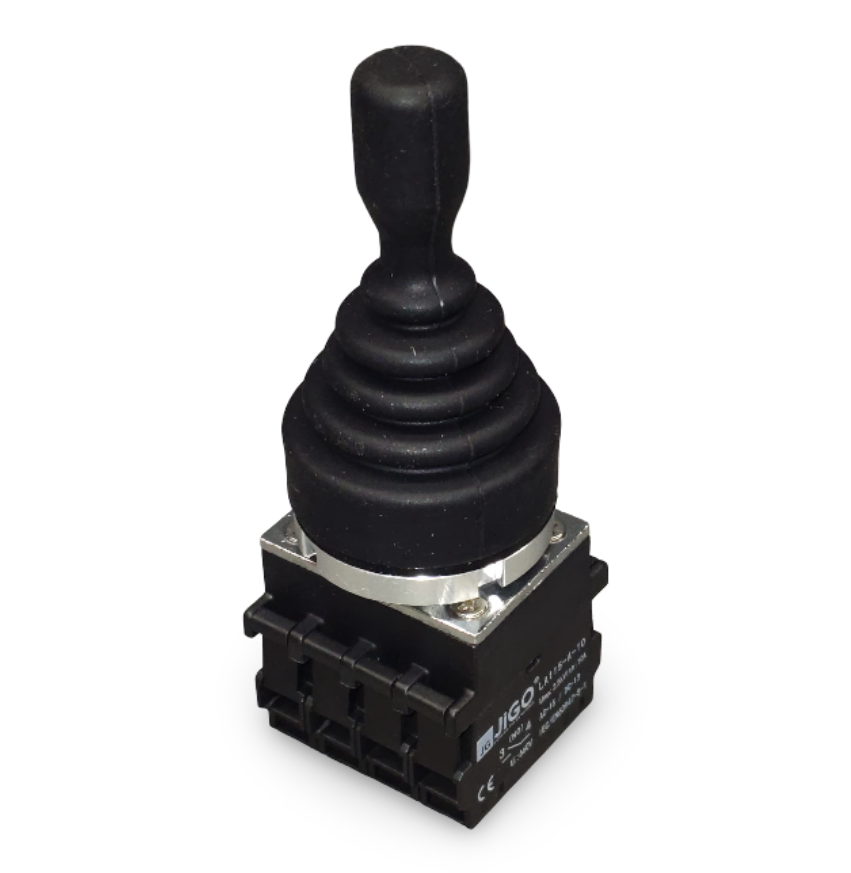

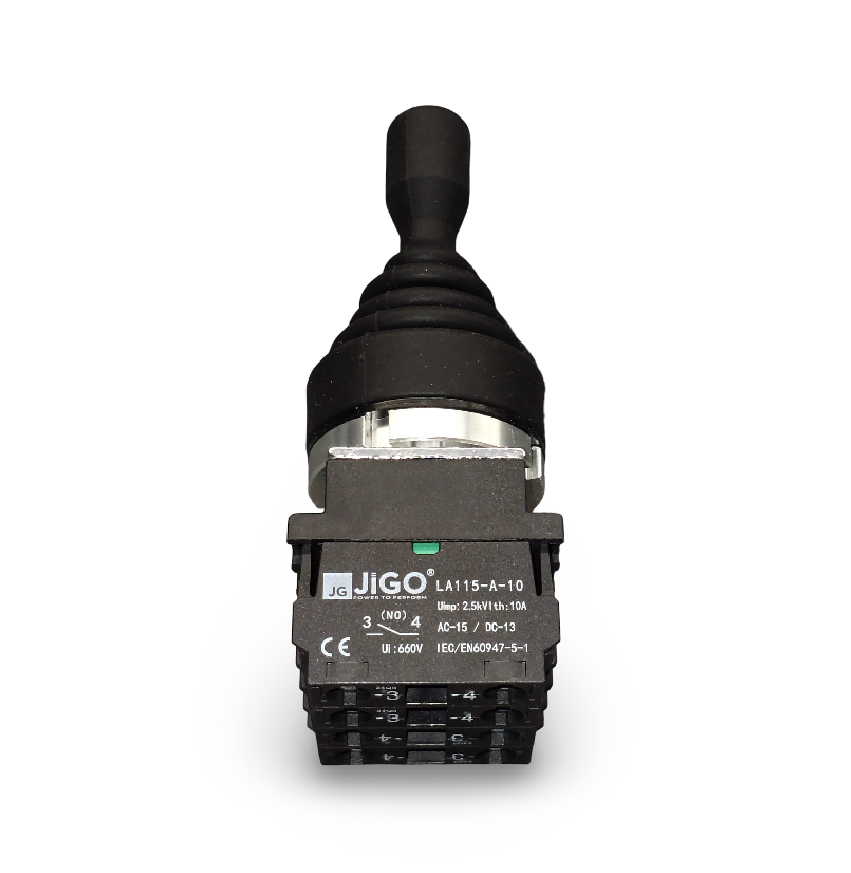

LA115-C4022-30MM
The LA115-C4022 is a 30MM mono-stable lever switch designed for reliable manual control in industrial automation and machinery environments. It features dual contacts and ergonomic operation.
Product Details:
Model: LA115-C4022
Type: Mono-stable lever switch (returns to center position after release)
Mounting Diameter: 30mm
Contact Configuration: 2NO (Double Normally Open)
Rated Insulation Voltage: 660V
Thermal Current (Ith): 10A
Operating Mechanism: Spring return (center-off)
Material: Heat-resistant plastic body and actuator
Mounting: Panel mount with threaded fixing and nut
Terminal Connection: Screw clamp
Ingress Protection: IP65 (front panel with sealing ring)
Key Features:
Dual Normally Open contacts for flexible wiring
High electrical and mechanical endurance
Clear lever indication for precise control
Snap-action mechanism for quick switching
Suitable for harsh environments (dust/moisture resistant)
Easy panel integration with standard 30mm mounting
Applications:
Industrial control cabinets
Manual override operations
Machine tool and conveyor systems
Start/Stop/Reset command stations
Elevator or hoist control systems
Panel boards in automation setups
