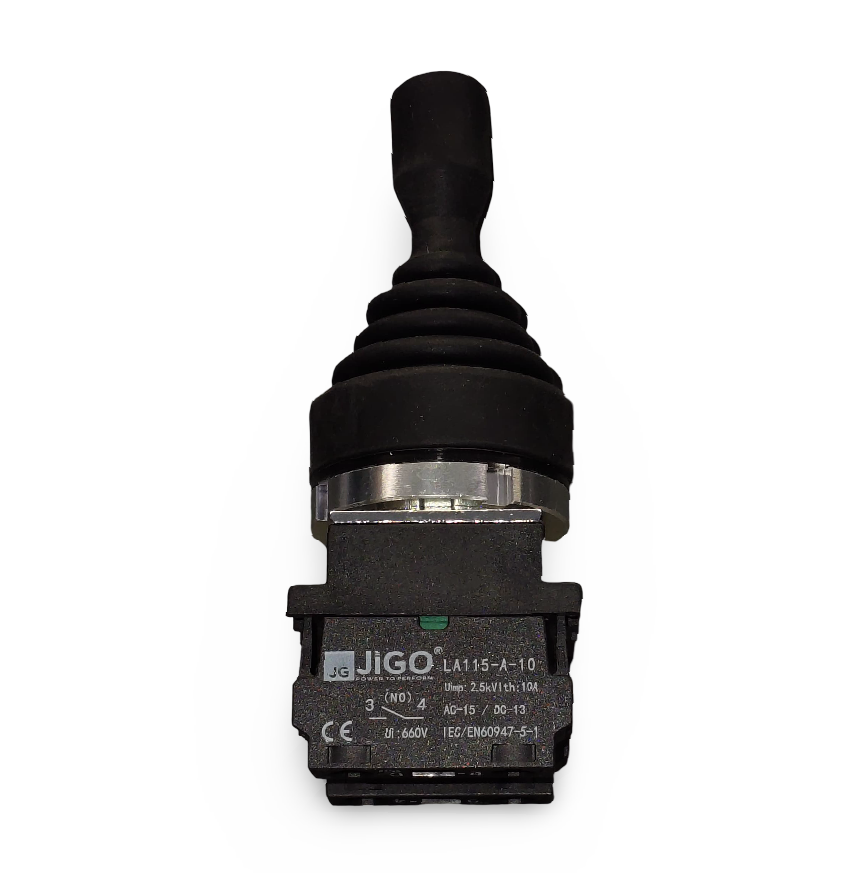

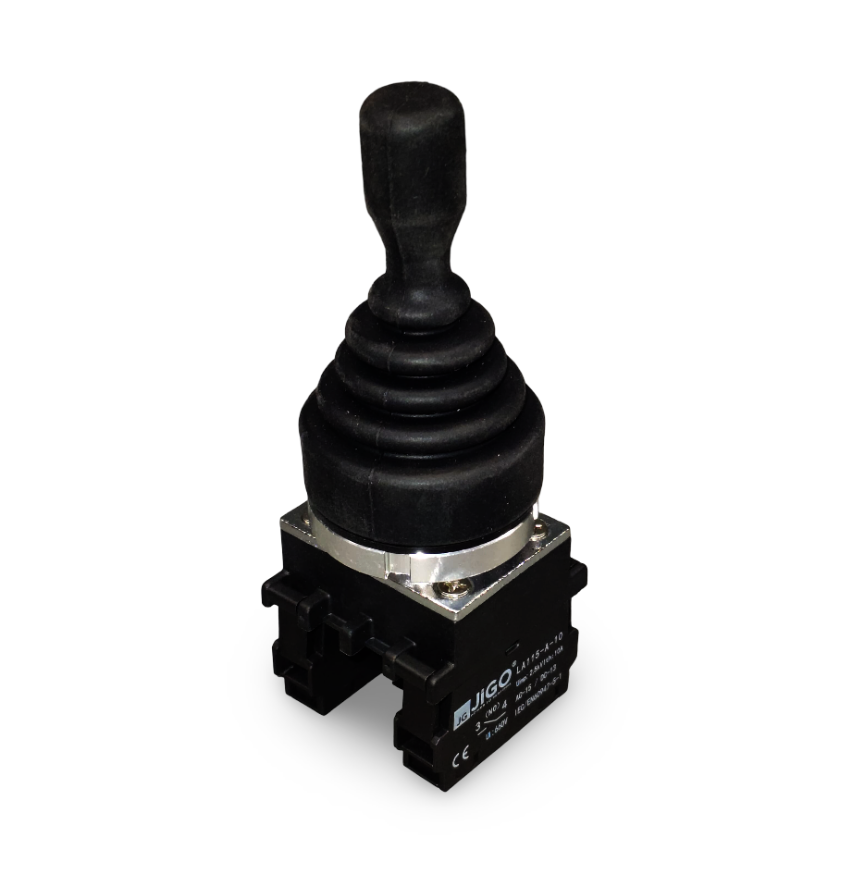

LA155-C2011-30MM
The LA155-C2011 is a robust 30MM mono lever switch designed for industrial control panels. With a durable lever mechanism and high visibility, it offers reliable manual control in demanding environments.
Product Details:
Model: LA155-C2011
Type: Mono-stable lever switch (returns to original position after release)
Mounting Diameter: 30mm
Contact Configuration: 1NO (Normally Open)
Operating Voltage: Up to 440V AC
Current Rating: 10A
Body Material: Flame-retardant thermoplastic
Handle Material: Durable plastic with ergonomic grip
Mounting Method: Panel mount with locking ring
Terminal Type: Screw terminals
Protection Class: IP65 (Front panel, with gasket)
Key Features:
Simple and intuitive lever operation
High mechanical life and switching reliability
Resistant to dust, oil, and light splashing water
Clearly visible actuator for quick identification
Compatible with industrial control panels
Easy installation with standard panel hole size
Applications:
Electrical control panels
Machine operation consoles
Lifting and hoist control
Start/Stop/manual override functions
Process and equipment control in factories
Operator stations and custom control enclosures
