M20B-3P(5-8)
- Category: WATERPROOF CONNECTORS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 500

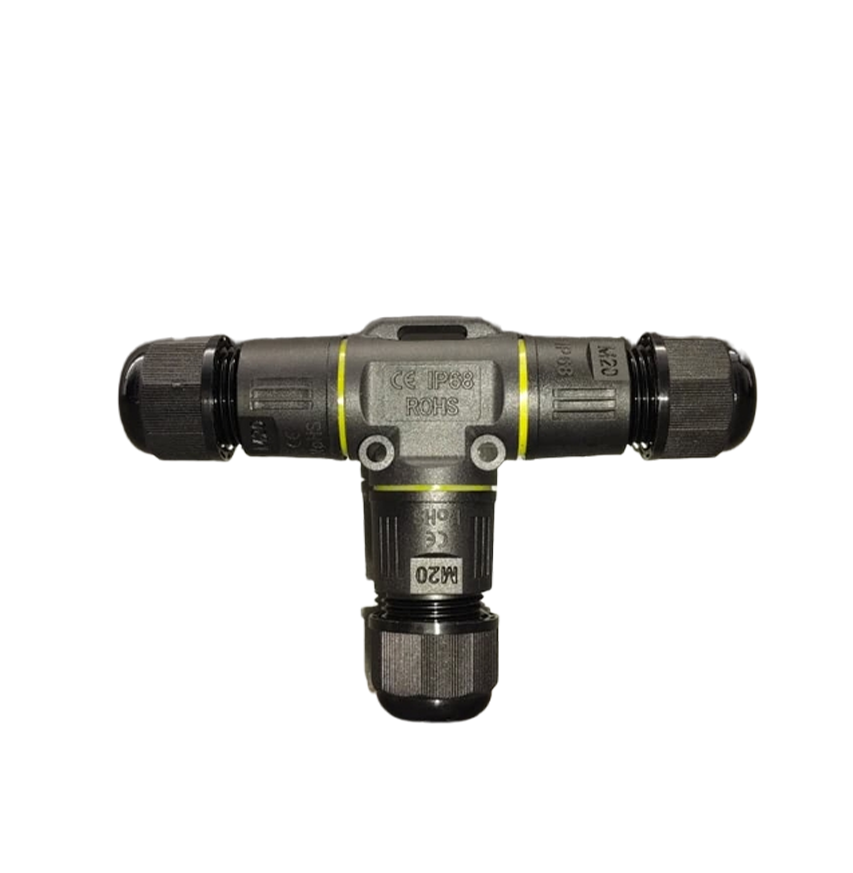

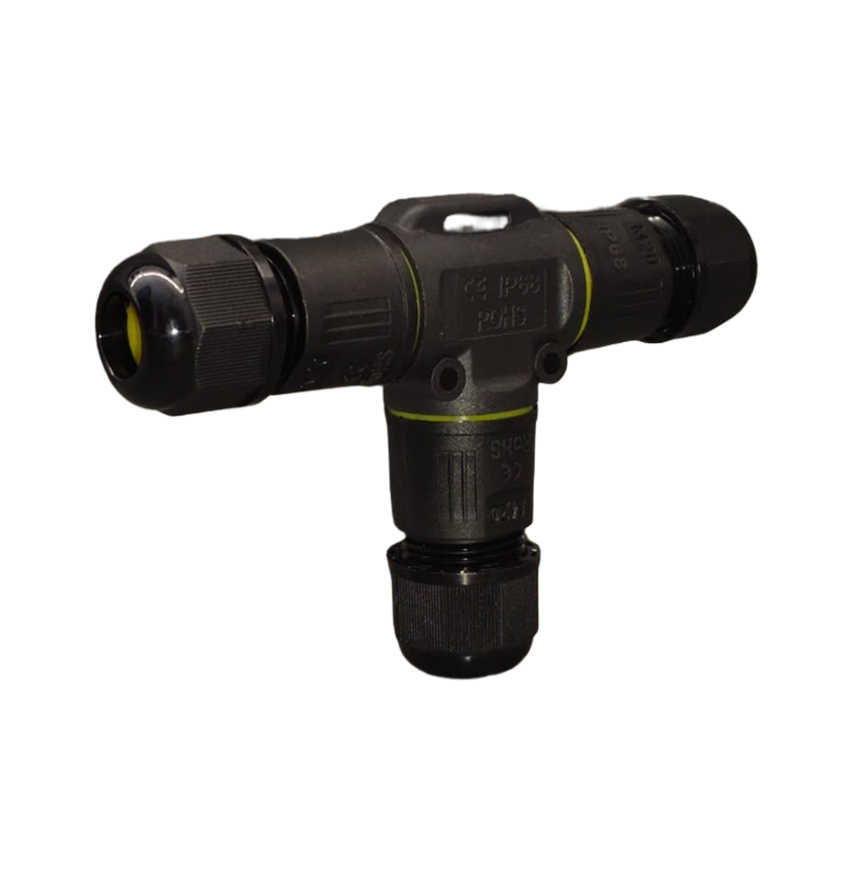

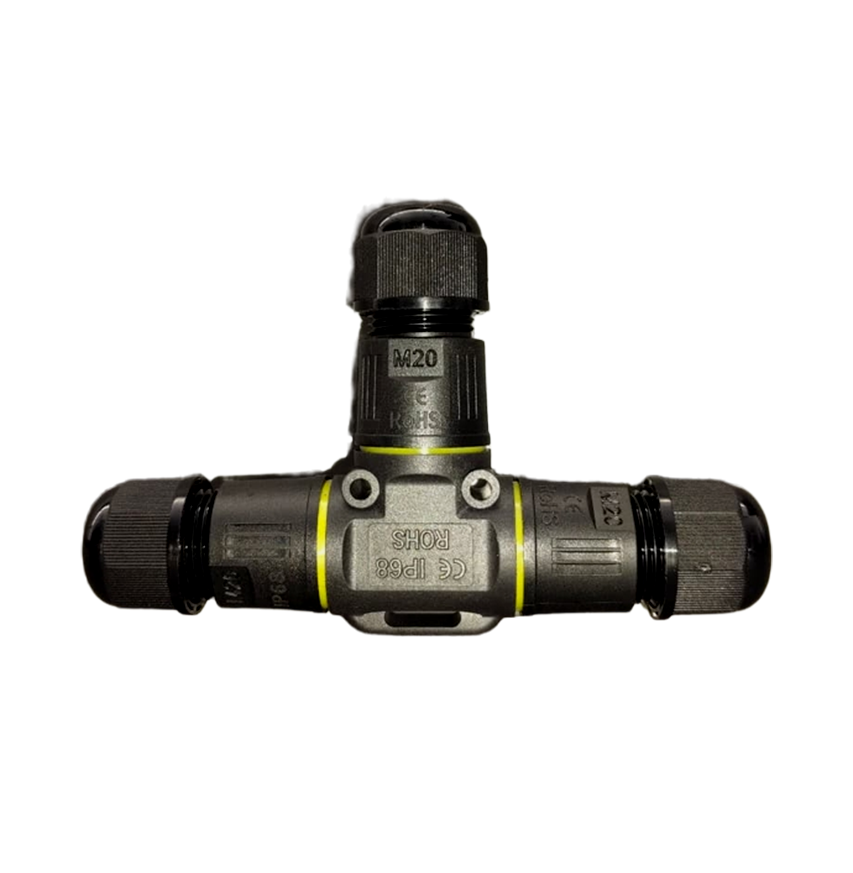

The M20B‑3P (5‑8) Waterproof Connector is a sealed 3‑pin outdoor electrical connector designed for high‑reliability power and signal connections. Its M20 threaded body and IP68‑rated sealing make it excellent for harsh, wet, and dusty environments, supporting cable diameters around 5–8 mm.
Product Details
Waterproof connectors in the M20 series are engineered to deliver durable, fully sealed connections for outdoor and industrial wiring where exposure to water and contaminants is a concern. The 3‑pole (3P) configuration typically includes three contact terminals (e.g., live, neutral, earth or signal lines) and uses rubber/silicone gaskets to prevent ingress of moisture and dust.
Key electrical characteristics of similar M20 waterproof connectors include:
- Protection Rating: IP68 — dust‑tight and protected against continuous water immersion.
- Voltage Rating: Typically up to 400 – 450 V AC.
- Current Rating: Around 20 – 24 A depending on design.
- Cable Diameter Range: ~5–8 mm (fits typical outdoor cable sizes).
- Material: High‑strength thermoplastic housing (PA66), brass/nickel‑plated contacts, and silicone seals for waterproof performance.
This combination of mechanical robustness and environmental sealing ensures reliable connectivity even under prolonged outdoor exposure.
Key Features
- 3‑Pin Electrical Configuration: Supports three conductor connections for power or signals.
- Strong Waterproof Sealing: IP68 rating prevents water and dust ingress, suitable for outdoor, marine, or damp environments.
- M20 Threaded Housing: Provides robust mechanical connection compatible with standard M20 cable glands and fixtures.
- Wide Cable Compatibility: Designed for cables with outer diameters around 5–8 mm.
- Durable Construction: Flame‑retardant housing and corrosion‑resistant metal contacts for long service life.
- High Voltage & Current Handling: Suitable for both low‑voltage and line‑voltage outdoor circuits.
- Easy Installation: Connector halves thread together securely with sealing rings, and are compatible with screw or crimp termination.
Applications
M20B‑3P waterproof connectors are ideal for:
- Outdoor lighting systems (e.g., landscape, street, garden lights).
- Outdoor power distribution and junction boxes.
- Industrial machinery and automation exposed to water or dust.
- Marine and automotive exterior connections.
- Solar and renewable energy systems.
- Sensors and control wiring in outdoor environments.
