M20X-3P(5-8)
- Category: WATERPROOF CONNECTORS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 500

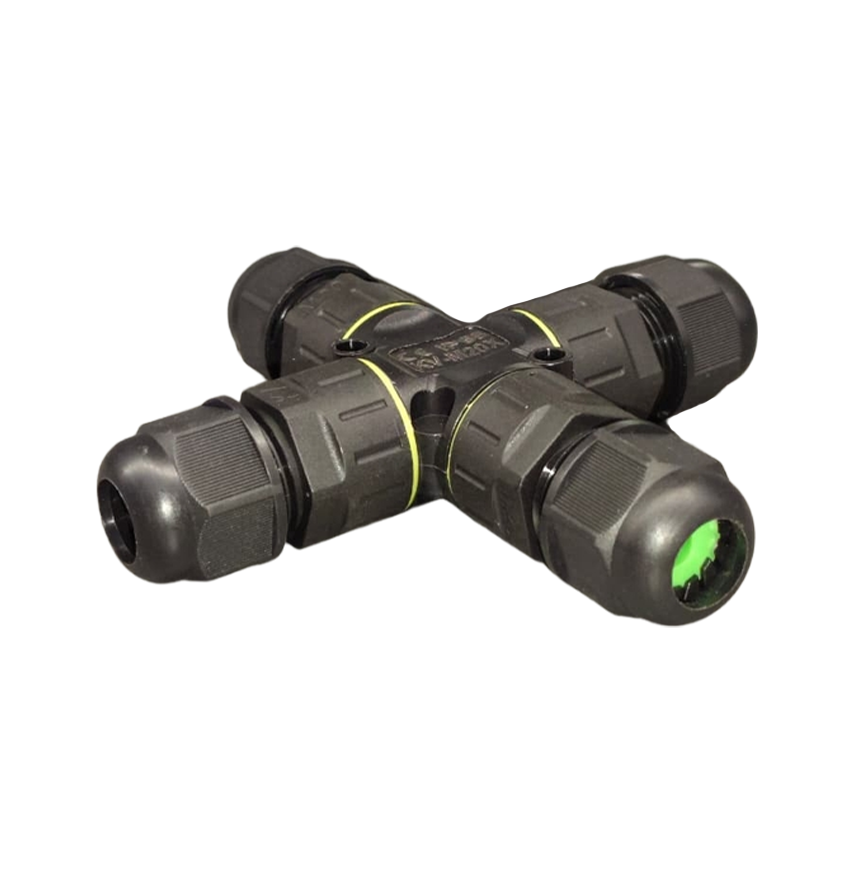

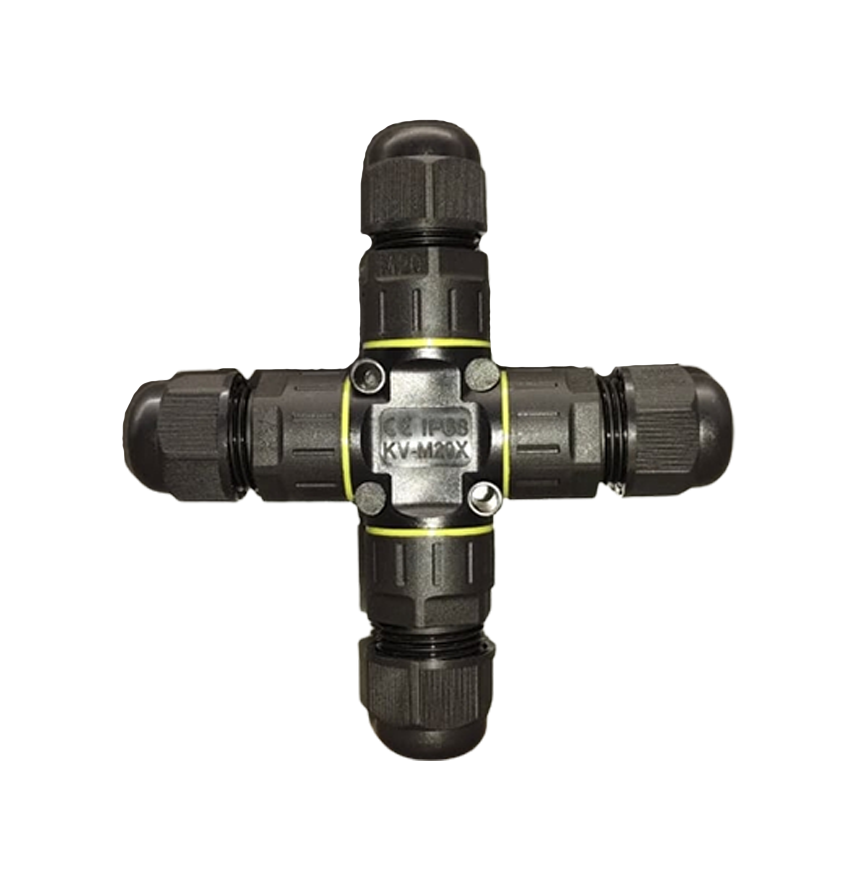

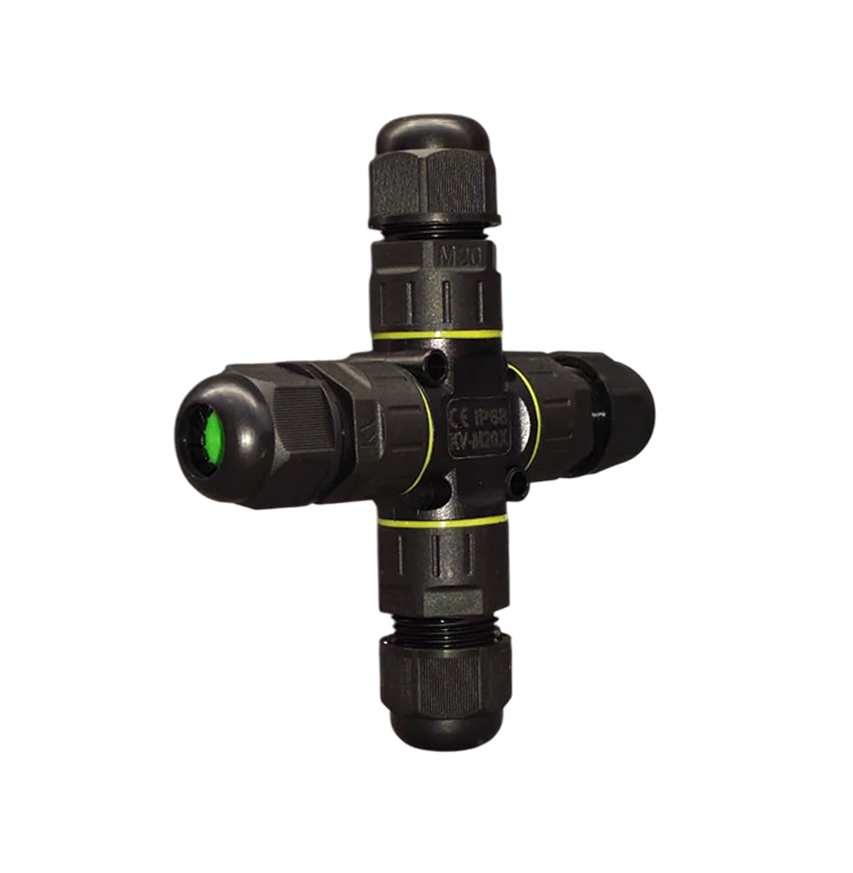

M20X‑3P (5‑8) Waterproof Connector is a rugged 3‑pin sealed electrical connector designed for dependable power and signal connections in wet, dusty, or outdoor environments. The M20 thread form and IP‑rated sealing ensure reliable performance for industrial and outdoor wiring systems.
Product Details
M20X‑3P waterproof connectors are circular, 3‑pole (3P) connectors built to withstand exposure to water, dust, and mechanical stress. The “M20X” designation indicates a connector suited for an M20 size cable gland or threaded interface, accommodating cables with outer diameters approximately 5 mm to 8 mm.
Waterproof connectors typically achieve IP67 or IP68 protection ratings, meaning they are fully dustproof and protected against temporary or continuous immersion in water. They use rubber gaskets and sealed housings to prevent water ingress and often feature threaded or secure locking mechanisms to maintain tight, vibration‑resistant connections.
Typical Specifications (approx.):
- Model: M20X‑3P (5‑8) Waterproof Connector
- Type: 3‑Pin Circular Waterproof Connector
- Rated Voltage: ~250 V – 450 V AC
- Rated Current: ~10 A – 24 A (depends on contact size and design)
- Protection Rating: IP67 / IP68 (waterproof & dustproof)
- Cable Diameter Range: 5 mm – 8 mm outer diameter
- Contact Material: Copper alloy (tin plated)
- Insulation Material: PA66 / PBT (flame‑retardant engineering plastic)
- Sealing Material: Silicone/rubber gasket
- Operating Temperature: -40 °C to +105 °C
Key Features
- 3‑Pin Configuration: Connects three conductors for power or signal applications
- Waterproof & Dustproof: IP67 / IP68 sealed design for outdoor and harsh environments
- M20 Thread Compatibility: Fits M20 cable glands and threaded interfaces
- Wide Cable Compatibility: Accepts cables with 5–8 mm diameter
- Durable Construction: Flame‑retardant housing with corrosion‑resistant contacts
- Secure Locking: Threaded or screw coupling prevents accidental disconnection
- Stable Electrical Performance: Low contact resistance and good conductivity
Applications
M20X‑3P connectors are ideal for:
- Outdoor lighting systems (street, garden, façade lighting)
- Power distribution and junction boxes
- Industrial machinery and automation systems
- Marine and automotive exterior electrical connections
- Solar and renewable energy installations
- Sensors and controls exposed to moisture or dust
- Construction and temporary power setups
