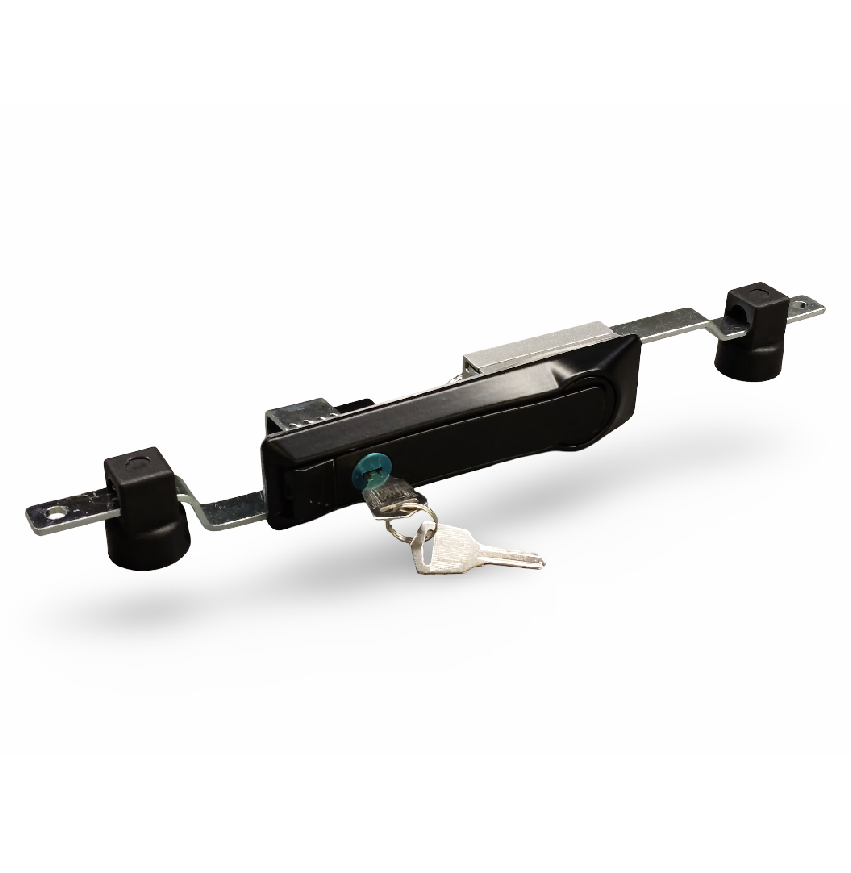

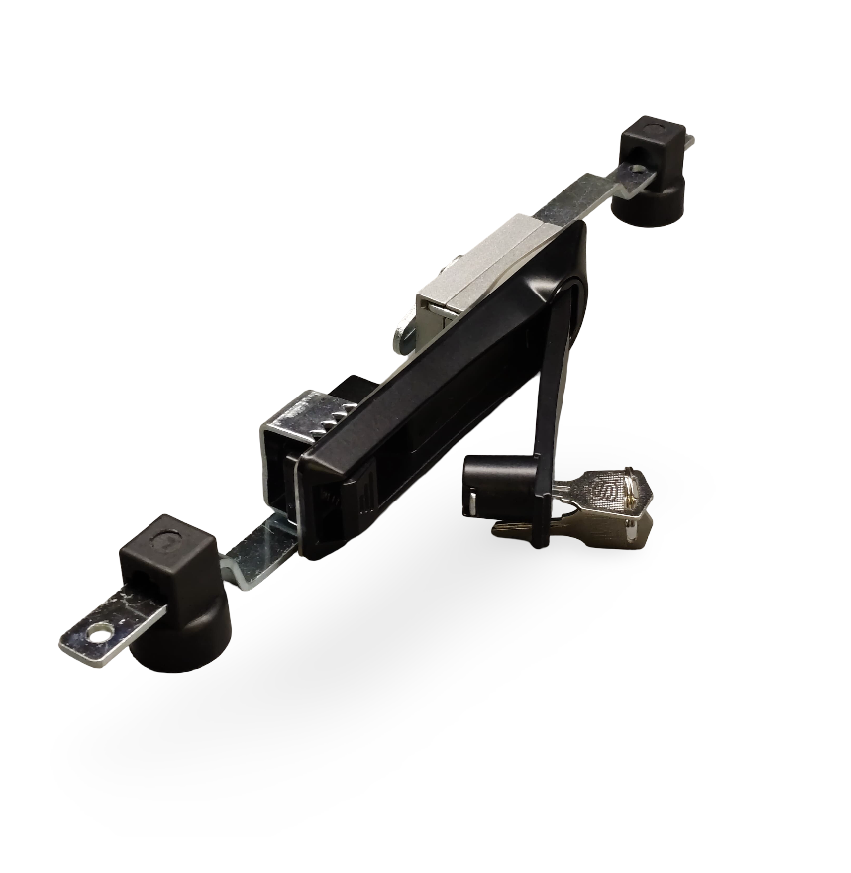

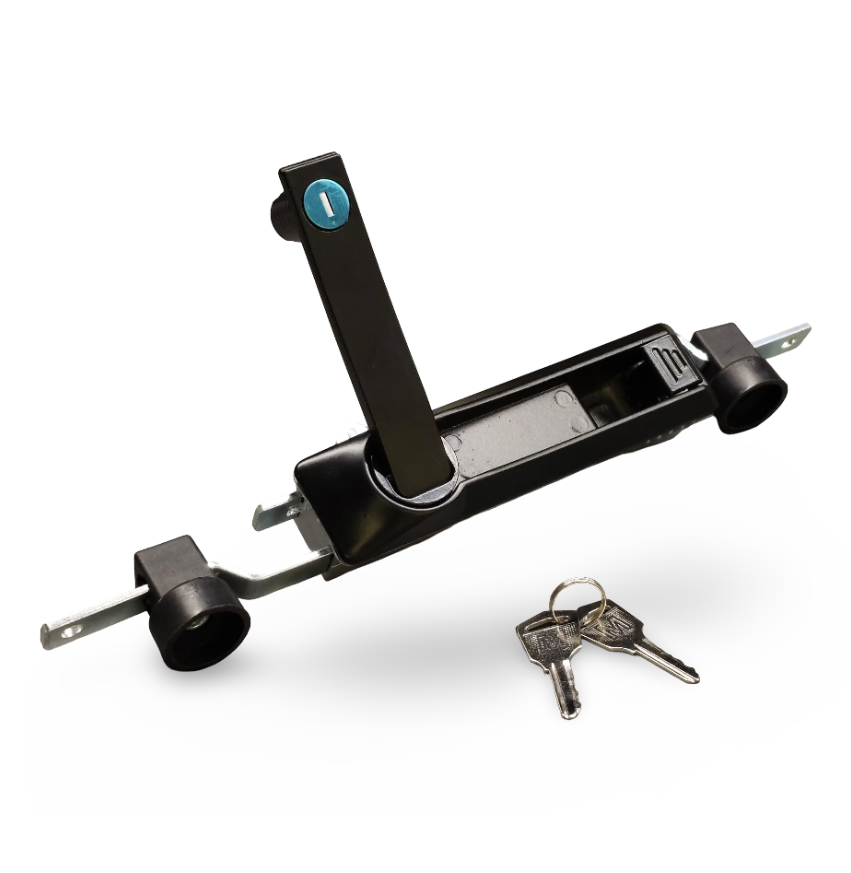

The MS828 Three‑Way Rod Control Lock is a robust, 90° swing-handle locking system designed to secure enclosure doors with multi-point locking (typically single-, dual-, or triple-point configurations). Built with zinc alloy and steel components, it delivers strong security and IP54 ingress protection—ideal for industrial and commercial panels.
Model: MS828 (variants: single-, dual-, or three-point locking)
Type: Swing-handle rod control lock with quarter-turn action
Materials:
Housing & handle: zinc alloy (ZDC)
Rods and cam: carbon or zinc-plated steel
Finish Options: Matte black spray, chrome plating, or colored powder coat; accessories zinc-plated for corrosion resistance
Dimensions: Approx. 149 × 36 × 28.5 mm (per MS828 spec)
Ingress Protection: IP54, thanks to proper sealing
Operation: 90° handle turn engages rods via gear-driven mechanism for door locking/unlocking
Keying: Available keyed-alike, keyed-differ, or master-keyed configurations
Multi-point locking: Ensures secure sealing at up to three points on cabinet doors
Quick-action swing handle: 90° operation allows fast locking and unlocking
Sturdy build: Zinc alloy housing and steel rods deliver high durability
Weather resistant: IP54 rated, with finishes and plating to protect against corrosion
Custom keying options: Flexible keying suits single-use or master-key systems
OEM adaptable: Common in electric cabinet manufacturing and supports customization
Electrical and industrial control panels
Server racks, network cabinets, telecom enclosures
Distribution boxes and switchgear
Vending and kiosk machines
Utility enclosures in HVAC, machinery, or outdoor installations
Any panel requiring secure multi-latch closure with ergonomic operation
