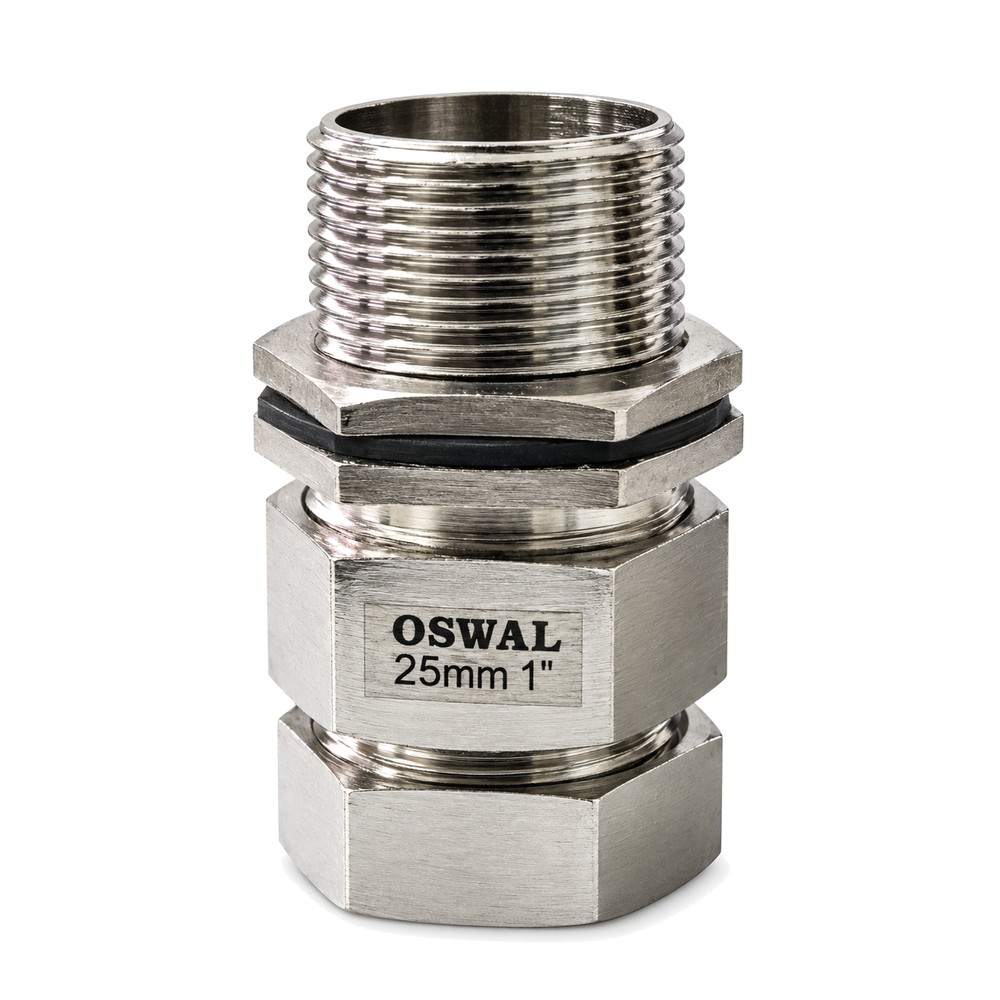

Oswal Double Compression Cable Gland
Oswal nickel-plated brass double compression cable gland for armoured cable — 16 sizes, 12 mm to 82 mm.
The Oswal double compression cable gland is a nickel-plated brass gland for terminating armoured cable. The inner compression seals on the inner sheath and clamps the armour between the cone and the armour ring, while the outer compression nut seals on the outer sheath — giving a weatherproof entry, mechanical retention and earth continuity from the cable armour to the enclosure in one fitting. Used on panels, motors, LT distribution boards and outdoor equipment.
Made by Oswal Brass Products, Jamnagar. Arjun Trading Company keeps all 16 sizes in stock in Ludhiana.
Brand: Oswal (Oswal Brass Products, Jamnagar)
Type: Double compression (DC)
Cable: Armoured
Material: Brass, nickel plated
Sizes: 12 mm (1/2") to 82 mm (3.1/4"), 16 sizes
Function: Environmental seal, armour clamping, electrical continuity
Accessories: Check nut supplied; PVC shroud and earth tag available
Sizes and list prices (September 2026 list, GST extra):
| Size (mm / inch) | Code | List price (₹) |
|---|---|---|
| 12 mm / 1/2" | 12 mm DC | 228 |
| 16 mm / 5/8" | 16 mm DC | 244.8 |
| 19 mm / 3/4" | 19 mm DC | 280.8 |
| 22 mm / 7/8" | 22 mm DC | 367.2 |
| 25 mm / 1" | 25 mm DC | 412.8 |
| 28 mm / 1.1/8" | 28 mm DC | 532.8 |
| 32 mm / 1.1/4" | 32 mm DC | 700.8 |
| 35 mm / 1.3/8" | 35 mm DC | 835.2 |
| 38 mm / 1.1/2" | 38 mm DC | 936 |
| 45 mm / 1.3/4" | 45 mm DC | 1356 |
| 50 mm / 2" | 50 mm DC | 1555.2 |
| 57 mm / 2.1/4" | 57 mm DC | 1814.4 |
| 63 mm / 2.1/2" | 63 mm DC | 2496 |
| 70 mm / 2.3/4" | 70 mm DC | 2820 |
| 75 mm / 3" | 75 mm DC | 3470.4 |
| 82 mm / 3.1/4" | 82 mm DC | 4020 |
Brand: Oswal. Sold and supported by Arjun Trading Company, Ludhiana — GST invoice and delivery across India. The price shown is the list price for the 25 mm (1") size; all sizes 12 mm to 82 mm are available, see the size table under Technical specifications. Enquire on WhatsApp +91 99887 74490 for dealer rates and bulk pricing.
