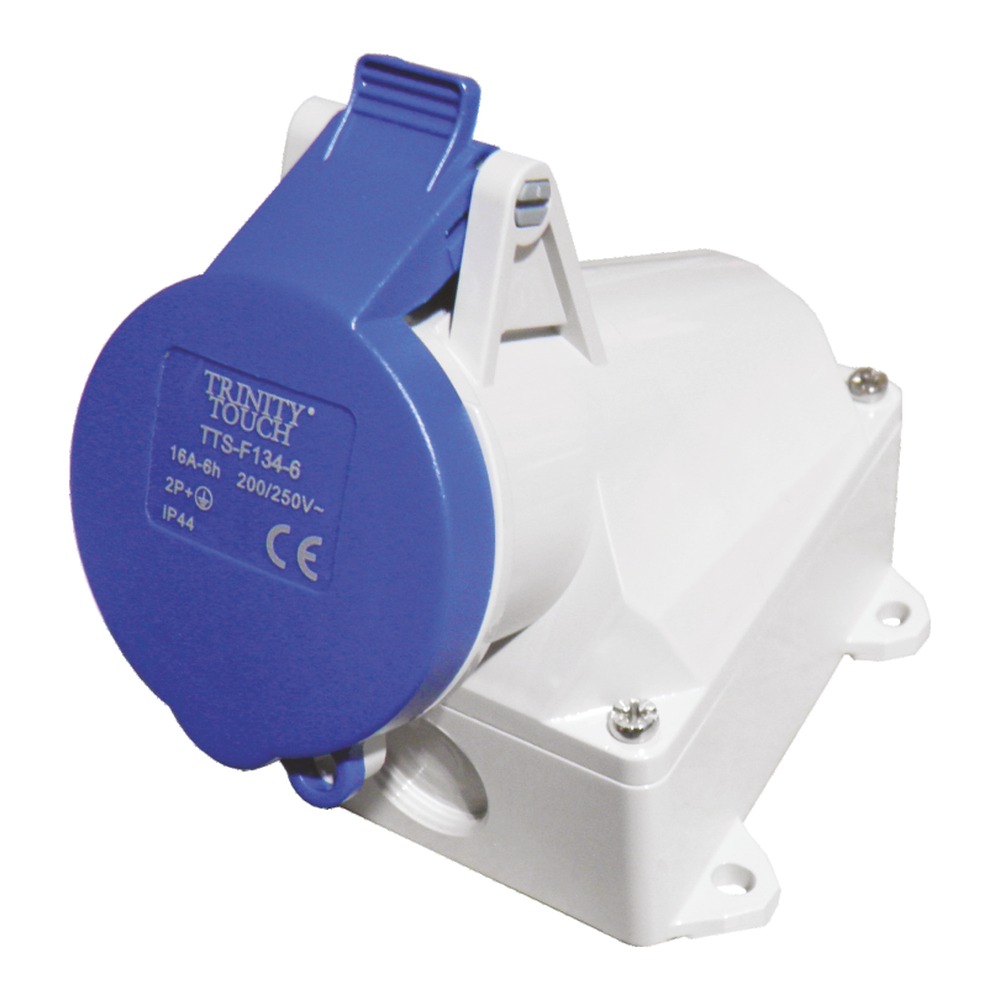

Trinity Touch 16A 3 Pin Wall Mounted Socket (Box Type) IP44 230 V
Trinity Touch 16 A 2P+E (3 pin) wall mounted socket (box type), 230 V, IP44, Blue CEE / IEC 60309 industrial connector, brass contacts, polyamide body, 6 h clock position. Mates with any IEC 60309 16 A 3-pin device.
This is the surface-mounted female outlet with its own enclosure, screwed to a wall, column or panel side; cable enters through the gland at the bottom. Trinity Touch industrial plugs and sockets are moulded to IEC 60309-1/-2 so they interchange with every CEE-standard brand on site, with the blue colour code and 6 h keyway for 230 V. Brass contacts give low resistance at full 16 A, the polyamide body passes the 850 °C glow-wire test and the cap / gasket design gives IP44 splash protection with IK08 impact resistance.
Used for welding sets, pumps, portable machines, event and site power, workshop distribution boards and panel outgoing sockets. The matching plug, connector and wall / panel sockets of the same rating are all available from stock.
Model: Trinity Touch 16 A 3-pin wall mounted socket (box type) | Article no.: 014300073 (TTS-F134-6) | Rating: 16 A, 230 V, 50–60 Hz | Poles: 2P+E (3 pin) | Colour: Blue | Dimensions: 102 × 128 mm, 95 × 115 mm fixing | Conductor: 1.5–4 mm² | Standard: IEC 60309-1 / 60309-2 (CEE) | Protection: IP44 | Impact: IK08 | Clock position: 6 h | Glow wire: 850 °C | Temperature: −25 to +50 °C | Body: thermoplastic (polyamide / PA6 + PC) | Contacts: brass (CuZn) | Approvals: CE, RoHS
Brand: Trinity Touch (Trinity Touch Pvt. Ltd., New Delhi — Make in India). Sold and supported by Arjun Trading Company, Ludhiana, Punjab — regular stock for immediate dispatch across India, GST invoice with every order. Call or WhatsApp +91 99887 74490 for price, bulk quantities and panel-wiring accessories.
Genuine stock from our Ludhiana counter (trading since 1993). GST invoice on every order, courier anywhere in India.
