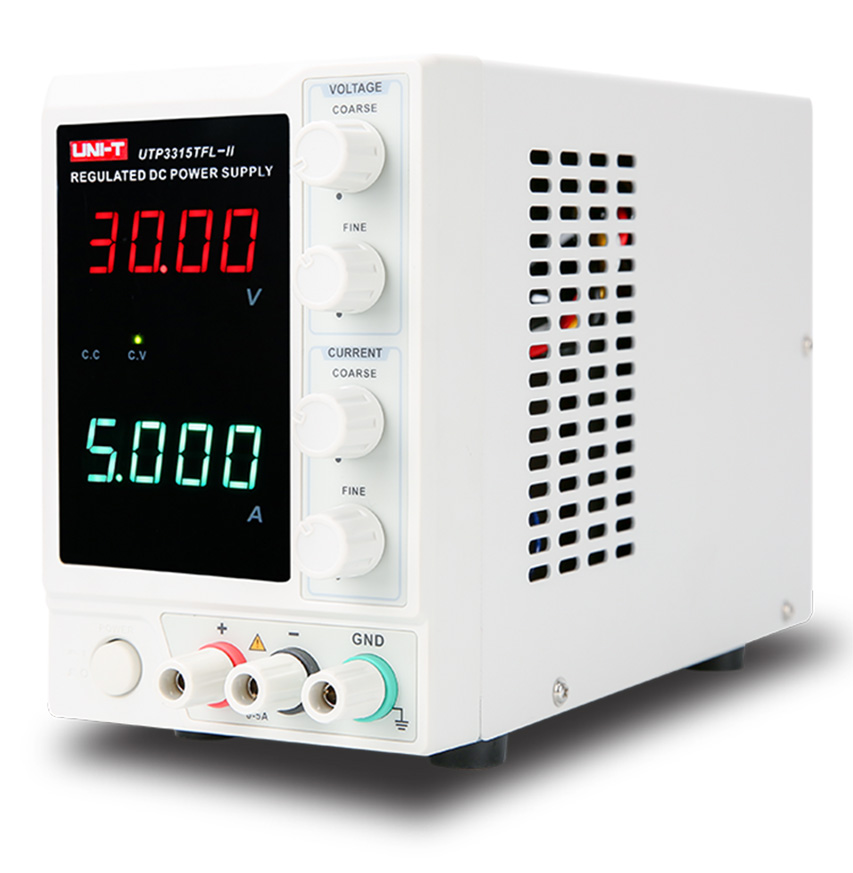

UT-P3300TFL-II DC Power Supply
The UTP3000TFL-II Series is an economical linear DC power supply with excellent quality and excellent indicators, with intuitive four-bit LED voltage, current display, short circuit overload, reverse polarity protection and other functions. High stability and high reliability.
Product Details
Model: UTP3300TFL-II
Type: Programmable DC Power Supply
Output Channels: 3 independent outputs
Output Voltage Range: 0–32V (main channels), 0–6V (auxiliary channel)
Output Current Range: Up to 5A (main channels)
Load Regulation: ≤ 0.01% + 2mV
Line Regulation: ≤ 0.01% + 2mV
Ripple & Noise: ≤ 1mVrms
Display: Large LCD digital display
Control Mode: Constant Voltage (CV) / Constant Current (CC)
Protection: Over-voltage, over-current, and short-circuit protection
Interface: USB/RS232 (for PC communication and remote programming)
Cooling: Intelligent fan cooling system
Compliance: CE, IEC safety standards
Key Features
Triple-output design with independent or parallel/series operation
High stability and low ripple for accurate testing
Large LCD display for real-time monitoring of voltage and current
Intelligent programming and remote control capability
Multiple safety protections to ensure reliability
Compact, durable design for bench or rack mounting
Applications
Research and development laboratories
Electronics testing and troubleshooting
Educational and training institutions
Production line quality testing
Power supply for communication equipment, sensors, and modules
