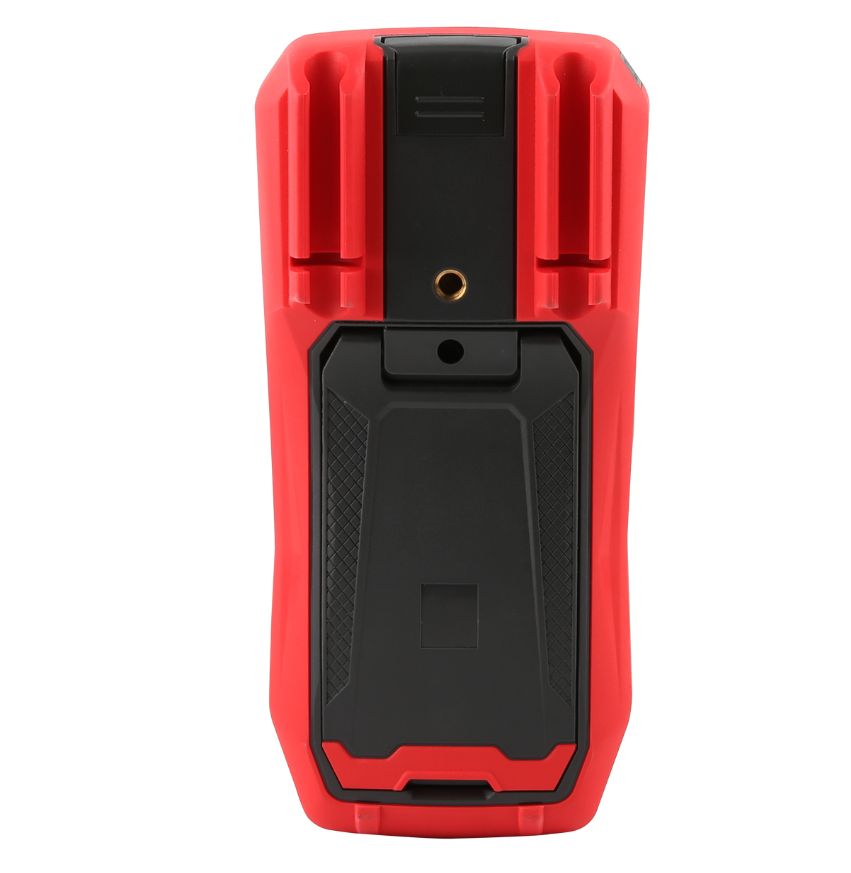

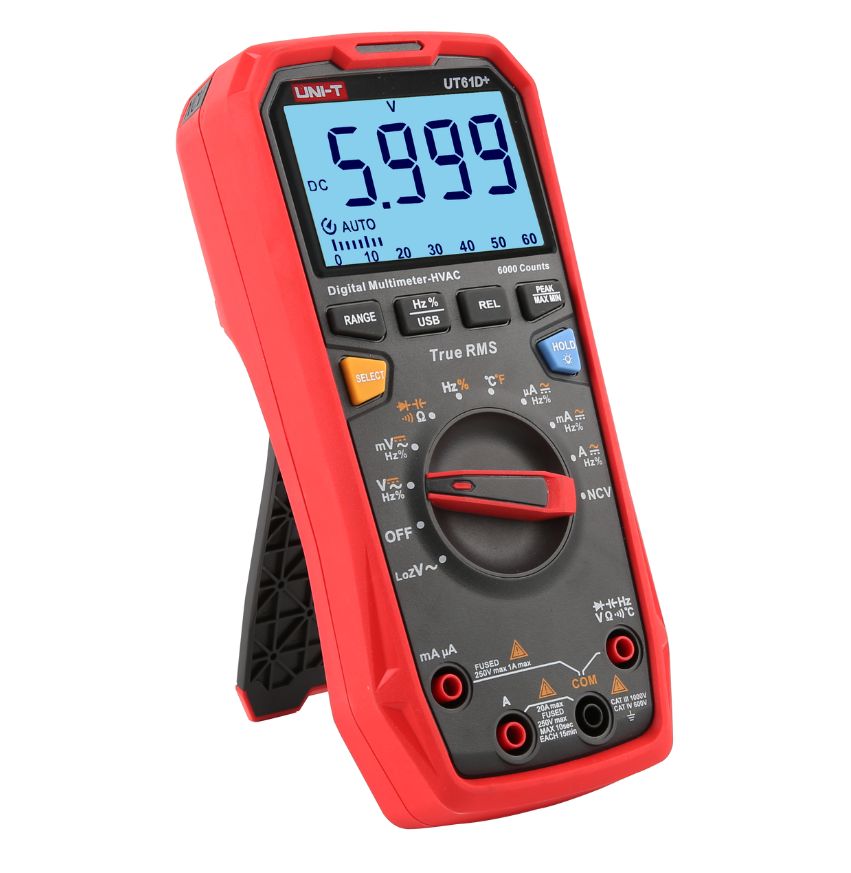

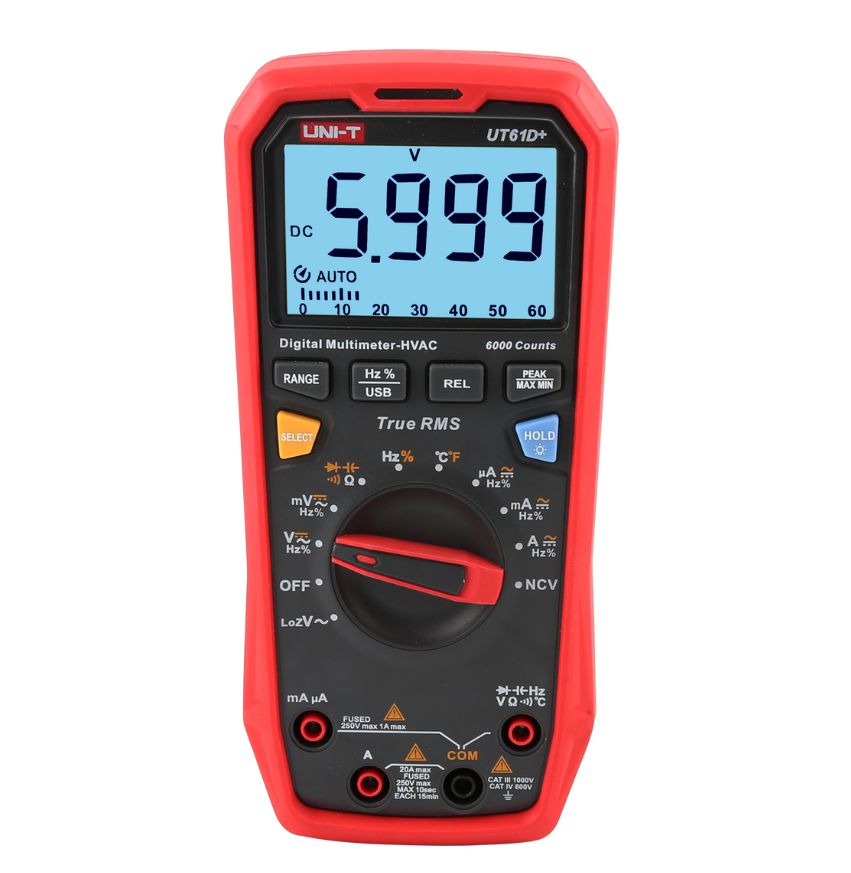

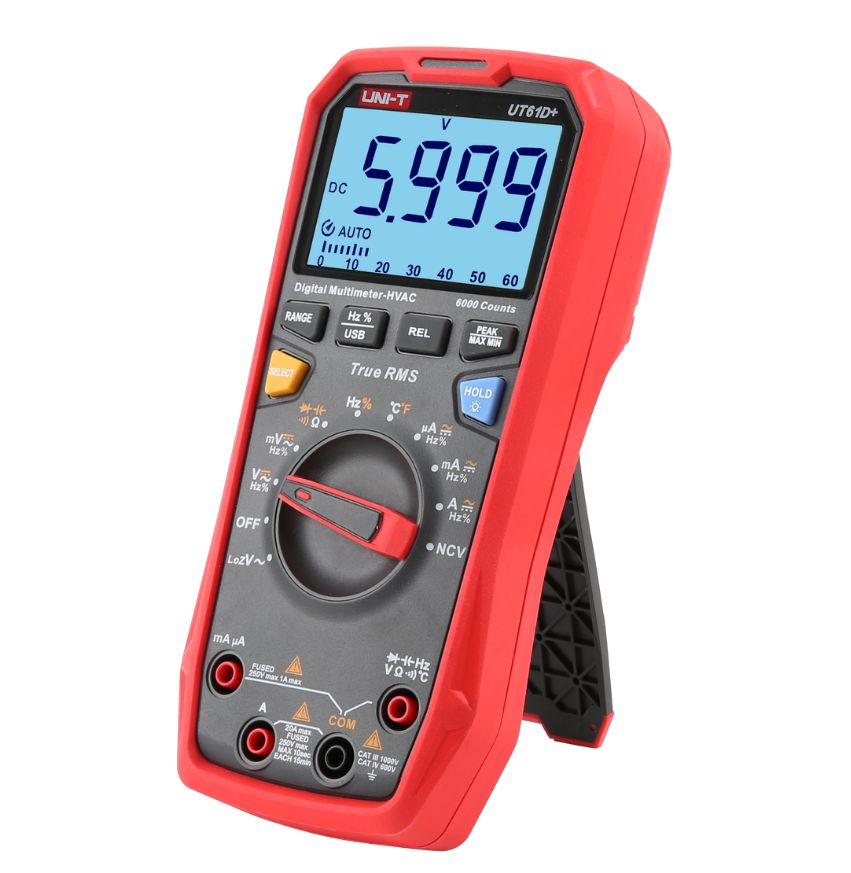

UT61D+
- Category: Multi Meters
- Brand: UNI-T
- Minimum quantity: 1
- Price: ₹ 4850
UT61+ Series 1000V True RMS Digital Multimeters
UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC.
Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
Models in UT61+ series: UT61B+, UT61D+, UT61E+
Features of UT61+ Series 1000V True RMS Digital Multimeters
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
Specifications of UT61+ Series 1000V True RMS Digital Multimeters
| Specifications | Range | UT61B+ | UT61D+ | UT61E+ |
| AC voltage (V) | 1000V | ±(1%＋3) | ±(1%＋3) | ±(0.8%＋10) |
| DC voltage (V) | 1000V | ±(0.5%＋3) | ±(0.5%＋3) | ±(0.05%＋5) |
| AC current (A) | 10A | ±(1.2%＋5) | ||
| 20A | ±(1.2%＋5) | ±(0.8%＋10) | ||
| DC current (A) | 10A | ±(1%＋2) | ||
| 20A | ±(1%＋2) | ±(0.5%＋10) | ||
| Resistance (Ω) | 60MΩ | ±(1%＋2) | ±(1%＋2) | |
| 220MΩ | ±(0.5%＋10) | |||
| Capacitance (F) | 60mF | ±(3%＋5) | ±(3%＋5) | |
| 220mF | ±(3%＋5) | |||
| Frequency (Hz) | 10MHz | ±(0.1%＋4) | ±(0.1%＋4) | |
| 220MHz | ±(0.01%＋5) | |||
| Duty cycle (%) | 0.1%~99.9% | ±(2%＋5) | ±(2%＋5) | ±(2%＋5) |
| Temperature (℃/℉) | -40℃~1000℃ | ±(1%＋3) | ||
| -40℉~1832℉ | ±(1%＋6) | |||
| Display count | 6000 | 6000 | 22000 | |
| Bandwidth (Hz) | 40Hz~500Hz | 40Hz~1kHz | 40~10kHz | |
| LPF ACV | √ | |||
| LoZ ACV | √ | |||
| ACV+DCV | √ | |||
| Transistor hFE | √ | |||
| Peak Hold | √ | √ | ||
| Analog bar | 31 | 31 | 46 | |
| General Characteristics | ||||
| Power | 1.5V battery (R03) x 4 | |||
| Product net weight | 350g | |||
| Product size | 190mm x 90mm x 50mm | |||
| Standard accessories | Battery, gold plated test leads, USB cable, temperature probe (UT61D+), multi-purpose socket (UT61E+), English manual | |||
| Standard individual packing | Gift box, cloth bag | |||
| Standard quantity per carton | 20pcs | |||
| Standard carton measurement | UT61+ series: 480mm x 370mm x 365mm | |||
| Standard carton gross weight | UT61+ series: 15.2kg | |||
| Optional accessories | Bluetooth/APP | |||
