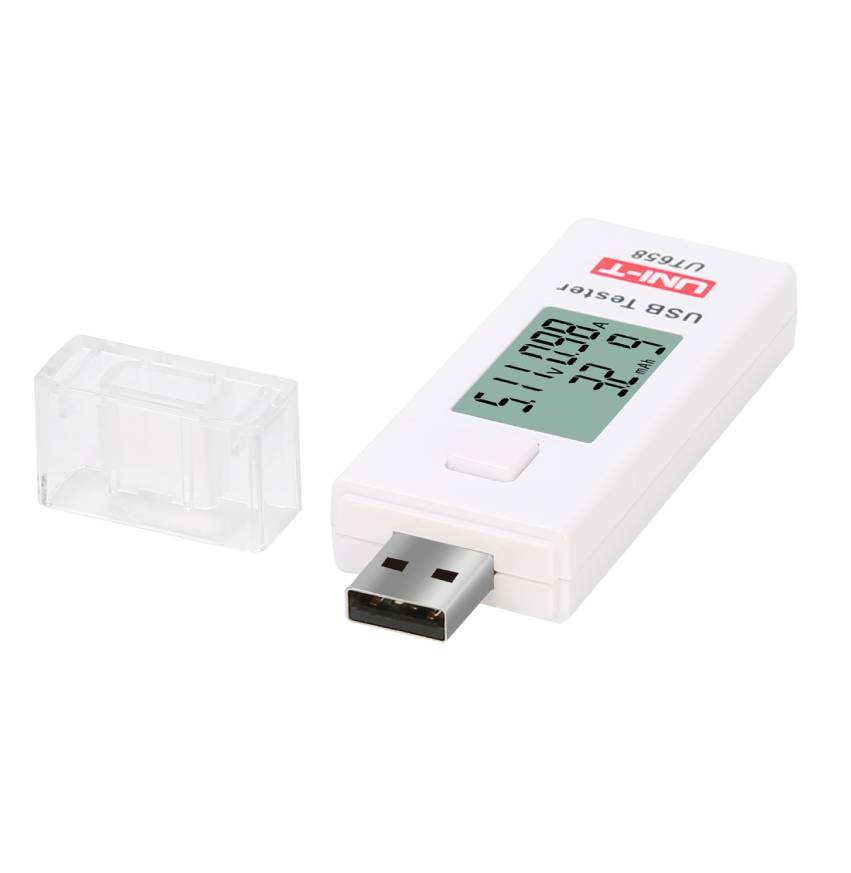

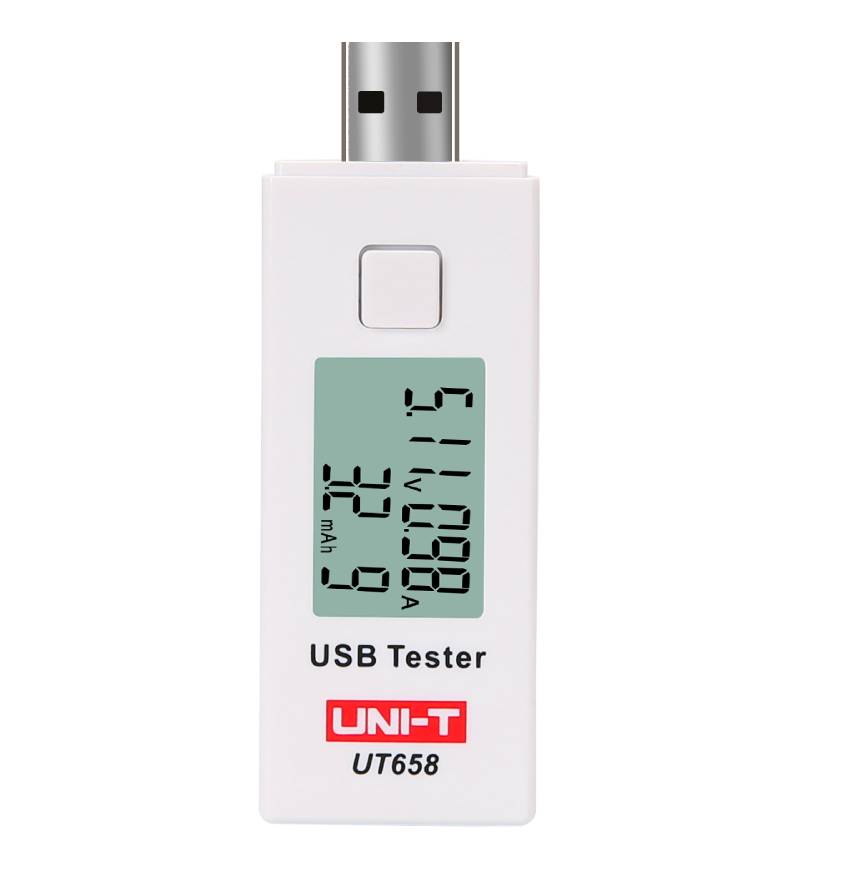

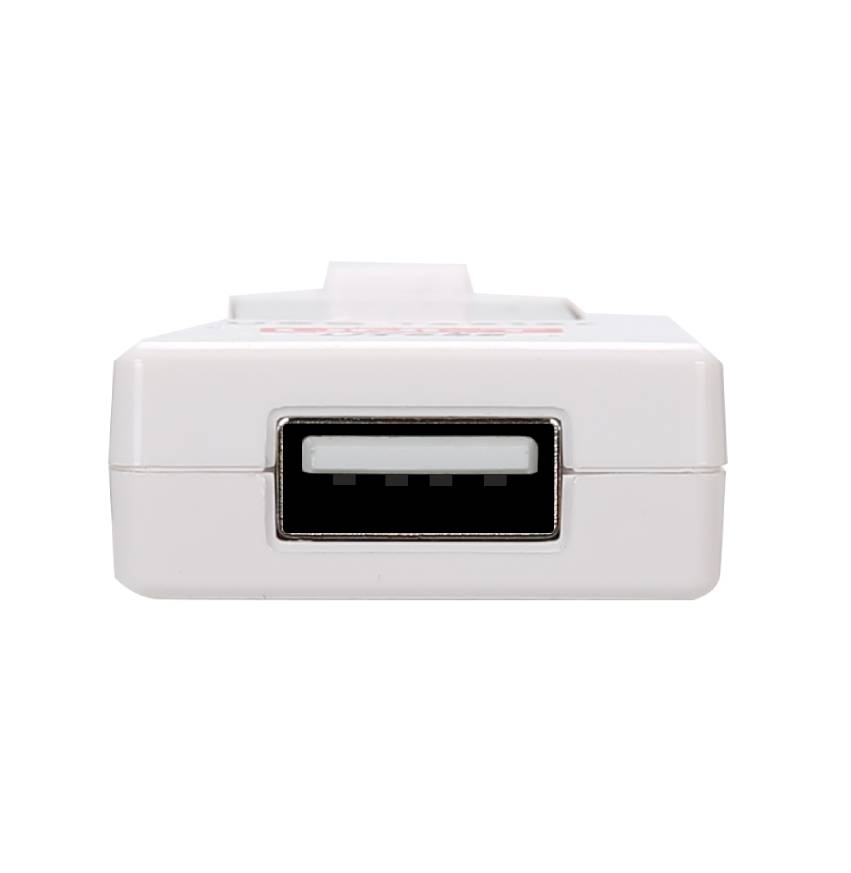

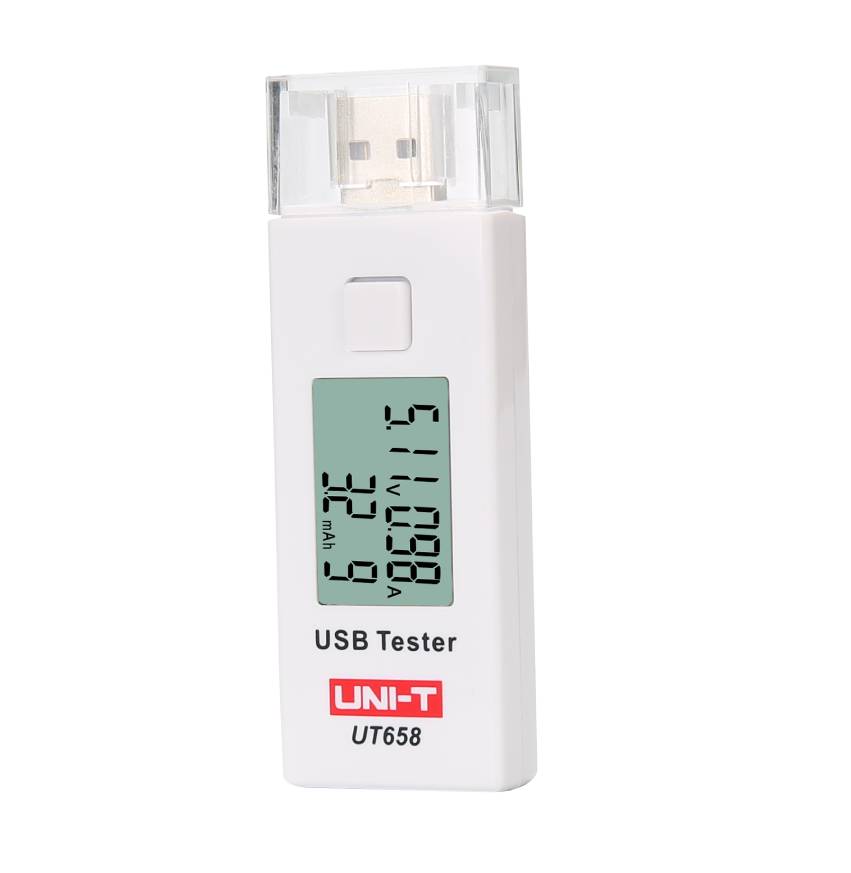

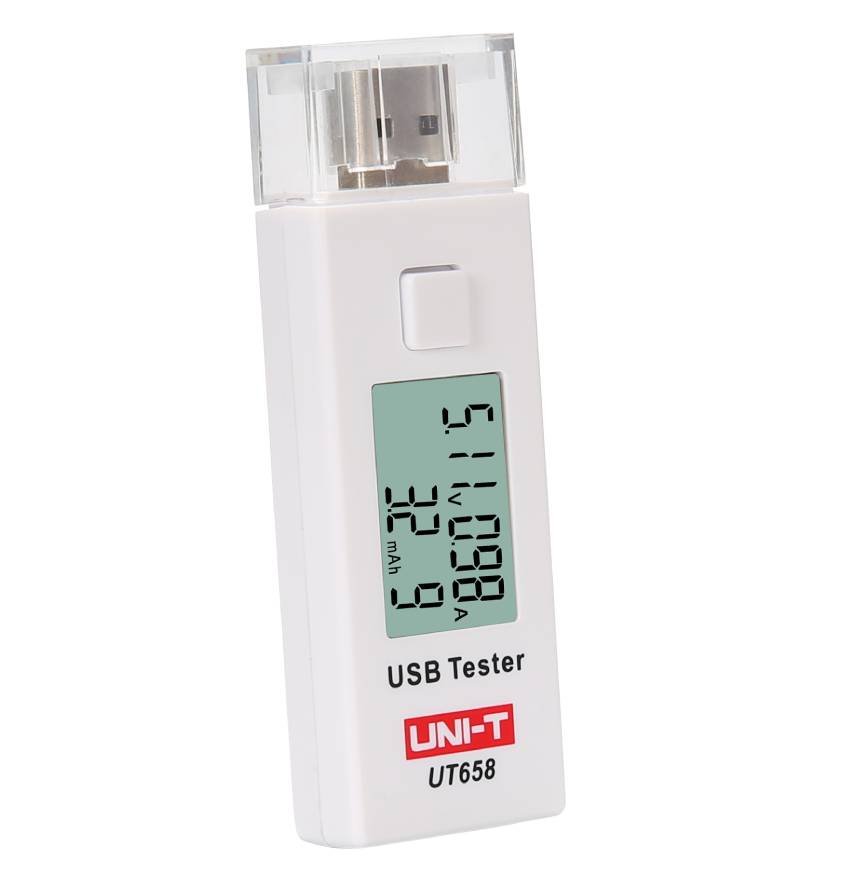

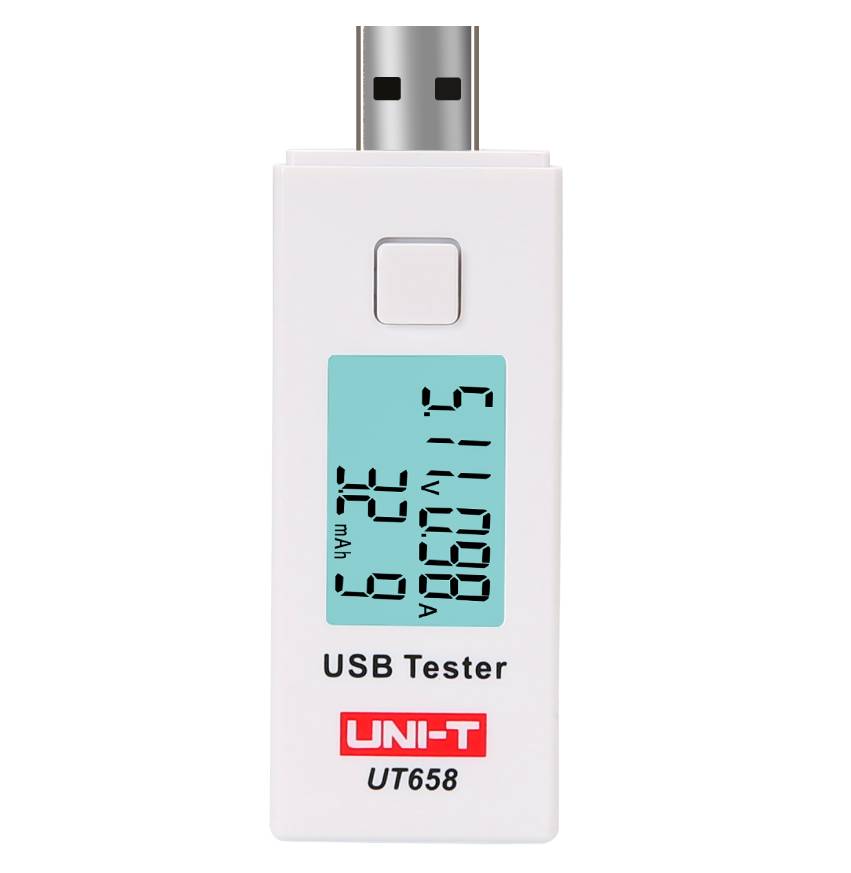

UT658
- Category: BATTERY TESTERS
- Brand: UNI-T
- Minimum quantity: 1
- Price: βΉ 440
The second generation UT658 USB testers can inspect USB chargers, portable power sources, USB type A and C cables and other electronic charging devices. UT658 measures output voltage, current, energy, capacity, circuit equivalent resistance, D+ and D- voltages of USB data cables. This series is designed to be precise, reliable, stable, and portable. They are great tools for applications such as manufacturing veriο¬cation, engineering testing, and DIYers.
Features of UT658 Series USB Testers
β Type-A/C interface
β CE certification
β 10 sets of data storage
β Loop equivalent resistance measurement (1-480Ξ©)
β Same screen shows voltage, current, power, capacity, etc.
β Support fast charge protocol
Specifications of UT658 Series USB Testers
| Specifications | Description | UT658 |
| Input & Output ports (Type A) | β | |
| Input & Output ports (Type C) | ||
| Data/charging protocol | 2.0/3.0 | |
| Voltage range | 4~24VDC, resolution: 0.01V | β |
| Current range (Type-A) | 0.05~3ADC, resolution: 0.01A | β |
| Current range (Type-C) | 0.05~5ADC, resolution: 0.01A | |
| Capacity | 0~99999mAh, resolution: 1mAh | β |
| Energy | 0~1000Wh | β |
| Circuit equivalent resistance measurement | 1~480Ξ© | β |
| USB data cable voltage (D+, D-) | 0~3.3V | β |
| Data storage | 10 sets | β |
| Electrical load (UT658LOAD only) | 0.5A, 1A, 2A, 3A (Max power: 60W) | |
| Maximum recording time | 99h, 59min, 59sec; resolution: 1s | β |
| Fast charge protocol (Type-A) | QC 3.0 fast charge protocol | β |
| Fast charge protocol (Type-C) | QC 4.0 fast charge protocol |
| General Characteristics | |
| Product color | White |
| Product net weight | UT658A/C: 50.6g; UT658DUAL: 65.8g; UT658LOAD: 114.4g |
| Product size | UT658A/C: 93mm x 45mm x 13mm; UT658DUAL: 93mm x 55mm x 13mm;UT658LOAD: 122mm x 53mm x 27mm |
| Standard individual packing | Gift box, English manual |
| Standard quantity per carton | 60pcs |
| Standard carton measurement | UT658A/C/DUAL: 280mm x 220mm x 225mm; UT658LOAD: 320mm x 300mm x 225mm |
| Standard carton gross weight | UT658A/C: 4kg; UT658DUAL: 5.5kg; UT658LOAD: 9kg |
