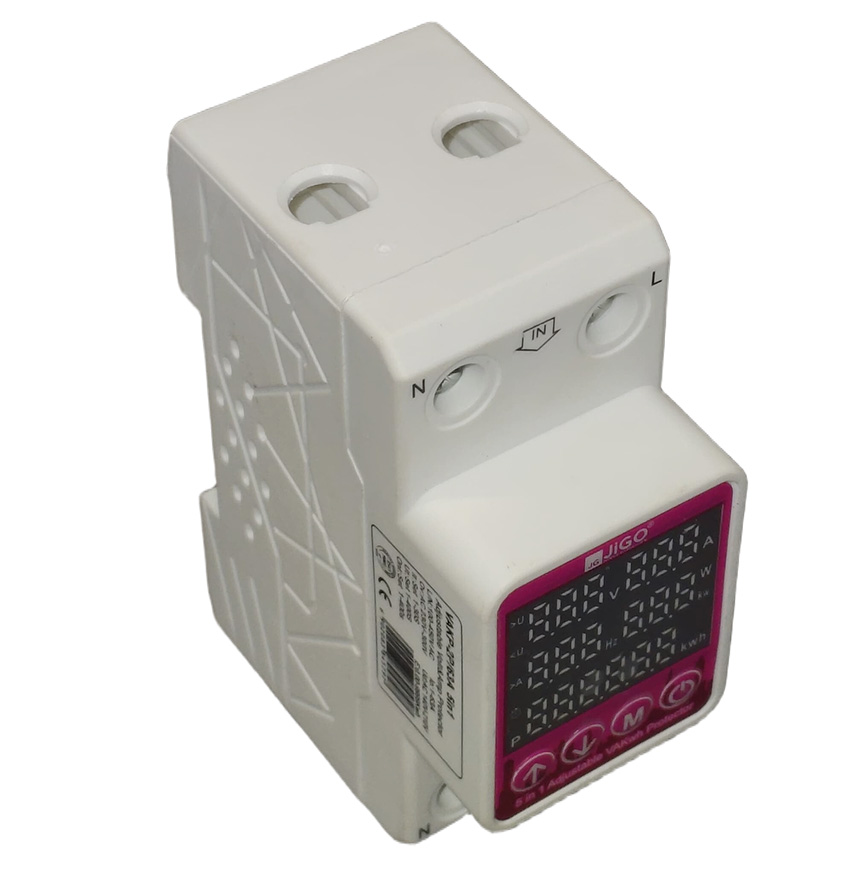

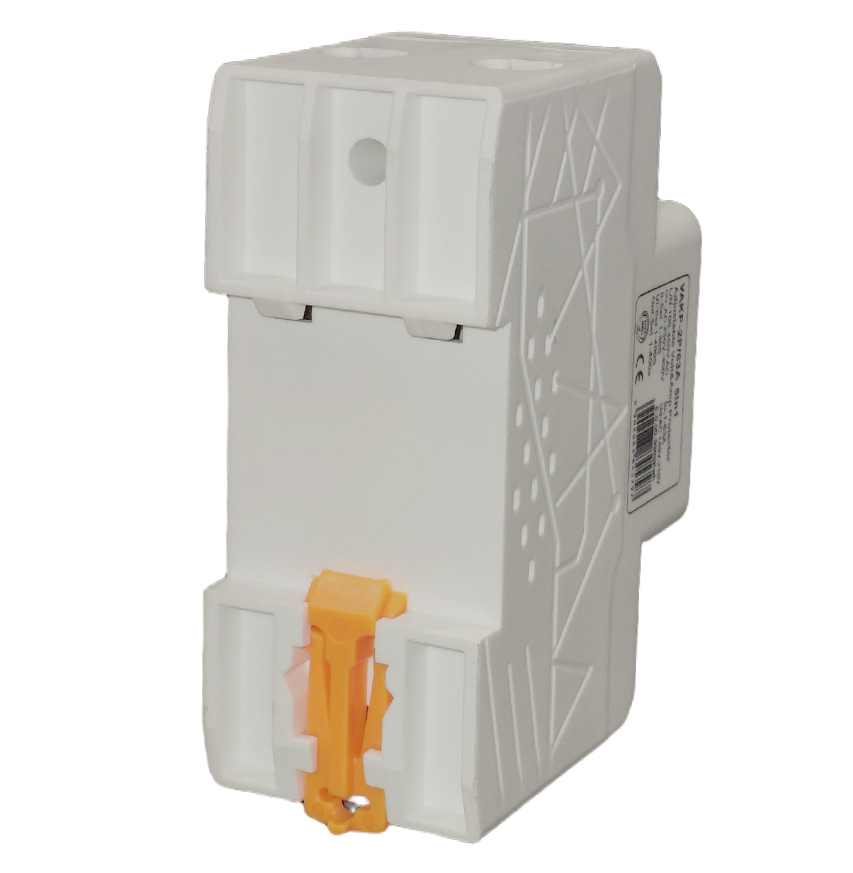

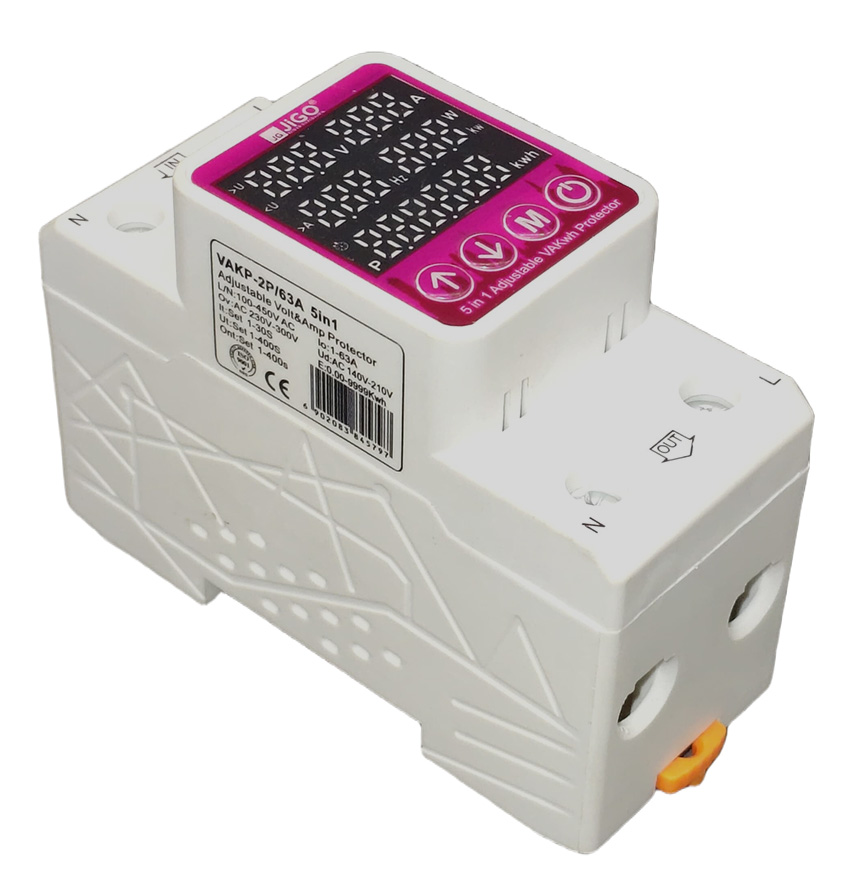

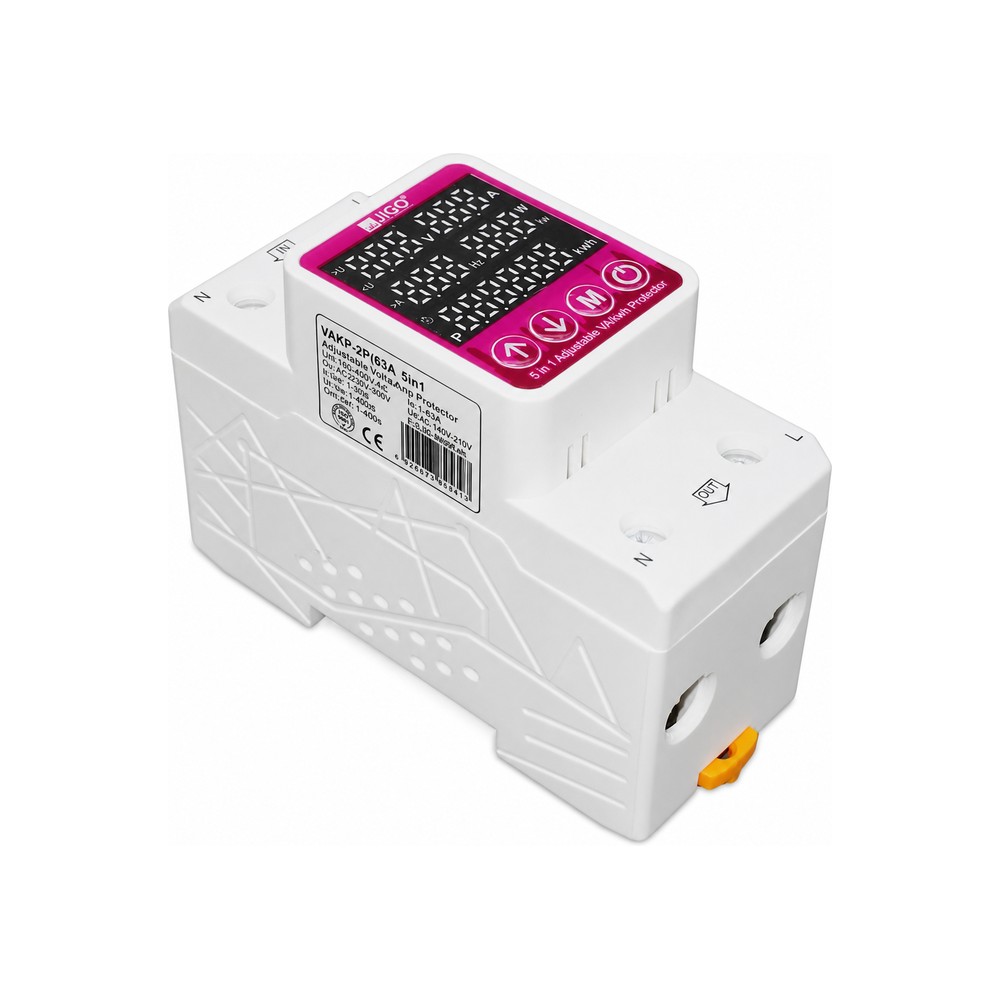

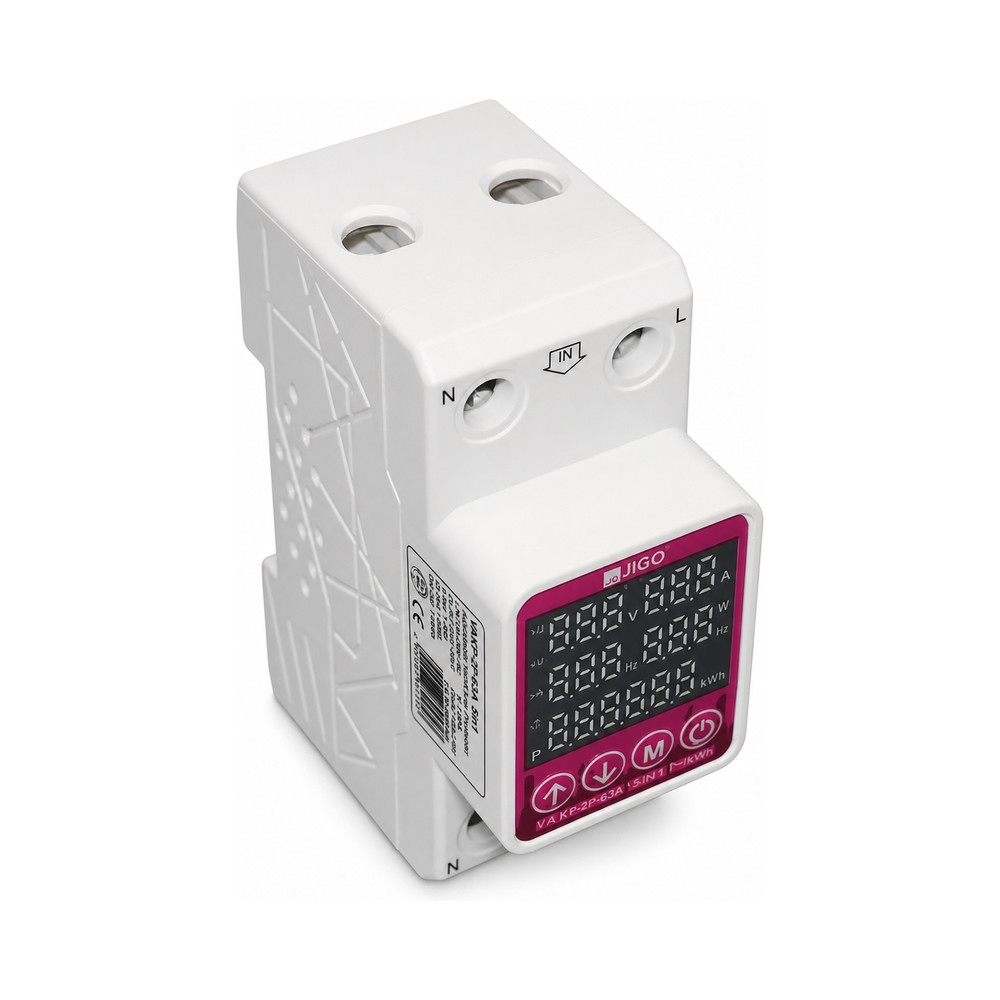

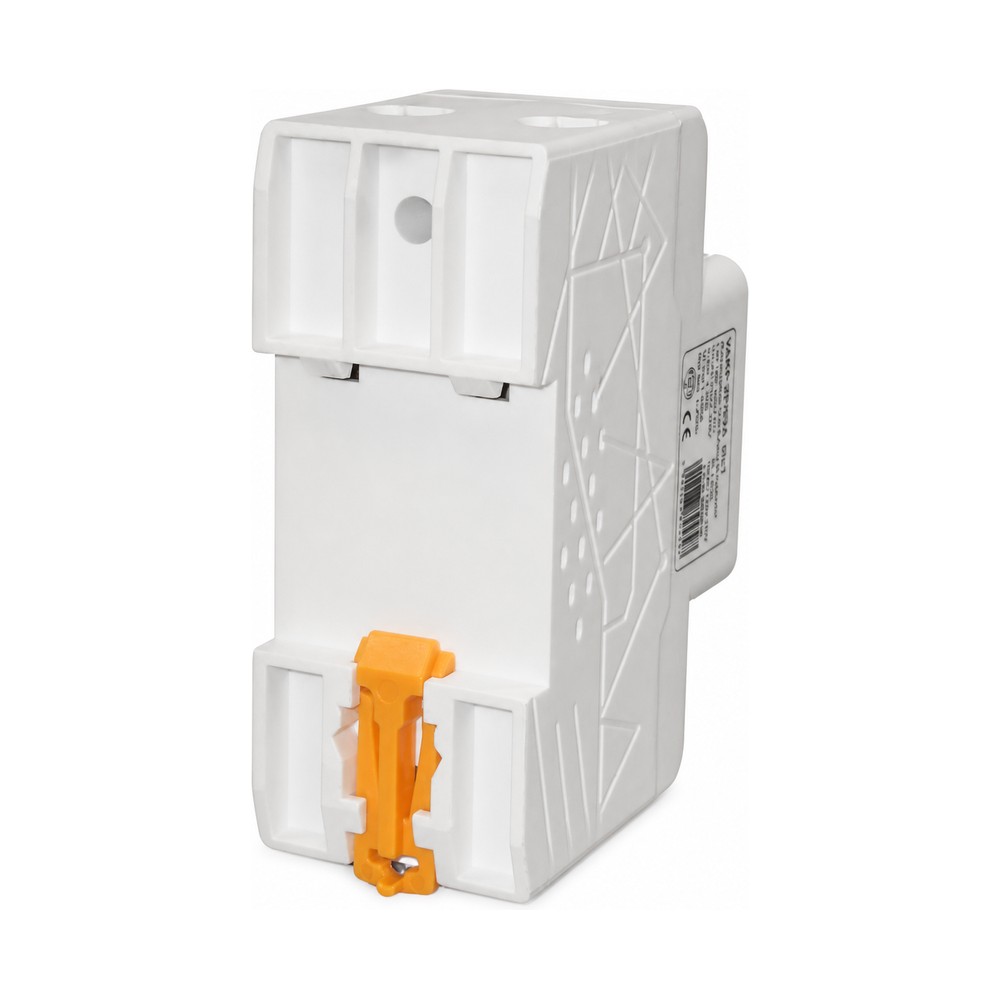

VAKP-2P-63A (5 IN 1) Protection Meter
The VAKP-2P-63A (5 in 1) Protection Meter is a multifunctional device designed to monitor and protect electrical circuits from over-voltage, under-voltage, over-current, power surges, and phase faults. Combining five protection features into a single compact unit, it ensures reliable performance for residential, commercial, and industrial applications.
Product Details
Model: VAKP-2P-63A
Type: 5-in-1 Voltage & Current Protection Meter
Rated Current: 63A
Rated Voltage: AC 230V (Single-phase)
Protection Functions: Over-voltage, under-voltage, over-current, leakage, power-off delay
Display: Large LED digital display for real-time monitoring
Adjustable Settings: User-configurable trip limits and delay times
Response Time: <0.5 seconds
Reset Mode: Auto or manual reset option
Relay Output: Internal relay for load disconnection
Mounting: 35mm DIN rail (EN 60715 standard)
Housing Material: Flame-retardant ABS, IP50 front protection
Operating Temperature: -20°C to +60°C
Key Features
5 protection functions in a single device
High-accuracy voltage and current monitoring
Fast response to prevent equipment damage
Easy installation with DIN rail mounting
Adjustable trip points and reset modes
Large LED display for clear status indication
Applications
Home and office electrical panels
Small industrial machines and equipment
Air conditioners, pumps, and compressors
Commercial shop wiring and control boards
Renewable energy inverter protection
Sensitive electronics protection
