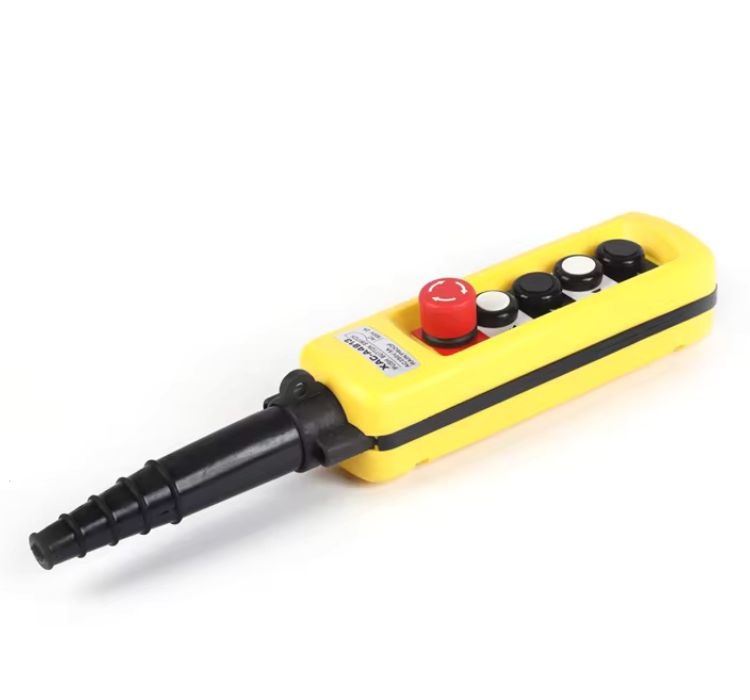

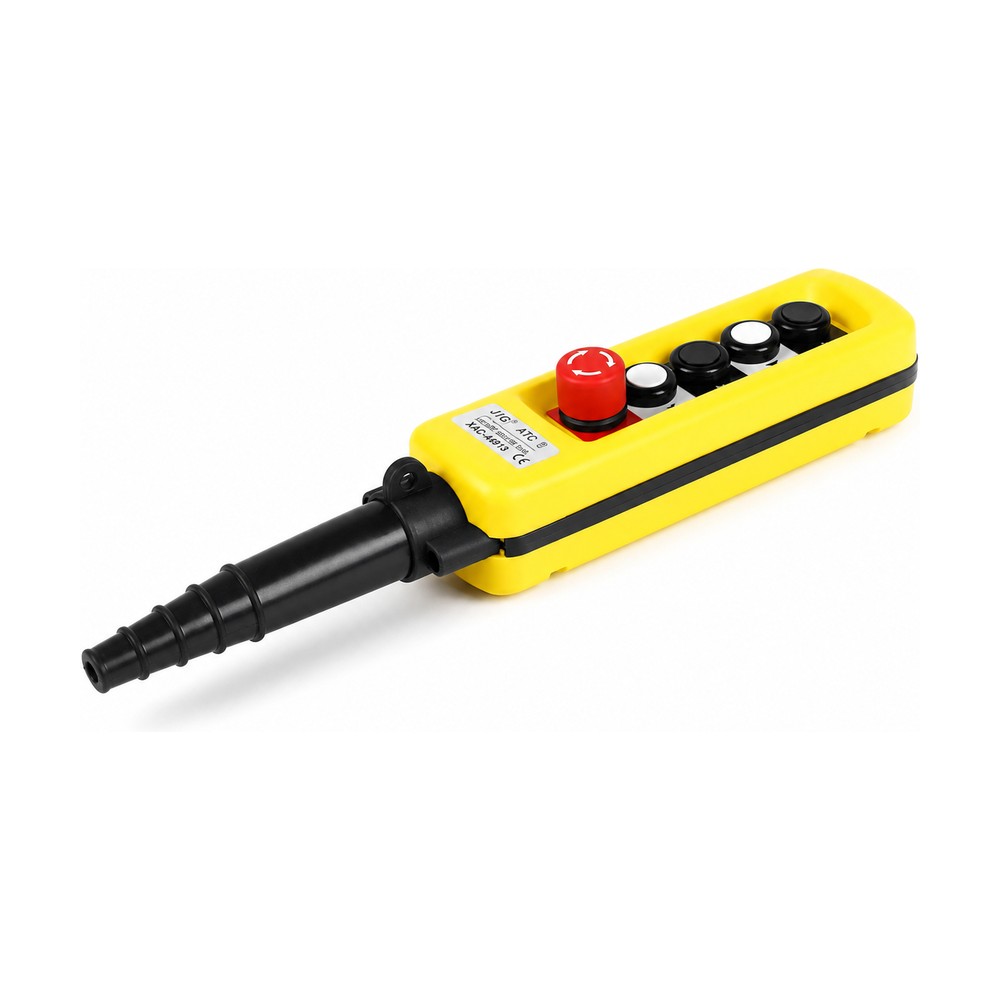

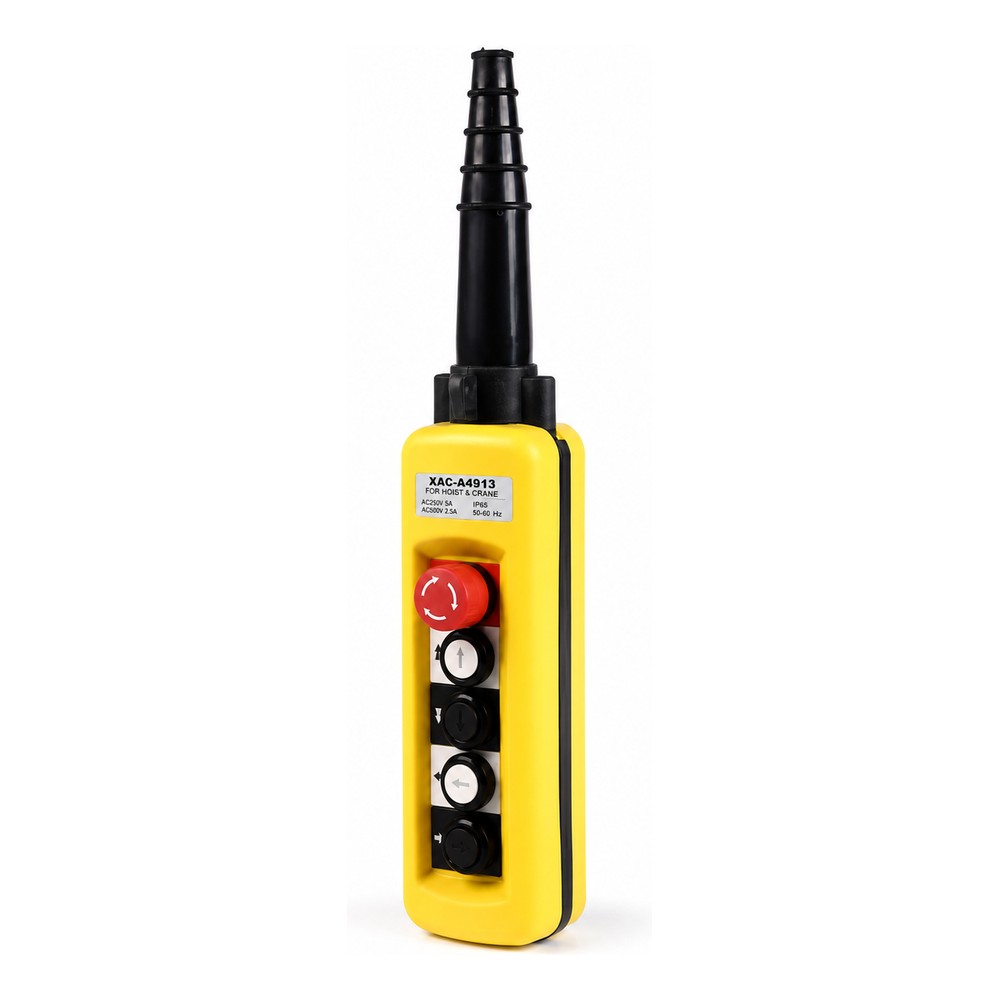

JiGO XAC-A4913 Crane Pendant Control Station
The XAC-A4913 is a four-button, two-speed IP67 crane pendant station covering two motions, with a red mushroom emergency stop. Creep and full speed from a two-stage press on every button.
On a single-girder crane with two-speed hoist and travel motors, the operator wants creep speed for the last few hundred millimetres and full speed for everything else. The XAC-A4913 gives both from the same four buttons, with no separate speed selector to reach for.
On this station
- Four two-stage buttons — first stage for creep, second stage for full speed, on both motions
- Red mushroom emergency stop with twist release at the head
- IP67 sealed enclosure for outdoor and wash-down duty
- Momentary contacts — every motion button is spring return, so the movement stops the moment the operator lets go
- Mechanical interlock — opposing directions are interlocked inside the station, so up and down cannot be commanded together
- Strain relief — the cable entry takes the weight of the pendant cable through a moulded grip, not through the terminals
The station is sealed to IP67 throughout, so it is suited to outdoor gantries and wash-down process areas as well as covered workshops. Every button is spring return and the opposing pairs are mechanically interlocked.
Wiring and selection
Two-speed stations need twice the control cores of a single-speed station. Confirm the pendant cable before changing over, and remember that the crane panel needs two-speed contactor logic or a drive configured for two preset references.
| Model | XAC-A4913 |
|---|---|
| Product type | IP67 crane pendant control station, two speed, XAC series |
| Pushbuttons | Four two-stage motion buttons plus a red mushroom emergency stop |
| Motions controlled | Two (hoist and travel) at two speeds each |
| Emergency stop | Red mushroom head, twist to release |
| Contact action | Momentary, spring return; normally open and normally closed elements |
| Contact rating | 5 A at 380 V AC, as marked on the station |
| Enclosure | Impact-resistant moulded body, rainproof; IP65 class |

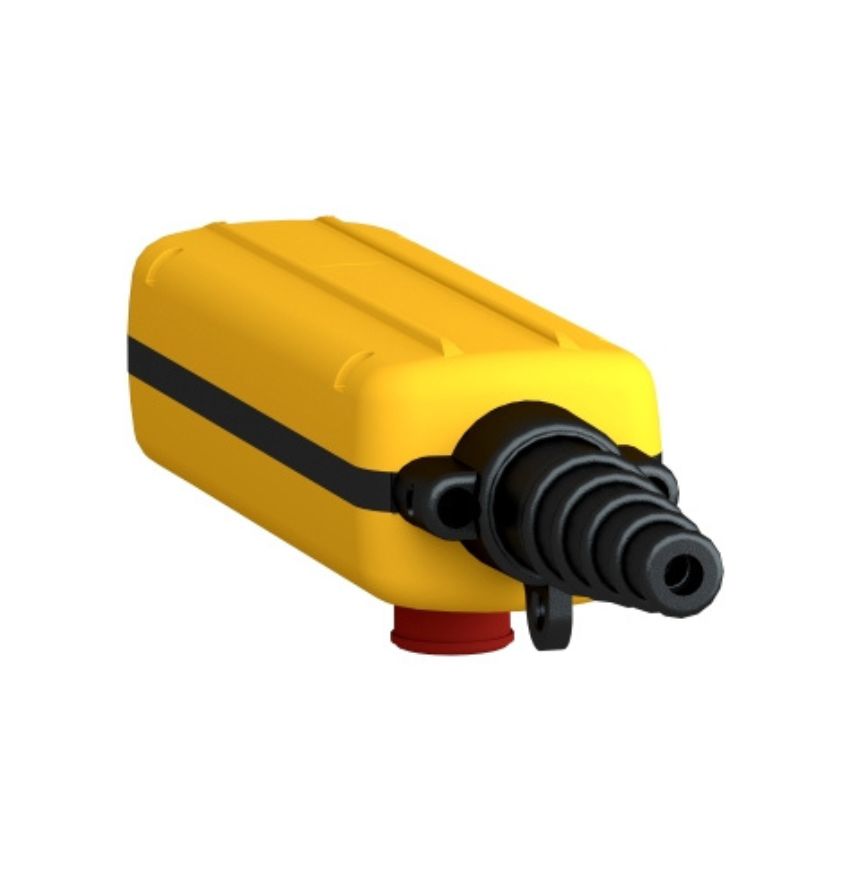

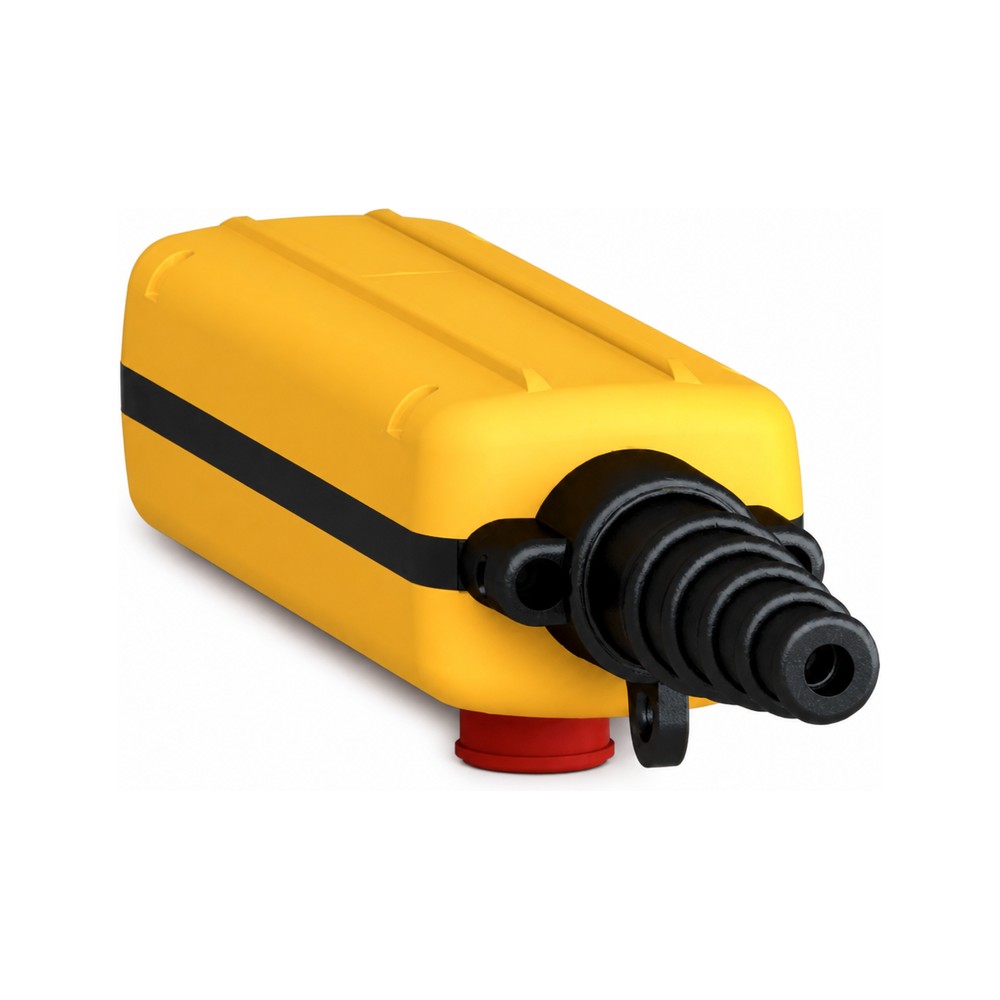

| Cable entry | Top entry with sealed gland and strain-relief grip |
| Suspension | Hangs on the pendant cable; strain-relief cord or chain recommended |
| Brand | JiGO |
| Protection rating | IP67 — sealed against dust and temporary immersion |
| Speed control | Two speed — two contact stages per direction on every motion |
| Supplied by | ATC India, Ludhiana, Punjab |
| Enquiries | +91 99887 74490 · www.arjuntradingcompany.com |
The XAC-A4913 is used on two-speed EOT and monorail cranes handling delicate or closely fitted loads, in outdoor, food, chemical and textile plant.
- Always use a strain wire: suspend the station on a steel cord or chain anchored to the trolley, and let the electrical cable hang slack beside it. A pendant hanging on its own conductors will fail at the terminals.
- Switch coils, not motors: the station drives contactor coils. Size the contactors and overloads for the motor; the pendant only has to carry the coil current.
- Legends: button legends can be supplied as UP/DOWN/EAST/WEST/NORTH/SOUTH, as arrows, or blank for your own marking. Say which when ordering.
- Availability: normally 7–10 days from confirmed order; fast-moving sizes are usually in stock in Ludhiana.
- Ordering: prices exclude GST. Call ATC India on +91 99887 74490 or send the model number through www.arjuntradingcompany.com for a quotation.
