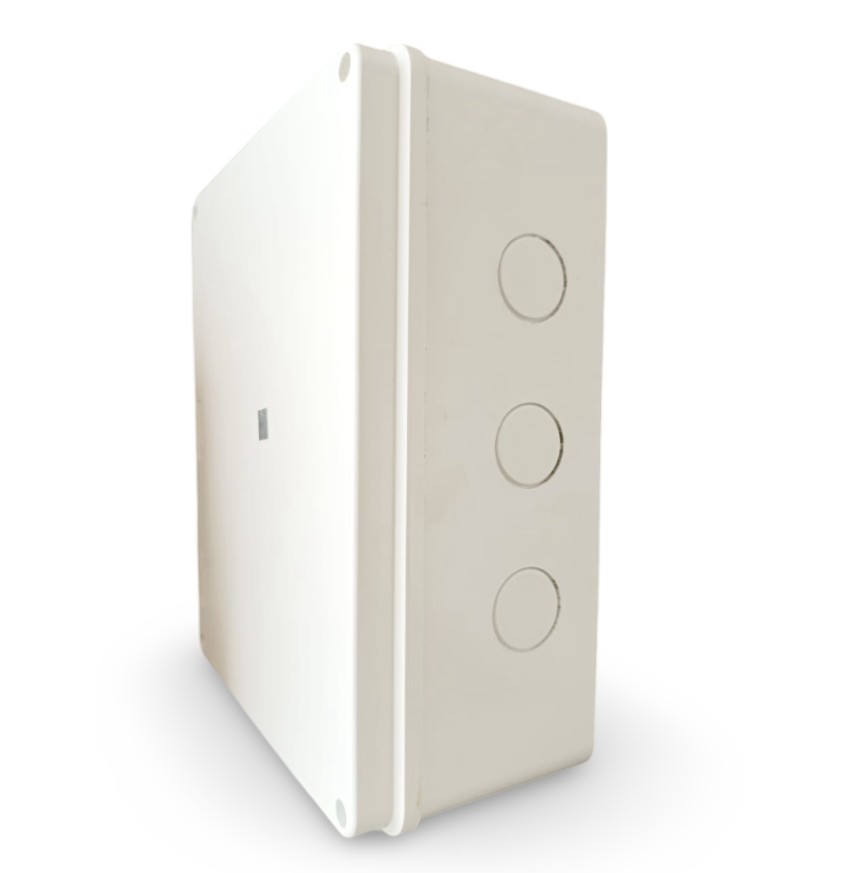

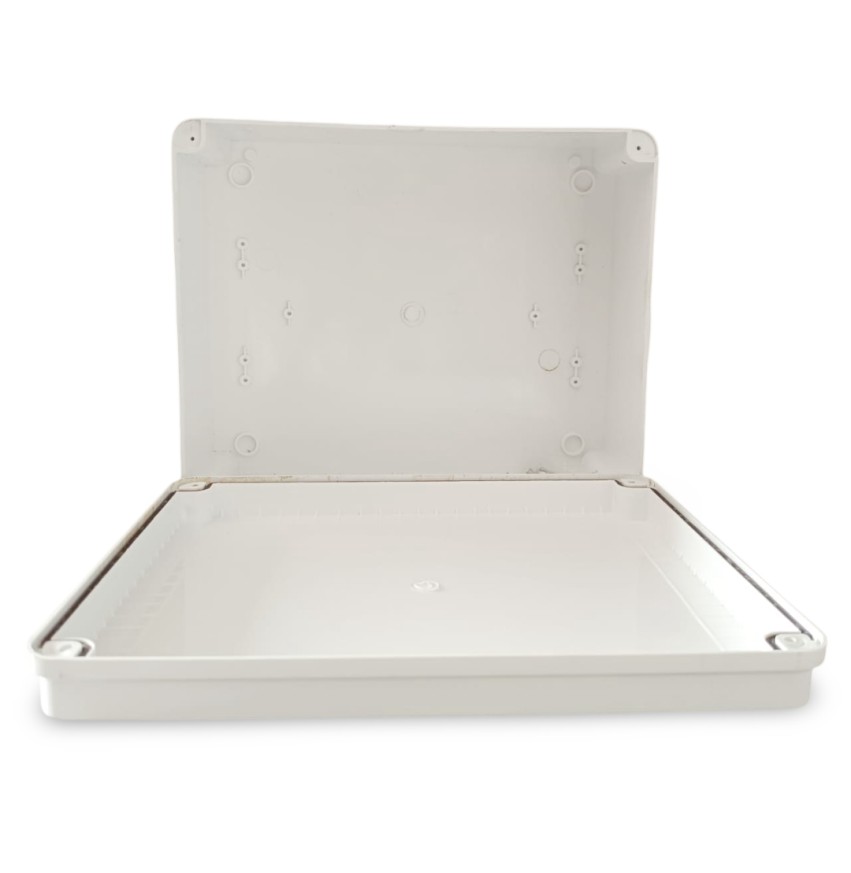

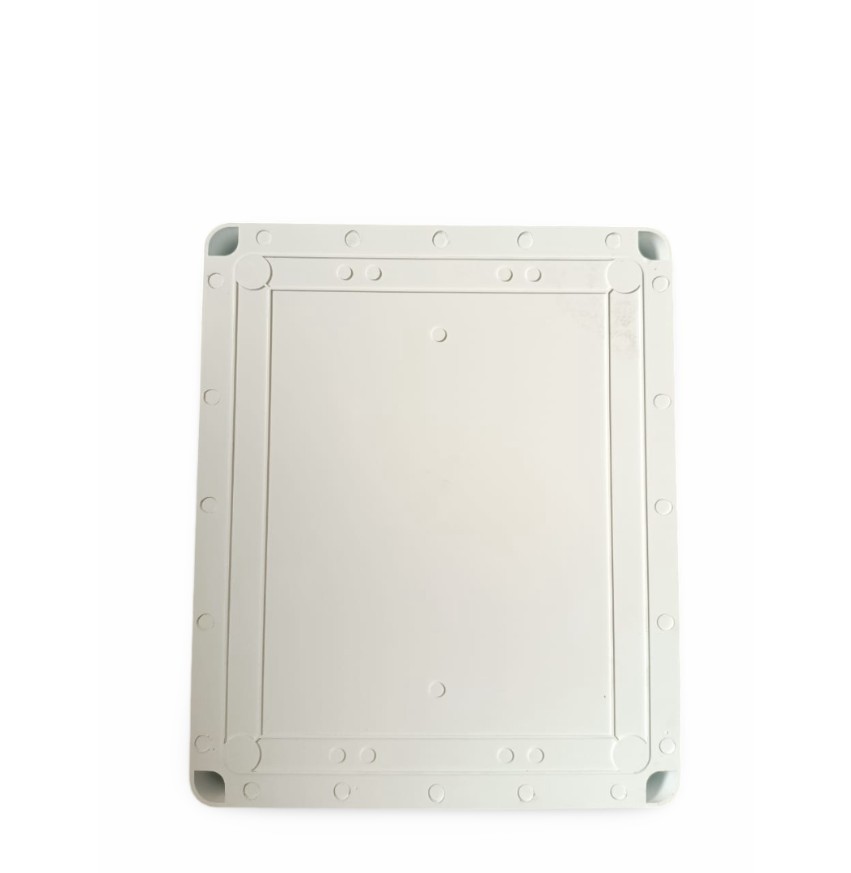

ABS-300X250X120 Waterproof Junction Box
The ABS-300X250X120 is a heavy-duty, weather-resistant electrical enclosure made from high-impact ABS plastic. With its large dimensions of 300mm x 250mm x 120mm, it offers ample space for complex electrical and electronic assemblies. Ideal for both indoor and outdoor installations, this box is engineered to protect components from dust, moisture, and mechanical damage.
Product Details:
Material: Industrial-grade ABS plastic (UV stabilized, flame retardant)
Dimensions: 300mm (L) x 250mm (W) x 120mm (H)
Color: Light Grey (RAL 7035) standard; other colors on request
Ingress Protection: IP65 or IP66 (with appropriate sealing)
Cover Type: Screw-secured lid (stainless steel/plastic screws); hinged lid option available
Mounting Options: Internal mounting bosses + external mounting lugs
Internal Features: Raised standoffs for PCB, DIN rail, or backplate
Operating Temp Range: -20°C to +80°C
Weight: ~1.5–2 kg (depending on configuration)
Cable Entry: Knockouts or custom-cut holes optional
Key Features:
Spacious interior for complex wiring and modular components
High-impact and UV-resistant ABS body for indoor/outdoor use
IP-rated protection against dust, water jets, and environmental exposure
Smooth finish for labeling, branding, or engraving
Easy to machine for switches, indicators, and cable glands
Non-conductive housing for improved electrical safety
Corrosion- and maintenance-free design
Applications:
Main distribution and sub-distribution panels
Industrial automation systems
Solar inverter and battery control enclosures
Power and communication junctions
Data and networking hardware housing
Agricultural and marine electronics enclosures
IoT and smart grid installations
Security systems and surveillance equipment
