ABS-200X155X80
- Category: ABS JUNCTION BOXES
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2000

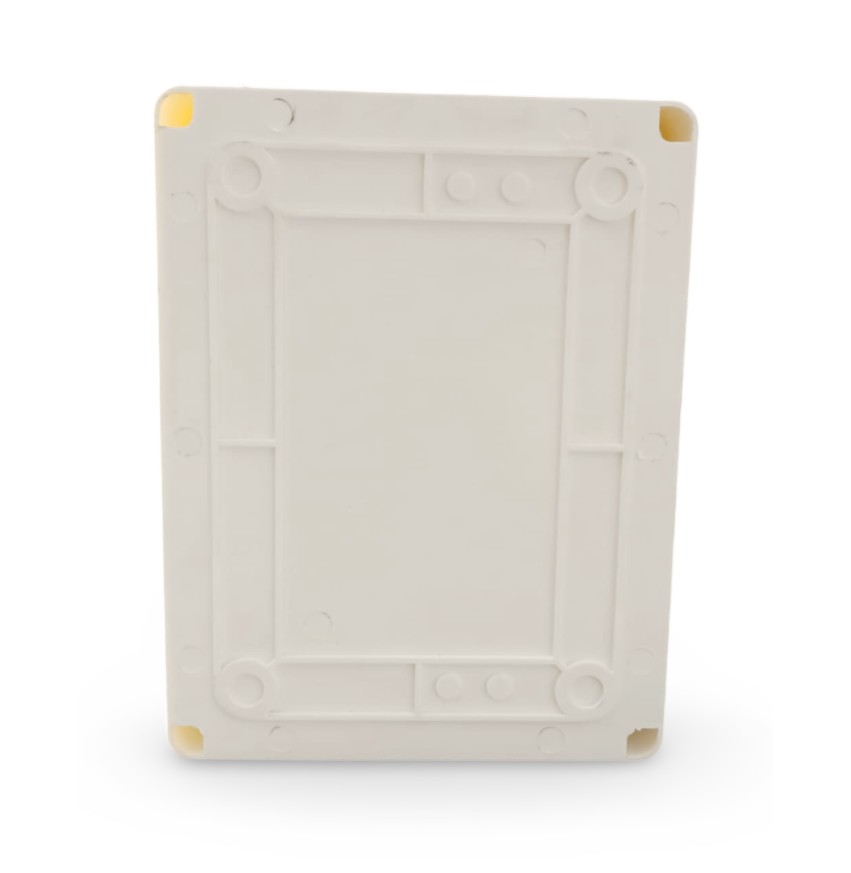

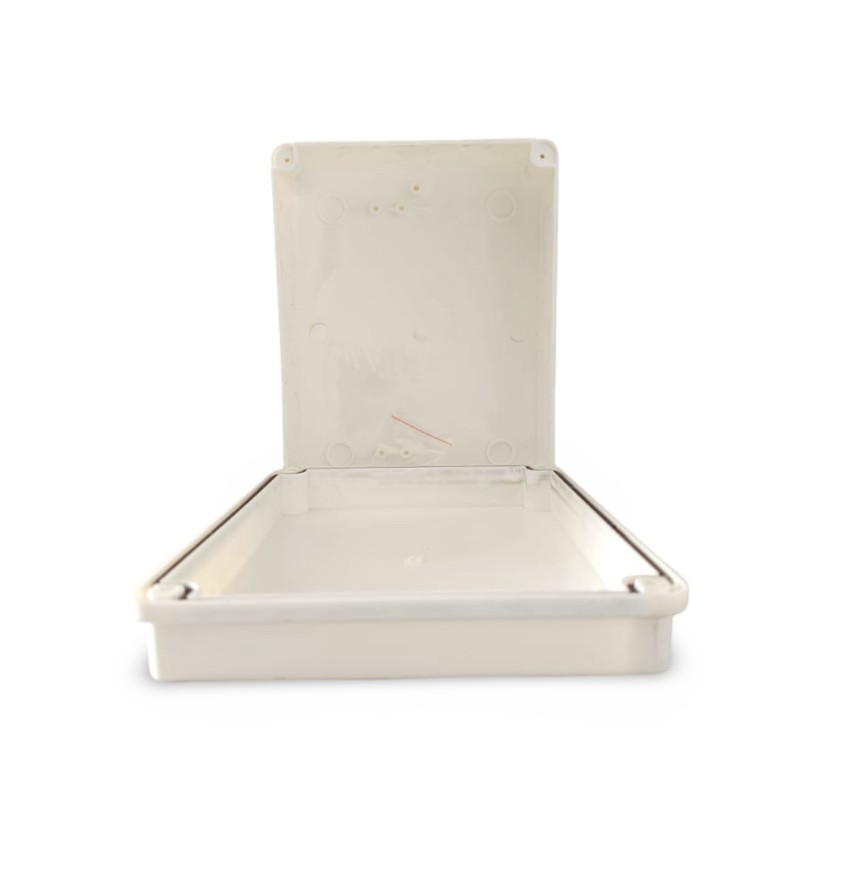

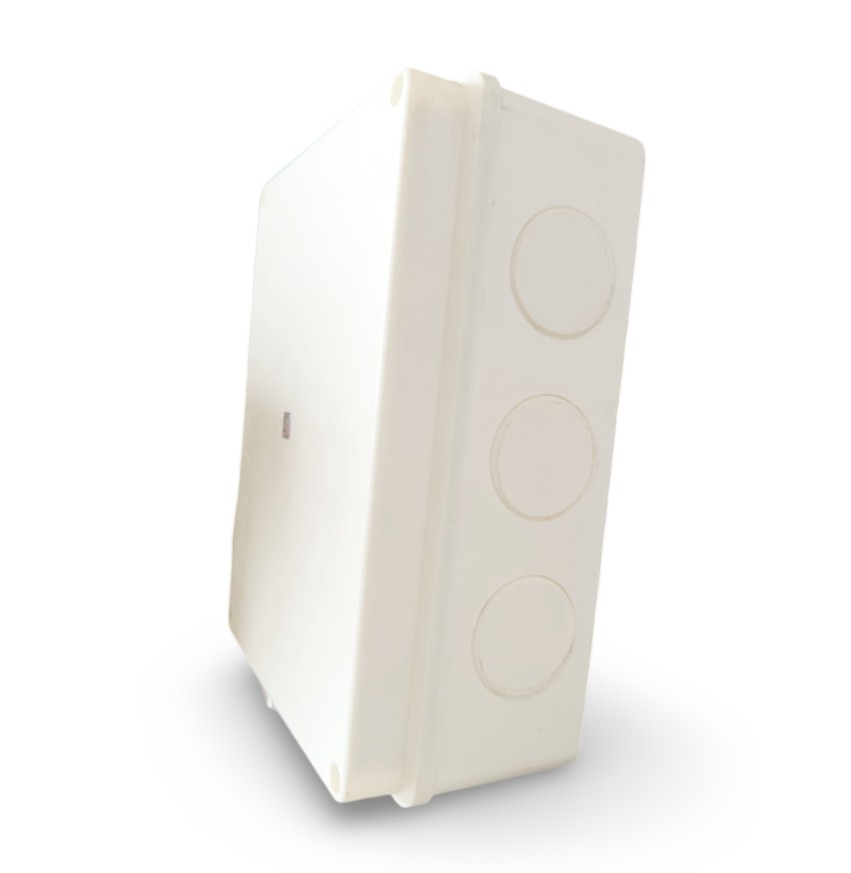

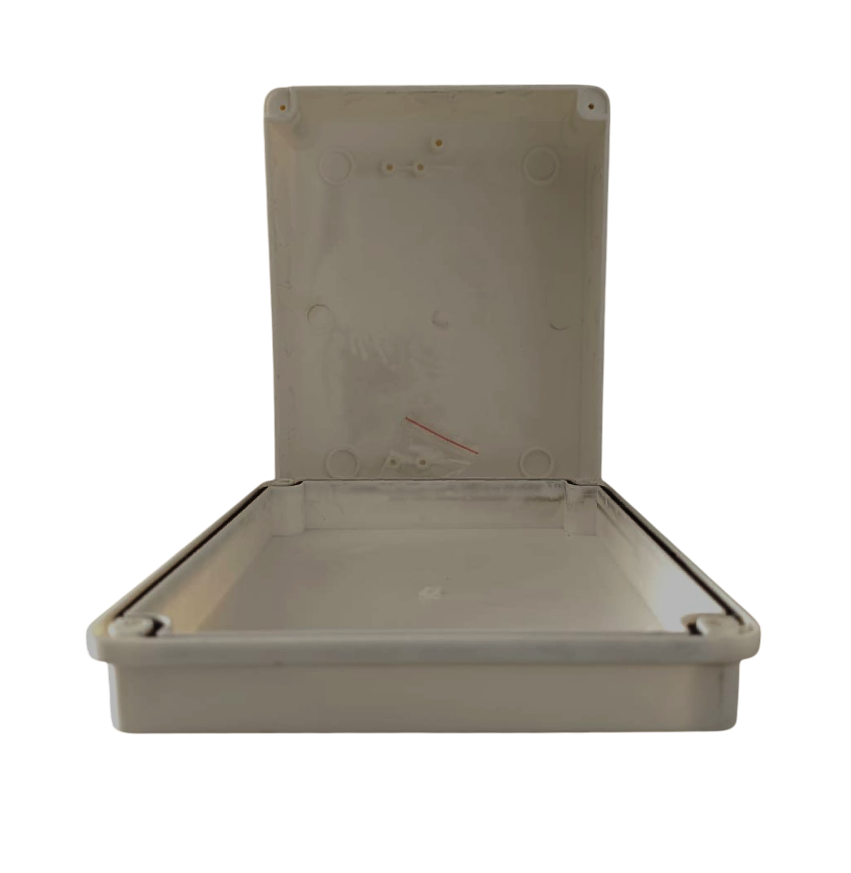

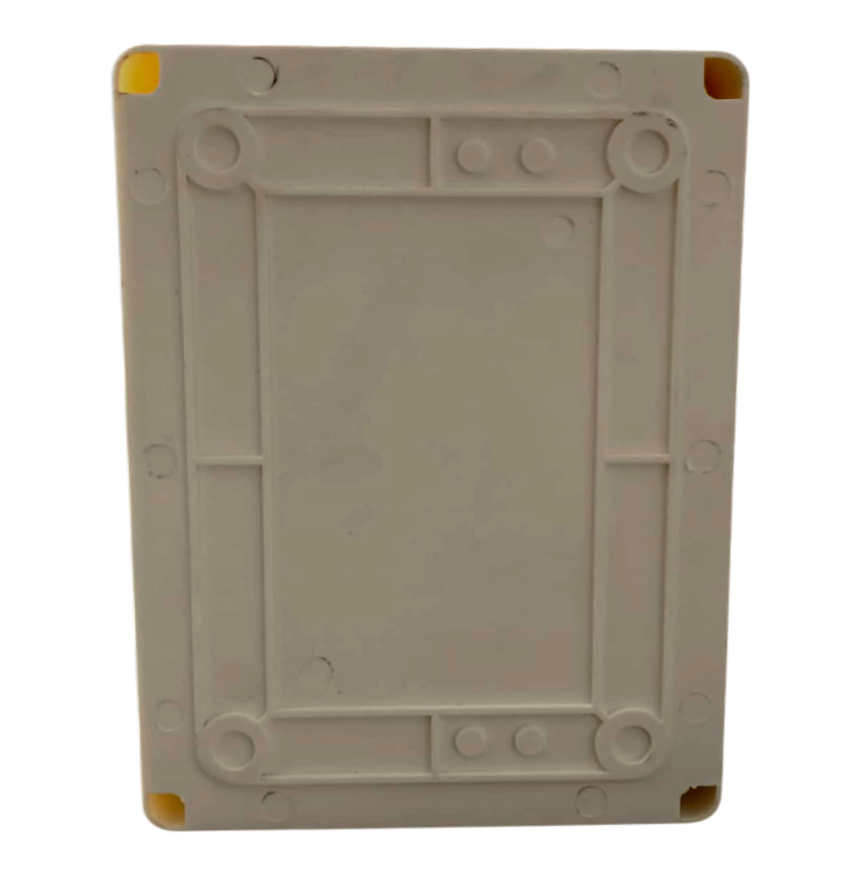

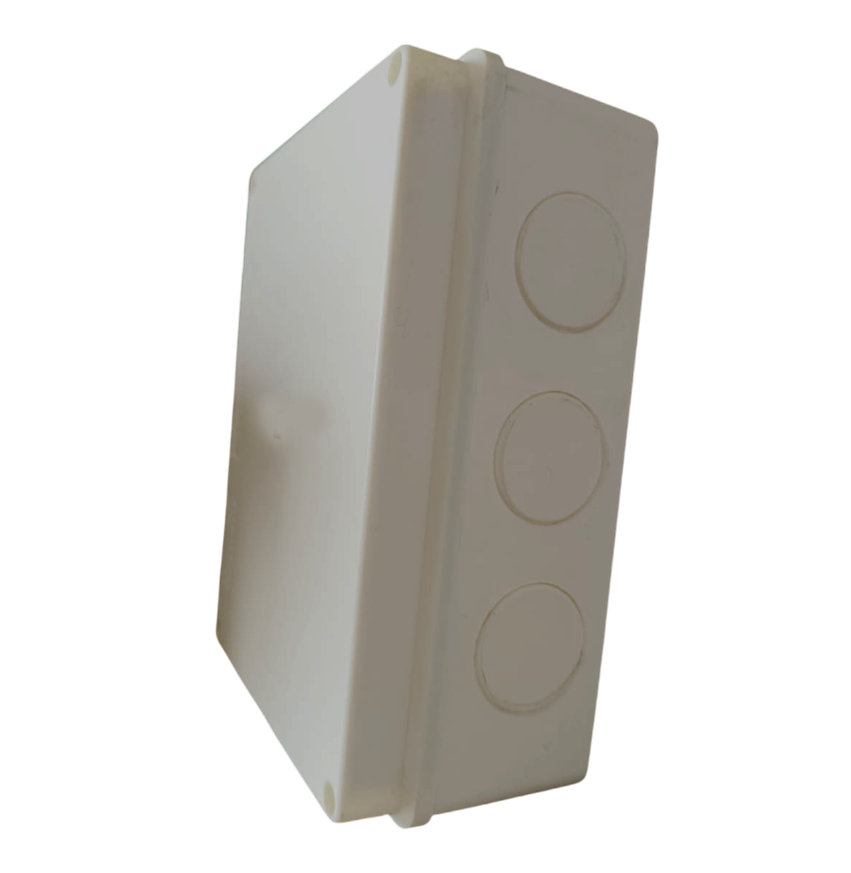

The ABS-200X155X80 is a durable, medium-sized electrical enclosure designed to protect sensitive electronic and electrical components. Made from high-quality ABS plastic, it offers excellent resistance to impact, weather, and UV exposure. Its 200mm x 155mm x 80mm dimensions make it ideal for a wide range of industrial, commercial, and DIY applications.
Product Details:
Material: High-impact ABS plastic (flame retardant and UV stabilized)
Dimensions: 200mm (L) x 155mm (W) x 80mm (H)
Color: Light Grey (RAL 7035) or custom colors on request
Ingress Protection: IP65/IP66 rated (when sealed properly)
Lid Type: Screw-fastened or hinged cover options
Mounting: Internal mounting bosses + wall-mount flanges
Temperature Resistance: -20°C to +80°C
Weight: Approx. 500-700g (varies by version)
Cable Entry: Optional knockouts or pre-cut openings
Key Features:
Weather-resistant, corrosion-proof enclosure
Compact, impact-resistant design for medium-duty applications
IP-rated protection against water, dust, and dirt
Smooth, label-ready exterior surface
Internal mounting posts for PCBs, terminals, DIN rails
Compatible with custom machining and drilling
Safe for both indoor and outdoor use
Applications:
Electrical junctions and wiring terminations
Industrial control systems
IoT and smart home device enclosures
Automation and sensor housing
CCTV and alarm system integration
Solar power system connection boxes
Prototyping and small electronic project enclosures
