FDD 2-187(5)

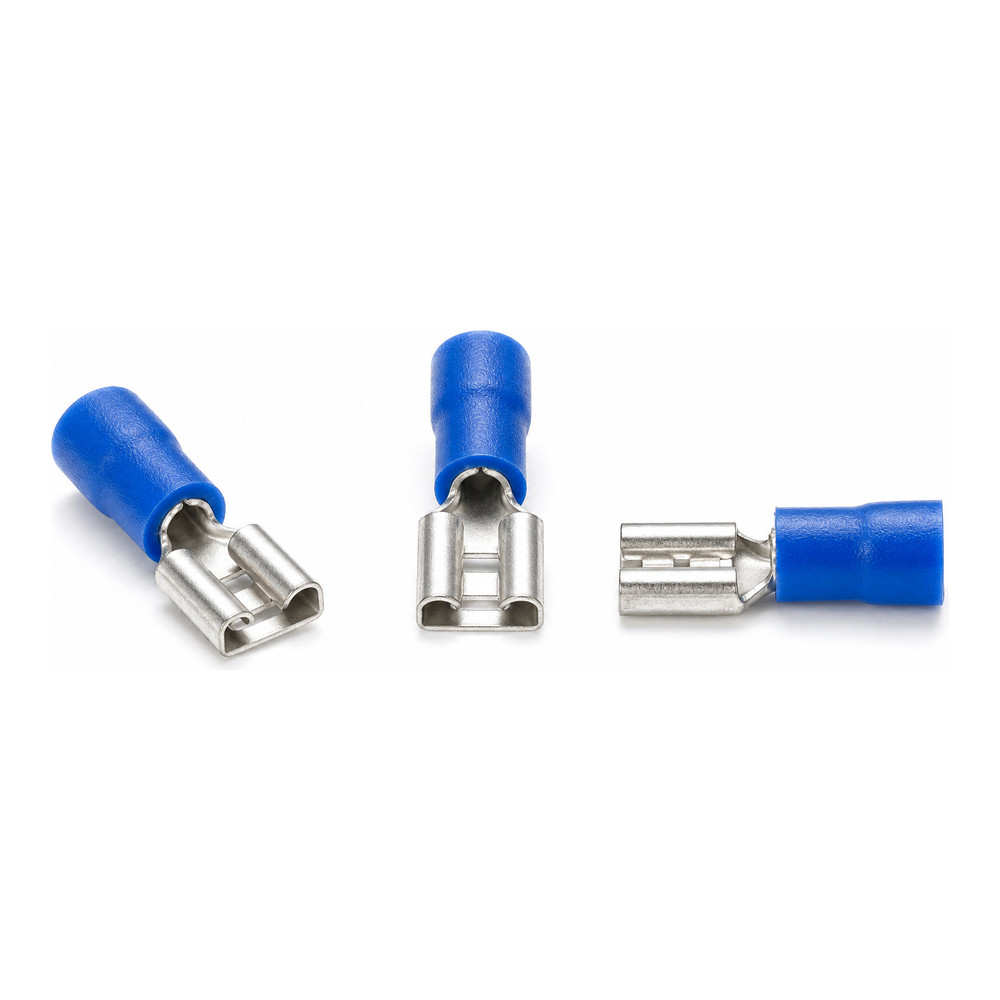

The JiGO FDD 2-187(5) is a flat female receptacle (push-on / disconnect type) used to make a quick, tool-free connect-and-disconnect joint in control panels, switchboards, automotive and appliance wiring. The barrel is rolled from tin-plated copper, so it crimps softly onto the strands and resists corrosion in humid Indian conditions.
It is half insulated – the crimp barrel is covered by a colour-coded vinyl sleeve while the receptacle itself stays bare. The sleeve is blue, which is the standard colour code for 2.5 mm² conductors, so an electrician can tell the size of the terminal at a glance on a crowded panel. Mates with a standard male push-on tab.
Crimp it with any ordinary insulated-terminal crimping plier — no special die is needed. Suitable for 1.5 – 2.5 mm² (AWG 16–14) conductors.
Pricing: the rate on this page is for 100 pieces. The factory packet is 1500 pieces.
- Brand: JiGO
- Model / Part No.: FDD 2-187(5)
- Type: Female Push-On Terminal – Half Insulated
- Nominal wire size: 2.5 mm²
- Conductor range: 1.5 – 2.5 mm² (AWG 16–14)
- Insulation colour: Blue
- Tab size: 4.8 mm wide × 0.5 mm thick
- Gender: Female
- Barrel material: Tin-plated copper
- Insulation material: PVC / vinyl (half insulated)
- Crimping tool: Standard insulated-terminal crimping plier
- Factory packet: 1500 pieces
- Price basis: per 100 pieces
- Sold in multiples of 100 pieces. The price displayed is the rate for 100 pieces, not for a single piece.
- Minimum order quantity: 100 pieces.
- Factory packing: 1500 pieces per packet. Loose quantities in multiples of 100 can be supplied from an opened packet.
- Also known as: insulated tin terminal, push-on terminal, spade terminal, snap lug, disconnect terminal, blade terminal.
- GST as applicable is included in the displayed price.
- Available ex-stock at Arjun Trading Company, Ludhiana. Call for bulk / carton rates.
Genuine stock from our Ludhiana counter (trading since 1993). GST invoice on every order, courier anywhere in India.
