JG-2251-6P
- Category: Wiring Connectors
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 300

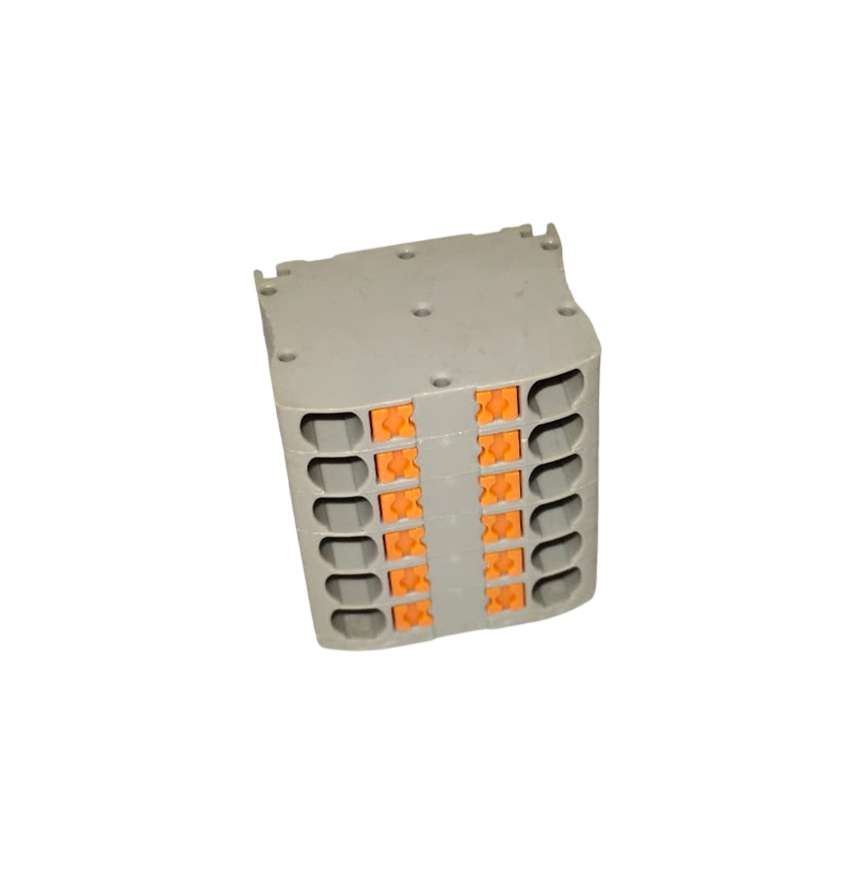

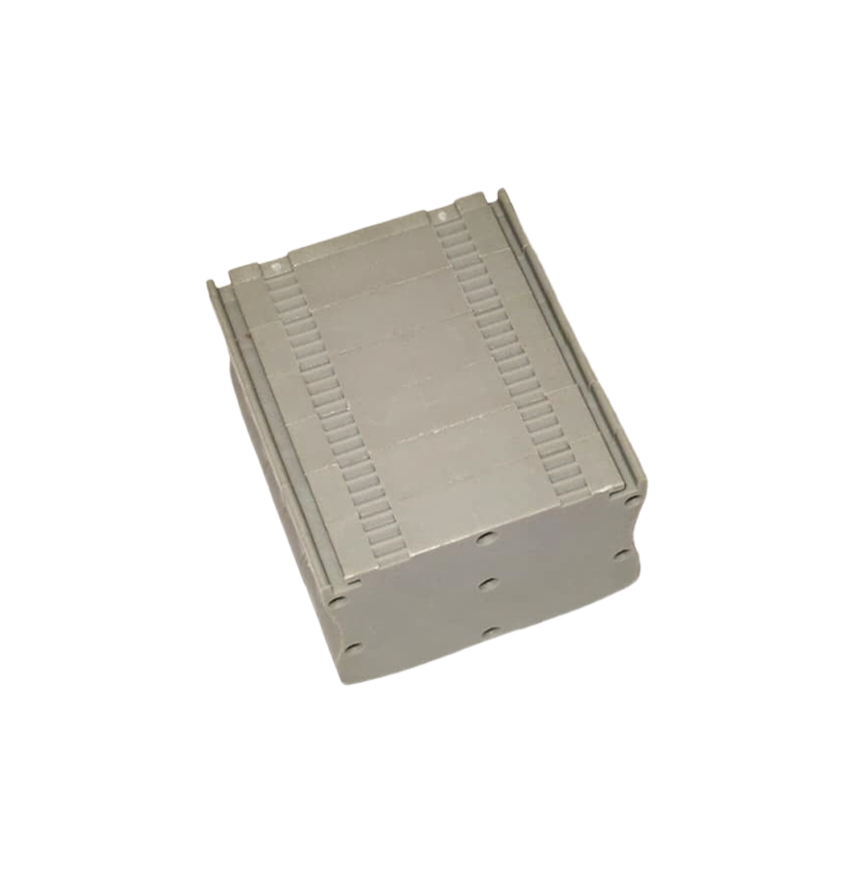

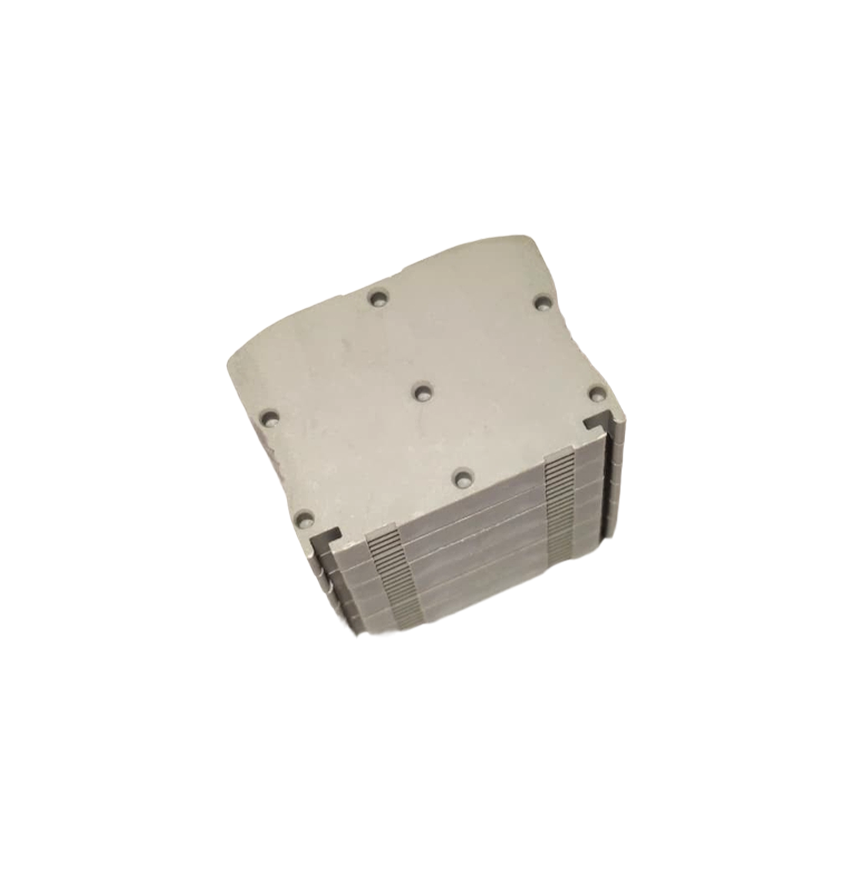

JG-2251-6P Wiring Connector is a compact and reliable 6-pin electrical connector designed for multi-line wire-to-wire or wire-to-board connections. It ensures stable signal and power transmission, easy installation, and long-lasting performance in electronic and electrical applications.
Product Details
The JG-2251-6P is a 6-pole (6P) connector used to connect six electrical conductors, making it ideal for applications requiring multiple signal or power lines in a single interface. These connectors typically include male and female housings for quick and secure connections.
Wire-to-board connectors are commonly used to join circuits on printed circuit boards (PCBs), ensuring efficient electrical continuity and modular connectivity in electronic systems.
Similar 6-pin connectors are available in different pitches (e.g., 1.25mm, 2.0mm, 2.5mm) and support low-voltage applications with reliable insulation and conductive contacts.
Typical Specifications (approx.):
- Model: JG-2251-6P
- Type: 6-Pin Wiring Connector
- Rated Voltage: Up to 125V – 250V
- Current Rating: 1A – 5A (depending on pitch and wire size)
- Contact Material: Phosphor bronze / copper alloy (tin plated)
- Insulation Material: Nylon / LCP / PVC (flame retardant, UL94V-0)
- Pitch: ~2.5mm (typical for 2251 series)
- Mounting Type: Wire-to-wire / wire-to-board
- Termination Type: Crimp / solder
- Operating Temperature: -40°C to +105°C
Key Features
- 6-Pin Configuration: Supports multiple signal and power lines in one connector
- Secure Locking Mechanism: Prevents accidental disconnection
- High Conductivity Contacts: Ensures stable electrical performance
- Durable Housing: Heat-resistant and flame-retardant materials
- Compact Design: Suitable for high-density PCB layouts
- Easy Installation: Quick crimp or plug-in connection system
Applications
- PCB (Printed Circuit Board) connections
- LED lighting systems and drivers
- Consumer electronics and appliances
- Automotive wiring (low-voltage systems)
- Power supply modules
- Industrial control and automation systems
