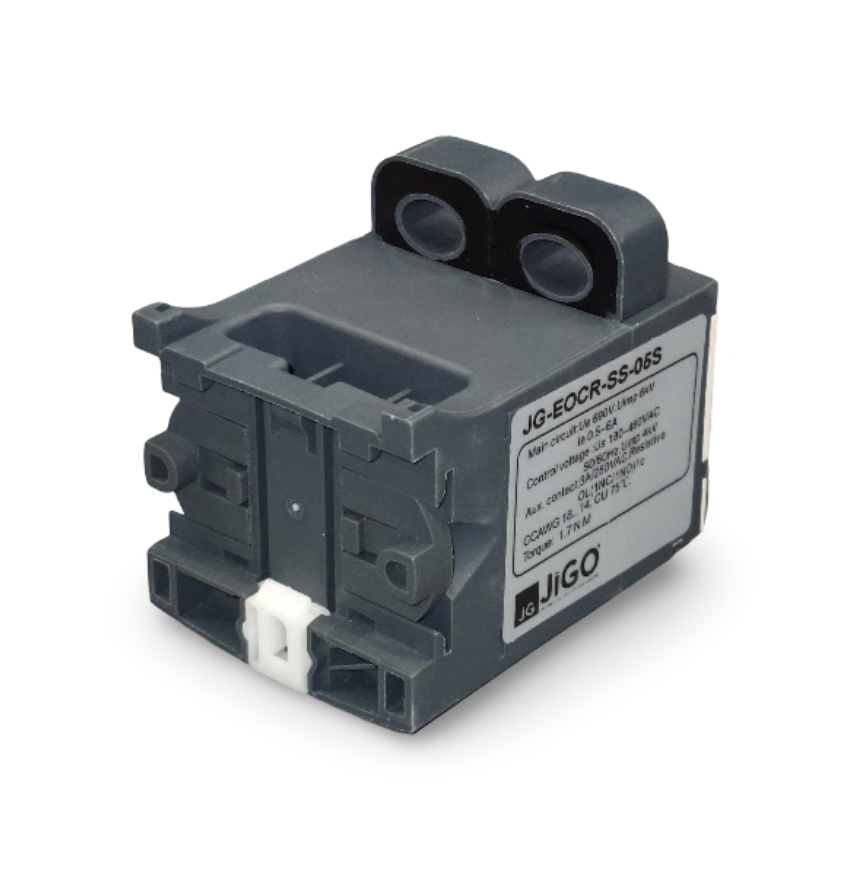

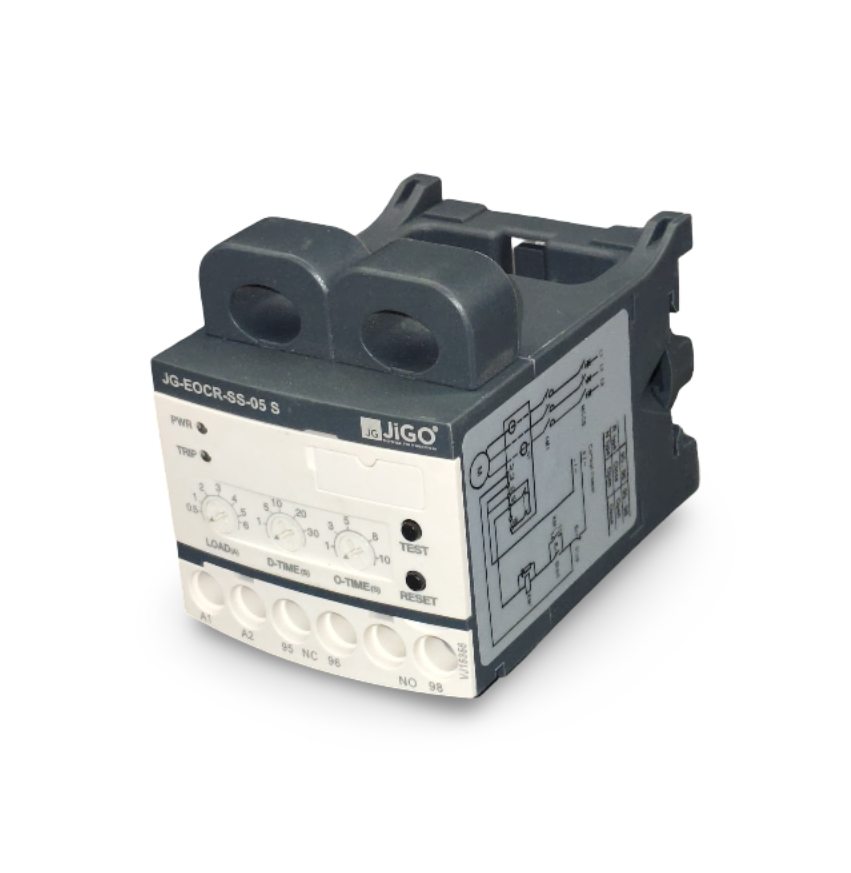

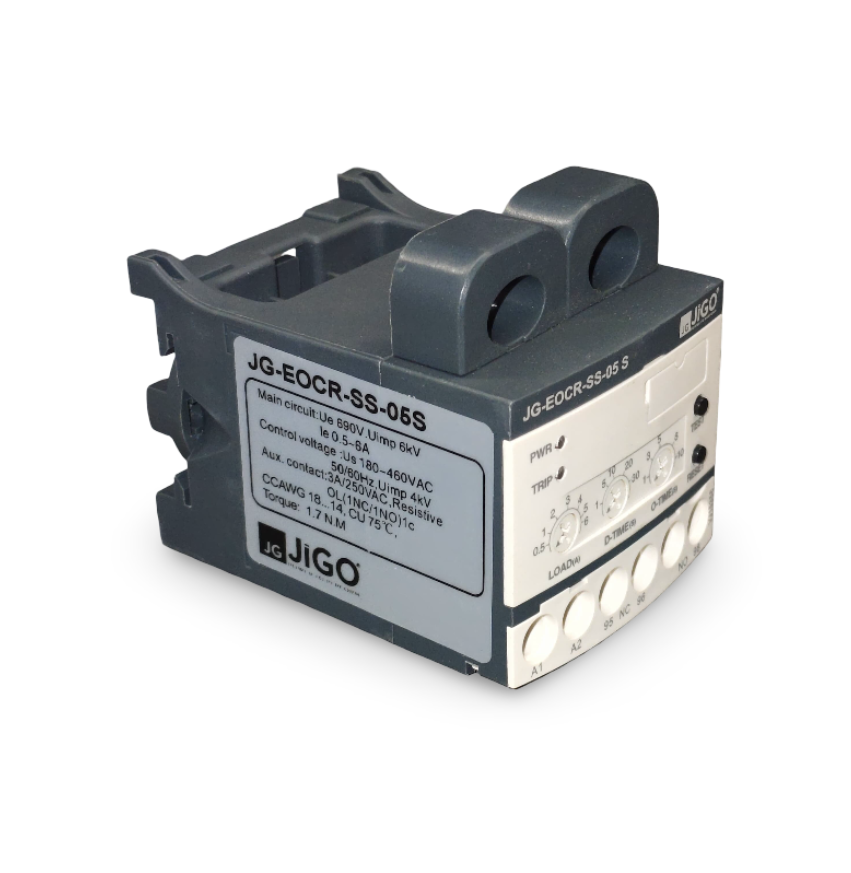

JG-EOCR-SS-05S-180-460VAC-1C

    Category: OVER LOAD RELAYS
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 2000

JG-EOCR-SS-05S-180-460VAC-1C is a compact, digital electronic overcurrent relay designed for accurate motor protection across a wide voltage range of 180–460VAC. Equipped with a 1C (single changeover) output contact, it safeguards against overload, phase failure, and unbalanced load conditions.



Product Details

Model: JG-EOCR-SS-05S-180-460VAC-1C

Operating Voltage: 180–460VAC

Current Range: 0.5A to 5A (Adjustable)

Frequency: 50/60Hz

Trip Class: Selectable (10, 20, 30)

Control Output: 1C (1 Changeover Contact), 5A @ 250VAC

Reset Options: Manual / Auto

Indications: LED status indicators for power, trip, and fault

Mounting Type: DIN rail or panel mount

Housing Material: Flame-retardant engineering plastic

Protection Functions:

Overcurrent

Phase loss

Phase unbalance

Locked rotor

Ambient Temperature: -10°C to +55°C

Weight: Approx. 150g

Key Features

Wide voltage and current range for flexible use

Compact and user-friendly design

Built-in LED indicators for easy fault detection

Supports automatic or manual reset

Precise protection for 3-phase induction motors

Simple installation with clear terminal layout

Long service life and reliable operation

Applications

Electric motor protection in industrial setups

Pumping stations and compressors

Conveyor and elevator systems

Air handling units (AHUs)

Machine tools and automation equipment

MCC panels (Motor Control Centers)

HVAC and refrigeration systems
