JiGO LT-12 Wire Connector

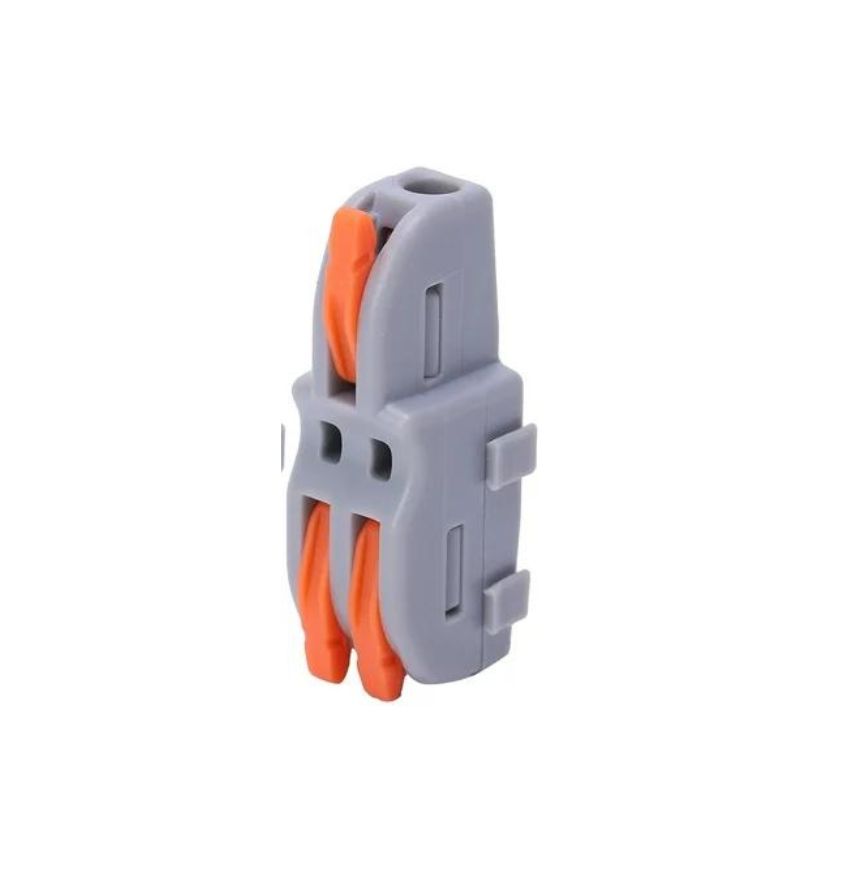

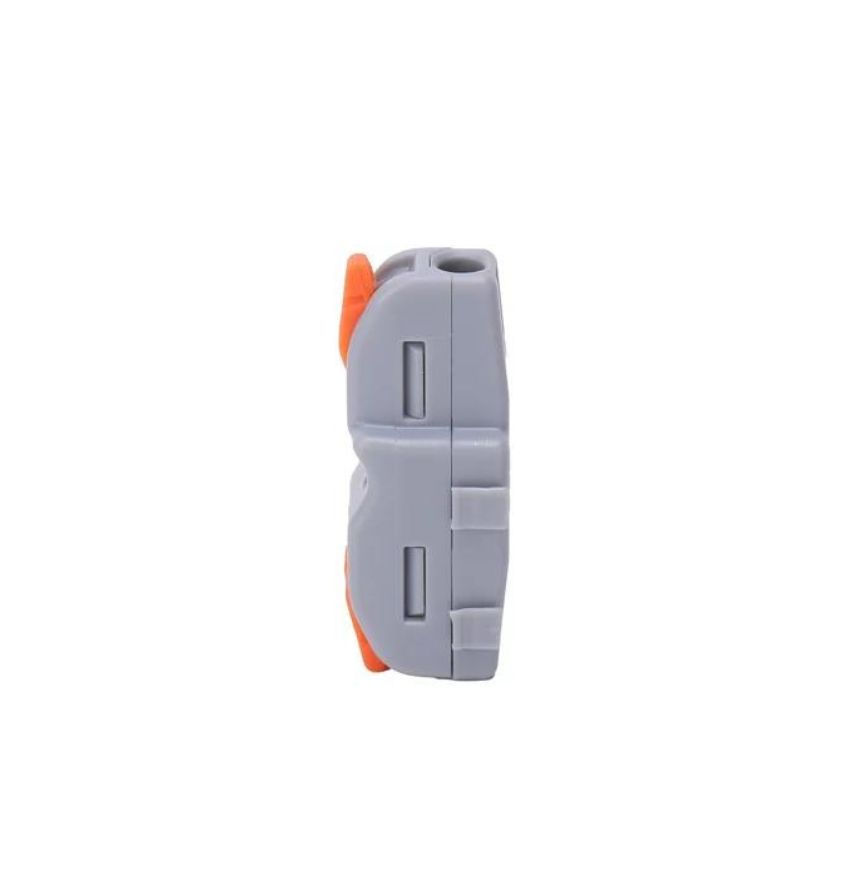

The LT-12 is a one-in two-out lever distribution connector — a single supply conductor enters one side and feeds two outgoing conductors, all on lever-operated spring cages.
A one-in many-out connector is shaped like the circuit it serves. The supply lands once, on a larger entry, and the outgoing legs take off from the other side — so the wiring in the box reads as a supply and its branches instead of as a cluster of identical holes.
What this connector is for
- One in, two out — the supply and its branches are physically distinguished
- Lever operated — stranded wire direct, reopenable
- Colour coded levers separating the input from the outputs
- Transparent housing for checking every conductor is seated
The levers mean stranded flexible wire goes in directly and any leg can be released later without disturbing the supply conductor or the other branch.
Choosing and fitting
ATC India stocks the whole JiGO connector range — push-in connectors for solid wire, lever connectors for stranded wire, one-in-many-out distribution blocks, DIN-rail and surface-mounting versions, and the matching lever terminal blocks. Tell us the conductor type, the cross-section and the number of ways and we will supply the right part rather than the nearest one.

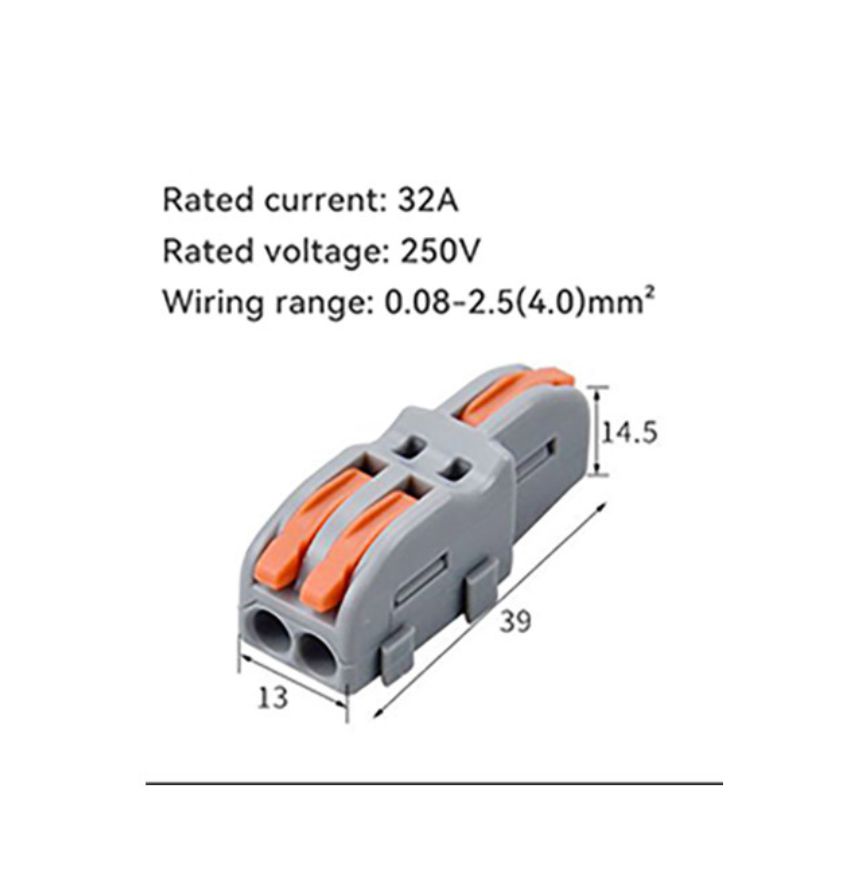

| Model | LT-12 |
|---|---|
| Product type | Lever distribution connector, one in many out |
| Ways | One in, two out |
| Conductor | Solid or stranded conductor — no ferrule needed |
| Clamping | Spring cage operated by a lever |
| Mounting | Free in a junction box or enclosure |
| Reusable | Yes |
| Strip length | Printed on the connector body — strip to the mark, no more and no less |
| Typical use | Tapping two circuits off one supply conductor in junction boxes and panels |
| Brand | JiGO |
| Supplied by | ATC India, Ludhiana, Punjab |
| Enquiries | +91 99887 74490 · www.arjuntradingcompany.com |
The LT-12 is used in junction boxes, lighting circuits, panel wiring and machine connections wherever one supply conductor has to feed two circuits.
- Solid or stranded? Push-in connectors are for solid conductors; lever connectors take stranded wire directly. Using the wrong type is the one mistake that causes trouble later.
- Strip to the printed mark. Too short and the cage grips insulation; too long and bare copper sits outside the housing.
- Pull-test every conductor after insertion. It takes a second and it catches the only fault this connector type allows.
- Availability: normally 7–10 days from confirmed order; fast-moving sizes are usually in stock in Ludhiana.
- Ordering: prices exclude GST. Call ATC India on +91 99887 74490 or send the model number through www.arjuntradingcompany.com for a quotation.
Genuine stock from our Ludhiana counter (trading since 1993). GST invoice on every order, courier anywhere in India.
