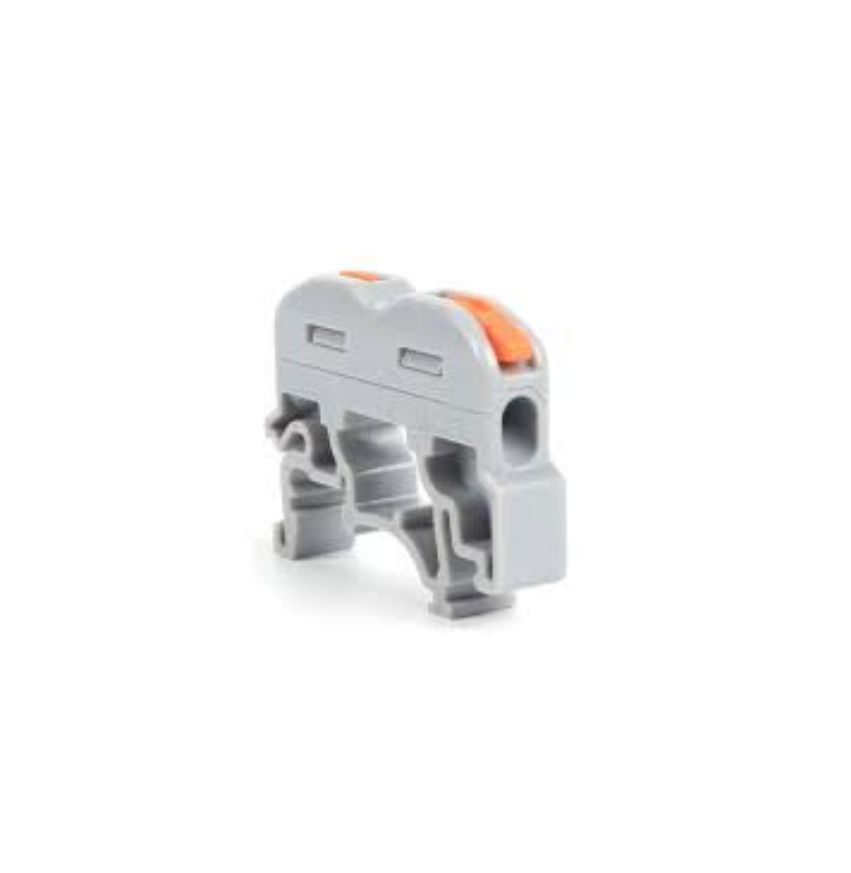

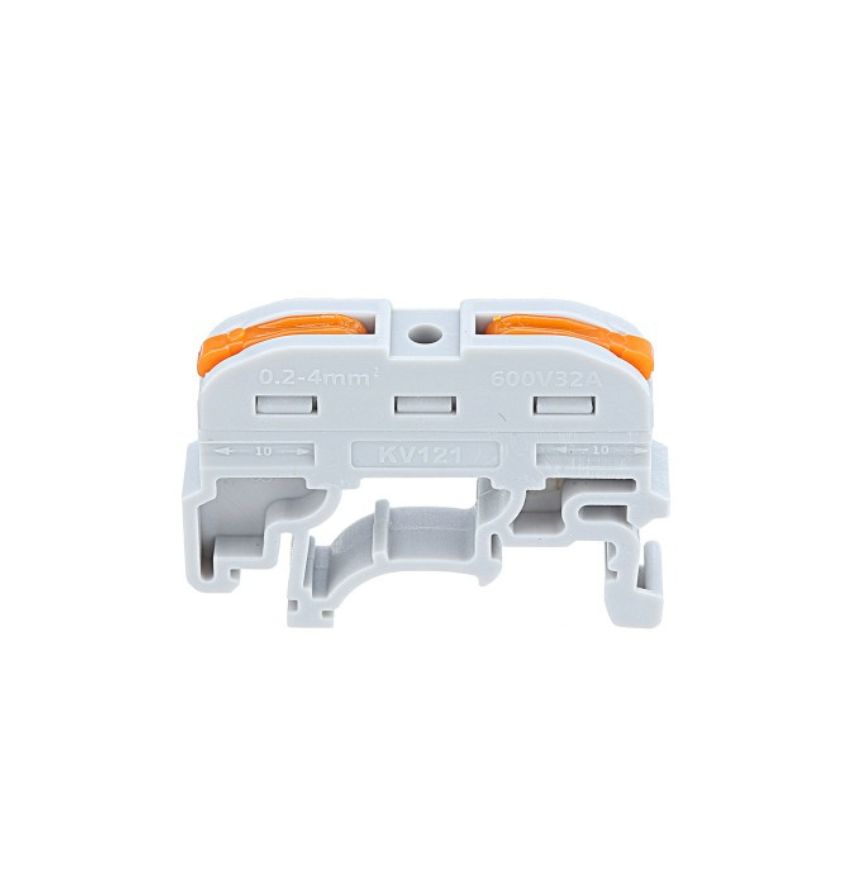

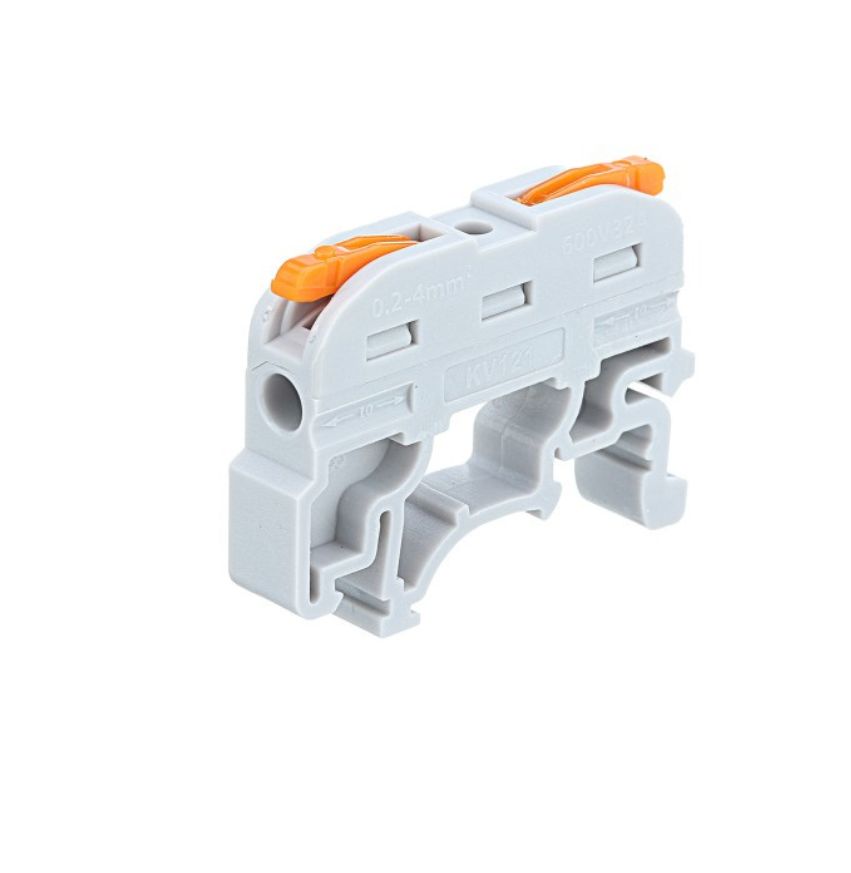

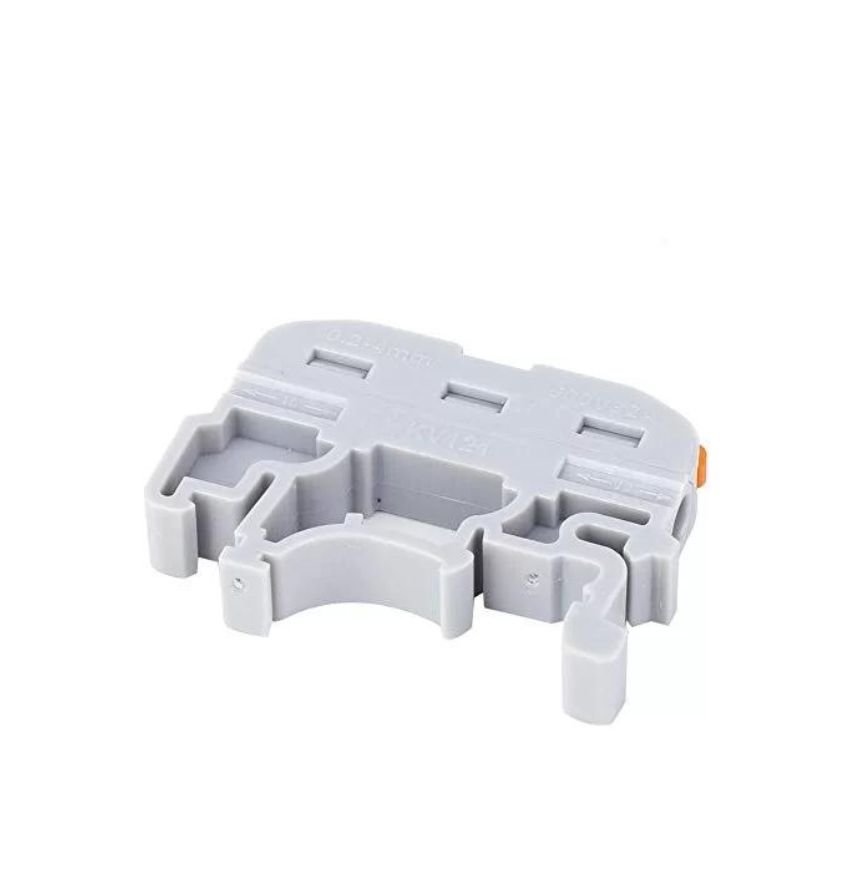

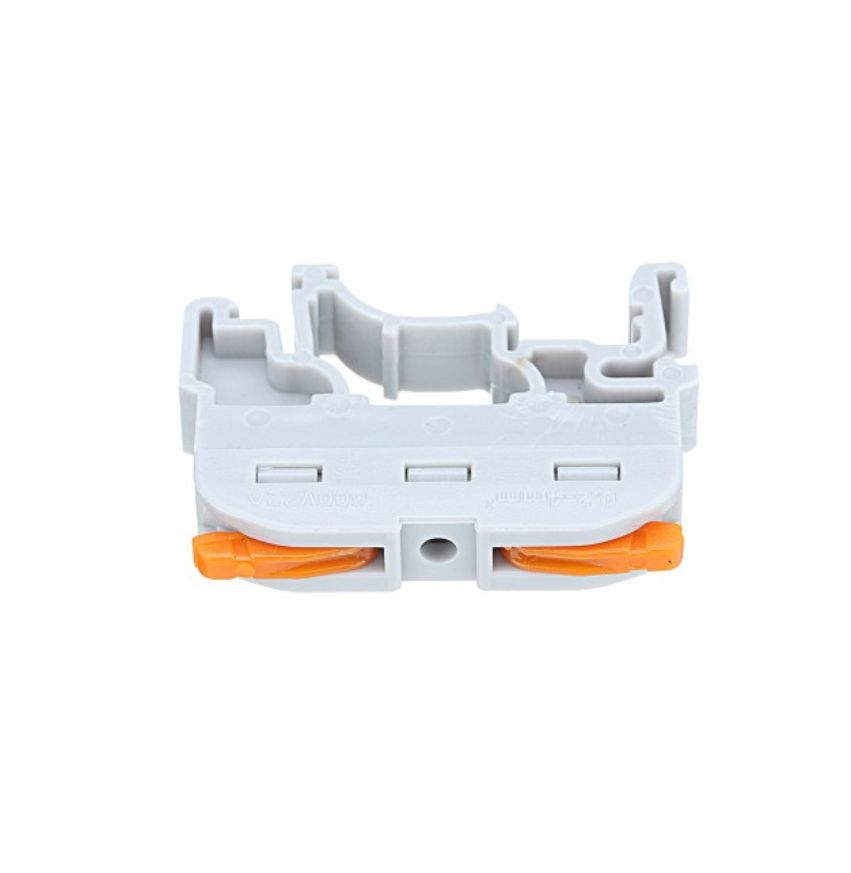

JiGO PCT-211 Wire Connector
The PCT-211 is a one-in one-out lever connector — the simplest way to join two conductors, solid or stranded, with a connection that can be opened again.
A straight joint between two conductors is the commonest connection anyone makes, and the one most often done badly. The PCT-211 does it with two lever-operated spring cages: lift, insert, close. Stranded flexible wire goes in directly, without a ferrule and without the strands splaying.
What this connector is for
- One in, one out — a straight joint or an extension
- Takes stranded wire directly — no ferrule, no crimping step
- Reopenable — lift the lever and the conductor comes out undamaged
- Transparent housing for checking the conductor is seated
Because the levers open, this is the connector to use anywhere the joint may have to be undone — test wiring, appliance connections, temporary supplies, or any circuit that is going to be modified.
Choosing and fitting
ATC India stocks the whole JiGO connector range — push-in connectors for solid wire, lever connectors for stranded wire, one-in-many-out distribution blocks, DIN-rail and surface-mounting versions, and the matching lever terminal blocks. Tell us the conductor type, the cross-section and the number of ways and we will supply the right part rather than the nearest one.
| Model | PCT-211 |
|---|---|
| Product type | Lever connector |
| Ways | One in, one out |
| Conductor | Solid or stranded conductor — no ferrule needed |
| Clamping | Spring cage operated by a lever |
| Mounting | Free in a junction box or enclosure |
| Reusable | Yes — open the lever and the conductor is released |
| Strip length | Printed on the connector body — strip to the mark, no more and no less |
| Typical use | Straight joints, cable extensions, repairs and appliance connections |
| Brand | JiGO |
| Supplied by | ATC India, Ludhiana, Punjab |
| Enquiries | +91 99887 74490 · www.arjuntradingcompany.com |
The PCT-211 is used for cable extensions and repairs, appliance and luminaire connections, test and temporary wiring, and any joint that may need to be opened again.
- Solid or stranded? Push-in connectors are for solid conductors; lever connectors take stranded wire directly. Using the wrong type is the one mistake that causes trouble later.

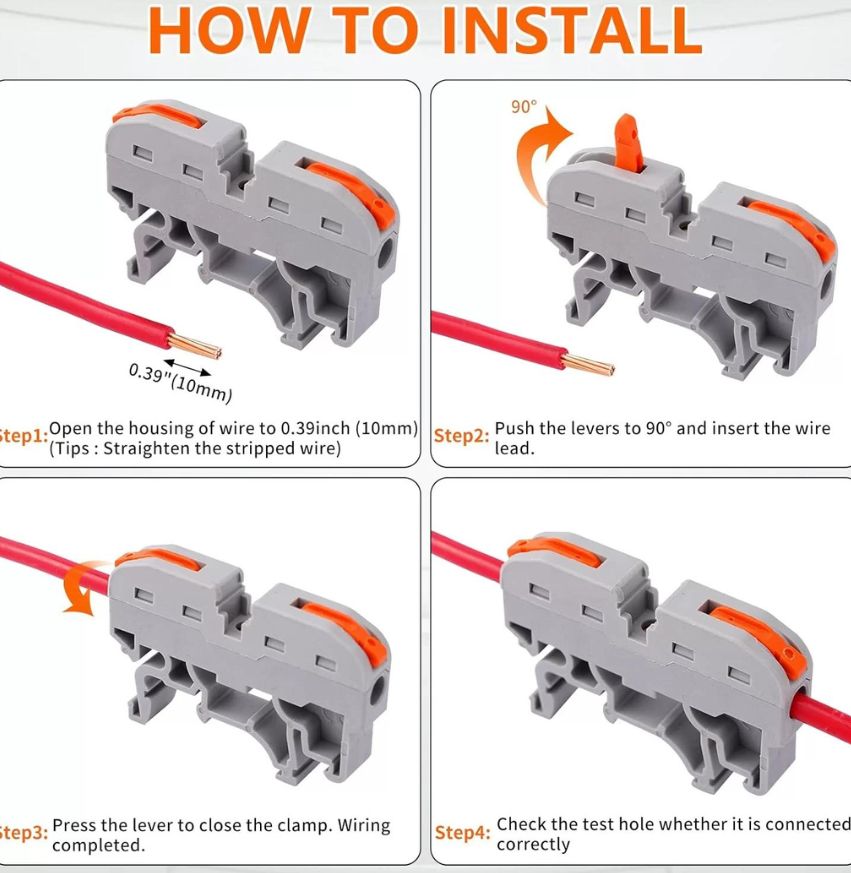

- Strip to the printed mark. Too short and the cage grips insulation; too long and bare copper sits outside the housing.
- Pull-test every conductor after insertion. It takes a second and it catches the only fault this connector type allows.
- Availability: normally 7–10 days from confirmed order; fast-moving sizes are usually in stock in Ludhiana.
- Ordering: prices exclude GST. Call ATC India on +91 99887 74490 or send the model number through www.arjuntradingcompany.com for a quotation.
Genuine stock from our Ludhiana counter (trading since 1993). GST invoice on every order, courier anywhere in India.
