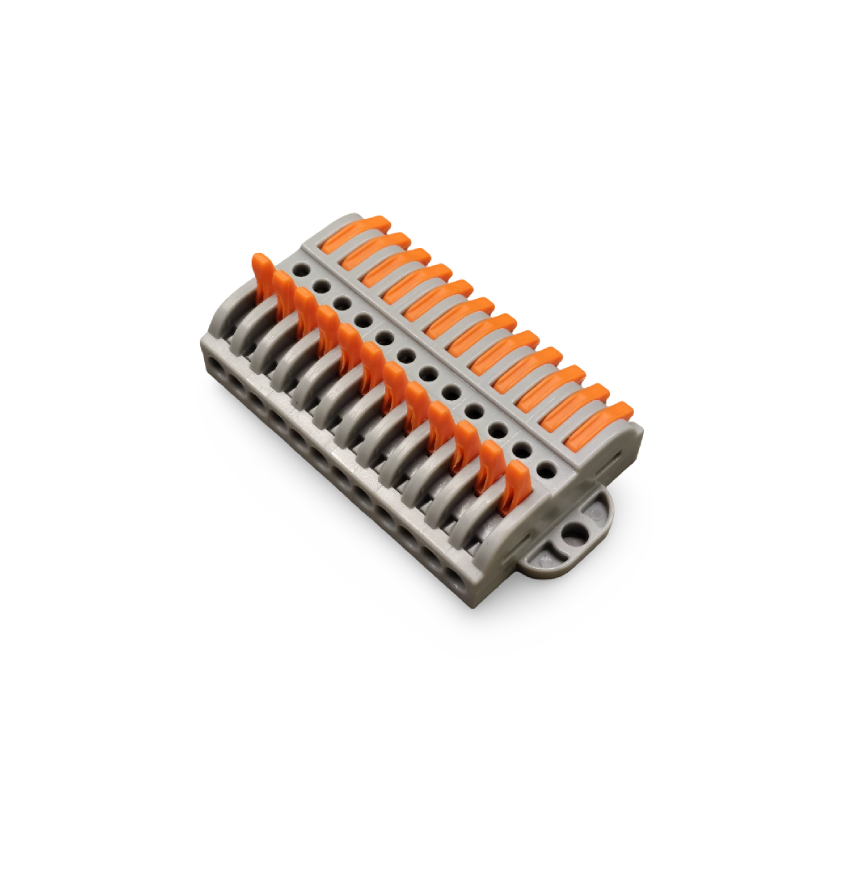

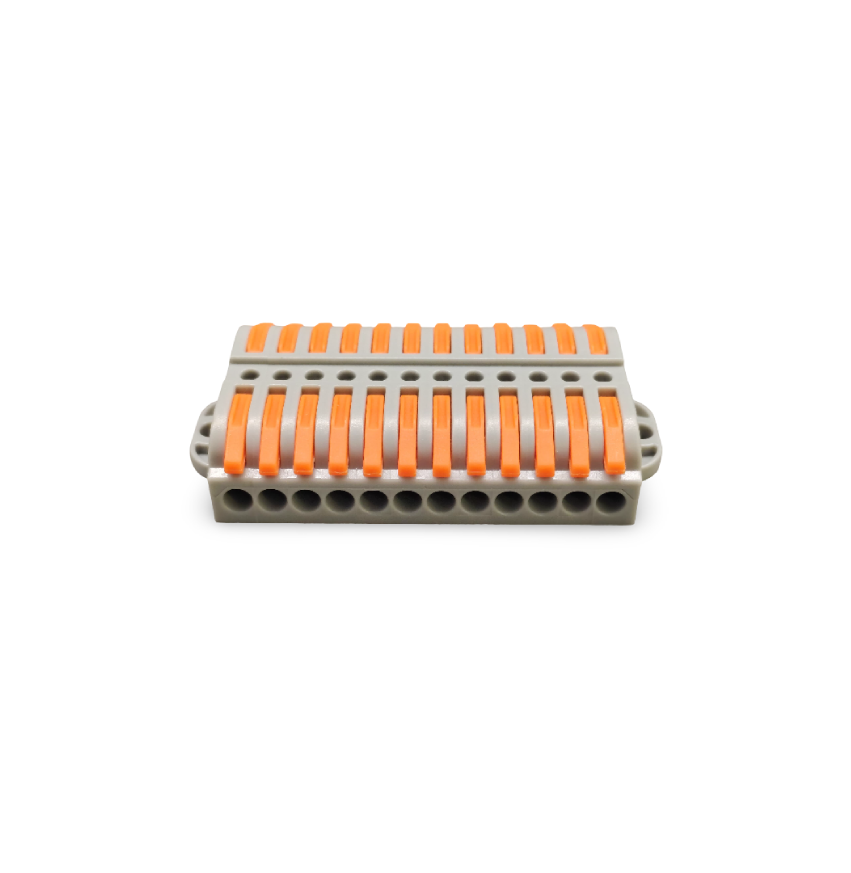

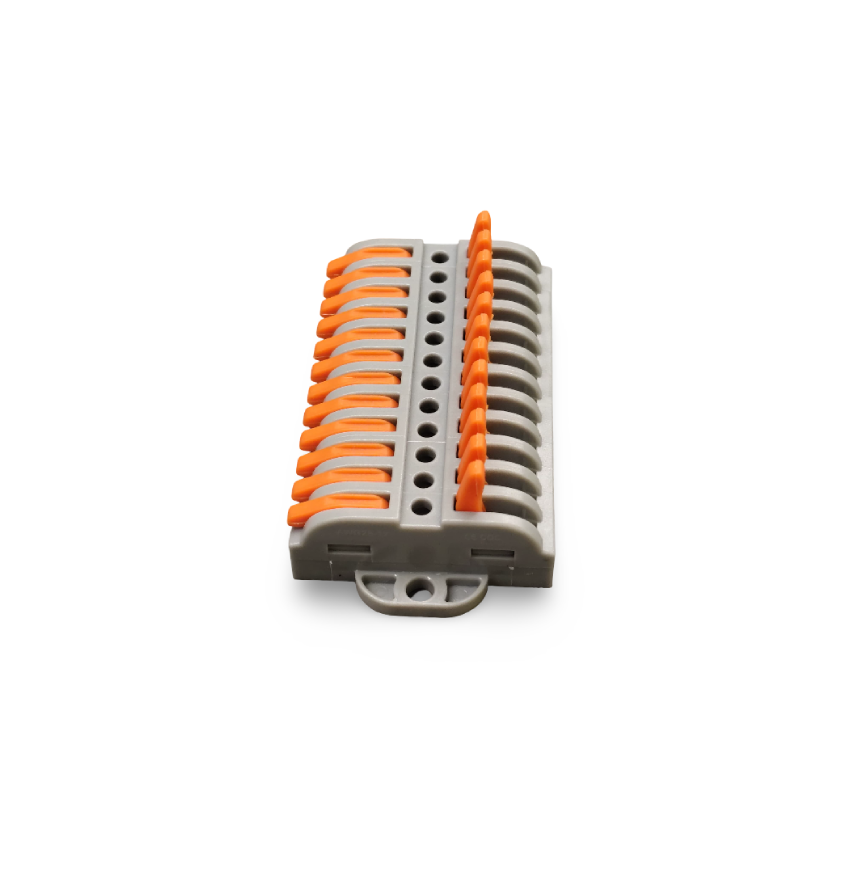

PCT-223-12P Wire Connector
A 12-pin spring lever terminal block connector designed for quick, secure, and tool-free wire connections in electrical and electronic applications.
Product Details
Model: PCT-223-12P
Number of Pins: 12
Rated Voltage: 600V
Rated Current: 32A
Wire Size Compatibility: 0.08 to 4.0 mm² (AWG 28–12)
Material: Modified Nylon (PA66) housing with copper contacts
Operating Temperature: -40°C to +85°C
Connection Type: Spring lever clamp for easy wire insertion/removal
Dimensions: Approx. 75.3mm (L) × 39.3mm (W) × 14.5mm (H)
Key Features
Tool-free, spring lever operation for quick wiring
High voltage and current rating suitable for various electrical systems
Durable nylon housing with corrosion-resistant copper contacts
Compatible with a wide range of wire sizes
Compact design ideal for space-saving installations
Applications
Automotive wiring harnesses
Industrial control panels
Household electrical appliances
DIY electronics projects
Power distribution and wiring systems
