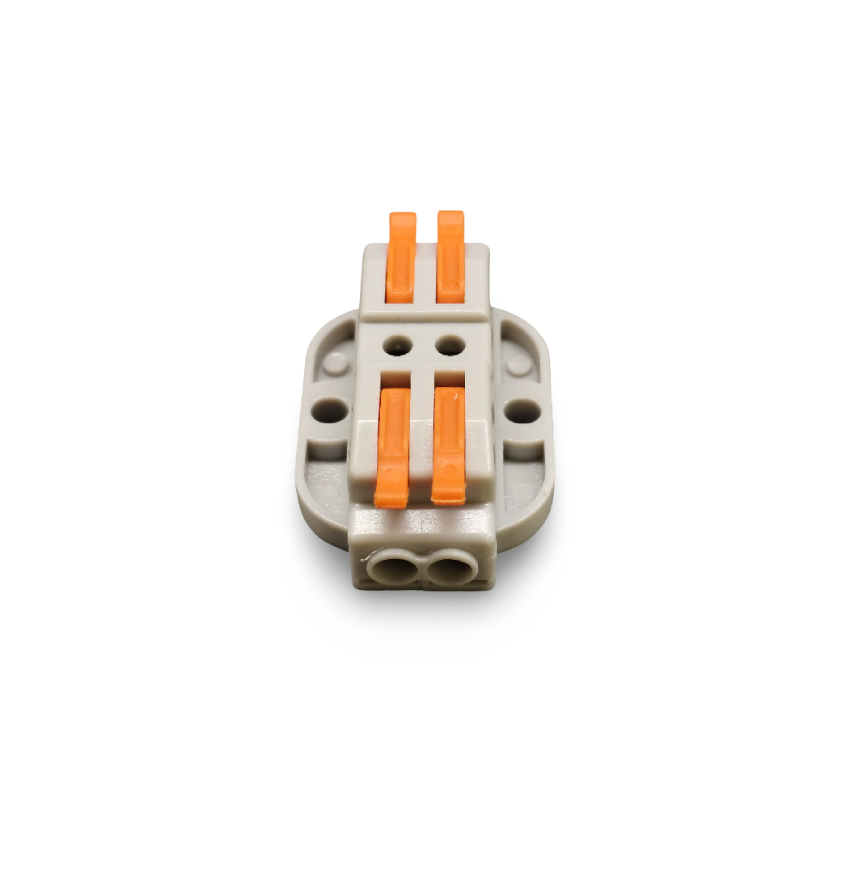

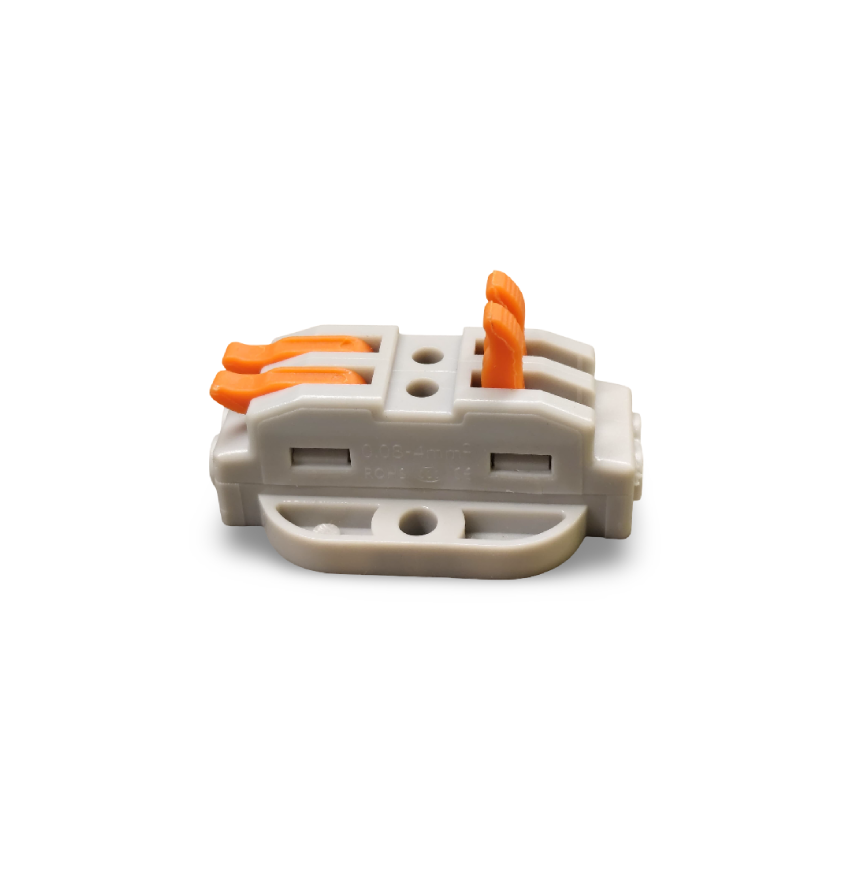

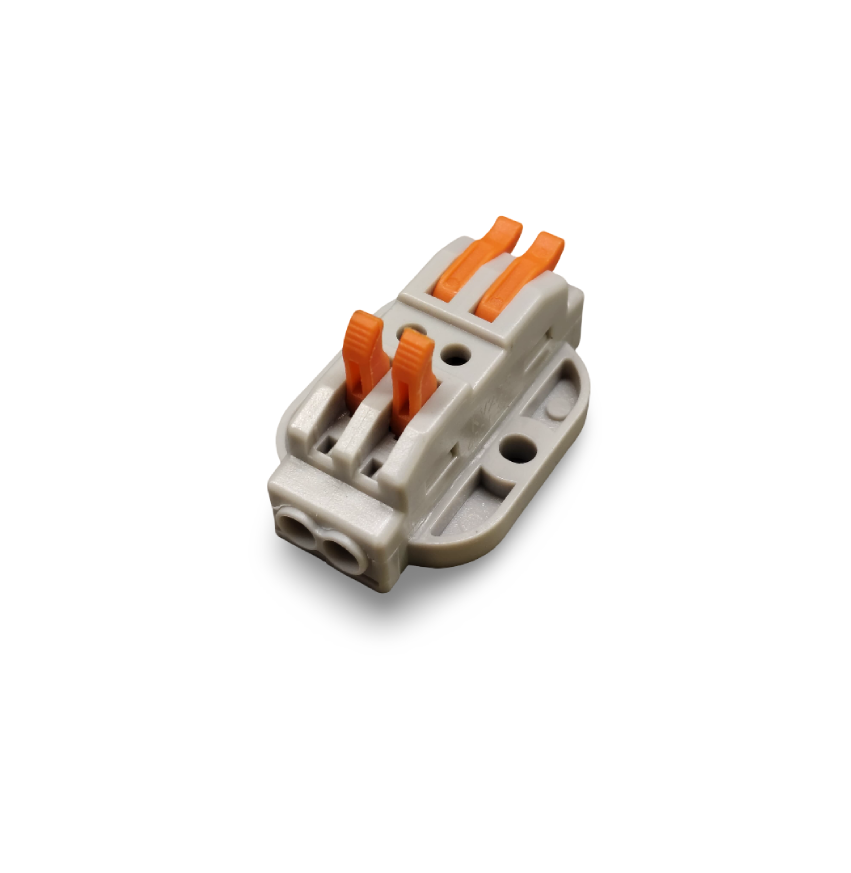

JiGO PCT-223-2P Wire Connector
The PCT‑223‑2P is a compact, two-pole, spring-lever quick connector (2 inputs → 2 outputs), offering fast, tool-free wiring suitable for high-voltage and high-current connections up to 400 V/32 A.
Product Details
Brand: JIGO
Model: PCT‑223‑2P
Poles: 2-in/2-out
Rated Voltage: 400 V AC
Rated Current: 32 A (rigid wire), peak ratings per spec
Wire Range: 0.08–4.0 mm² for both solid and stranded wires
Impulse Voltage Withstand: ~4 kV
Strip Length Required: 11–12 mm
Operating Temperature: –40 °C to +105 °C
Housing: PC (UL94 V‑2) polycarbonate
Contact Material: T2 copper with S301 stainless-steel spring clamp
Dimensions: ~39.3 × 25.3 × 14.5 mm
Key Features
Tool-free spring-lever operation: Simply lift the lever, insert the wire, close the lever for secure connection
High electrical capacity: Supports substantial load (32 A/400 V) with high impulse resistance
Wide wire compatibility: Accepts both solid and stranded conductors up to 4 mm²
Robust, flame-retardant PC housing: Meets UL94 V‑2 safety standards
Reusable and maintenance-free: Connections can be opened, reinserted, and sealed repeatedly
Applications
Lighting fixtures: Suitable for multi-way lamp/wiring configurations
Appliance and equipment installation: Ideal for power distribution in domestic and industrial setups
Control panels and junction boxes: High-density wiring solutions
DIY and professional wiring: Safe, reliable, and fast alternative to traditional terminals
