JiGO PCT-223D Wire Connector

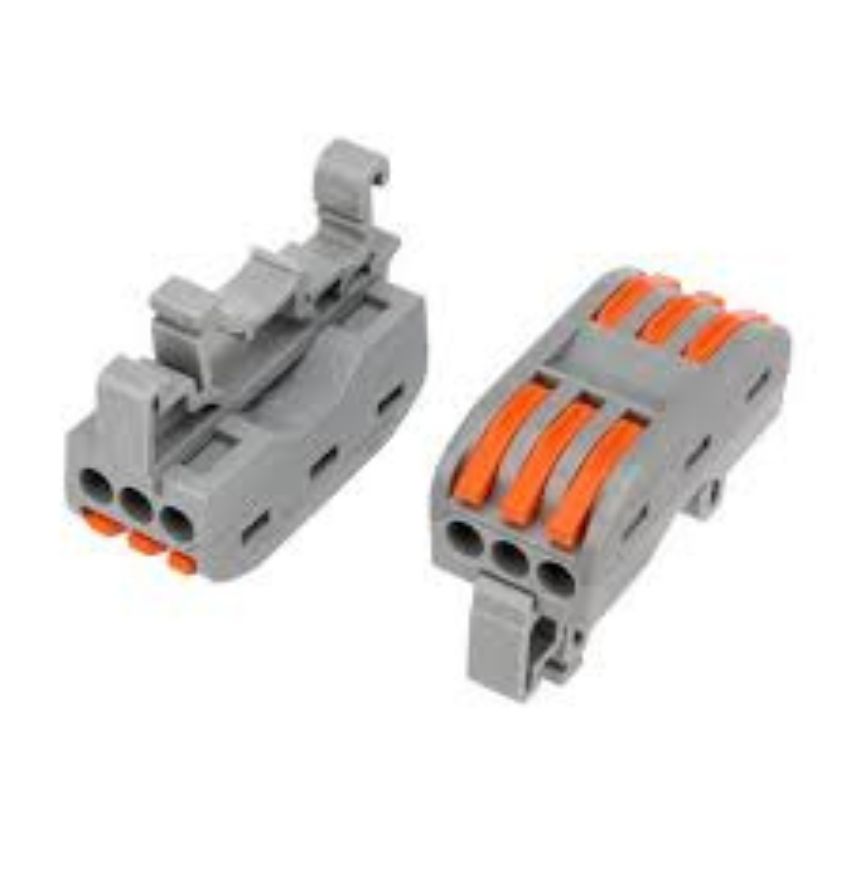

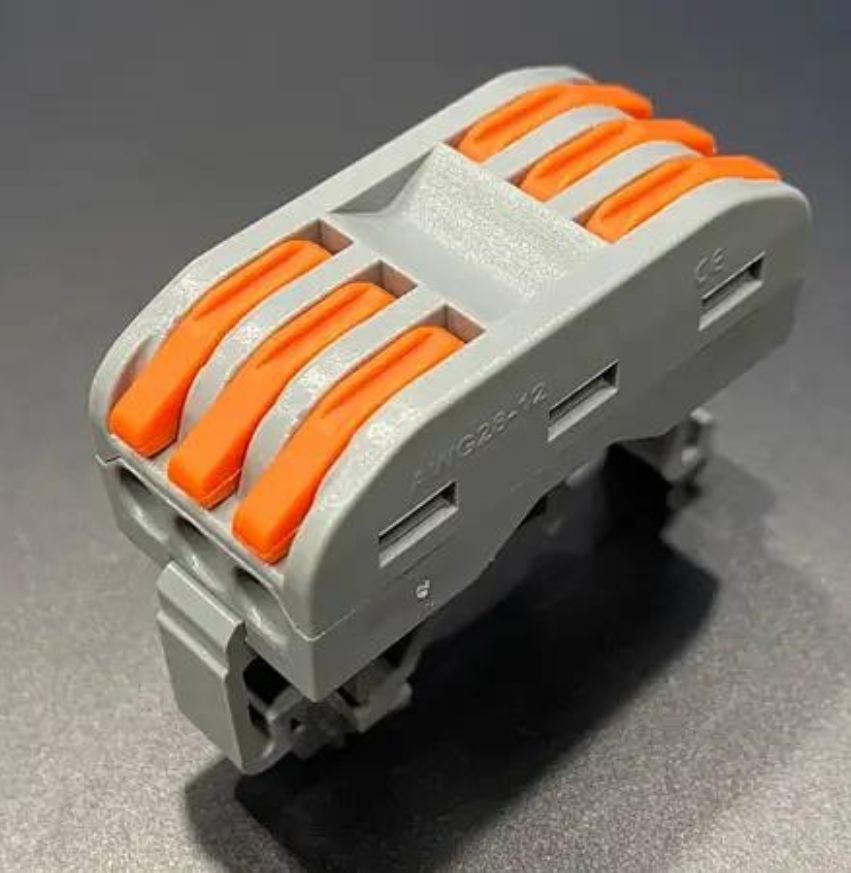

The PCT-223D is the DIN-rail mounting version of the three-in three-out lever distribution connector, for carrying a line, neutral and earth group from a fixed point inside a panel.

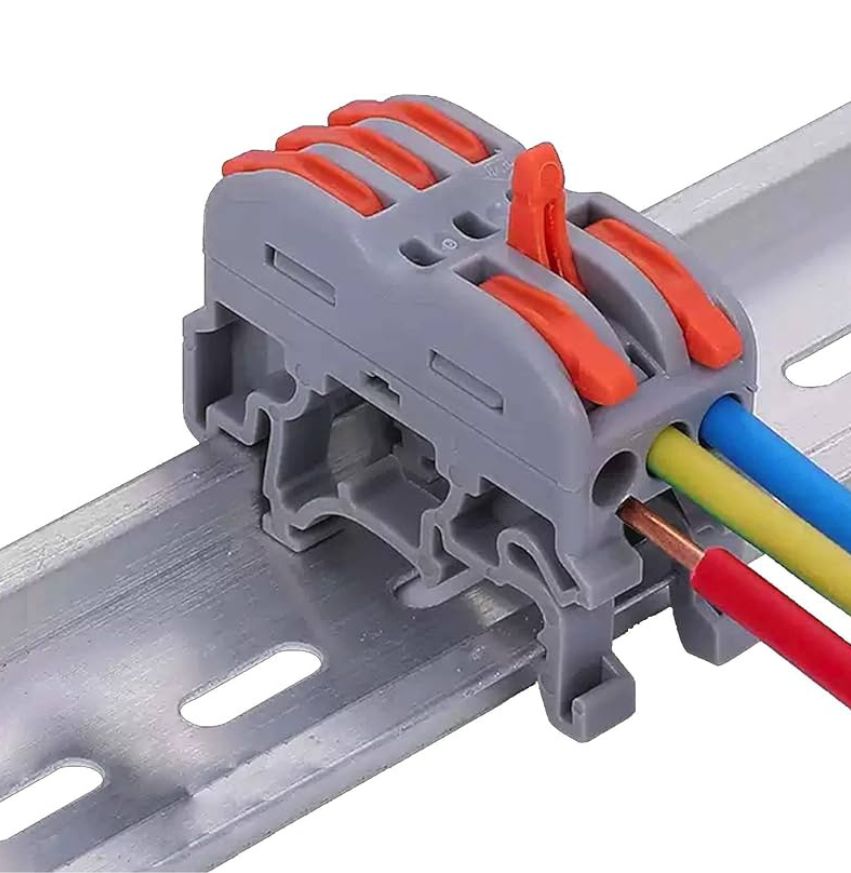

Inside an enclosure, every connection should be fixed and findable. The PCT-223D puts three isolated distribution channels on a DIN rail foot, so a single-phase supply group can be split at a defined position on the rail rather than at a loose connector somewhere in the wiring loom.
What this connector is for
- DIN rail foot for fixed mounting in a panel
- Three isolated circuits — line, neutral and earth
- Lever operated, stranded wire direct, reopenable
- Colour coded levers so each channel is identifiable
The three channels are electrically separate inside the housing, so line, neutral and earth cannot be bridged. Levers open individually, which keeps the panel serviceable when circuits are added later.
Choosing and fitting

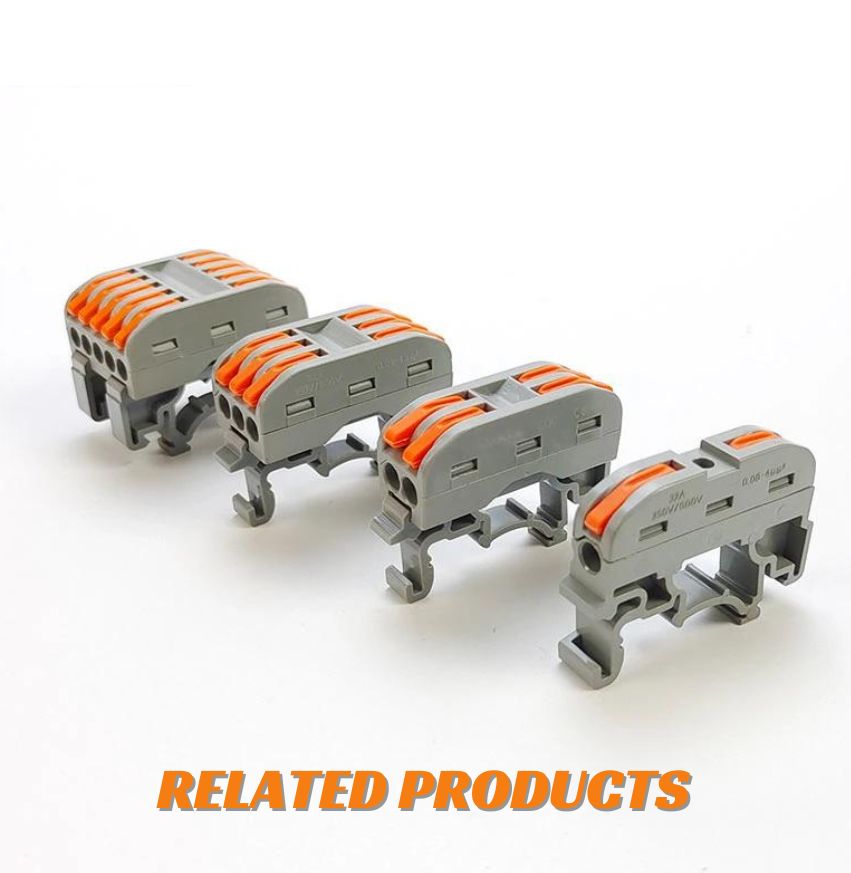

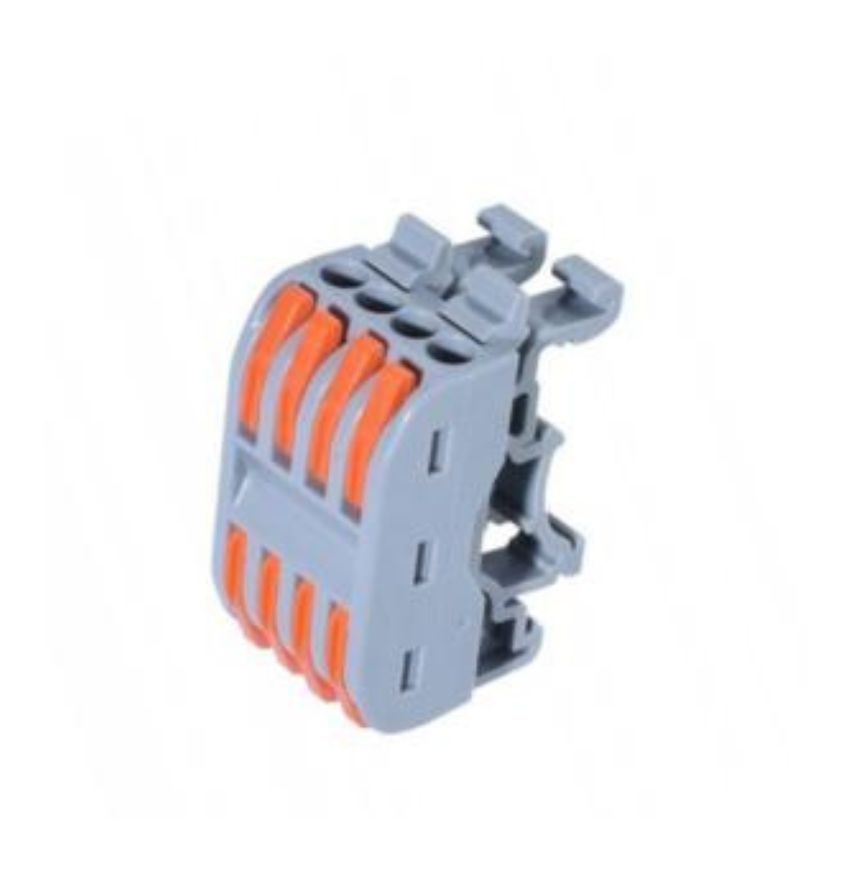

ATC India stocks the whole JiGO connector range — push-in connectors for solid wire, lever connectors for stranded wire, one-in-many-out distribution blocks, DIN-rail and surface-mounting versions, and the matching lever terminal blocks. Tell us the conductor type, the cross-section and the number of ways and we will supply the right part rather than the nearest one.
| Model | PCT-223D |
|---|---|
| Product type | Lever distribution connector with DIN rail mounting |
| Ways | Three in, three out |
| Conductor | Solid or stranded conductor — no ferrule needed |
| Clamping | Spring cage operated by a lever |
| Mounting | Moulded foot for 35 mm DIN rail |
| Reusable | Yes |
| Strip length | Printed on the connector body — strip to the mark, no more and no less |
| Typical use | Panel wiring where a line, neutral and earth group has to be distributed from a fixed point |
| Brand | JiGO |
| Supplied by | ATC India, Ludhiana, Punjab |
| Enquiries | +91 99887 74490 · www.arjuntradingcompany.com |
The PCT-223D is used in control and distribution panels, machine enclosures, lighting control boards and marshalling boxes.
- Solid or stranded? Push-in connectors are for solid conductors; lever connectors take stranded wire directly. Using the wrong type is the one mistake that causes trouble later.
- Strip to the printed mark. Too short and the cage grips insulation; too long and bare copper sits outside the housing.
- Pull-test every conductor after insertion. It takes a second and it catches the only fault this connector type allows.
- Availability: normally 7–10 days from confirmed order; fast-moving sizes are usually in stock in Ludhiana.
- Ordering: prices exclude GST. Call ATC India on +91 99887 74490 or send the model number through www.arjuntradingcompany.com for a quotation.
Genuine stock from our Ludhiana counter (trading since 1993). GST invoice on every order, courier anywhere in India.
