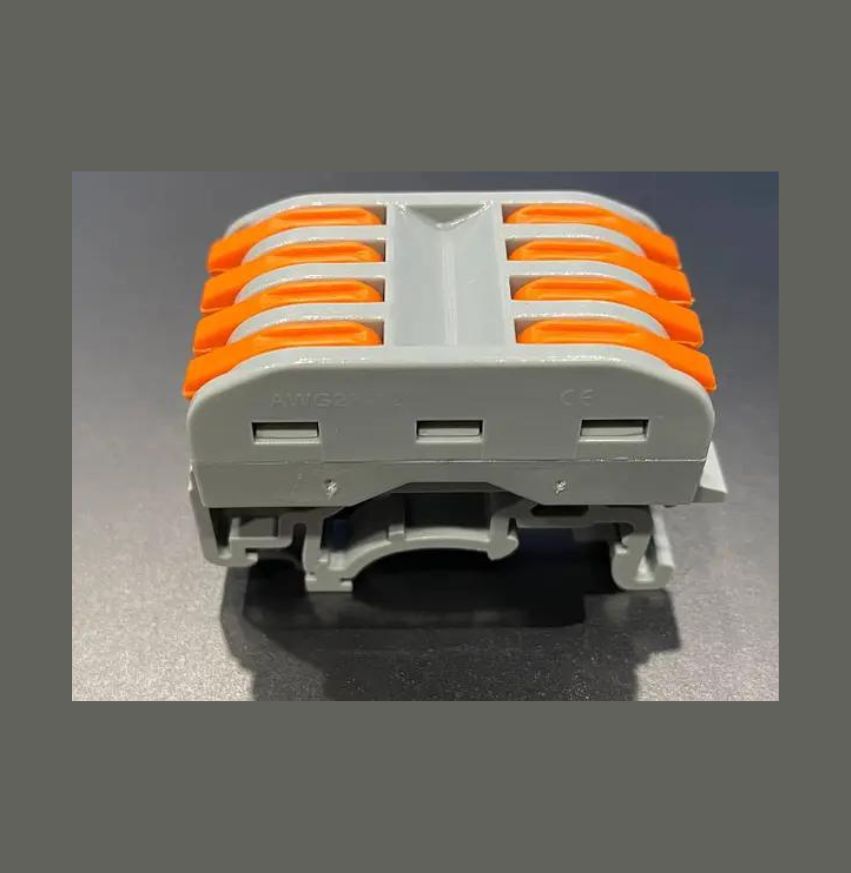

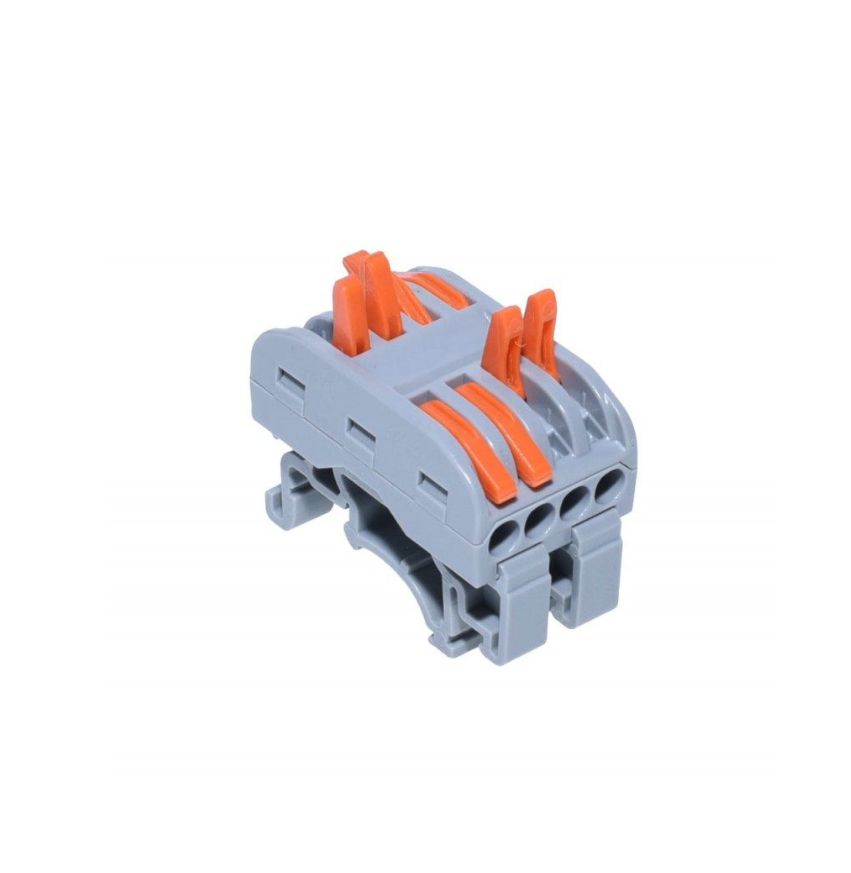

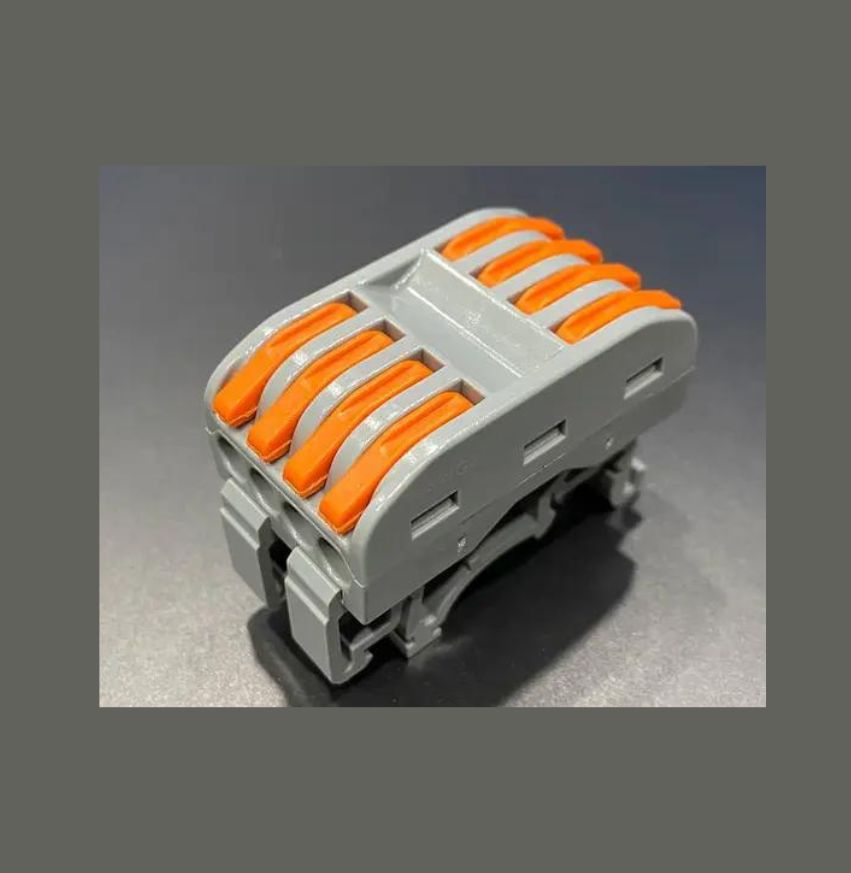

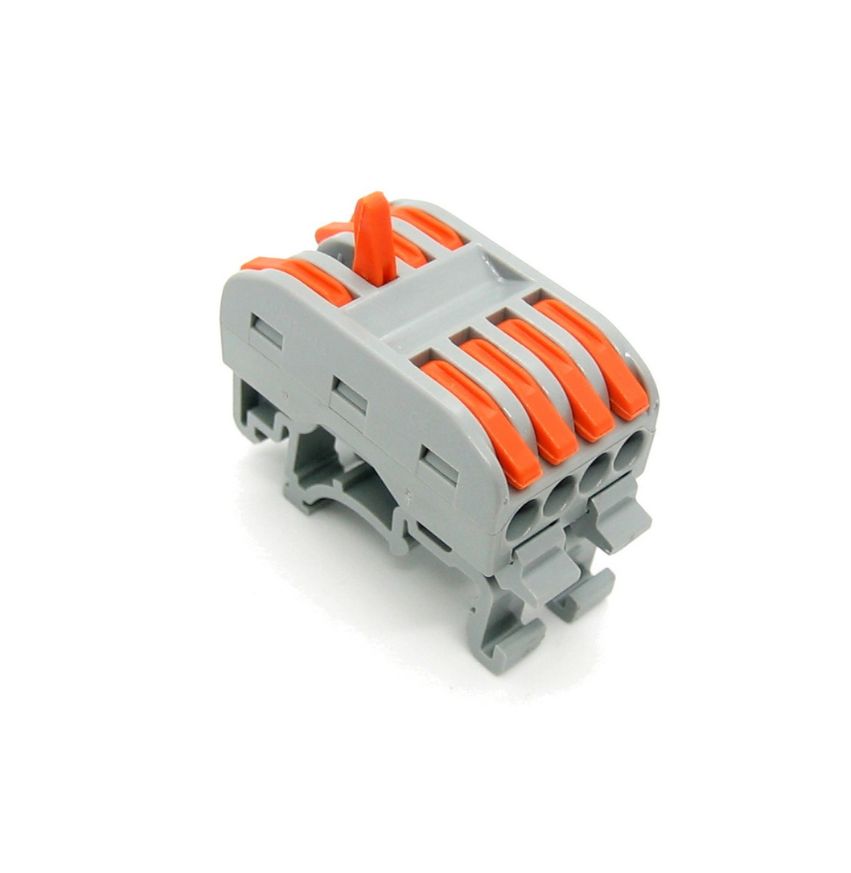

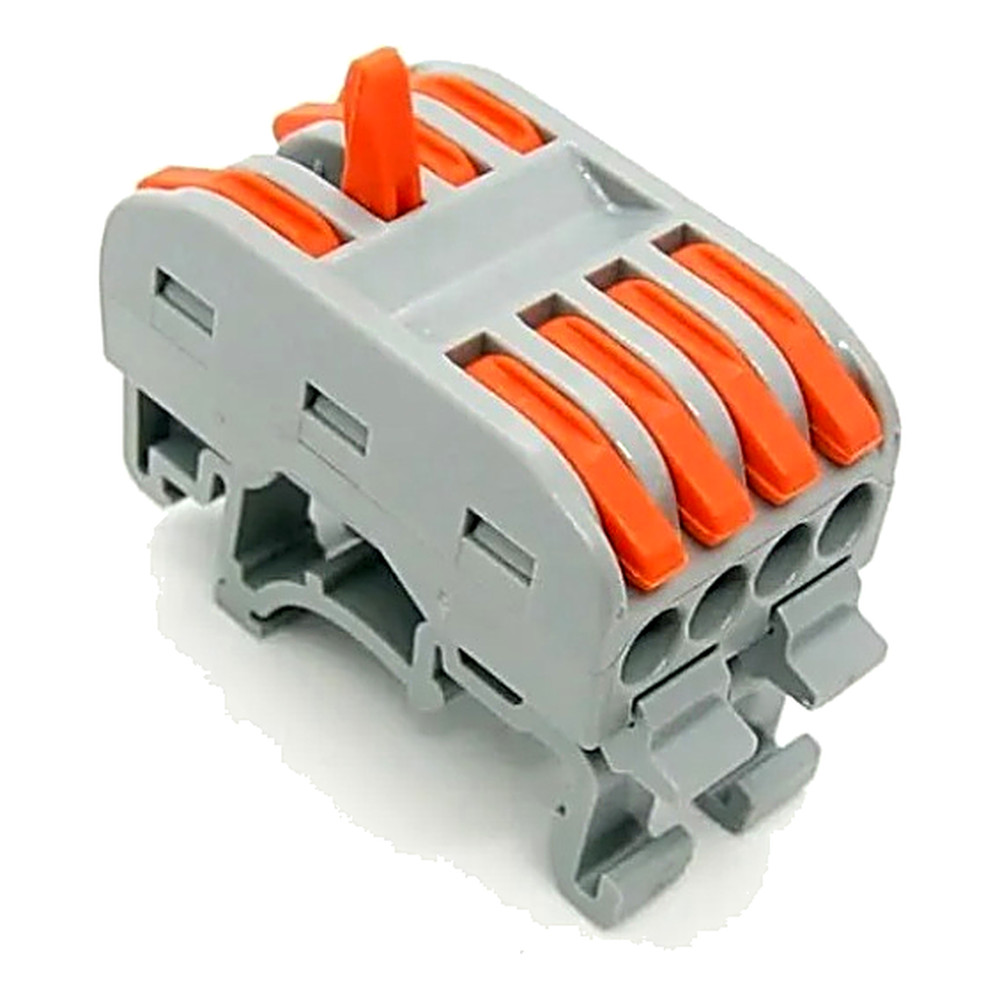

JiGO PCT-224D Wire Connector
The PCT-224D is the DIN-rail mounting version of the four-in four-out lever distribution connector — four isolated channels on a rail foot, for a three-phase and neutral group.
Taking a three-phase supply and its neutral into a panel and distributing all four from one rail-mounted point is tidier and quicker than four separate blocks. The PCT-224D does it in a single device with four electrically isolated channels and a DIN foot.
What this connector is for
- DIN rail foot for fixed mounting
- Four isolated circuits — three phases and a neutral
- Lever operated, stranded wire direct, reopenable
- Colour coded levers to preserve and show phase order
Because the channels are separate and colour coded, phase order is preserved through the distribution point — which matters, because a transposition at a panel junction runs every motor downstream backwards.
Choosing and fitting
ATC India stocks the whole JiGO connector range — push-in connectors for solid wire, lever connectors for stranded wire, one-in-many-out distribution blocks, DIN-rail and surface-mounting versions, and the matching lever terminal blocks. Tell us the conductor type, the cross-section and the number of ways and we will supply the right part rather than the nearest one.

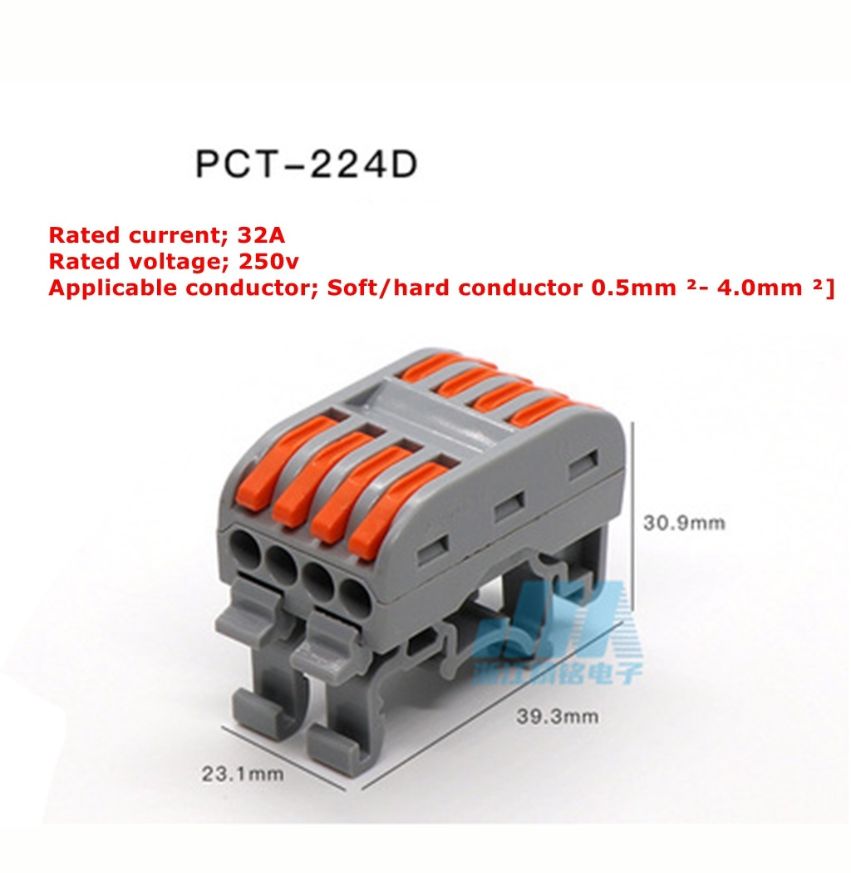

| Model | PCT-224D |
|---|---|
| Product type | Lever distribution connector with DIN rail mounting |
| Ways | Four in, four out |
| Conductor | Solid or stranded conductor — no ferrule needed |
| Clamping | Spring cage operated by a lever |

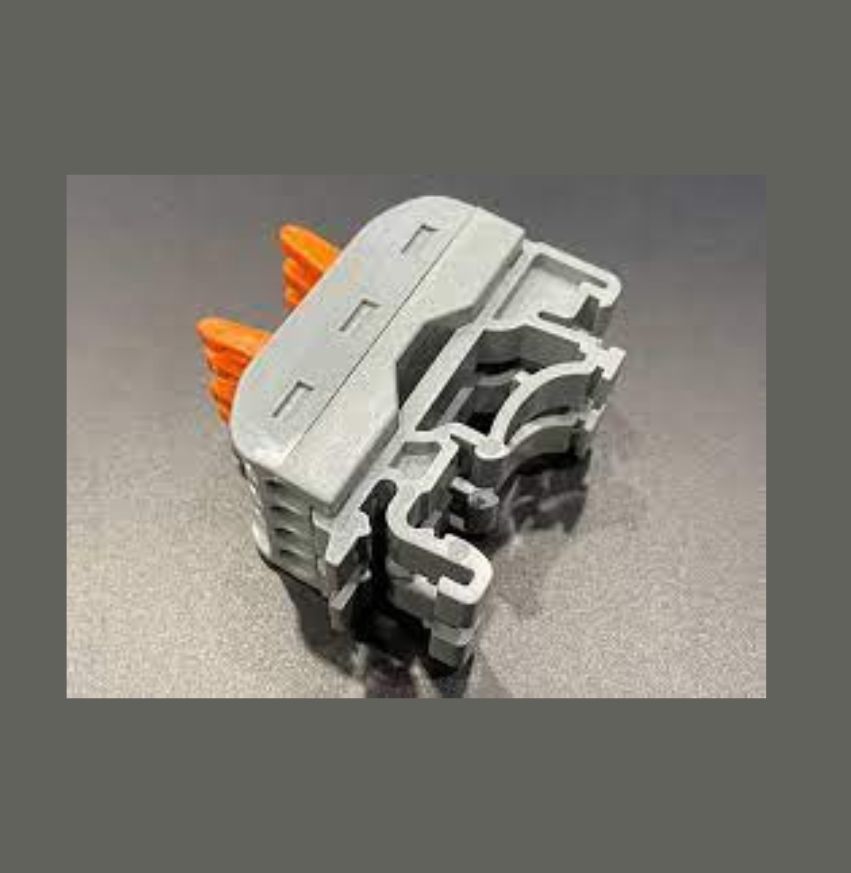

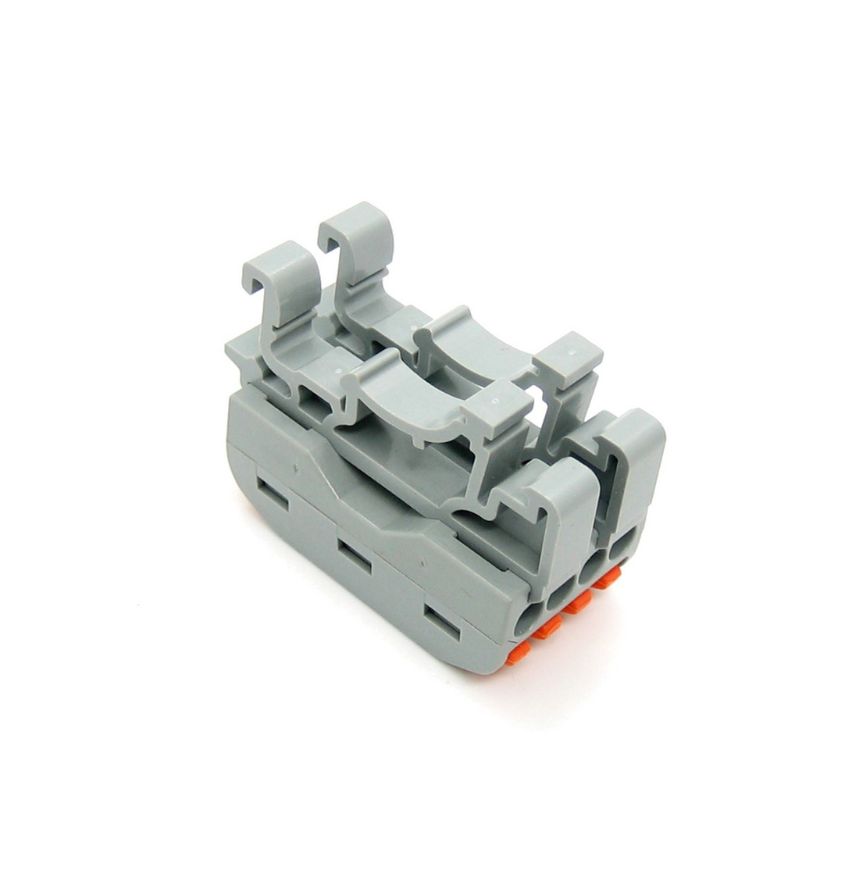

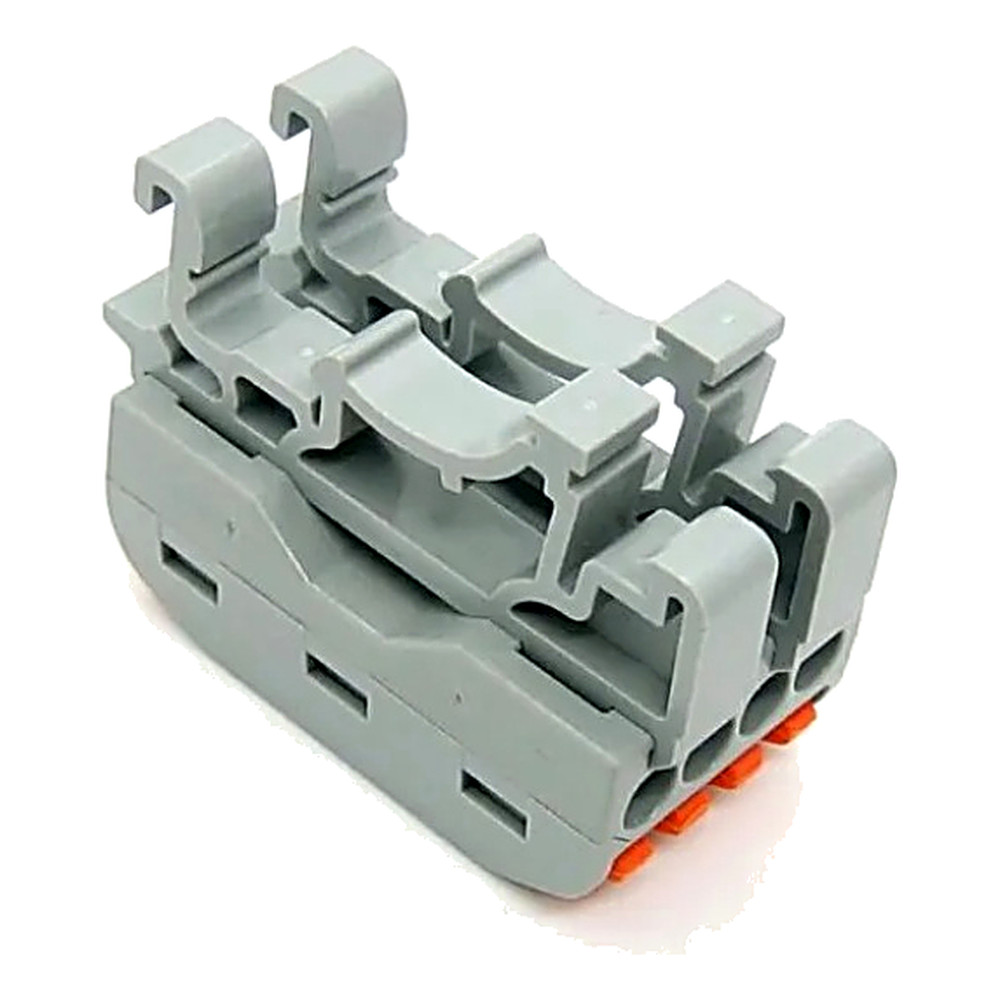

| Mounting | Moulded foot for 35 mm DIN rail |
| Reusable | Yes |
| Strip length | Printed on the connector body — strip to the mark, no more and no less |
| Typical use | Panel wiring for three-phase and neutral groups, or any four circuits distributed from a fixed point |
| Brand | JiGO |
| Supplied by | ATC India, Ludhiana, Punjab |
| Enquiries | +91 99887 74490 · www.arjuntradingcompany.com |
The PCT-224D is used in three-phase control and distribution panels, motor control centres, machine enclosures and marshalling boxes.
- Solid or stranded? Push-in connectors are for solid conductors; lever connectors take stranded wire directly. Using the wrong type is the one mistake that causes trouble later.
- Strip to the printed mark. Too short and the cage grips insulation; too long and bare copper sits outside the housing.
- Pull-test every conductor after insertion. It takes a second and it catches the only fault this connector type allows.
- Availability: normally 7–10 days from confirmed order; fast-moving sizes are usually in stock in Ludhiana.
- Ordering: prices exclude GST. Call ATC India on +91 99887 74490 or send the model number through www.arjuntradingcompany.com for a quotation.
