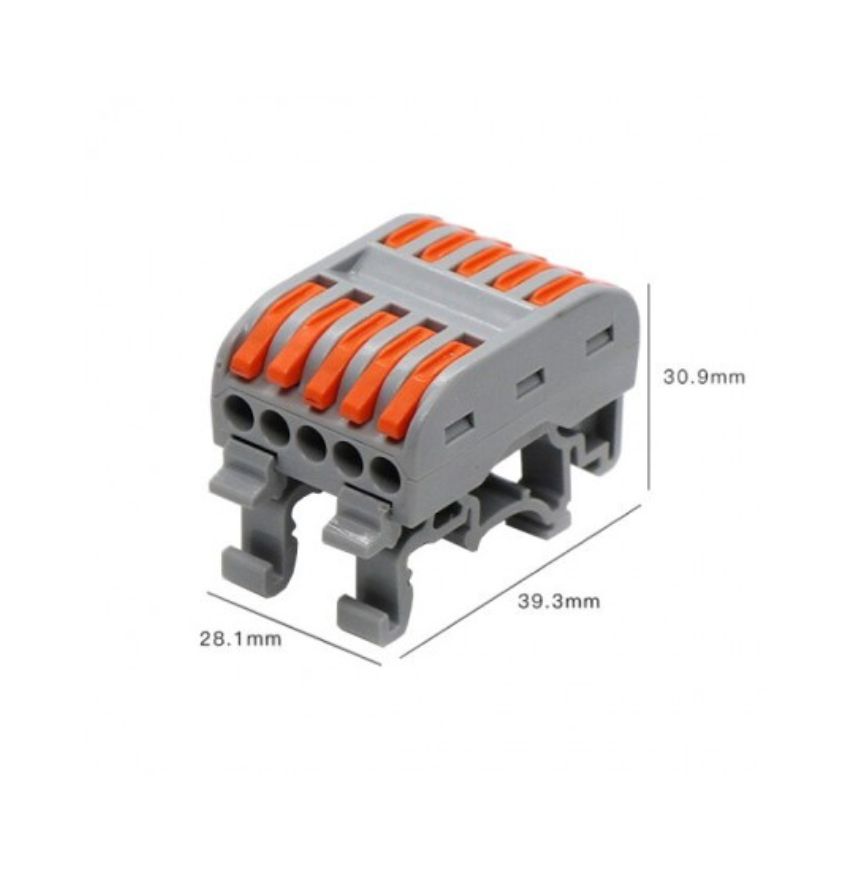

JiGO PCT-225D Wire Connector
The PCT-225D is the DIN-rail mounting version of the five-in five-out lever distribution connector — five isolated channels for a complete three-phase, neutral and earth group.
Five channels on a rail foot handles a whole three-phase supply, neutral and earth included, from a single fixed point inside the panel. It is the largest distribution connector in the PCT range and the one specified where a machine feed has to be split without a terminal row.
What this connector is for
- DIN rail foot for fixed mounting
- Five isolated circuits — three phases, neutral and earth

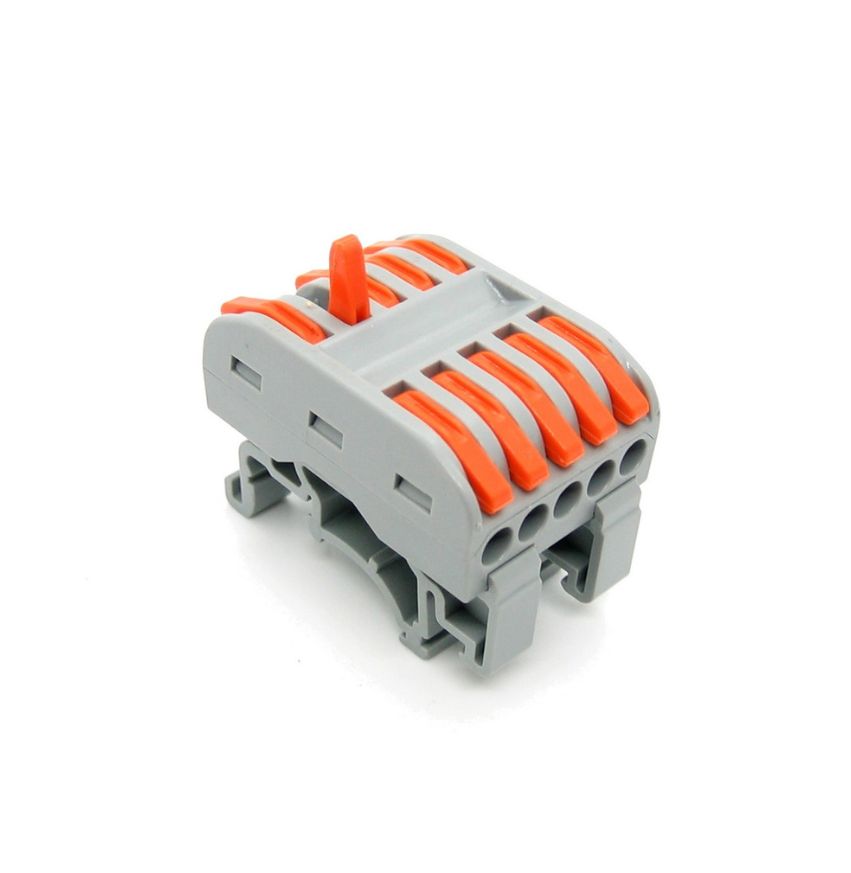

- Lever operated, stranded wire direct, reopenable
- Colour coded levers so the group order stays visible
Each channel is isolated inside the body and the levers open individually, so a circuit can be added or moved during commissioning without disturbing the rest of the group or cutting conductors shorter.
Choosing and fitting

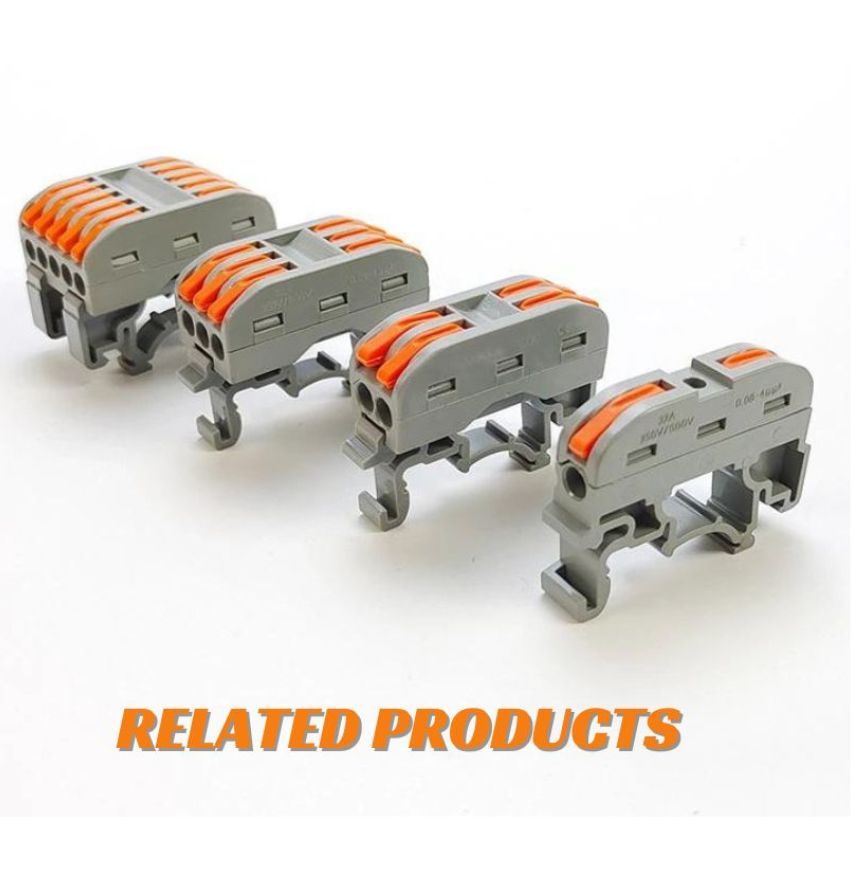

ATC India stocks the whole JiGO connector range — push-in connectors for solid wire, lever connectors for stranded wire, one-in-many-out distribution blocks, DIN-rail and surface-mounting versions, and the matching lever terminal blocks. Tell us the conductor type, the cross-section and the number of ways and we will supply the right part rather than the nearest one.
| Model | PCT-225D |
|---|---|
| Product type | Lever distribution connector with DIN rail mounting |
| Ways | Five in, five out |
| Conductor | Solid or stranded conductor — no ferrule needed |
| Clamping | Spring cage operated by a lever |

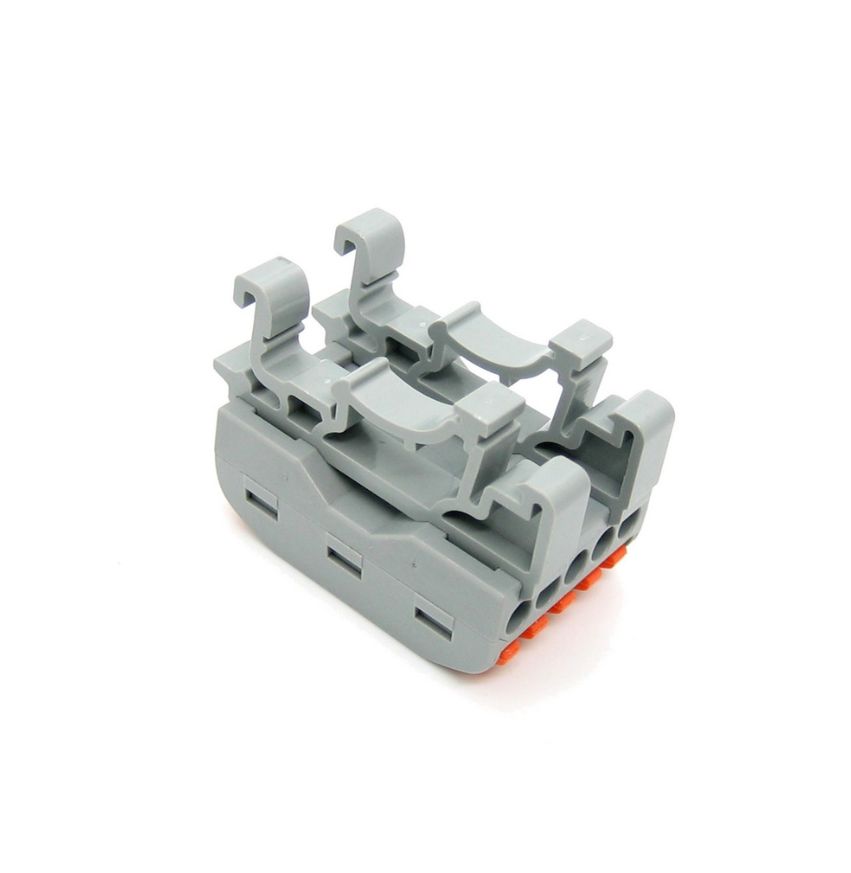

| Mounting | Moulded foot for 35 mm DIN rail |
| Reusable | Yes |
| Strip length | Printed on the connector body — strip to the mark, no more and no less |
| Typical use | Panel wiring for complete three-phase, neutral and earth groups |
| Brand | JiGO |
| Supplied by | ATC India, Ludhiana, Punjab |
| Enquiries | +91 99887 74490 · www.arjuntradingcompany.com |
The PCT-225D is used in three-phase panels, motor control centres, machine supply enclosures and distribution boards.
- Solid or stranded? Push-in connectors are for solid conductors; lever connectors take stranded wire directly. Using the wrong type is the one mistake that causes trouble later.
- Strip to the printed mark. Too short and the cage grips insulation; too long and bare copper sits outside the housing.
- Pull-test every conductor after insertion. It takes a second and it catches the only fault this connector type allows.
- Availability: normally 7–10 days from confirmed order; fast-moving sizes are usually in stock in Ludhiana.
- Ordering: prices exclude GST. Call ATC India on +91 99887 74490 or send the model number through www.arjuntradingcompany.com for a quotation.
