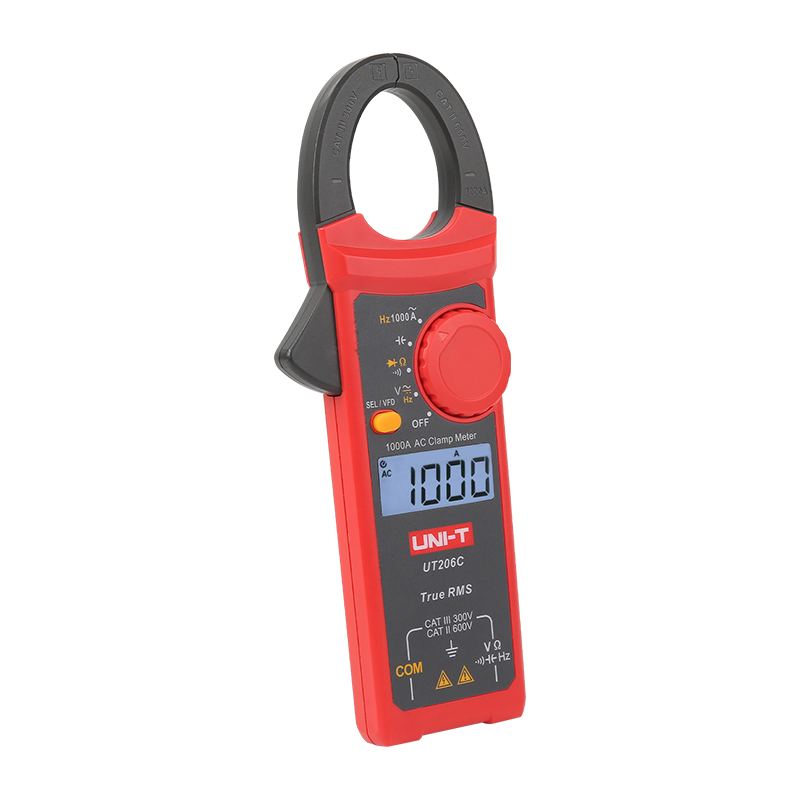

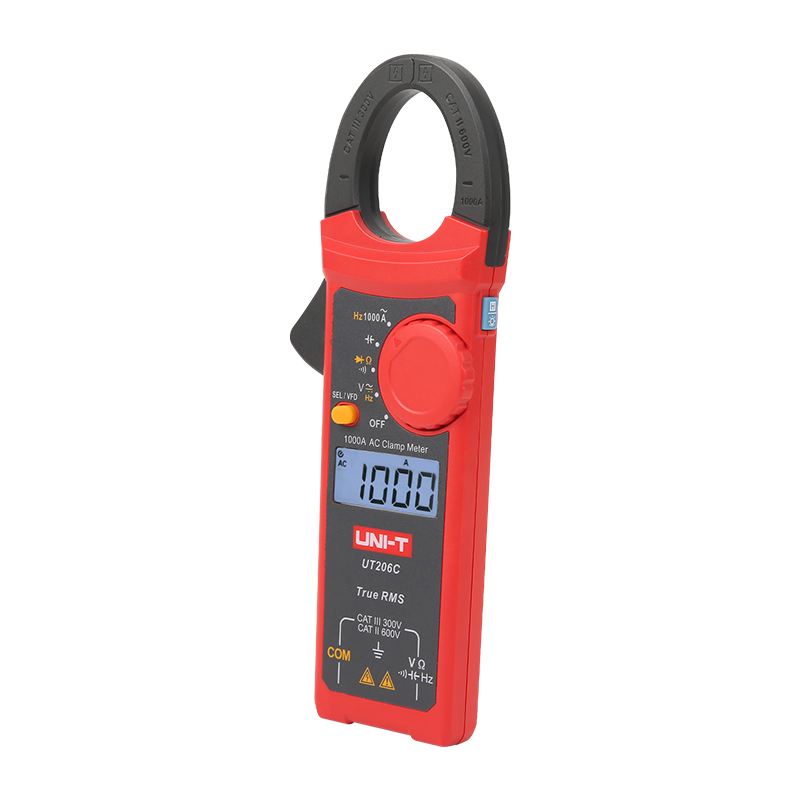

UT-206C Digital Clamp Meter
The UT206C is a compact, pocket-sized digital clamp-meter. It can stably measure voltage, current, frequency, and other parameters of sine waves superimposed with carrier frequencies and various distorted interference signals (VFD).
The UT206C is a compact, pocket-sized digital clamp-meter. It can stably measure voltage, current, frequency, and other parameters of sine waves superimposed with carrier frequencies and various distorted interference signals (VFD). The AC measurement range reaches up to 1000A. The product is designed in accordance with CATⅡ 600V / CATⅢ 300V safety ratings and has obtained corresponding EC and cETLus certifications.
Features of UT206C 1000A AC Clamp Meter
Certificates: CE/cETLus/RoHS
- True RMS measurement with 6000 display count
- Ultra-narrow/thin Jaw: Jaw is 10mm thick
- Lightweight design: around 130 g
- AC/DC Voltage test: 600V
- AC test: 1000A
- VFD measurement
- Auto power off & Flashlight
- CAT II 600V & CAT III 300V
- CE & ETL certified
Specifications
| Model | UT206C | ||
| Current(AC) | 60.00A | 0.01A | ± (2.0%+10) |
| 600.0A | 0.1A | ± (2.0%+5) | |
| 1000A | 1A | ± (2.0%+5) | |
| Frequency(ACA) | 45Hz～400Hz | 0.01Hz～0.1Hz | ± (0.1%+3) |
| Voltage(AC) | 6.000V | 0.001V | ± (1.2%+5) |
| 60.00V | 0.01V | ||
| 600.0V | 0.1V | ||
| VFD(AC) | 600.0V | 0.1V | ± (8%) |
| Frequency(ACV) | 10Hz～100kHz | 0.01Hz～0.1kHz | ± (0.1%+3) |
| Voltage(DC) | 6.000V | 0.001V | ± (1.0%+2) |
| 60.00V | 0.01V | ||
| 600.0V | 0.1V | ||
| Resistance (Ω) | 600.0Ω | 0.1Ω | ±(1.0%+5) |
| 6.000kΩ | 0.001kΩ | ±(1.0%+2) | |
| 60.00kΩ | 0.01kΩ | ||
| 600.0kΩ | 0.1kΩ | ||
| 1.000MΩ | 0.001MΩ | ||
| Capacitance(F) | 6.000μF | 0.001uF | ± (2%+5) |
| 60.00μF | 0.01uF | ± (5%+5) | |
| 600.0μF | 0.1uF | ||
| 6.00mF | 0.01mF | ± (10%) | |
| 10.00mF | 0.01mF | ||
| Features | |||
| Clamp opening size | 33mm | ||
| Display count | 6000 | ||
| True RMS | ✔ | ||
| Clamp thick | 10mm | ||
| Continuity | ✔ | ||
| Auto identification | Resistance/Continuity/Diode | ||
| Data hold | ✔ | ||
| Backlight | ✔ | ||
| Category rating | CAT III 300V CAT II 600V | ||
| Characteristic | |||
| Power supply | 1.5V AAA * 2 | ||
| Product weight | About 130g | ||
| Product dimension | 190 × 68 × 20mm | ||
| Accessories | Batteries, testing probe, manual, cloth bag | ||
Genuine stock from our Ludhiana counter (trading since 1993). We are UNI-T's authorised importer & distributor for India, with Indian warranty and service support. GST invoice on every order, courier anywhere in India.
