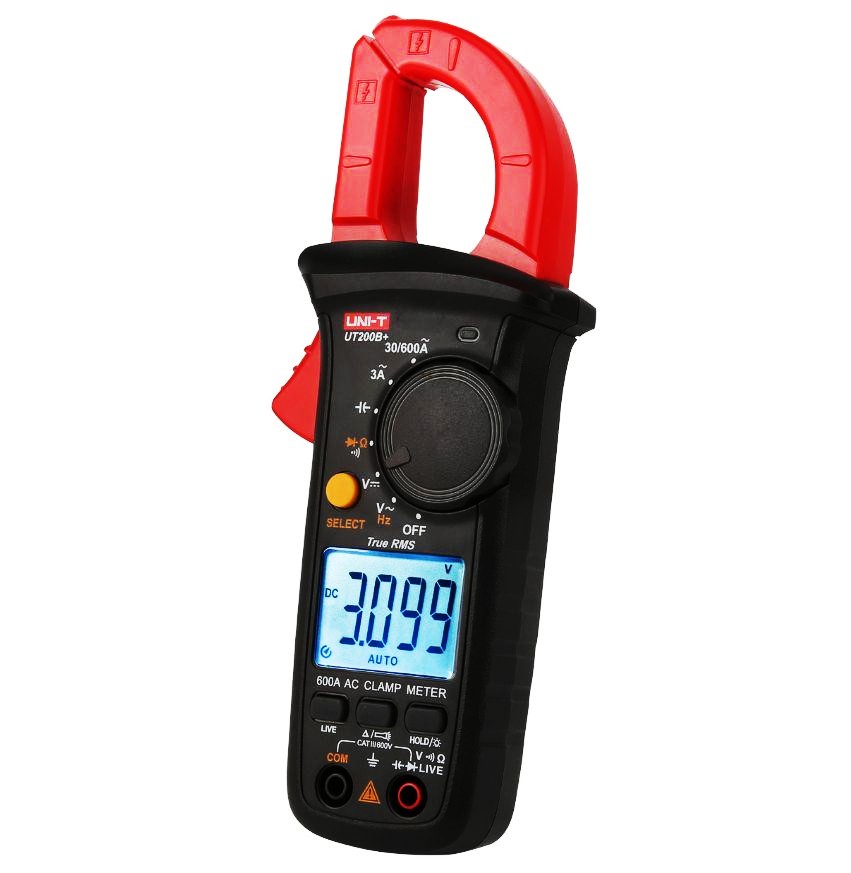

UT200B+ Digital Clamp Meter
UT200A+/UT200B+ Digital Clamp Meters
UT200A+ and UT200B+ AC current digital clamp meters are suitable for daily repair and maintenance of household equipment, mainly used by electricians; Featured minimum 3A AC current measurement, True RMS, LIVE test, and Audible/Visual alarm functions, they are good tools for home users or DIY enthusiasts.
Models: UT200A+, UT200B+
Features of UT200A+/UT200B+ Digital Clamp Meters
Certificates: ROW
● True RMS
● AC/DC 600V voltage measurement
● AC 400A current measurement (UT200A+)
● AC 600A current measurement (UT200B+)
● Continuity/resistance/diode/high voltage frequency measurement (UT200A+)
● Continuity/resistance/capacitance/diode/high voltage frequency measurement (UT200B+)
● LIVE function & Flashlight
● Continuity and Diode, two-in-one
● 3000 counts
Specifications of UT200A+/UT200B+ Digital Clamp Meters
| Specification | Range | UT200A+ | UT200B+ |
| Current (ACA) | 3.000A | ±(4%+10) | ±(4%+10) |
| 30.00A | ±(3%+5) | ±(4%+5) | |
| 400.0A | ±(3%+5) | – | |
| 600.0A | – | ±(4%+5) | |
| Voltage (ACV) | 3.000V~600V | ±(1.2%＋5) | ±(1.2%＋5) |
| Frequency(Hz) | 10H～10kHz | ±(1.0%+5) | ±(1.0%+5) |
| Voltage (DCV) | 3.000V~300.0V | ±(1.0%+5) | ±(1.0%+5) |
| 300.0V~600V | ±(1.0%+3) | ±(1.0%+3) | |
| Resistance | 300.0Ω~300.0kΩ | ±(1.0％+5） | ±(1.0％+5） |
| 300.0kΩ~3.000MΩ | ±(2.0%+5) | ±(2.0%+5) | |
| Capacitance | 30.00nF～300.0nF | – | ±(4%+10) |
| 3.000μF～300.0μF | – | ±(4%+5) | |
| 1.000mF | – | ±(5%+10) | |
| Features | |||
| Jaw size | 28mm | 28mm | |
| Display count | 3099 | 3099 | |
| Diode/Continuity | √ | √ | |
| Auto range | √ | √ | |
| High voltage warning | √ | √ | |
| Hold/Backlight | √ | √ | |
| Flashlight | √ | √ | |
| Overvoltage category | CAT III 600V | CAT III 600V | |
