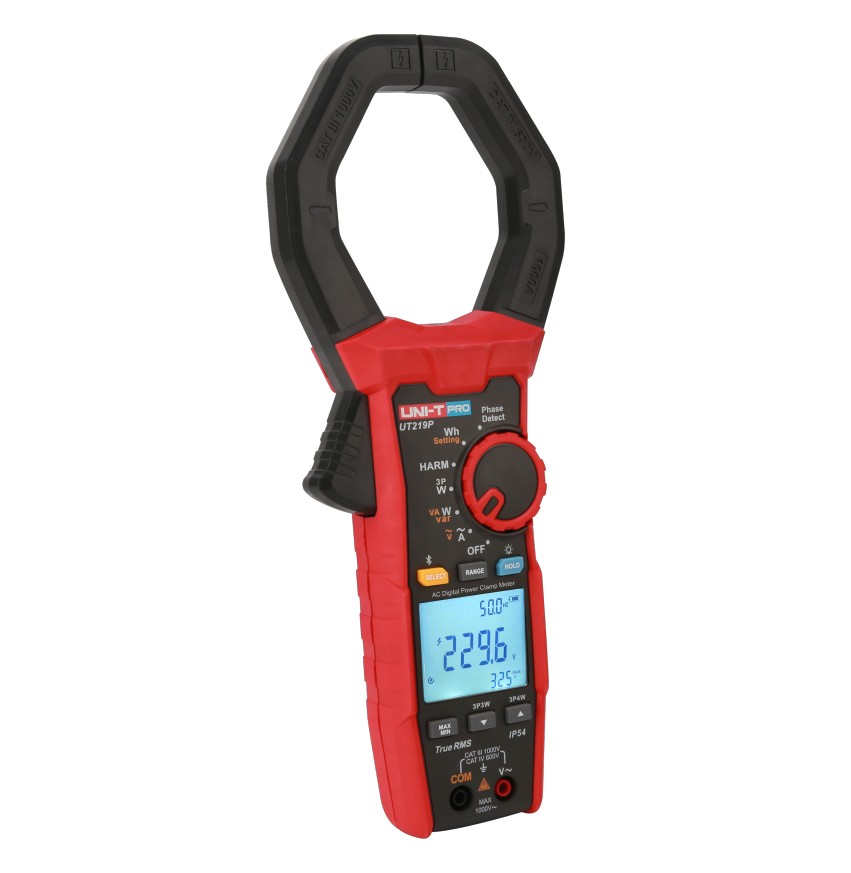

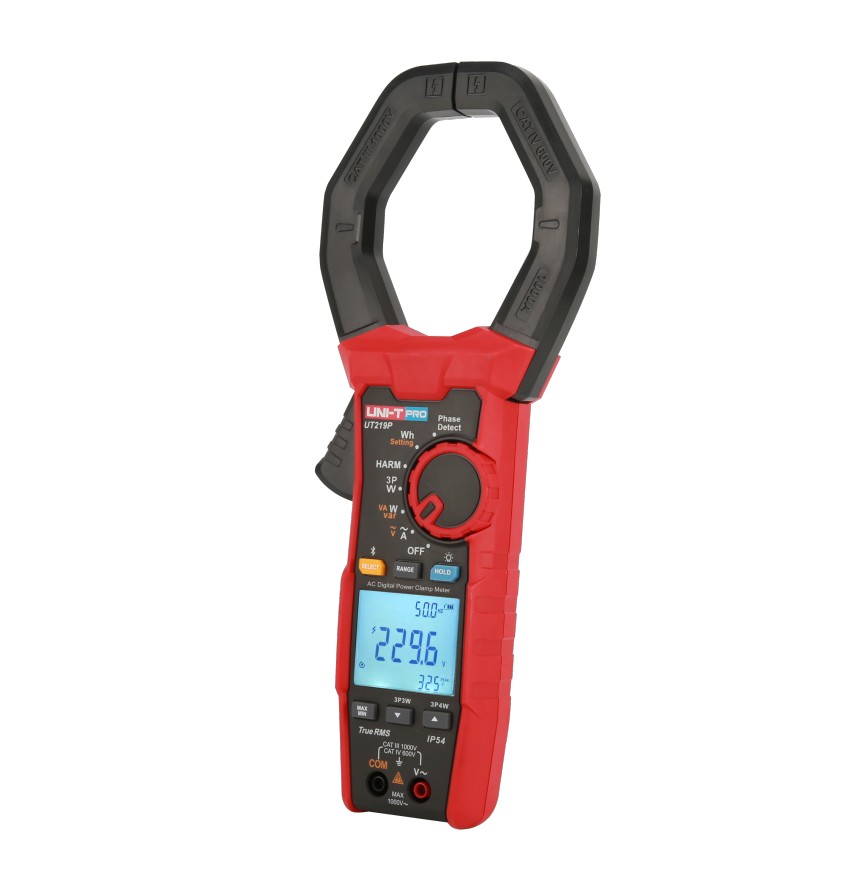

UT-219P
- Category: Clamp Meters
- Brand: UNI-T
- Minimum quantity: 1
- Price: ā¹ 20630
UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.
Features of UT219 Series Professional Clamp Meters
Certifications: CE, UKCA, cETLus, GS
ā Auto/manual range/ZERO mode
ā True RMS/auto power off
ā MAX/MIN
ā IP54/2m drop proof
ā Data hold/relative mode
ā Flashlight and auto backlight
ā Low battery indication
Specifications of UT219 Series Professional Clamp Meters
| Specifications | Range | UT219E | UT219M | UT219DS |
| AC current (A) | 600A | Ā±(1.8%+6) | Ā±(1.8%+6) | Ā±(1.8%+6) |
| DC current (A) | 600A | Ā±(1.8%+6) | ||
| AC voltage (V) | 1000V | Ā±(1%+6) | Ā±(1%+6) | Ā±(1%+6) |
| DC voltage (V) | 1000V | Ā±(0.6%+3) | Ā±(0.6%+3) | Ā±(0.6%+3) |
| LoZ ACV | 600V | Ā±(2.5%+6) | Ā±(2.5%+6) | Ā±(2.5%+6) |
| Resistance (Ī©) | 60MĪ© | Ā±(1%+3) | Ā±(1%+3) | Ā±(1%+3) |
| Capacitance (F) | 60mF | Ā±(4%+7) | Ā±(4%+7) | Ā±(4%+7) |
| Frequency (Hz) | 10Hz~10MHz | Ā±(0.1%+6) | ||
| 600Hz~40MHz | Ā±(0.1%+5) | Ā±(0.1%+6) | ||
| Duty cycle | 0.1%~99.9% | Ā±(2.6%+7) | Ā±(2.6%+7) | |
| Temperature | -40~1000ā | Ā±(2%+5ā) | Ā±(2%+5ā) | |
| -40~1832ā | Ā±(2%+9ā) | Ā±(2%+9ā) |
| Features | ||||
| Display count | 6000 | 6000 | 6000 | |
| Auto/Manual range | ā | ā | ā | |
| Jaw opening | 33mm | 33mm | 33mm | |
| True RMS | ā | ā | ā | |
| AC current frequency response | 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | |
| AC voltage frequency response | 40Hz~400Hz | 40Hz~400Hz | 40Hz~1kHz | |
| 3-phase motor sequence test | 600V | ā | ā | |
| Low pass filter | 1kHz, 3db attenuation | ā | ||
| V+A displays voltage and current at the same time | ā | |||
| Diode test | 3V | 3V | 3V | |
| Measurement sampling rate | 3 times/s | 3 times/s | 5 times/s | |
| Analog bar sampling rate | 10 times/s | 20 times/s | ||
| Analog bar | 31 segment | 31 segment | ||
| Display interface (LCD) | Single | Single | Dual | |
| Auto power off/MAX/MIN | ā | ā | ā | |
| Low battery indication | ā | ā | ā | |
| Data hold (H)/Relative mode (REL) | ā | ā | ā | |
| ZERO mode | ā | ā | ā | |
| Function selection (SELECT) | ā | ā | ā | |
| Auto backlight/2m drop test | ā | ā | ā | |
| IP rating | IP54 | IP54 | IP54 | |
| Input impedance | ā„10MĪ© | ā | ā | ā |
| General Characterisitics | ||||
| Power | 1.5V battery (R03) x 3 | |||
| Display | 35mm x 31mm | |||
| Product color | Red and grey | |||
| Product net weight | 310g | |||
| Product size | 234.6mm x 82mm x 47mm | |||
| Standard accessories | Test leads, batteries, carrying bag, PC software CD, point contact temperature probe (UT219M/UT219DS) | |||
| Standard individual packing | Gift box, blister, English manual | |||
| Standard quantity per carton | 10pcs | |||
| Standard carton measurement | 490mm x 295mm x 330mm | |||
| Standard carton gross weight | UT219E: 8kg; UT219M/UT219DS: 8.2kg | |||
