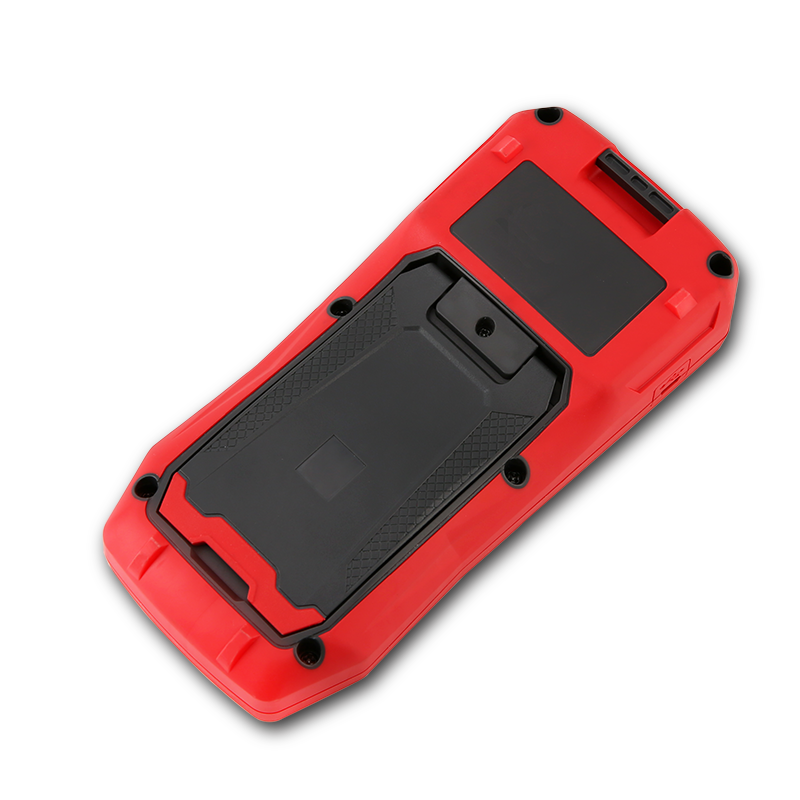

UT-622E
- Category: Digital Multi Meters
- Brand: UNI-T
- Minimum quantity: 1
- Price: ₹ 38500
The UT622 Series Handheld LCR meters feature powerful functions, high accuracy, fast speed, and long standby time. With a clear and intuitive 2.8-inch TFT LCD display,
The UT622 Series Handheld LCR meters feature powerful functions, high accuracy, fast speed, and long standby time. With a clear and intuitive 2.8-inch TFT LCD display, large-capacity rechargeable batiery, and up to 100kHz test frequency, the meters can be used for longstanding accurate and convenient measurement in any occasion. They are suitable for the measurement and screening of inductance, capacitance, and resistance in laboratories, production lines, maintenance points etc.
1. Power switch: long press to turn on, short press to turn off 2. Arrow keys: select menu operation keys 3. Trigger key: trigger/select trigger mode 4. D/Q/θ/ESR: secondary parameter selection 5. FREQ/REC: Frequency 100Hz, 120Hz, 1kHz, 10kHz, 100kHz selection and record mode button. 6. LEVEL/TOL: 0.1V, 0.3V, 1V, switch and tolerance mode buttons 7. L/C/R/Z/AUTO: main parameters and automatic identification. 8. SPEED/P-S: Test speed and equivalent mode switch button 9. CLEAR/UTIL: CLEAR clear and UTIL practical configuration menu.
SPECIFICATION Certificates Test frequency Test level Output impedance Measurement parameters UT622A CE, ROHS 100Hz, 120Hz, 1kHz, 10kHz 0.1Vrms, 0.3Vrms, 1Vrms 1000 Primary: L/C/R/Z Secondary: D/Q/0/ESR V UN-T UT622E MEASUREMENTS 1sLPAR: C SPEED:STOw 0. BANG:Auto 112 PF 0.0255 Handheld LCR Meter D/O/e FREQ LEVEL LIC/RIZ SPEED CLEAR DISCHARGE CAPACITOR BEFORE UT622C UT622E 100Hz, 120Hz, 1kHz, 10kHz, 100kHz 100Hz, 120Hz, 1kHz, 10kHz, 100kHz Primary: L/C/R/Z Secondary: D/Q/0/ESR Primary: L/C/R/Z/DCR Secondary: D/Q/0/ESR V Three-terminal test jacks, five-terminal test sockets Fast (20 times/s), medium (5 times/s), or slow (2 times/s)Fast (20 times/s), medium (5times/s), or slow (2 times/s) Auto LCR Test ports Test speed DCR test speed Fast (20 times/s),medium (5times/s), or slow (2 times/s) Range Tolerance range Auto/Hold 1%~20% Equivalent mode Series/Parallel Clearing correction Open/Short circuit Fuse of test ports 0.1A/250V Communication interface Mini-USB LED alarm for tolerance pass: green; fail: red pass: green; fail: red pass: green; fail: red MAX reading of primary parameters 99999 MIN resolution 0.0001 Maximum accuracy 0.10% L 0.00цН~99.999H C 0.00pF~99.999mF Z/R 0.00002~9.9999ΜΩ ESR 0.00000~999.990 D 0.0000~9.9999 0 0.0000~99999 θ -179.9°~179.9° DCR 0.01mΩ--20.000ΜΩ Temperature coefficient 0.1x (specified accuracy) /°C (0°C~18°C or 28°C~40°C)
