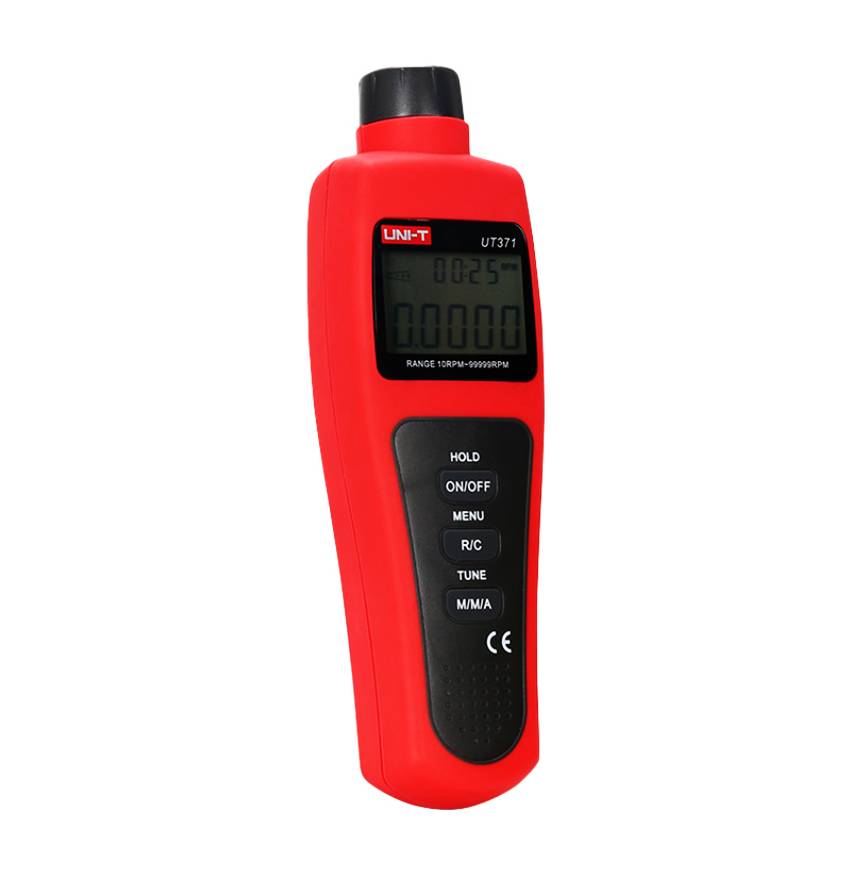

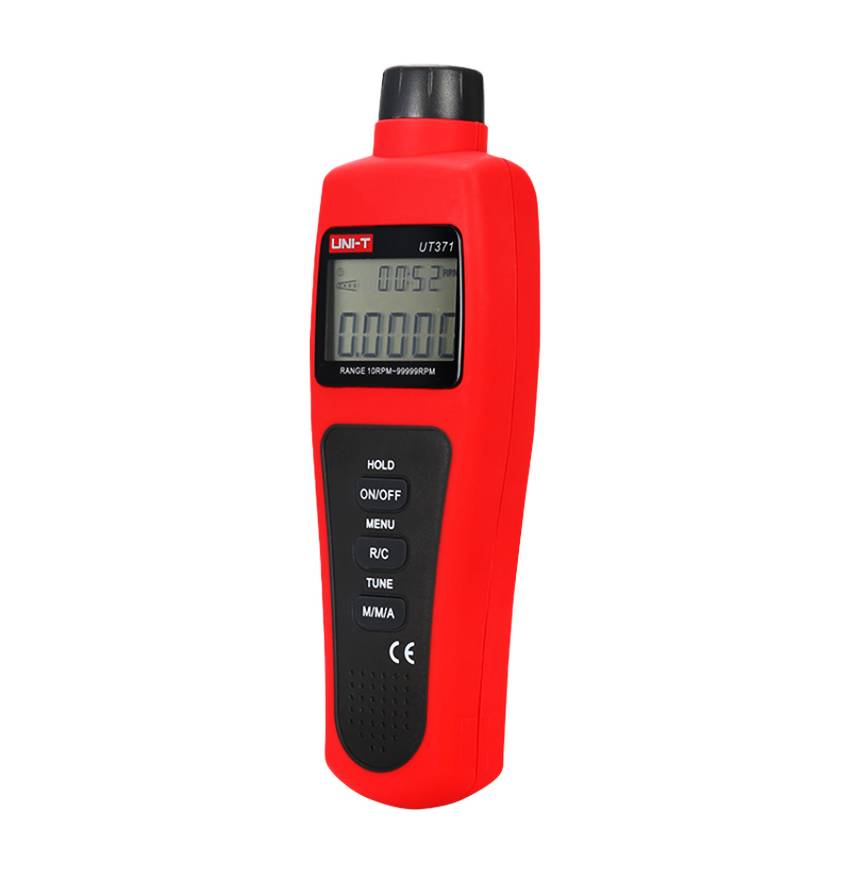

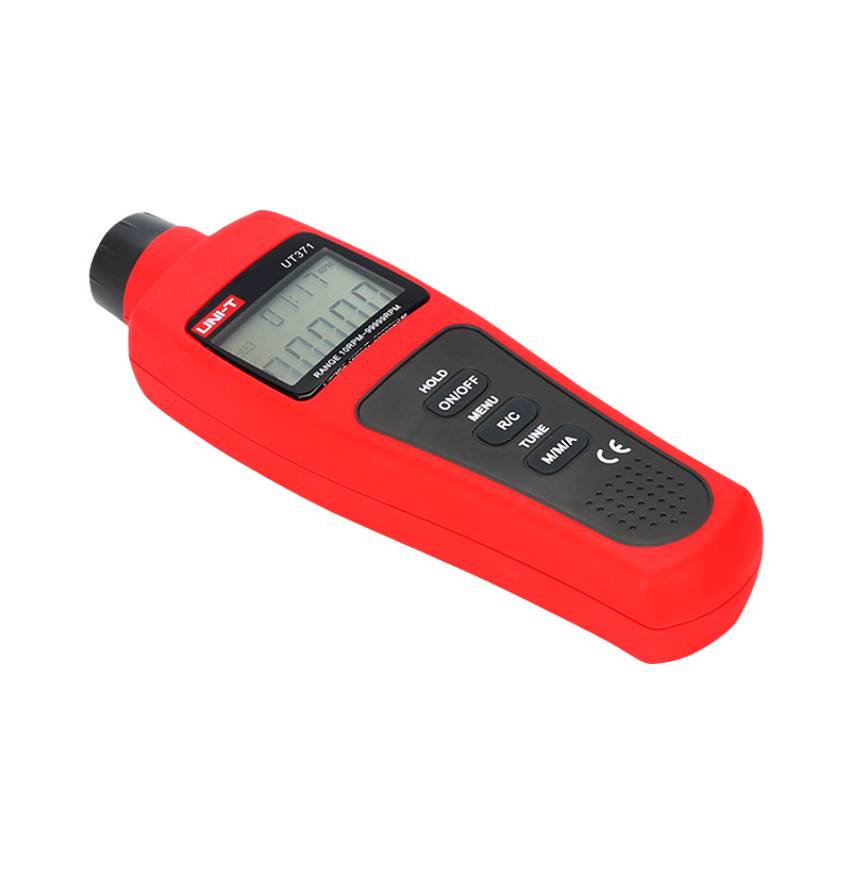

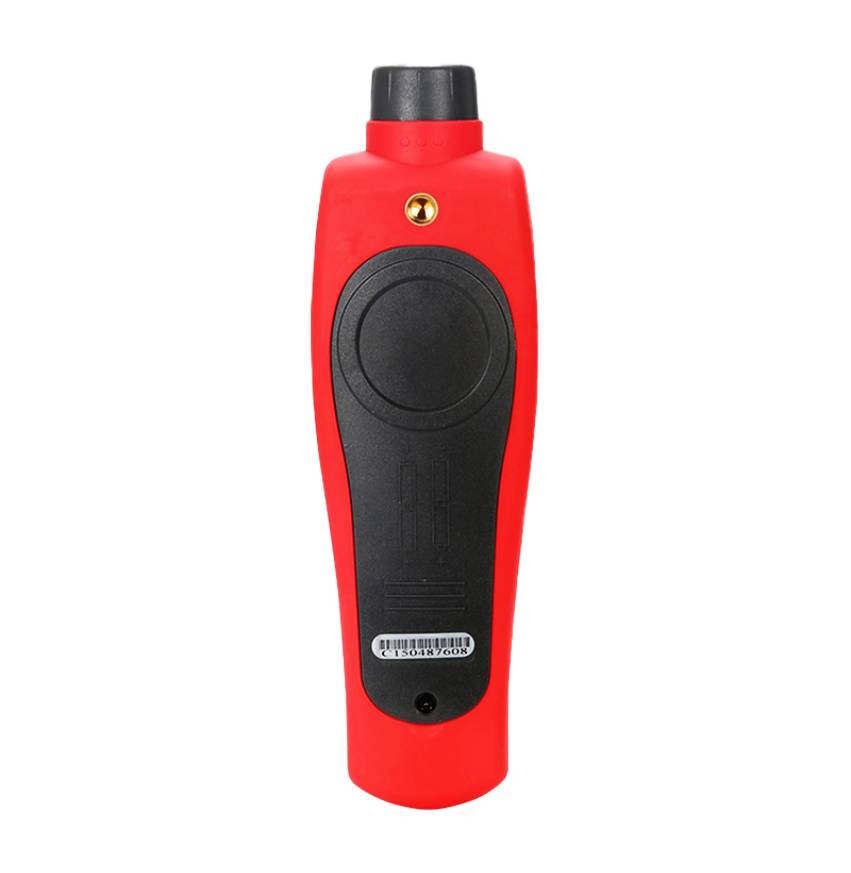

UT371 Digital Tachometer
UT371 series non-contact tachometers measure rotating speed of shaft or disk with a point laser and reflective tape on the object being measured. These meters can output RPM or count readouts without interfering with the equipment being measured.
Features of UT371 Series Tachometers
● 5 digits LCD screen, RPM/count and time dual display
● MAX/MIN/AVG/normal modes
● Adjustable sampling rate (0.5-255s)
● Auto power off (cancelable)
● Optional (on/off) laser pointer
● Clock and time setting
● Data hold, low power consumption, continuous work for 40hrs
Specifications of UT371 Series Tachometers
| Specifications | Range | UT371 |
| RPM range | 10RPM~99RPM | ±(0.03%) |
| 100RPM~999RPM | ±(0.04%＋2) | |
| 1000RPM~9999RPM | ±(0.04%＋2) | |
| 10000RPM~99999RPM | ±(0.04%＋2) | |
| Counts | Range: 0~99999 | √ |
| Max. input frequency: 10kHz; bandwidth: 5% | ||
| Target distance | 50mm~200mm | √ |
| Features | ||
| Display count | 100000 | |
| Data hold | √ | |
| Auto power off | Around 15 minutes | √ |
| Low battery indication | ≤4.8V | √ |
| MAX/MIN/AVG mode | √ | |
| USB interface | ||
| General Characterisitics | |
| Power | 1.5V battery (LR6) X 4 |
| Display | 53mm x 41mm |
| Product color | Red and grey |
| Product net weight | 100g |
| Product size | 184mm x 56mm x 34mm |
| Standard accessories | Reflective tape, USB interface cable (UT372), PC software CD (UT372) |
| Standard individual packing | Blister, English manual |
| Standard quantity per carton | 20pcs |
| Standard carton measurement | 420mm x 305mm x 370mm (0.047CBM per standard carton) |
| Standard carton gross weight | 5kg |
