AG-125X125X100
- Category: AG SERIES BOX
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2000

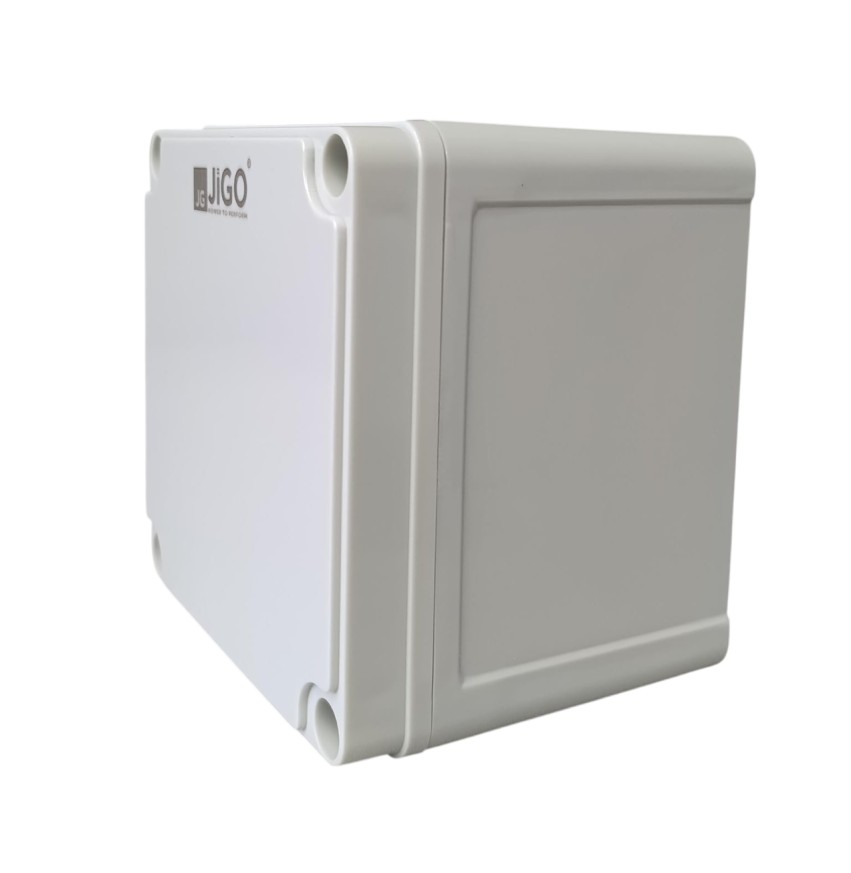

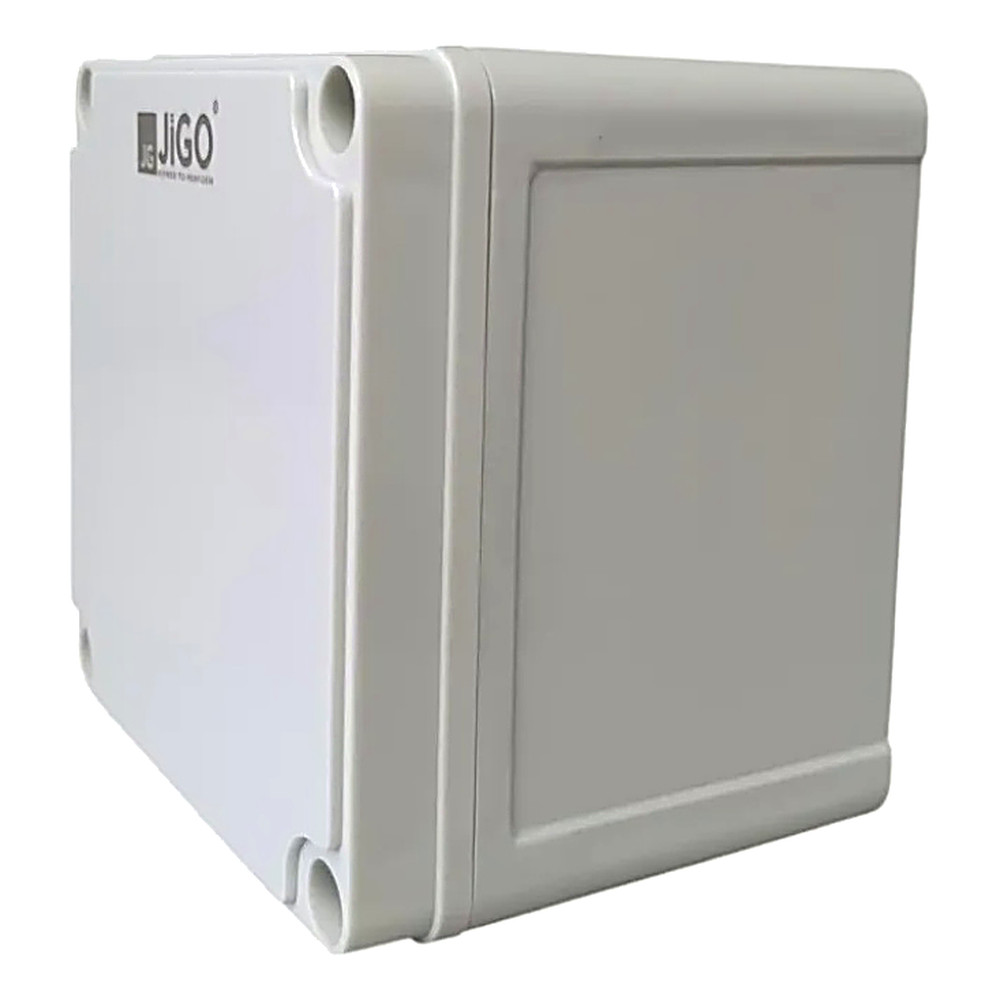

The AG-125X125X100 is a robust, mid-sized junction box made from high-quality ABS or polycarbonate material. Designed for durability and versatility, its square base and increased depth provide extra internal space for housing electrical or electronic components. With reliable IP-rated protection, this enclosure is ideal for both indoor and outdoor applications where secure, long-term performance is required.
Product Details:
Material: UV-resistant, flame-retardant ABS or Polycarbonate
External Dimensions: 125mm (L) x 125mm (W) x 100mm (H)
Color: Light Grey (RAL 7035) standard
Ingress Protection: IP65 / IP66 (when sealed with gasket)
Cover Type: Screw-fixed lid (4-corner fastening, stainless steel or plastic screws)

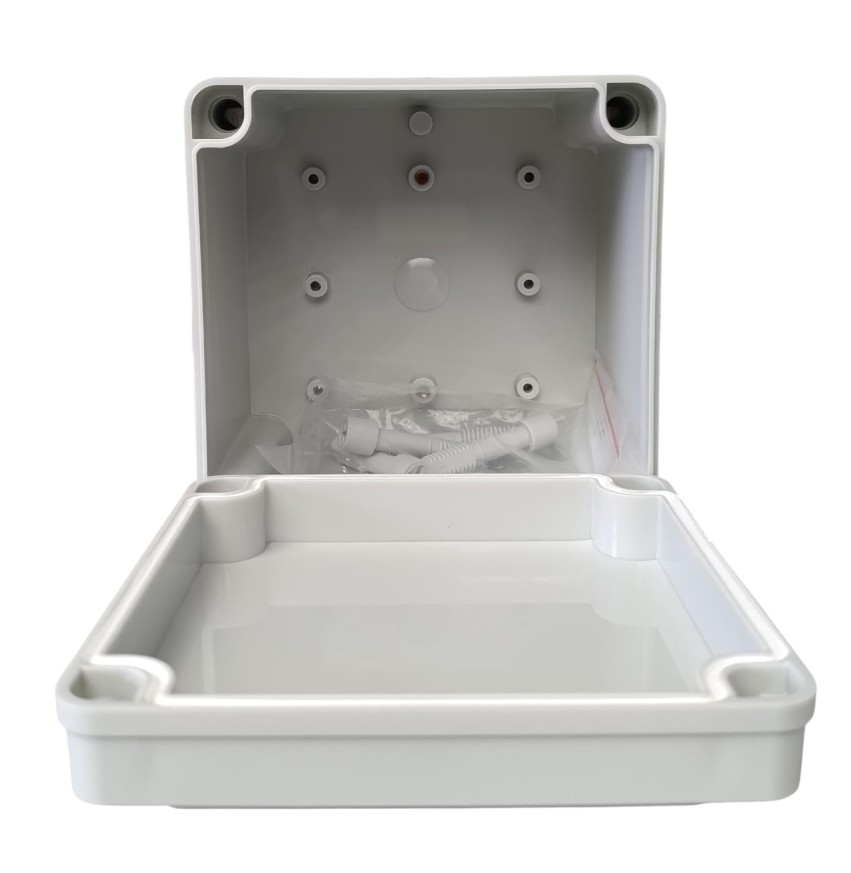

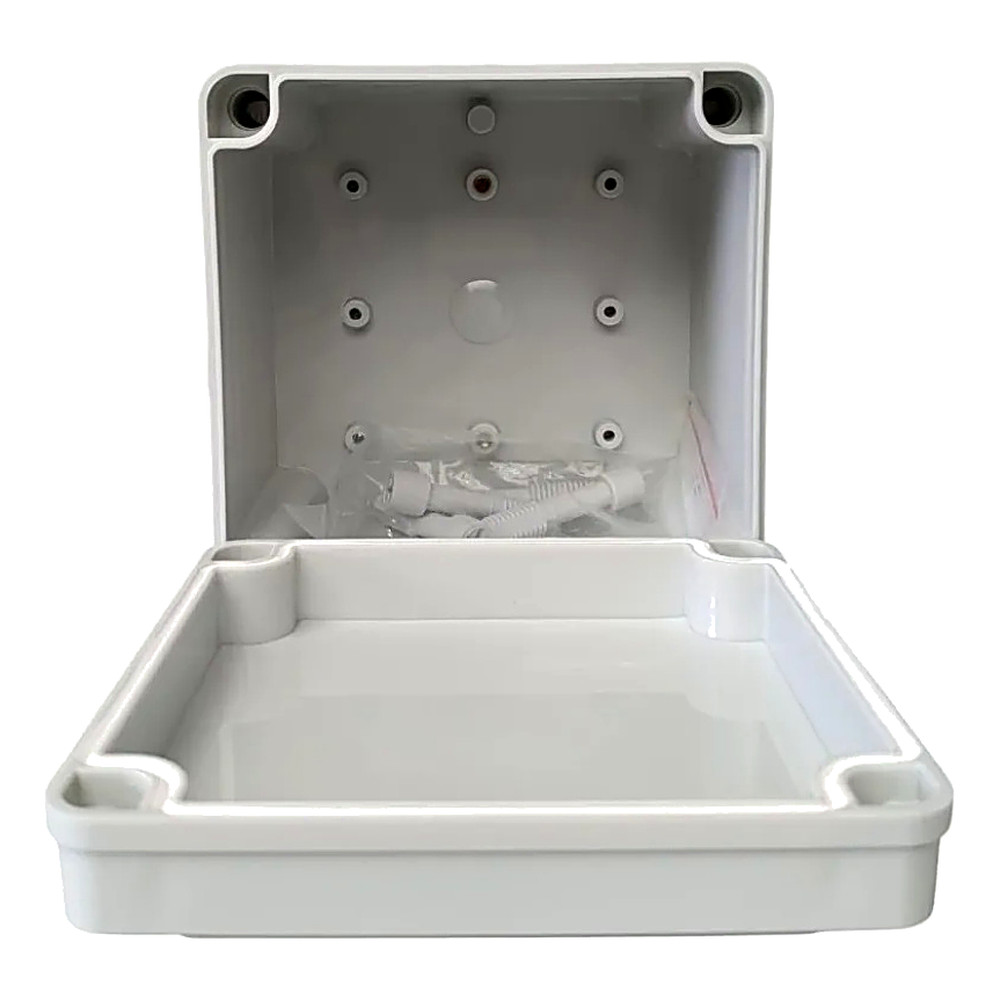

Mounting Options: Internal mounting bosses for PCBs, terminal blocks, or DIN rails

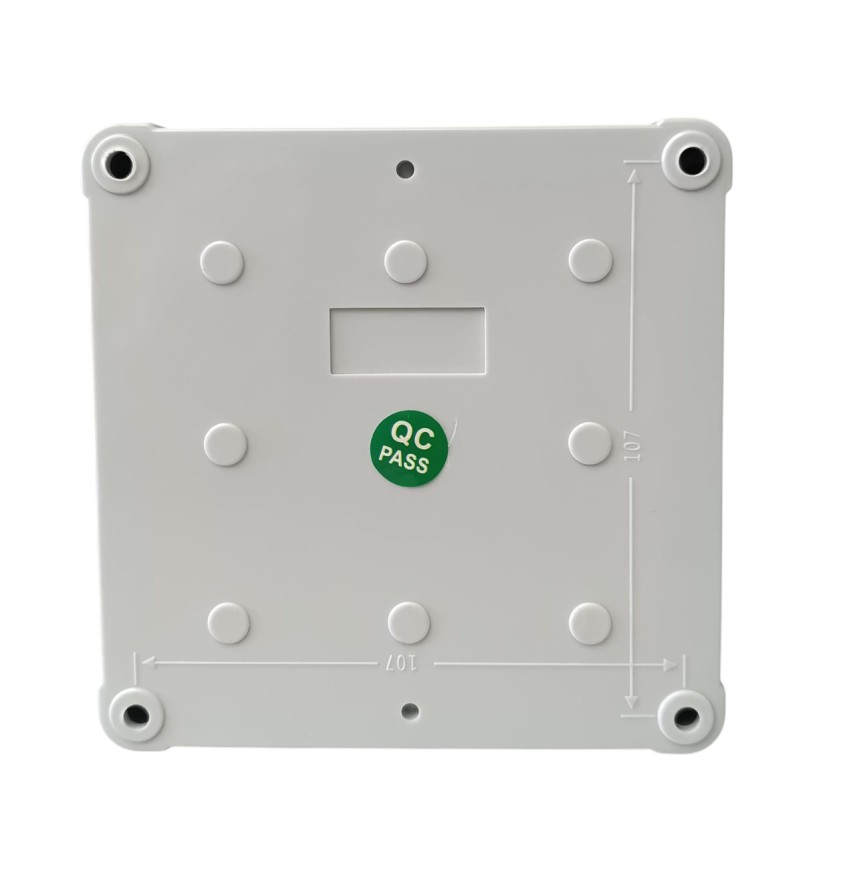

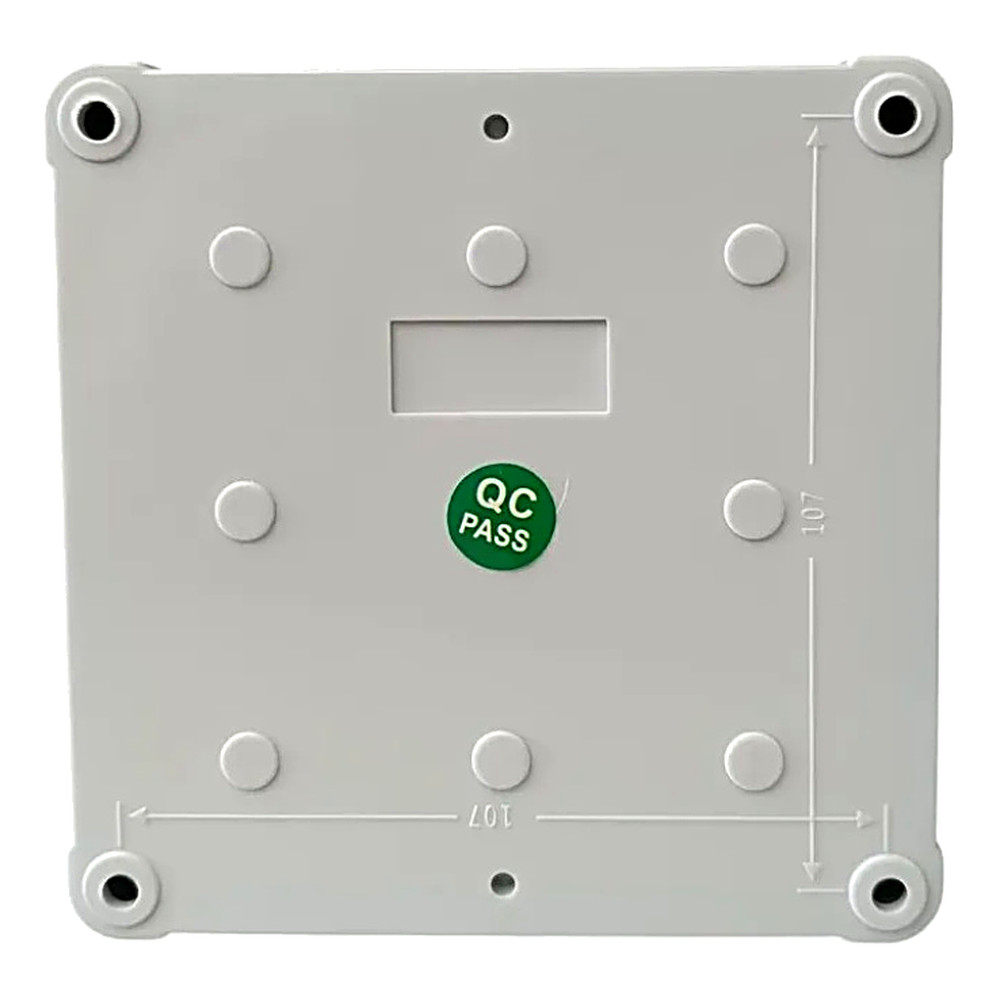

External wall-mount holes or optional mounting brackets
Temperature Range: -20°C to +80°C
Cable Entry: Plain sidewalls (optional knockouts or pre-cut gland holes)
Weight: Approx. 400–500g (varies by configuration)
Key Features:
Compact form with added depth for more components or wiring clearance
High mechanical strength and impact resistance
IP-rated sealing provides excellent protection against dust and water ingress
UV-stabilized material suitable for outdoor exposure
Non-conductive and corrosion-resistant body for safety and longevity
Easy to customize with cutouts for switches, indicators, and cable glands
Smooth lid surface for labels, logos, or engraving
Applications:
Electrical junctions and small power distribution
Sensor or controller housing in automation systems
CCTV, security, and intercom wiring boxes
Industrial and commercial lighting control units
Smart home devices or IoT installations
Marine, agricultural, and outdoor wiring enclosures
Prototyping, embedded systems, or circuit protection
