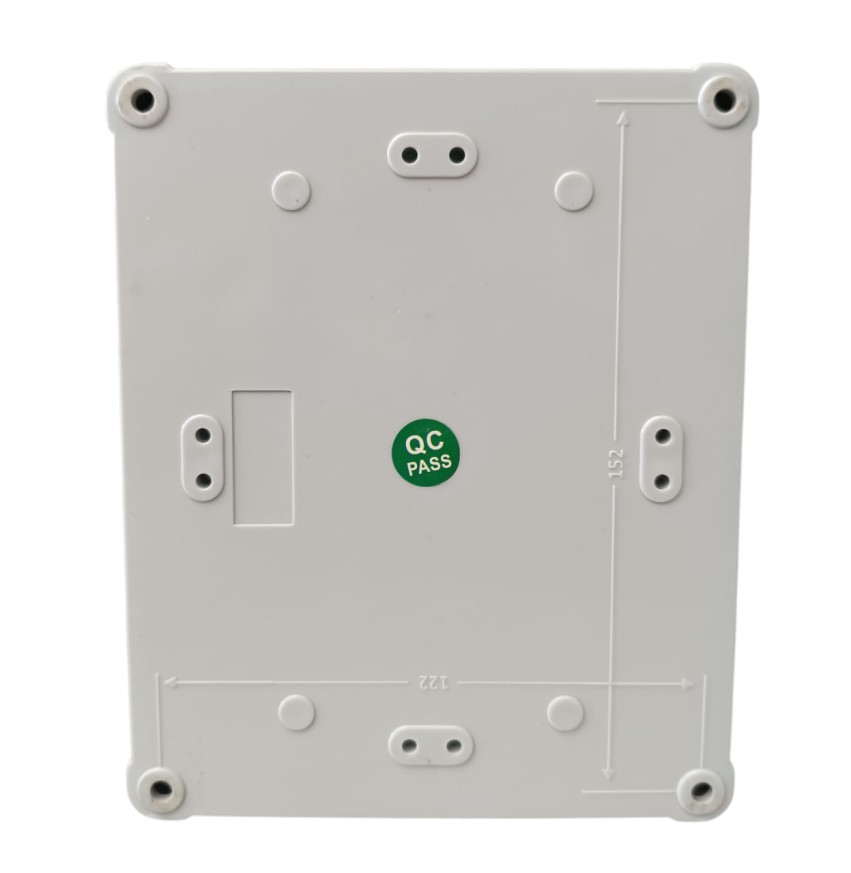

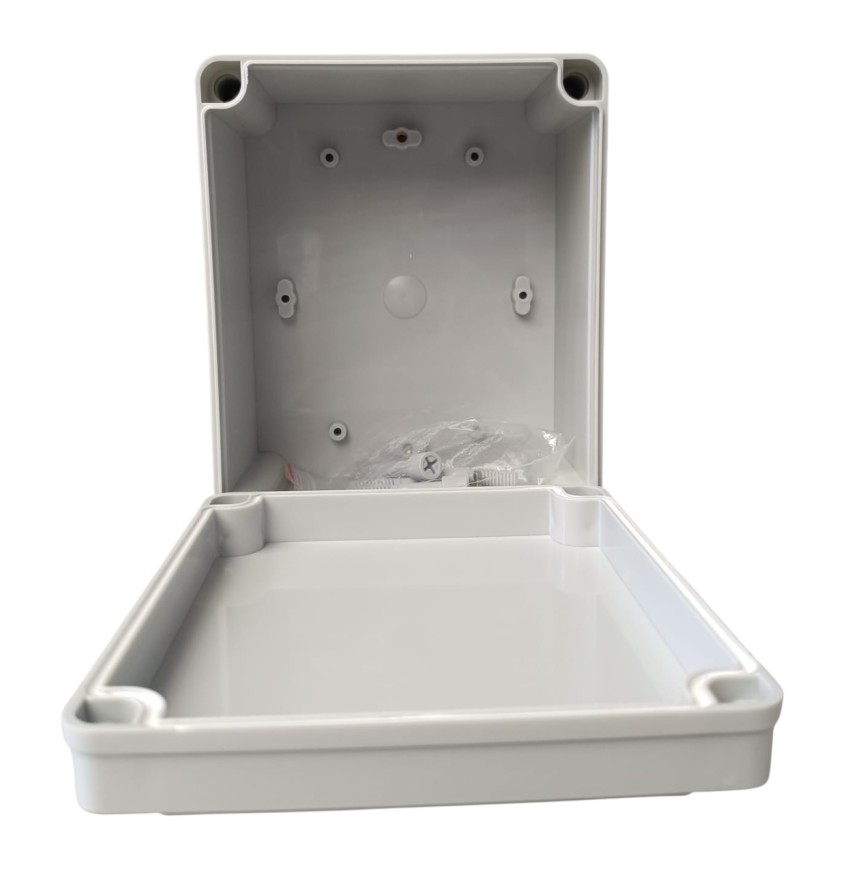

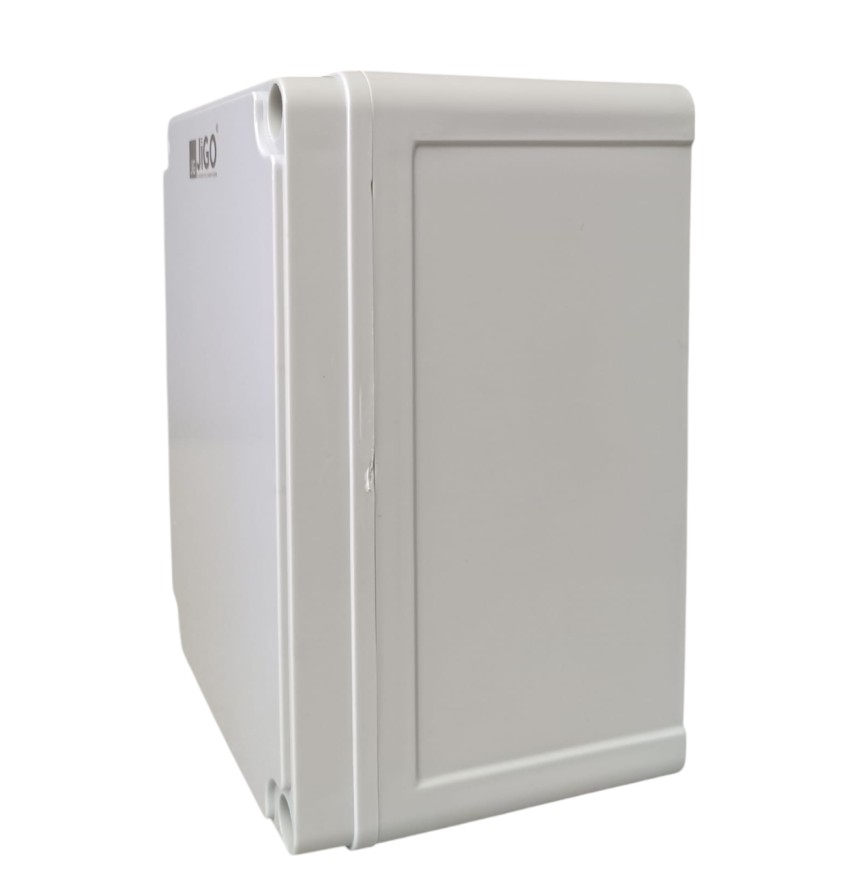

AG-170X140X100
- Category: AG SERIES BOX
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2000
The AG-170X140X100 is a medium-sized, heavy-duty junction box engineered to provide reliable protection for electrical and electronic components. Manufactured from high-impact ABS or polycarbonate, it features superior resistance to weather, dust, and impact. The enclosure's generous internal space and durable construction make it ideal for a wide variety of industrial, commercial, and outdoor applications.
Product Details:
Material: Flame-retardant ABS or Polycarbonate (UV stabilized)
External Dimensions: 170mm (L) x 140mm (W) x 100mm (H)
Color: Light Grey (RAL 7035 standard)
Ingress Protection Rating: IP65 / IP66 (with gasket seal)
Lid Type: Screw-fastened cover (typically 4 or 6 corner screws)
Mounting Options:
Internal bosses for PCBs, DIN rails, or mounting plates
External mounting holes or optional wall brackets
Temperature Range: -20°C to +80°C
Cable Entry: Smooth walls with optional knockouts or pre-machined holes
Weight: Approx. 600–800g (depending on material and lid type)
Key Features:
Durable construction for demanding environments
Increased depth accommodates larger or layered components
IP65/IP66 protection ensures resistance to dust, moisture, and splashing water
Excellent insulation, corrosion resistance, and UV stability
Non-conductive enclosure for enhanced electrical safety
Smooth, drillable surfaces for easy customization
Compatible with a range of accessories like cable glands, DIN rails, and terminal blocks
Applications:
Power and signal distribution boxes
Industrial control and automation system housing
Sensor, controller, and relay protection
Security system and CCTV wiring enclosures
Small electrical panels for lighting or HVAC systems
Communication and network interface boxes
Outdoor or marine electronics protection
Custom electronic device projects and prototyping
