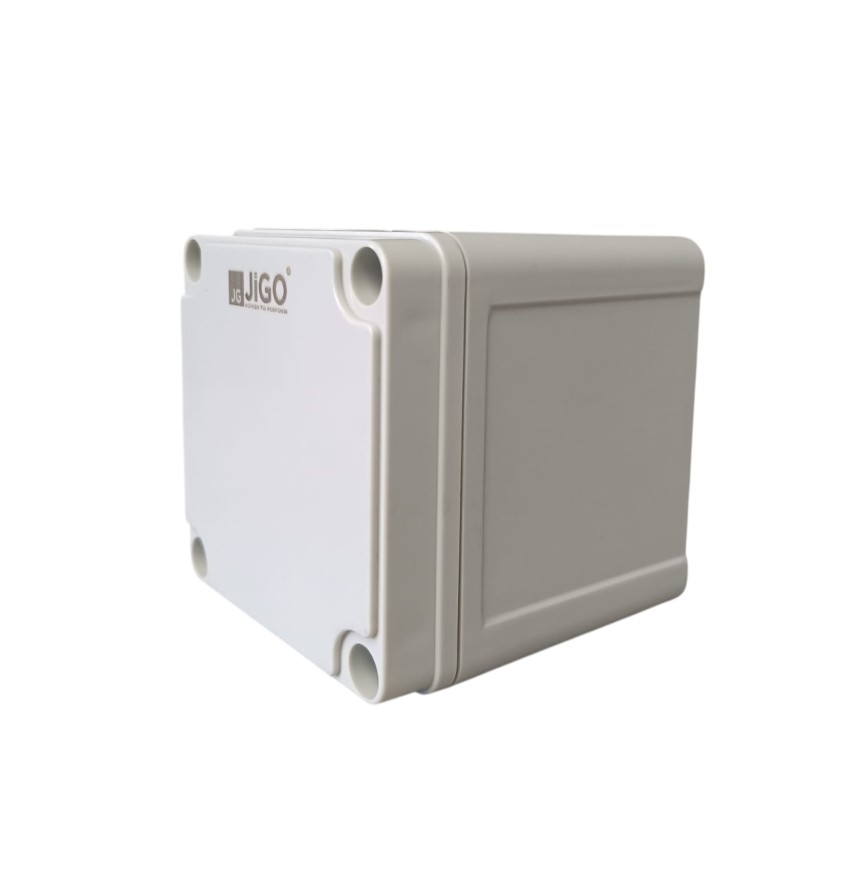

AG-125X125X75
- Category: AG SERIES BOX
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2000
The AG-125X125X75 junction box is a compact, square-profile enclosure designed to protect electrical and electronic components from environmental hazards. Constructed from high-quality ABS or polycarbonate, it offers excellent insulation, mechanical durability, and weather resistance. Its medium-small footprint with moderate depth makes it perfect for a wide range of low- to mid-density installations in both indoor and outdoor environments.
Product Details:
Material: Flame-retardant ABS or Polycarbonate (UV stabilized, high impact resistance)
External Dimensions: 125mm (L) x 125mm (W) x 75mm (H)
Color: Standard Light Grey (RAL 7035)
Ingress Protection: IP65 / IP66 (with fitted sealing gasket)
Lid Type: Screw-fastened (4 corner stainless steel or plastic screws)
Mounting Options: Internal mounting bosses for PCBs or DIN rail; external wall-mount points
Temperature Range: -20°C to +80°C
Cable Entry: Smooth sidewalls (optional knockouts or cable gland holes available)
Weight: Approx. 300–450g (depending on material and features)
Key Features:
Compact yet spacious enough for control units, terminals, and small devices
Excellent resistance to impact, moisture, UV, and corrosive environments
IP-rated protection ensures safe outdoor and industrial use
Flame-retardant and non-conductive for added electrical safety
Customizable design: easy to machine for switches, glands, and indicators
Smooth surface suitable for labeling or branding
Maintenance-free and corrosion-resistant body
Applications:
Electrical wiring junctions and termination points
Automation and control component housing
Sensor or transmitter enclosures
CCTV and alarm system wiring boxes
Low-voltage lighting and power distribution
Network or data interface boxes
DIY electronics, prototyping, and IoT devices
Marine, agricultural, or industrial outdoor installations
