HDC-10 PIN

    Category: HEAVY DUTY CONNECTORS
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 900

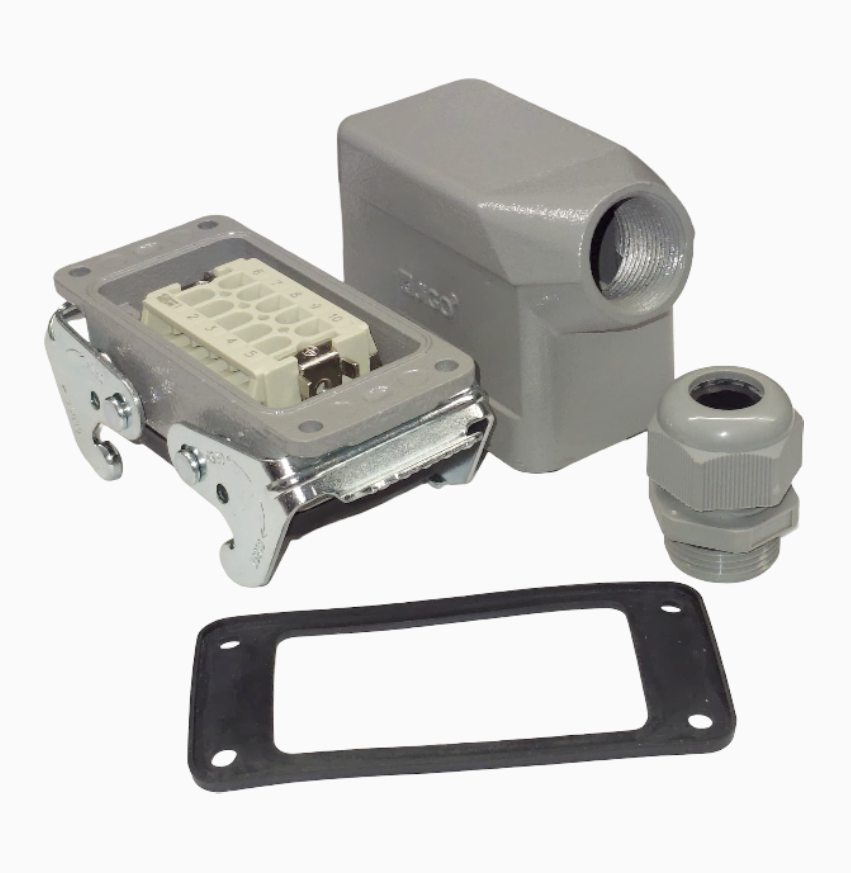

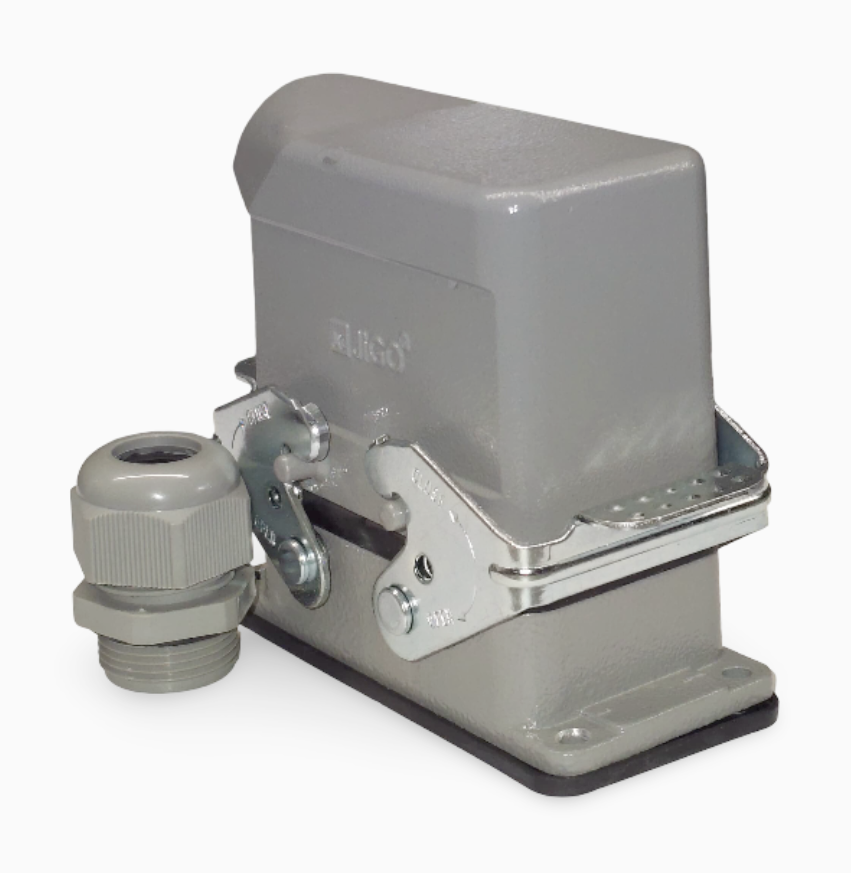

HDC 10 PIN Heavy Duty Connector – A rugged, multi-pin industrial connector designed for secure, high-performance electrical and signal connections in harsh industrial environments.



Product Details:

Model: HDC 10 PIN

Type: Heavy Duty Connector (Male & Female)

Number of Contacts: 10 poles

Housing Material: Die-cast zinc/aluminum alloy

Insert Material: High-grade thermoplastic (UL94 V-0 rated)

Contact Material: Copper alloy with silver/nickel/gold plating

Rated Current: 10A – 16A (depending on pin/contact type)

Rated Voltage: Up to 500V AC/DC

Wire Gauge Supported: 0.75 mm² – 2.5 mm²

Temperature Range: -40°C to +125°C

Ingress Protection: IP65 / IP67 (when mated and locked properly)

Locking Mechanism: Dual lever or single latch

Mounting Options: Panel, surface, bulkhead, cable entry

Connection Type: Crimp, screw, or spring clamp terminals

Key Features:

Durable and shock-resistant housing

Reliable pin alignment for stable connections

Suitable for both power and control signal lines

Quick locking and unlocking system

Resistant to water, dust, oil, vibration, and UV rays

Long mechanical and electrical life

Compatible with industry-standard housings and hoods

Applications:

Electrical distribution panels

Robotics and automation lines

Manufacturing and processing plants

Wind, solar, and other renewable energy installations

Transport systems, railway signal boxes

Packaging, CNC, and textile machinery
