HDC-16PIN

    Category: HEAVY DUTY CONNECTORS
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 1300

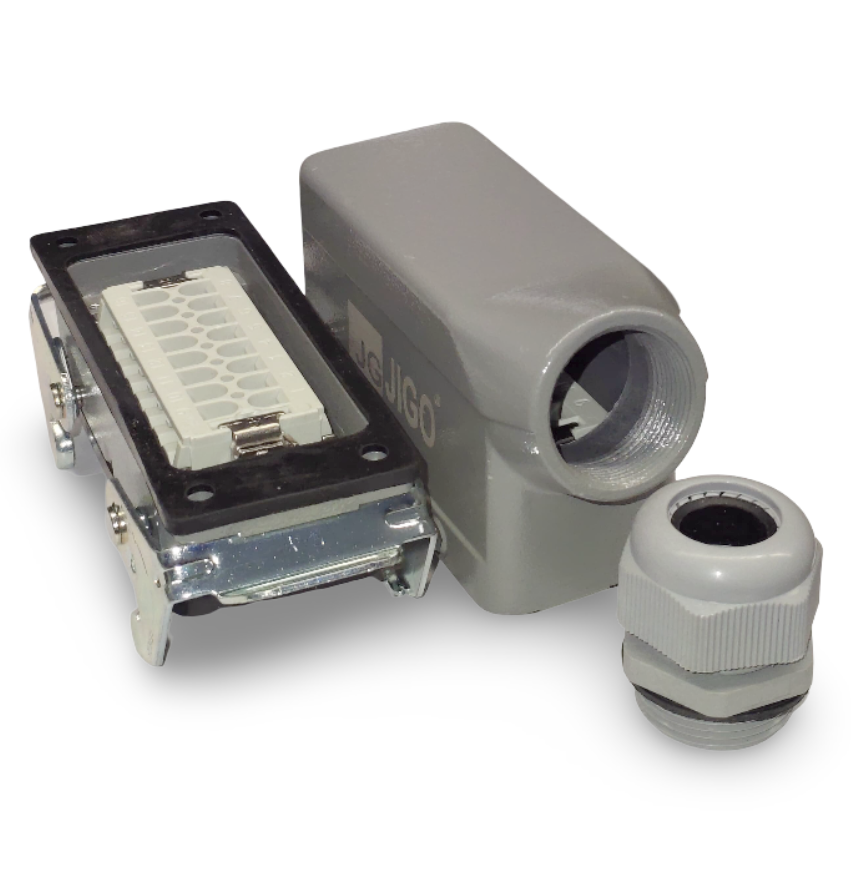

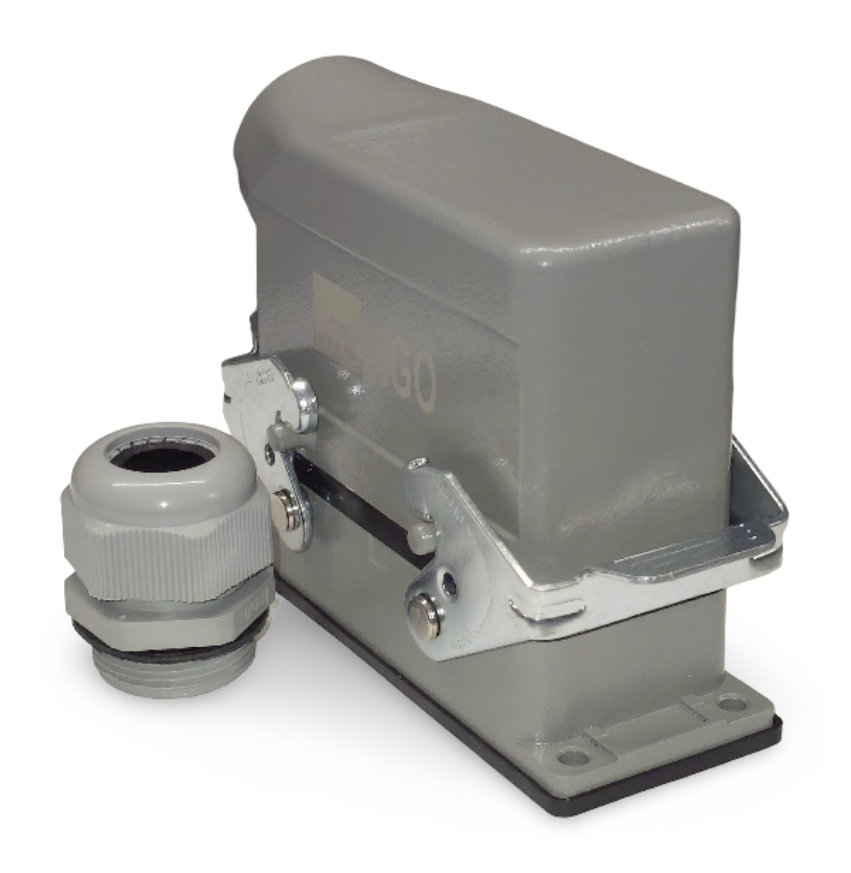

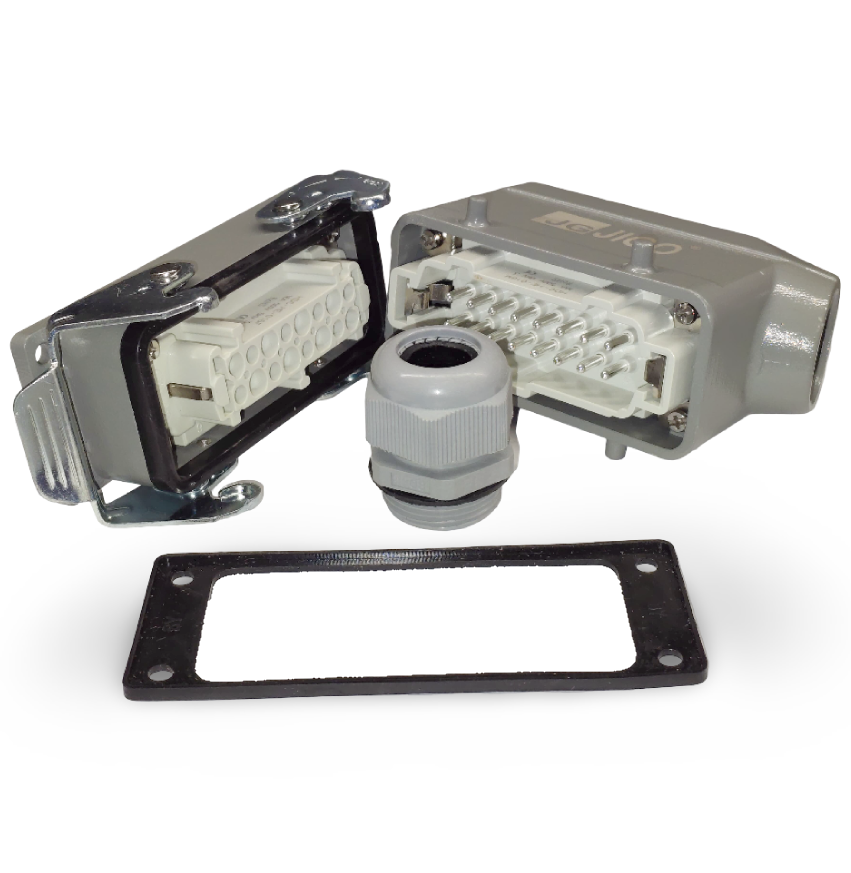

HDC 16 PIN Heavy Duty Connector – Industrial-grade 16-pole connector designed for safe, high-density power and signal transmission in harsh operating environments.



Product Details:

Model: HDC 16 PIN

Type: Heavy Duty Industrial Connector

Number of Contacts: 16 poles

Rated Current: 10A – 16A

Rated Voltage: Up to 500V AC/DC

Housing Material: Die-cast aluminum alloy (powder-coated)

Insert Material: Flame-retardant thermoplastic UL94-V0

Contact Material: Copper alloy (silver/nickel-plated)

Wire Gauge Supported: 0.75 mm² – 2.5 mm²

Mounting Type: Panel, bulkhead, or cable entry

Connection Type: Screw / crimp / spring type

Temperature Range: -40°C to +125°C

IP Rating: IP65 / IP67 when mated

Locking Mechanism: Double locking levers or single latch

Key Features:

Durable and weather-resistant heavy-duty build

Provides stable and secure multi-pin electrical connections

Supports high signal density in limited space

Easy and fast locking system for quick maintenance

Interchangeable with standard industrial connector systems

Long service life; suitable for repeated mating cycles

Applications:

Industrial automation systems

Machine tools and robotics

Control panels and power distribution units

Wind turbines and solar inverters

Packaging, printing, and textile machinery

Transportation (railways, logistics equipment)
