HDC-12 PIN

    Category: HEAVY DUTY CONNECTORS
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 1100

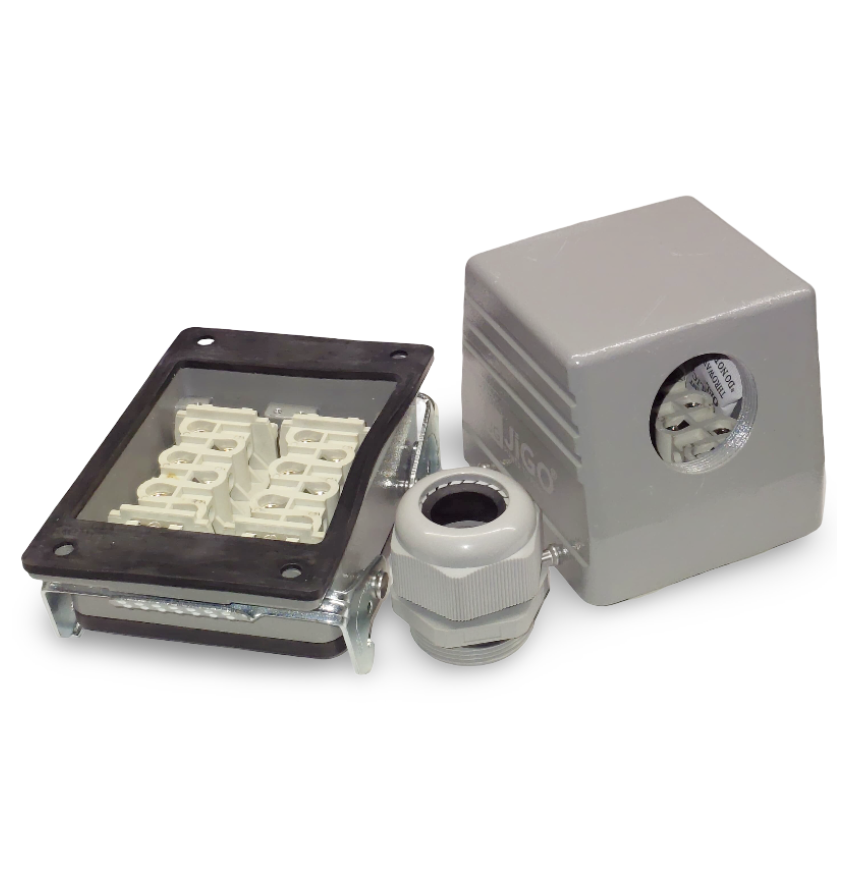

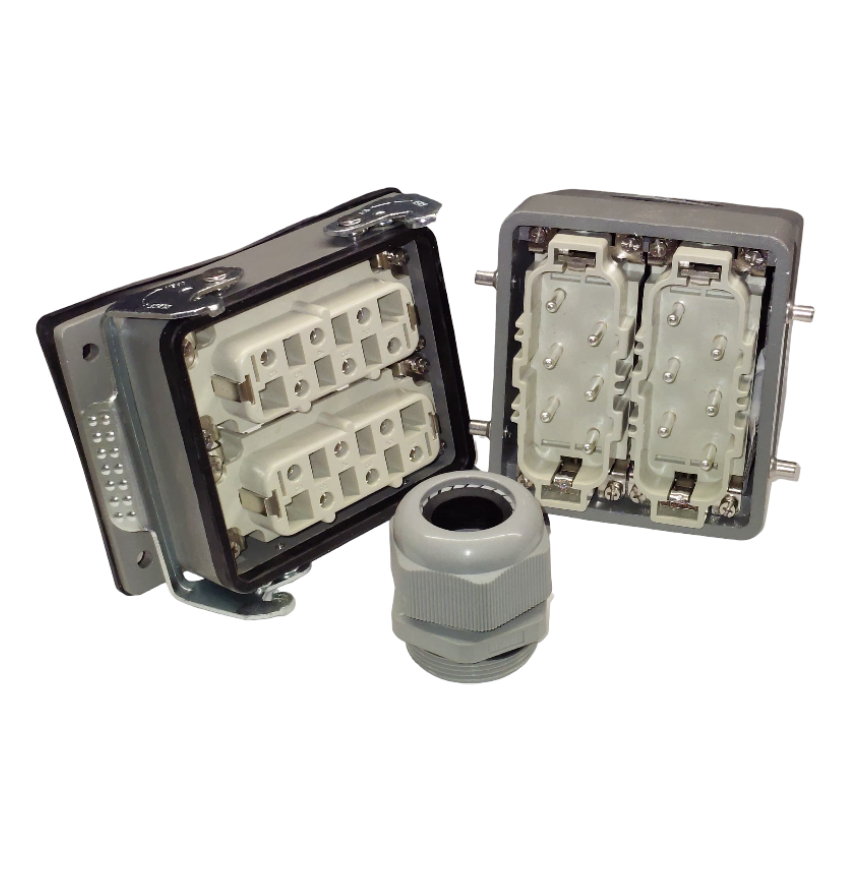

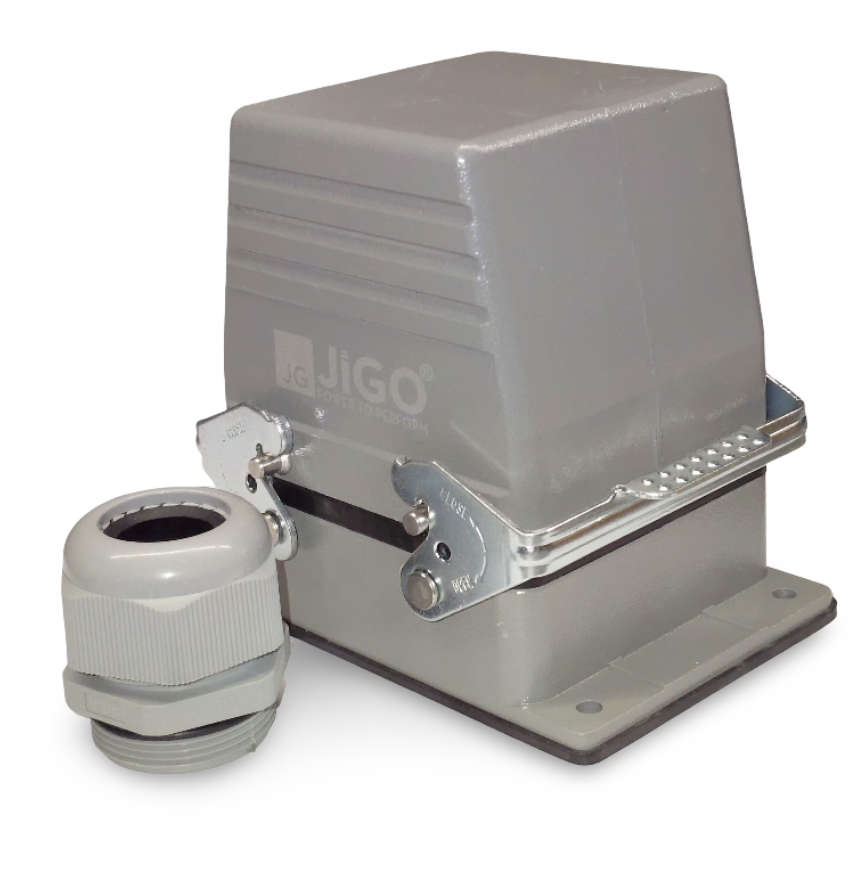

HDC 12 PIN Heavy Duty Connector – Industrial-grade multi-pin connector ideal for robust and secure electrical and signal connections in demanding environments.



Product Details:

Model: HDC 12 PIN

Type: Heavy Duty Rectangular Connector

Number of Contacts: 12 poles

Rated Current: 10A – 16A (depending on contact type)

Rated Voltage: Up to 500V AC/DC

Housing Material: Die-cast aluminum alloy (powder-coated)

Insert Material: Flame-retardant thermoplastic (UL94 V-0)

Contact Material: Copper alloy with silver/nickel plating

Wire Gauge Supported: 0.75 mm² – 2.5 mm²

Operating Temperature: -40°C to +125°C

Protection Level: IP65 / IP67 (when fully locked)

Locking Mechanism: Dual locking levers or single latch

Mounting Type: Surface, panel, cable entry

Connection Type: Crimp / screw / spring terminals

Key Features:

Rugged, dustproof and waterproof design

Excellent mechanical strength and corrosion resistance

High contact reliability even in vibration-prone environments

Tool-free fast assembly with secure locking

Supports power and signal in one connector

Long service life and reusable design

Compatible with standard heavy-duty housing systems

Applications:

Industrial automation & control panels

Packaging and printing machinery

Renewable energy (solar, wind) systems

Transportation systems (railway, automotive plants)

CNC machines, injection molding machines

Robotics, drives, and servo systems
