HDC-16 PIN BOTTOM CLOSE

    Category: HEAVY DUTY CONNECTORS
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 1300

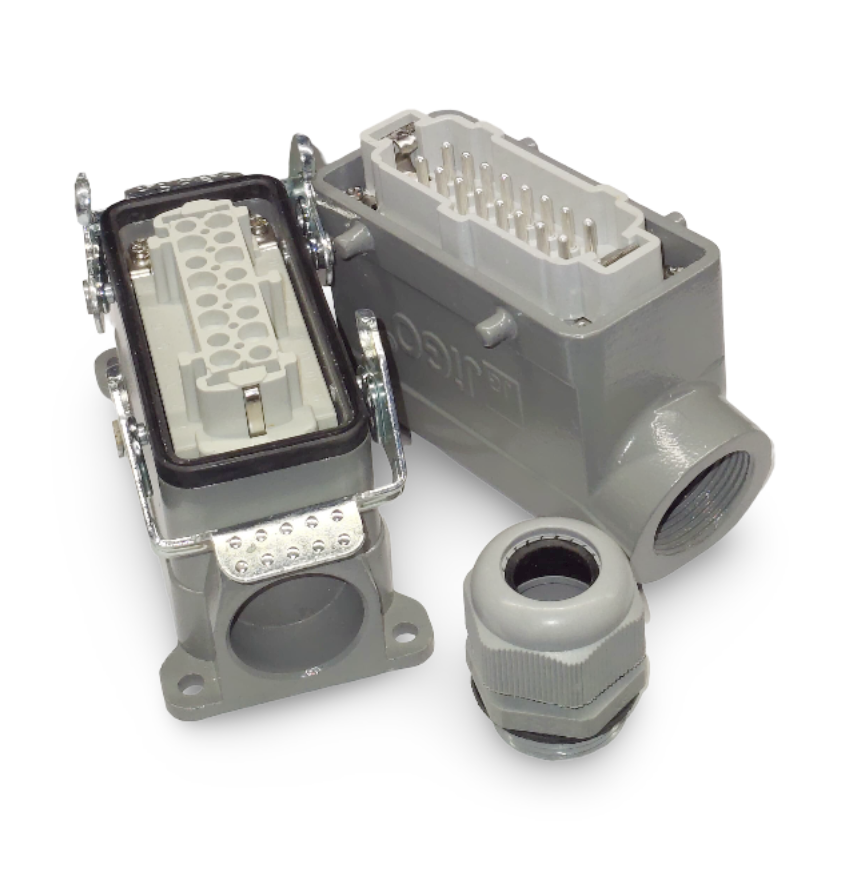

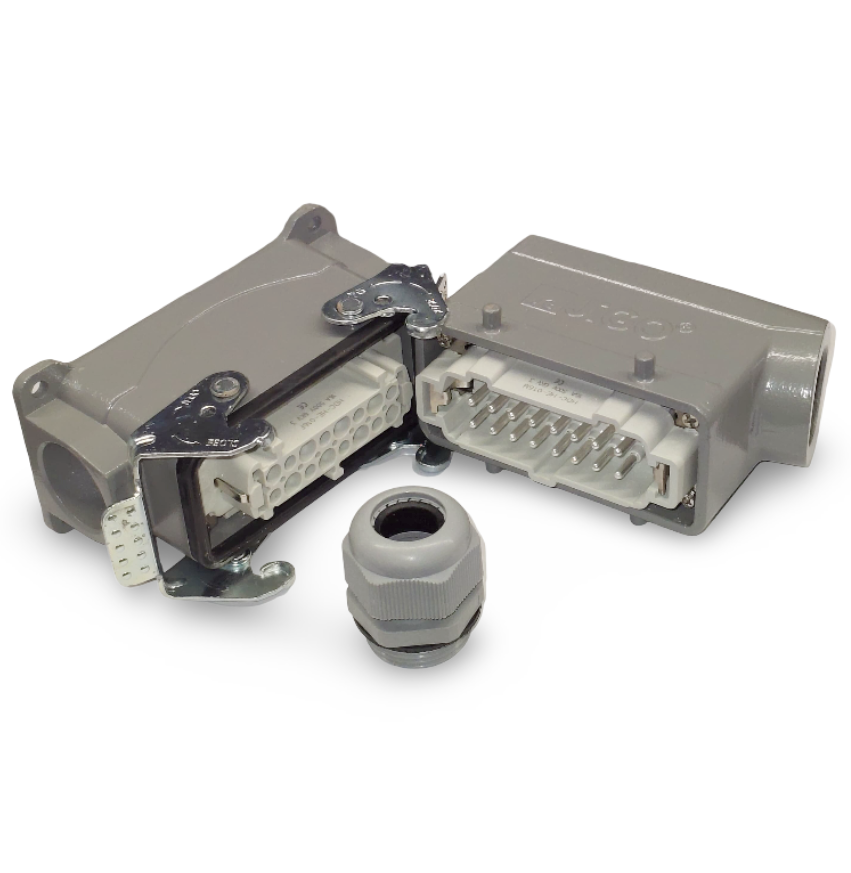

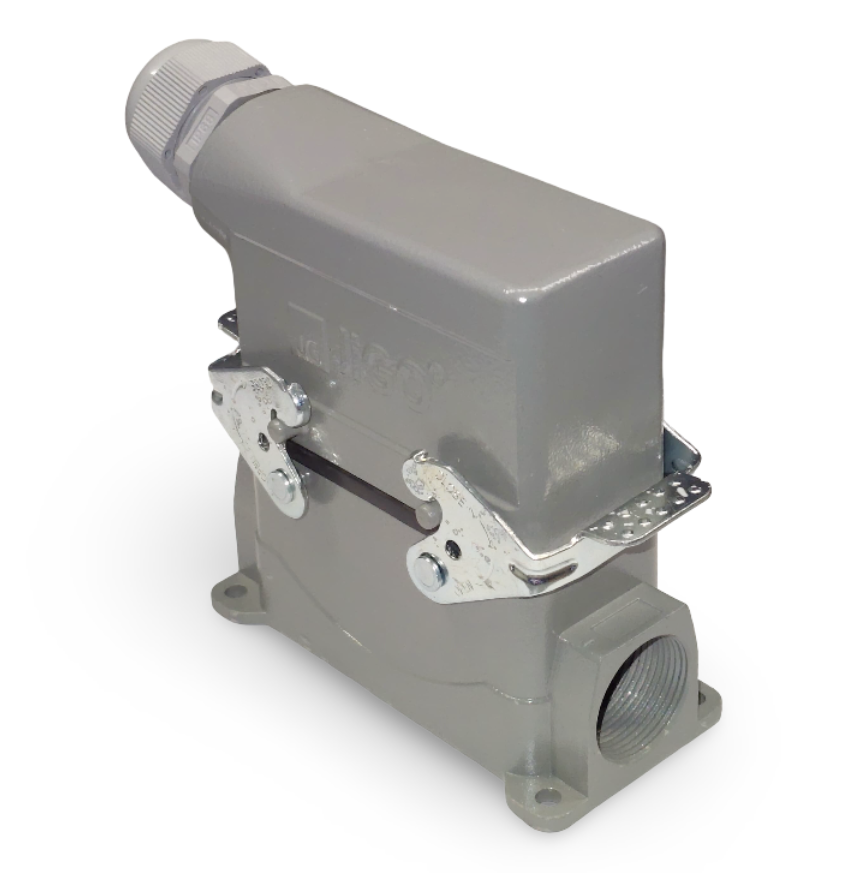

HDC-16PIN Bottom Close Connector – Heavy-duty industrial connector with bottom cable entry, designed for secure and compact multi-pin electrical connections in rugged environments.



Product Details:

Model: HDC-16PIN Bottom Close

Connector Type: Heavy Duty Rectangular Connector

Number of Pins: 16

Bottom Cable Entry: Yes (Bottom Close Housing)

Material: Die-cast aluminum housing with powder coating

Insert Material: High-grade flame-retardant thermoplastic

Contact Material: Silver/nickel-plated copper alloy

Mounting Style: Panel mount or surface enclosure

Wire Entry: Bottom (closed type for tight installations)

Rated Voltage: Up to 500V

Rated Current: 16A

IP Rating: IP65/IP67 (when fully mated with sealing)

Temperature Resistance: -40°C to +125°C

Locking Mechanism: Twin side latches or central locking

Key Features:

Compact bottom-close design for space-saving installations

Reliable 16-pin configuration for high-density signal/power needs

Rugged housing ideal for harsh industrial settings

Secure mechanical latching for vibration resistance

Easy assembly and maintenance

Compatible with standard HDC series inserts and hoods

Applications:

Industrial control panels

Robotics and automation machinery

Heavy machinery and power tools

Renewable energy equipment (solar/wind)

Electrical distribution boxes

Transport and logistics systems
