HDC-24 PIN

    Category: HEAVY DUTY CONNECTORS
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 1500

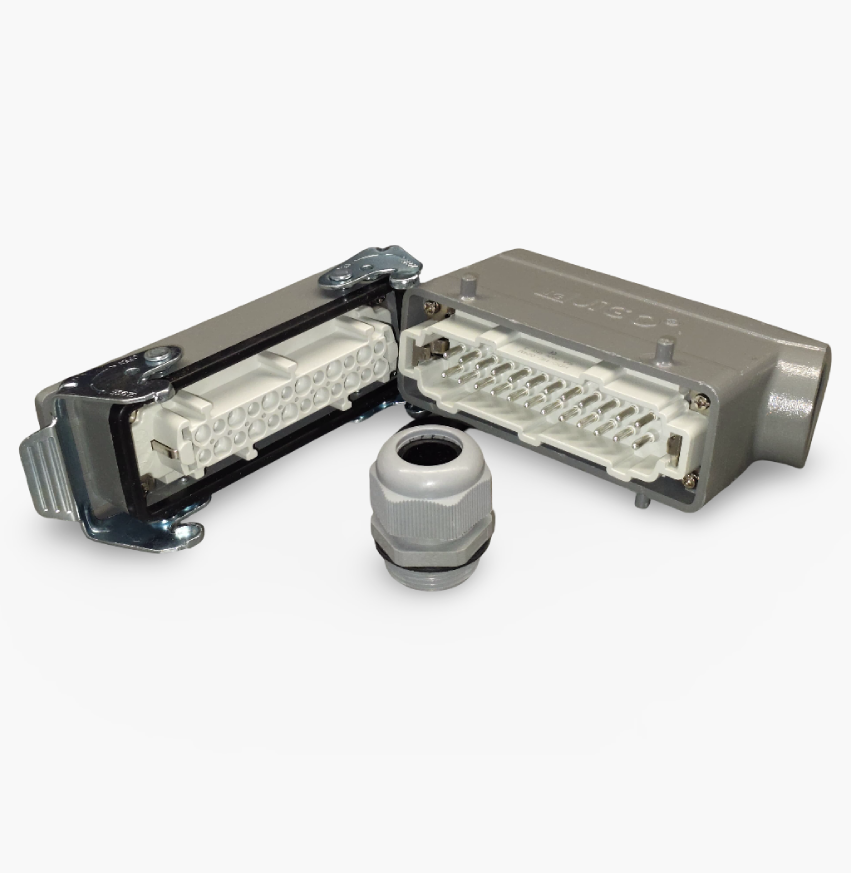

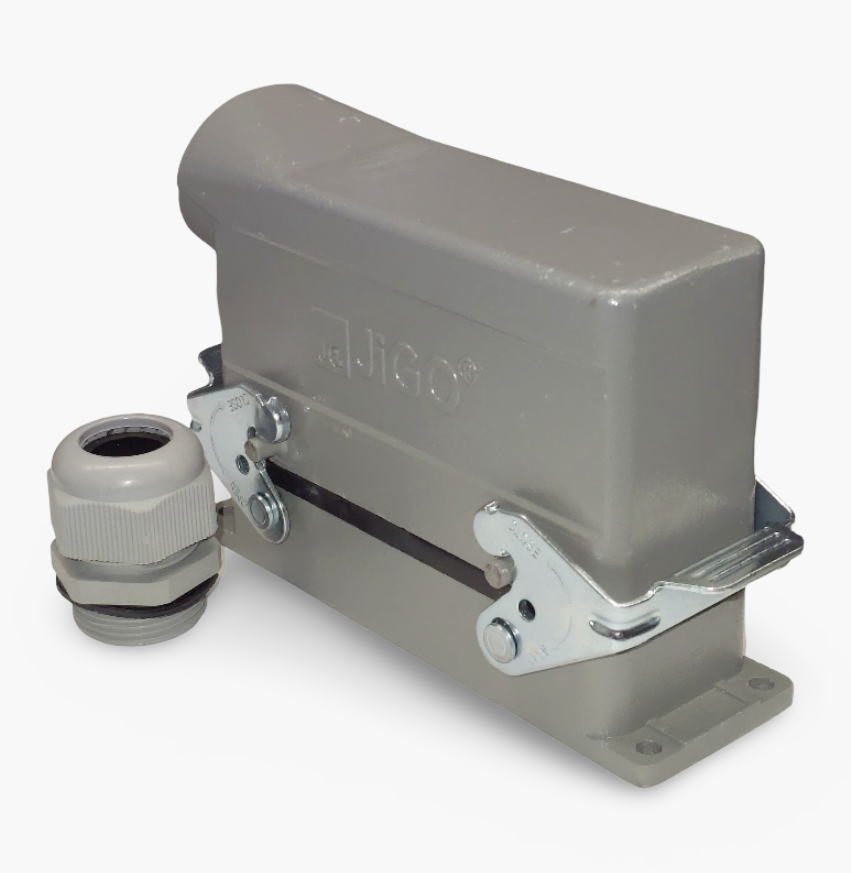

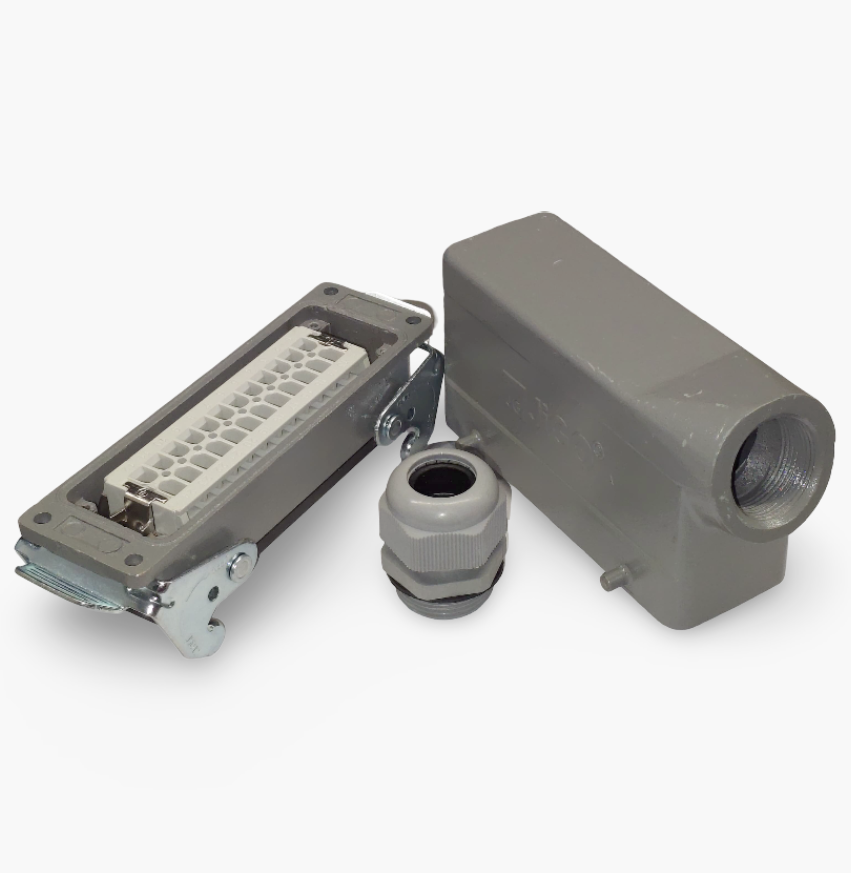

HDC-24 PIN Connector – Heavy-duty industrial multi-pin connector designed for robust electrical connections in demanding environments, with 24 contact points for higher circuit density.



Product Details:

Model: HDC-24 PIN

Connector Type: Heavy Duty Rectangular Connector

Number of Pins: 24

Housing Material: Die-cast aluminum alloy with corrosion-resistant finish

Insert Material: Flame-retardant thermoplastic

Contact Material: Silver or nickel-plated copper alloy

Mounting Type: Panel mount / surface mount compatible

Cable Entry Options: Top, side, or bottom (based on hood selection)

Rated Voltage: Up to 500V

Rated Current: 10A–16A (based on pin and wire size)

IP Rating: IP65 / IP67 when properly locked

Temperature Range: -40°C to +125°C

Locking Mechanism: Twin lever or central lock with stainless steel latch

Key Features:

24-pin layout allows for high-density wiring

Strong mechanical strength and impact resistance

Reliable sealing against dust and water ingress

Modular design for easy assembly and maintenance

Suitable for both signal and power transmission

Compatible with standard heavy-duty connector hoods/bases

Applications:

Industrial automation systems

Control cabinets and distribution panels

Heavy machinery and construction equipment

Robotics and mechatronic systems

Renewable energy (solar, wind turbines)

Railways and transport control units
