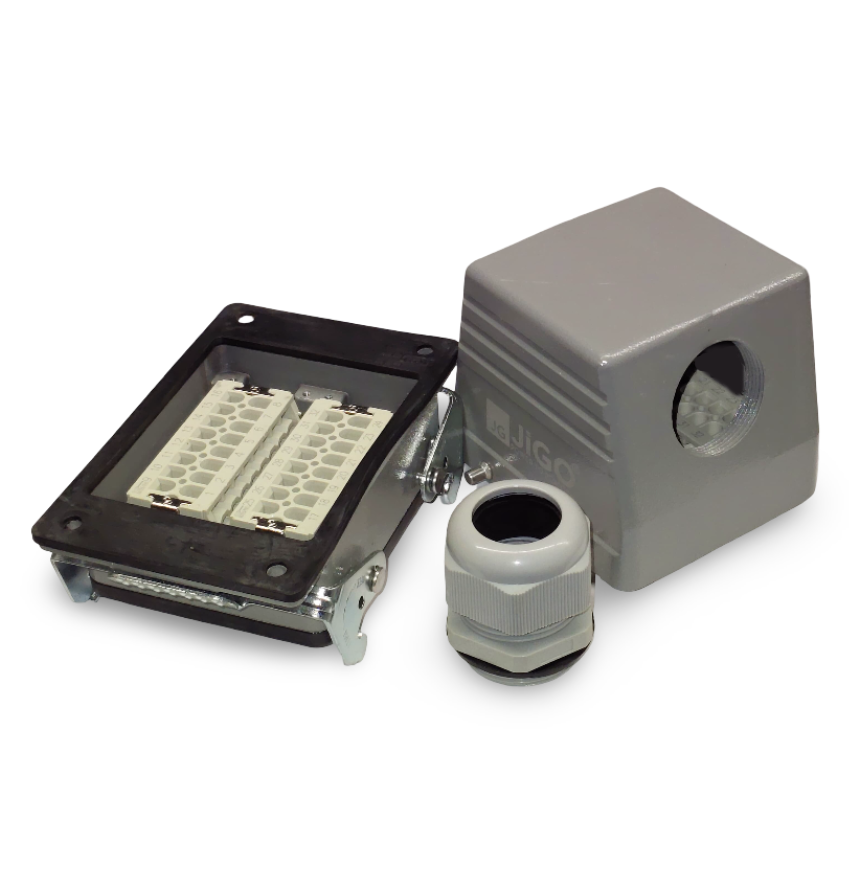

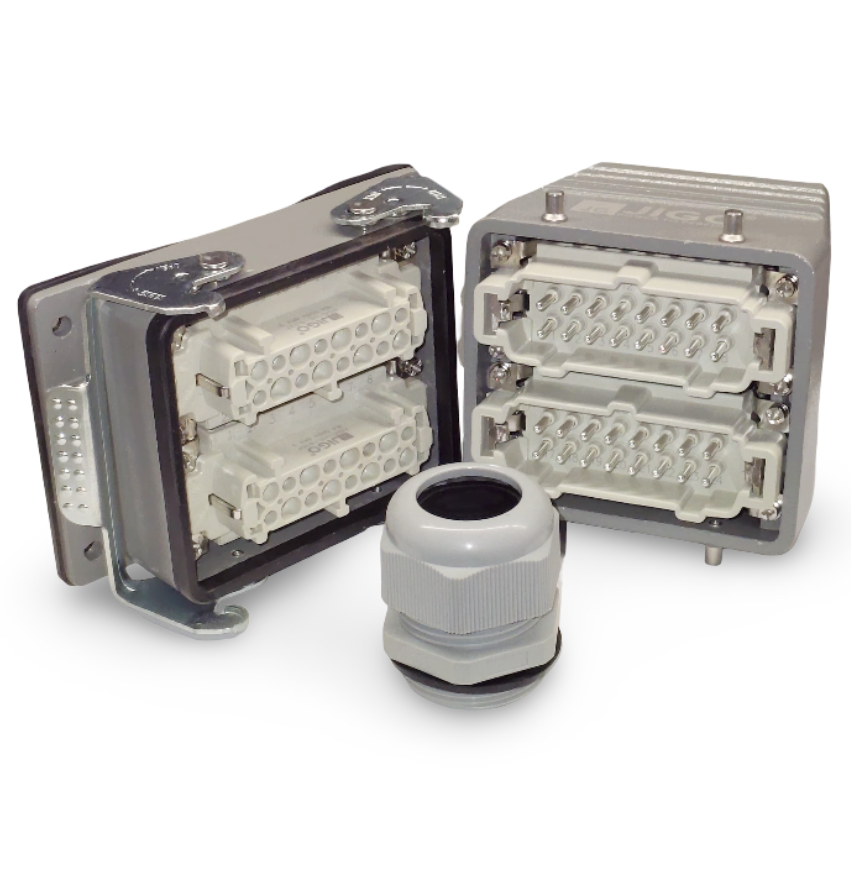

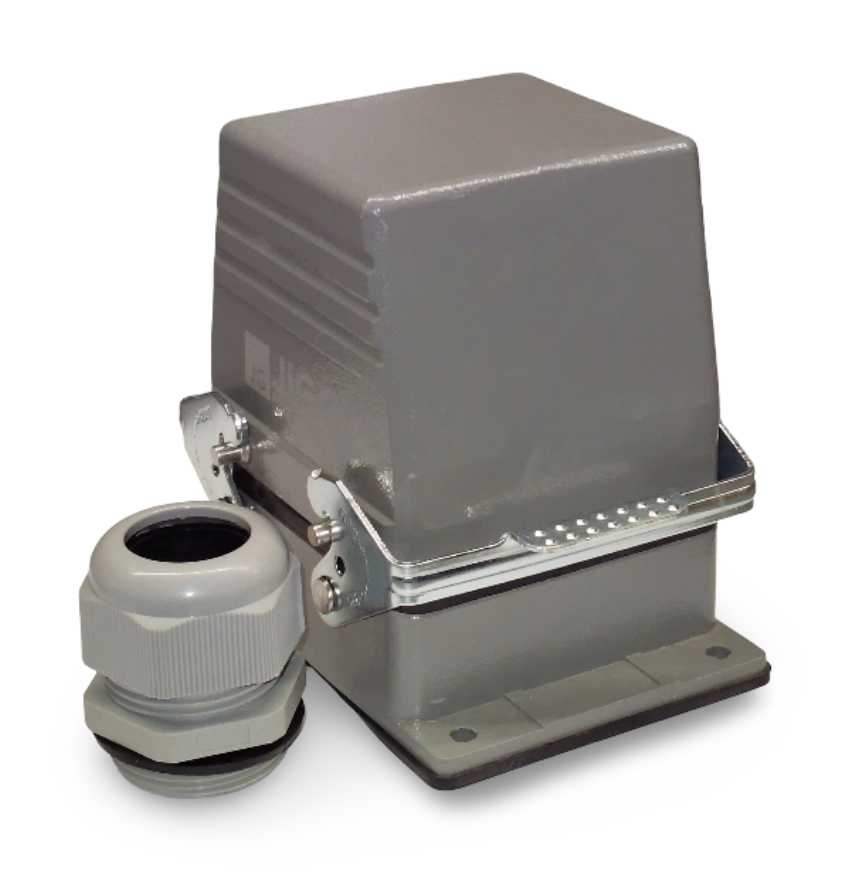

HDC-32PIN Heavy Duty Connector
HDC-32PIN – 32-pin heavy-duty industrial connector designed for robust and reliable multi-wire electrical connections in harsh industrial environments.
Product Details:
Model: HDC-32PIN
Number of Contacts: 32
Connector Type: Heavy Duty Connector
Insert Material: Flame-retardant thermoplastic (typically PA66)
Contact Material: Copper alloy (silver or nickel plated)
Rated Voltage: Up to 500V AC/DC
Rated Current: 10A–16A (depending on terminal type)
Mounting: Panel or surface mount with compatible hood/base
Connection Type: Screw/clamp/spring terminals (based on version)
IP Protection: IP65/IP67 when mated with proper housing
Temperature Range: -40°C to +125°C
Housing Options: Die-cast aluminum or reinforced thermoplastic
Locking Mechanism: Standard lever or screw-locking system
Key Features:
High-density 32-pin layout for space-efficient wiring
Resistant to vibration, shock, and mechanical stress
Sealed design for protection against water and dust
Modular and easy to assemble
Suitable for signal and low power transmission
UL/CE/RoHS compliant (varies by brand)
Applications:
Control panels and automation cabinets
Machinery and production lines
Robotics and industrial equipment
Renewable energy systems (e.g., solar inverters)
Railway and transport systems
Marine and offshore electrical units
