JG-XZ-15GDB

    Category: Micro Switch & Limit Switch
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 250

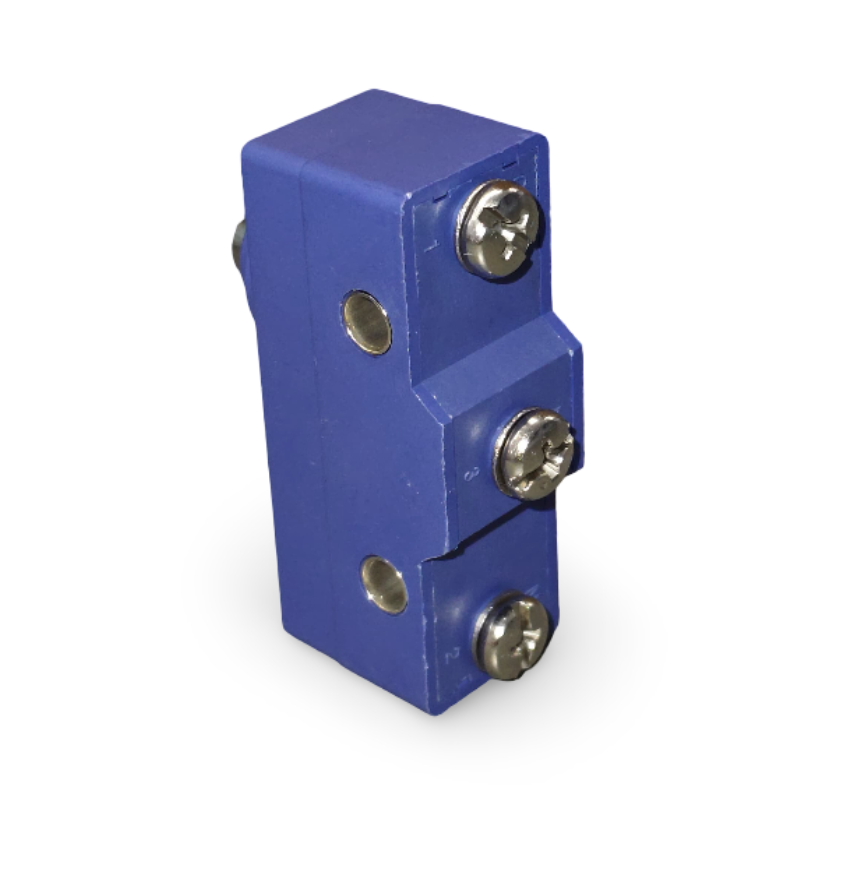

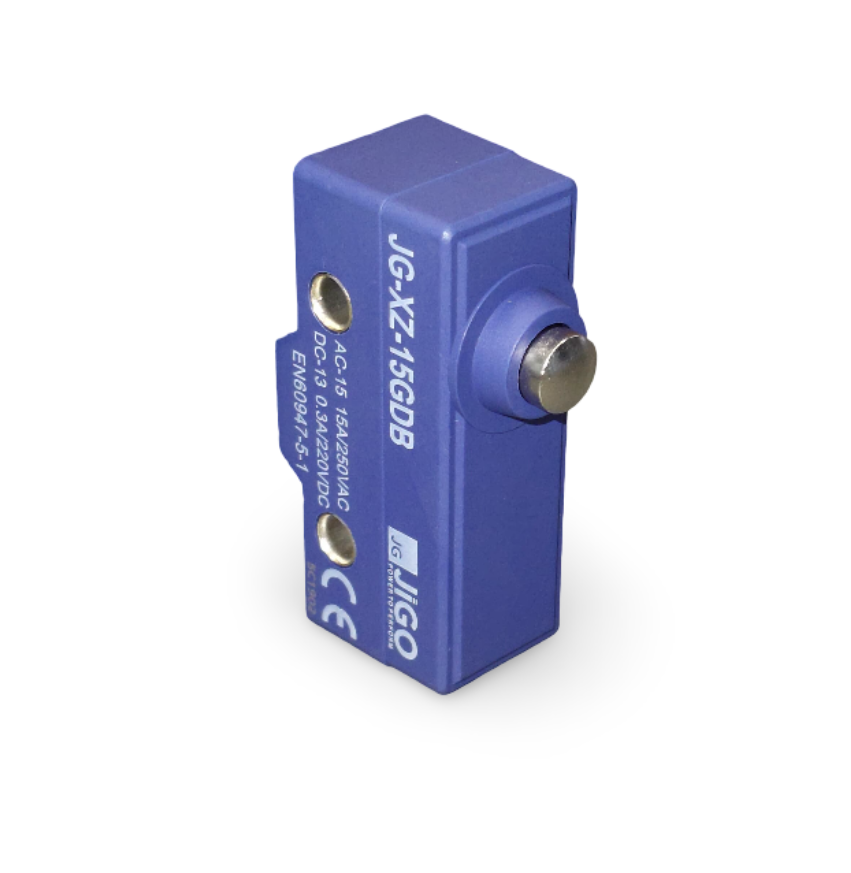

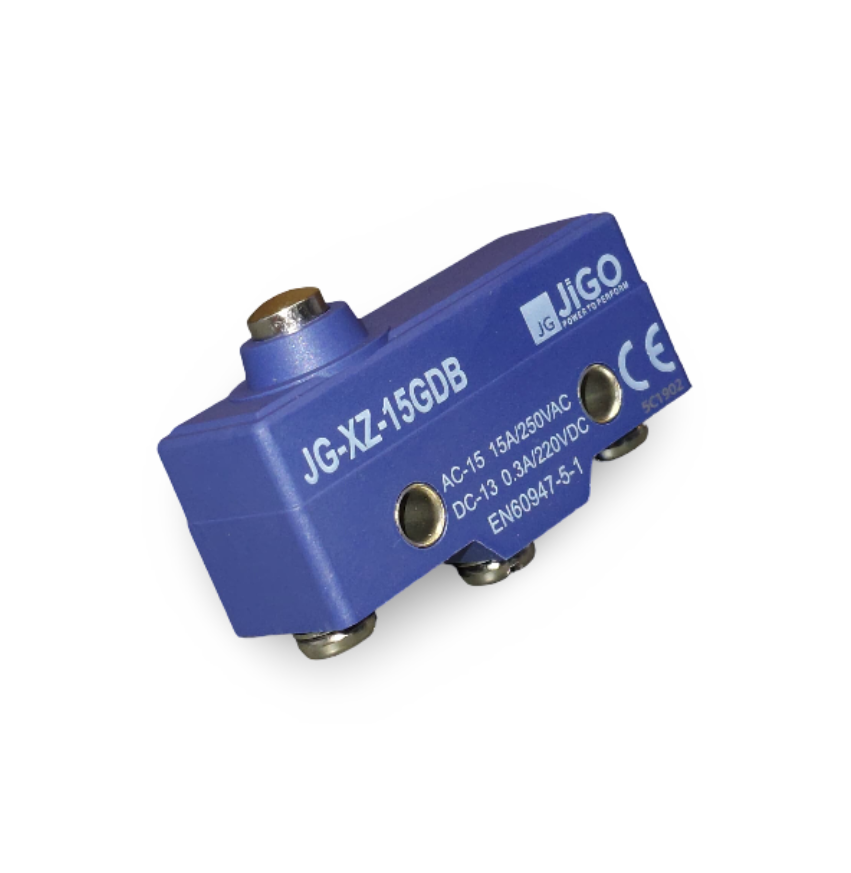

JG-XZ-15GDB Micro Switch is a high-precision, snap-action limit switch with a roller lever actuator. It offers reliable switching performance under low operating force and is suitable for applications requiring compact design and long mechanical life.



Product Details

Model: JG-XZ-15GDB

Type: Micro Limit Switch with Roller Lever

Actuator Type: Hinge lever with roller

Contact Type: SPDT (1NO + 1NC)

Rated Voltage/Current: 250V AC / 15A

Operating Force: Low force, quick action

Terminals: Screw terminals for easy wiring

Housing Material: Thermoplastic, flame-retardant

Mounting Style: Panel or surface mount

Mechanical Life: Over 10 million operations

Key Features

Compact size with high switching accuracy

Roller lever for smooth and consistent actuation

High electrical and mechanical durability

SPDT contacts for versatile circuit configurations

Quick and reliable snap-action mechanism

Easy to install with screw terminal design

Stable performance in industrial environments

Resistant to dust and mechanical wear

Applications

Limit detection in CNC machines and conveyors

Safety interlocks in machinery and elevators

Control systems in industrial automation

Position sensing in robotics and assembly lines

Door and flap detection in vending or access systems

Electrical appliances and home automation setups
