JG-XZ-15GQB

    Category: Micro Switch & Limit Switch
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 250

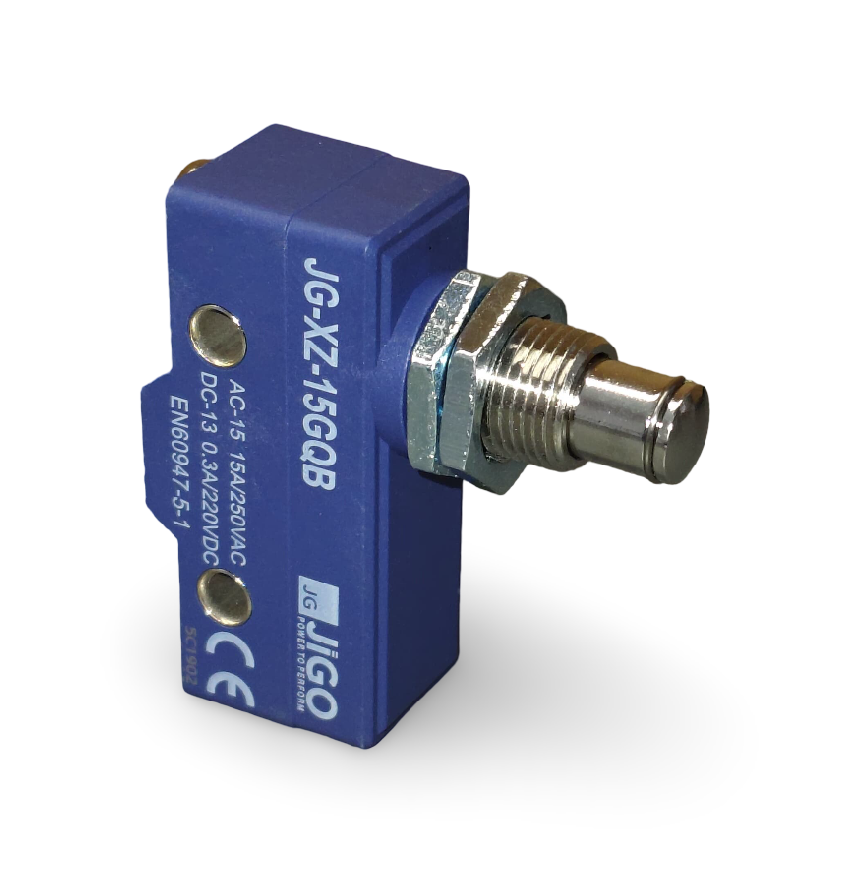

JG-XZ-15GQB Micro Switch is a compact, snap-action switch designed with a short hinge lever actuator. Known for its precise switching and reliable performance, it is widely used in industrial machinery, automation systems, and safety interlocks.



Product Details

Model: JG-XZ-15GQB

Type: Micro Limit Switch with Short Hinge Lever

Actuator Type: Short hinge lever

Contact Configuration: SPDT (1NO + 1NC)

Rated Voltage/Current: 250V AC / 15A

Operating Force: Low actuation force with snap-action response

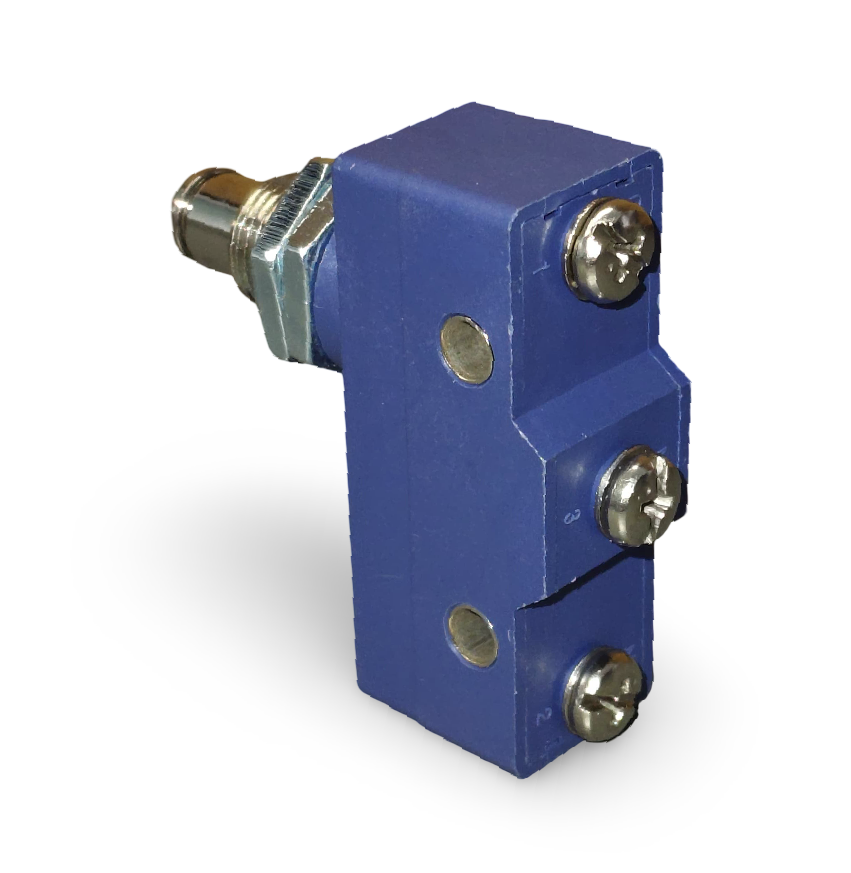

Terminals: Screw terminals for secure and easy wiring

Body Material: Flame-retardant thermoplastic housing

Mounting Type: Surface/panel mount

Mechanical Life: More than 10 million cycles

Key Features

Compact size with high switching accuracy

Short hinge lever for fast and consistent triggering

Durable SPDT contacts for versatile use

Long service life and high mechanical endurance

Flame-retardant and impact-resistant housing

Quick-action mechanism for reliable switching

Easy wiring via screw terminals

Suitable for both AC and DC circuits

Applications

Industrial machinery limit control

Automation and robotic systems

Elevators and safety interlocks

Conveyors and assembly lines

Door/cover detection in electrical panels

HVAC systems and consumer appliances

Any system requiring compact and precise switching
