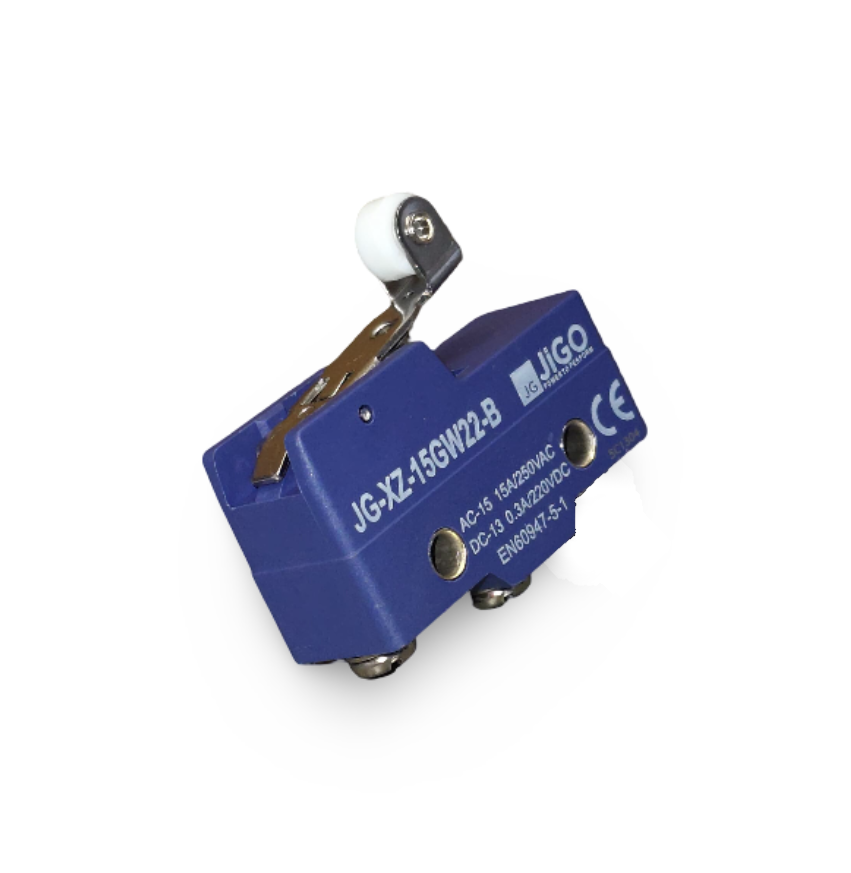

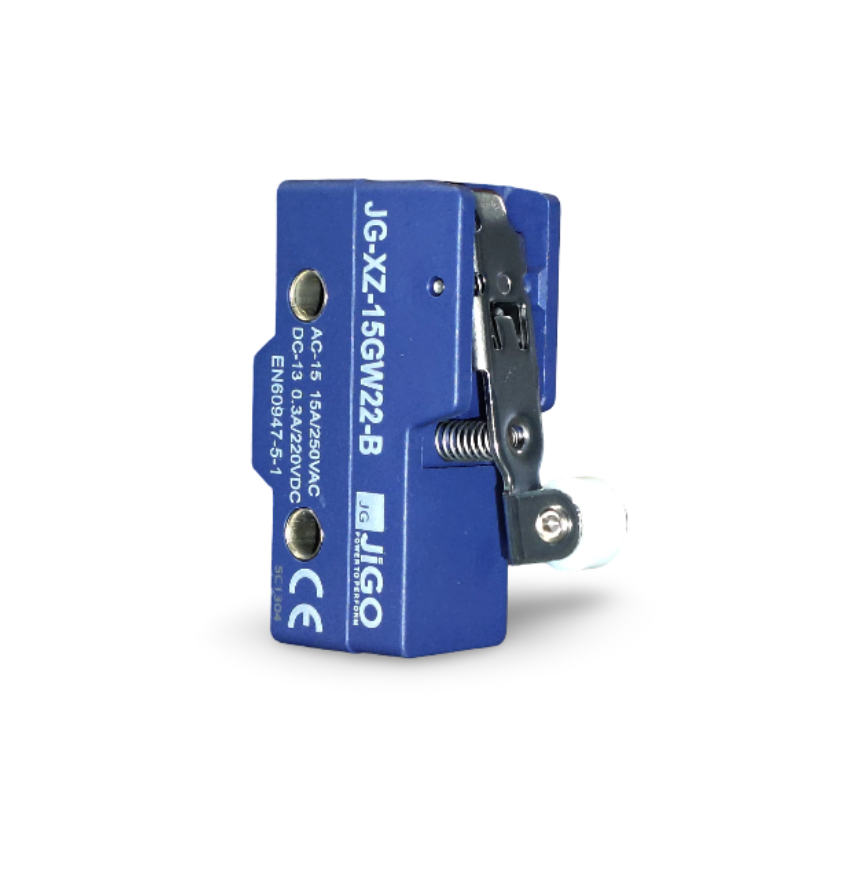

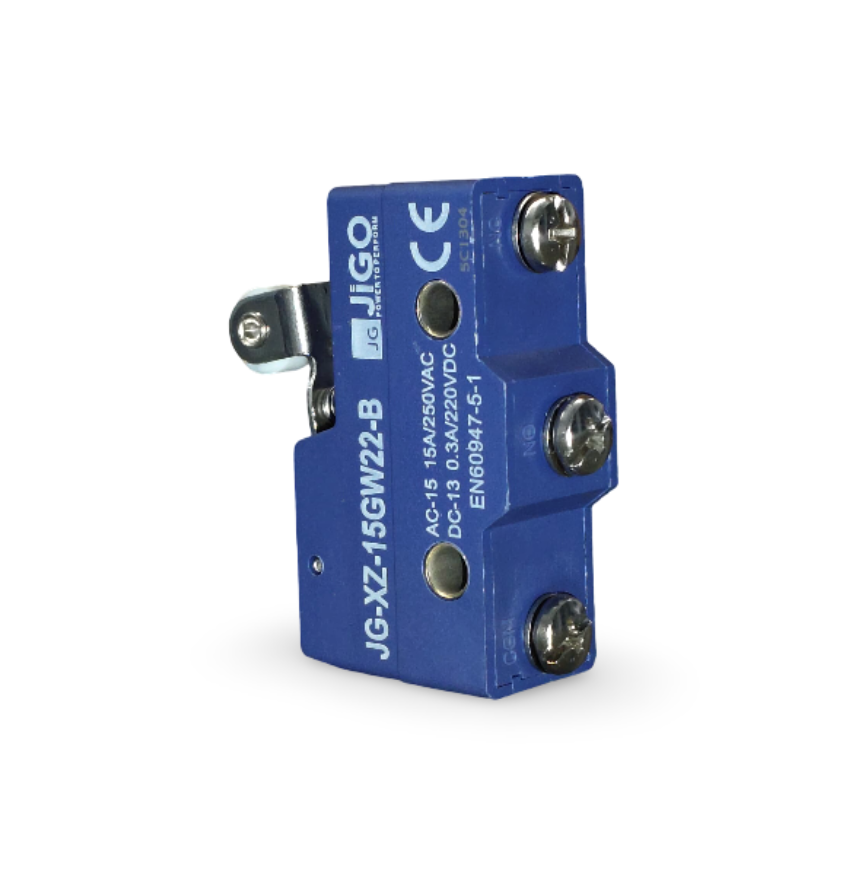

JG-XZ-15GW22-B Micro Switch is a heavy-duty limit switch equipped with a long spring rod actuator, designed for sensitive position detection and flexible mechanical response. Ideal for use in automated systems and machinery where non-rigid actuation is needed.
Model: JG-XZ-15GW22-B
Type: Micro Limit Switch with Long Spring Rod
Actuator Type: Long flexible spring rod (whisker type)
Contact Type: SPDT (1NO + 1NC)
Rated Voltage/Current: 250V AC / 15A
Operating Force: Very low, suited for soft contact detection
Terminals: Screw-type terminals for easy wiring
Housing Material: Flame-retardant thermoplastic
Mounting Type: Surface/panel mount
Mechanical Life: Over 10 million operations
Long spring rod actuator for gentle and flexible contact
High sensitivity and low operating force
Durable snap-action SPDT contacts
Long mechanical and electrical life
Compact and rugged design
Ideal for irregular or curved surface detection
Quick and easy installation with screw terminals
Stable performance in industrial environments
Automation systems with light object detection
Position sensing in robotic arms and machinery
Safety and control systems in conveyors
Packaging and textile machines
Sensitive triggering in mechanical linkages
Home appliances, vending machines, and access systems
