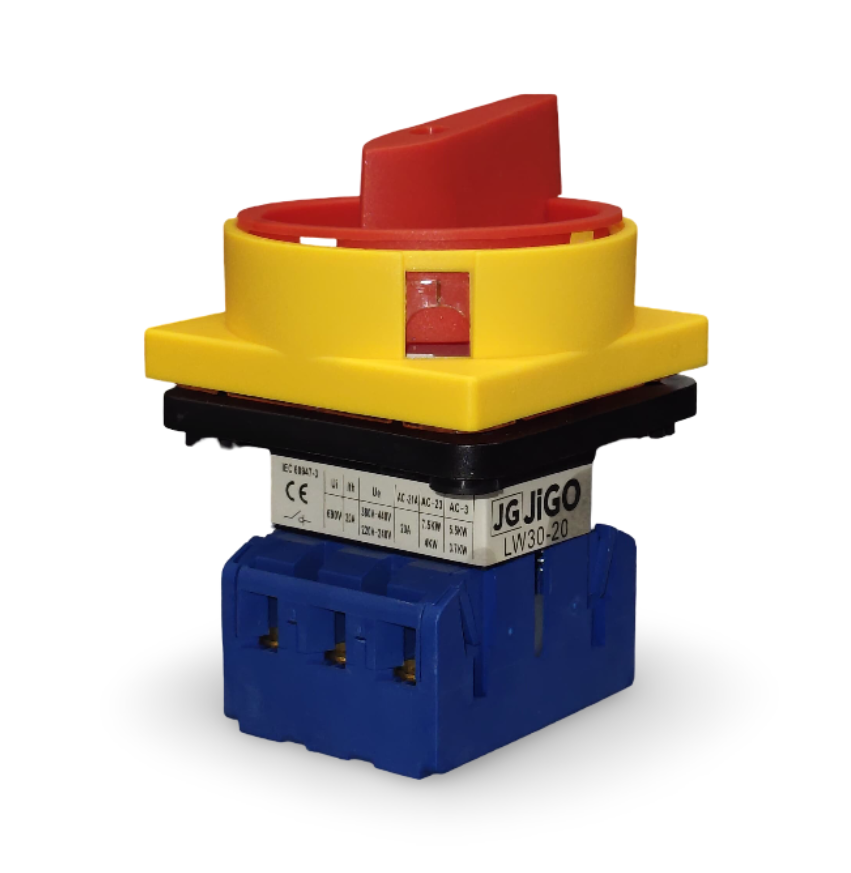

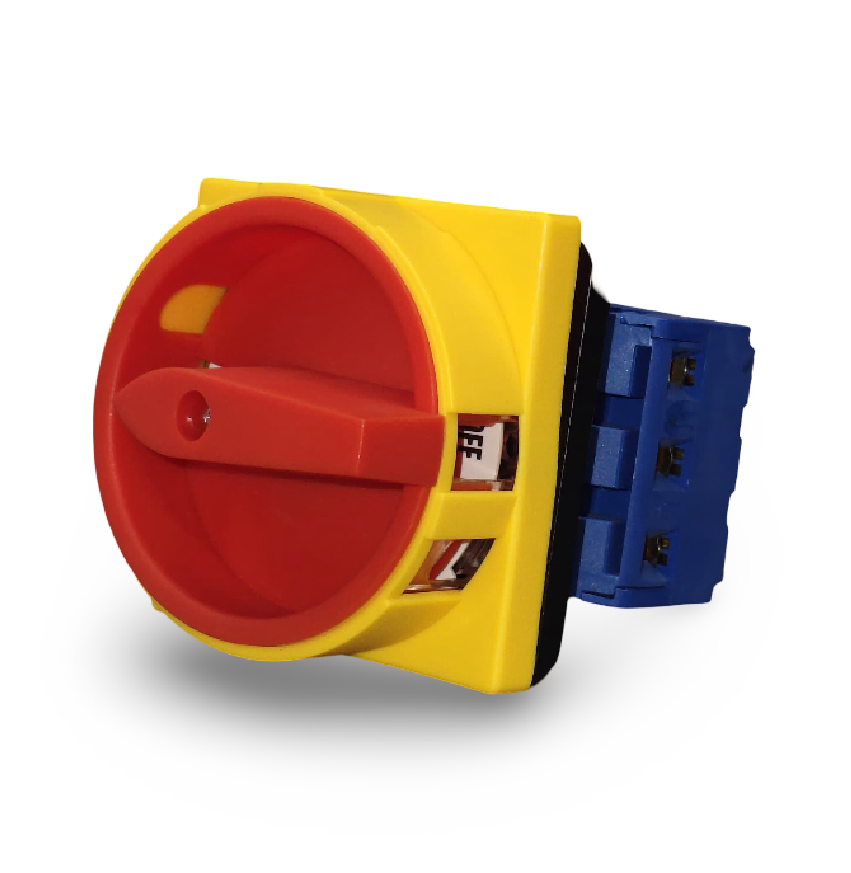

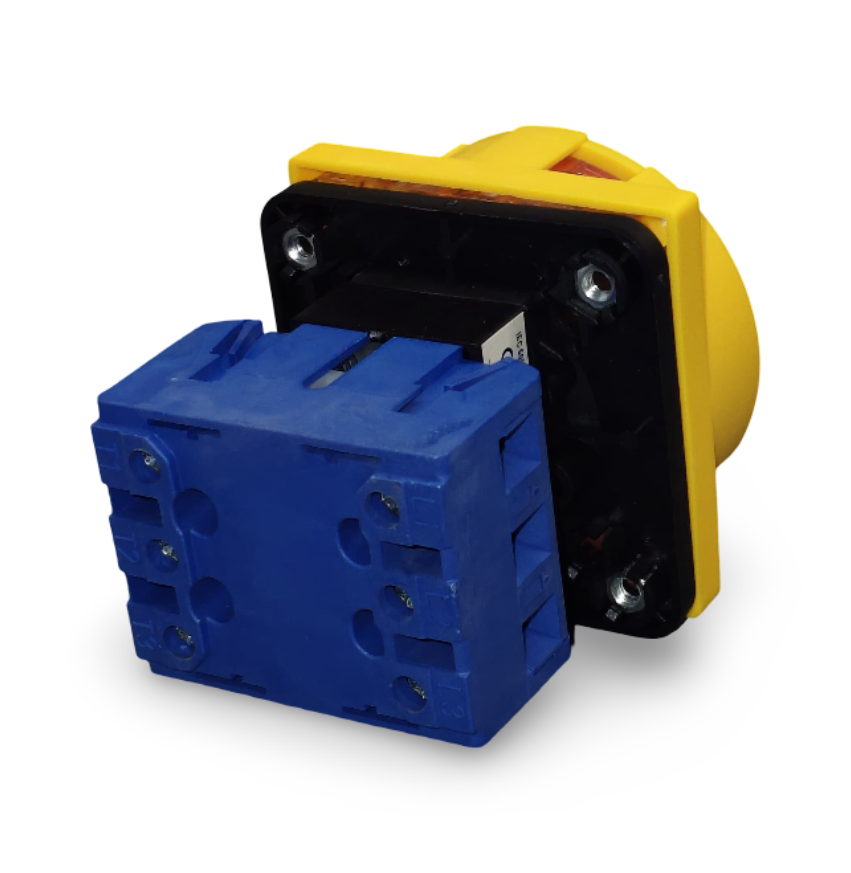

LW30-20 3P Rotary Cam Switch
LW30-20 3P Cam Switch is a 3-pole rotary cam switch designed for reliable manual control of electrical circuits. With a rated current of 20A, it is widely used in industrial applications for switching, control, and isolation purposes.
Product Details
Model: LW30-20
Type: 3-Pole Cam Rotary Switch
Rated Current: 20A
Rated Voltage: 440V AC
Contact Configuration: 3P (3 poles)
Operation Mode: Rotary (multiple position settings possible)
Mounting Style: Panel-mounted with screw terminals
Material: Flame-retardant plastic body, silver alloy contacts
Standards Compliance: IEC/EN standards
Insulation Voltage: 660V
Protection Level: IP40 (standard), IP65 (with enclosure)
Key Features
Compact and robust design
High-quality silver alloy contacts for long life
Reliable switching for AC and DC circuits
Easy panel mounting with secure connections
Smooth rotary action with clear position marking
Available in multiple position and pole configurations
Flame-retardant housing for enhanced safety
Customizable cam structure for various control functions
Applications
Motor control and switching
Main and auxiliary circuit switching
On/Off control in industrial panels
Manual override and circuit isolation
Generator and transformer switching
Machine tools, automation systems, and distribution boxes
