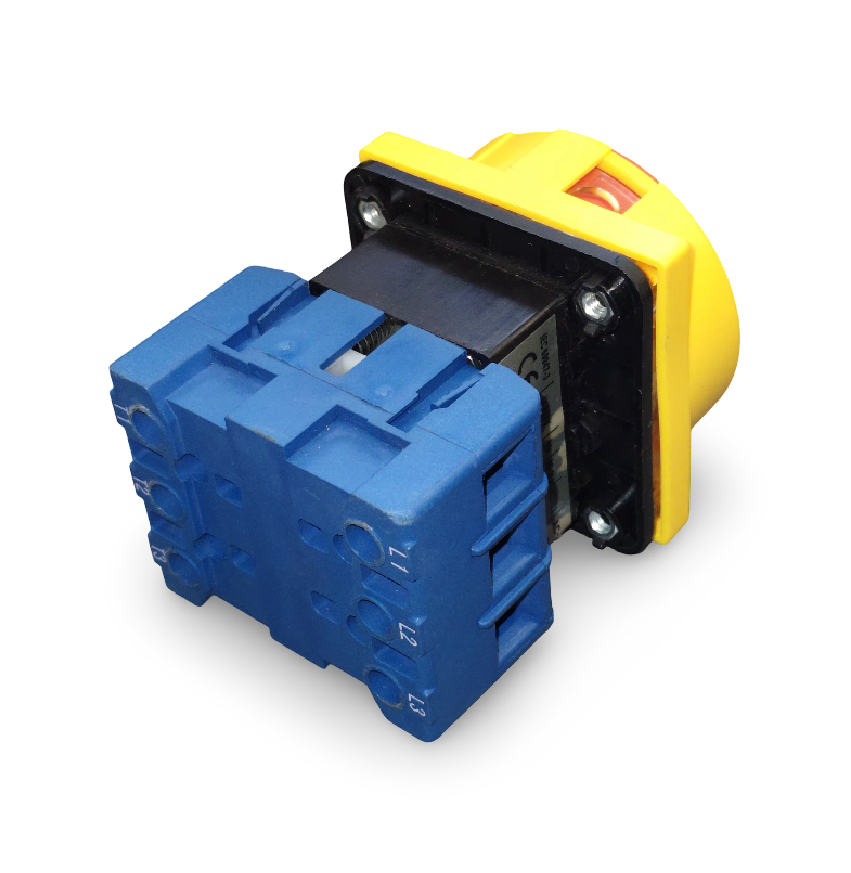

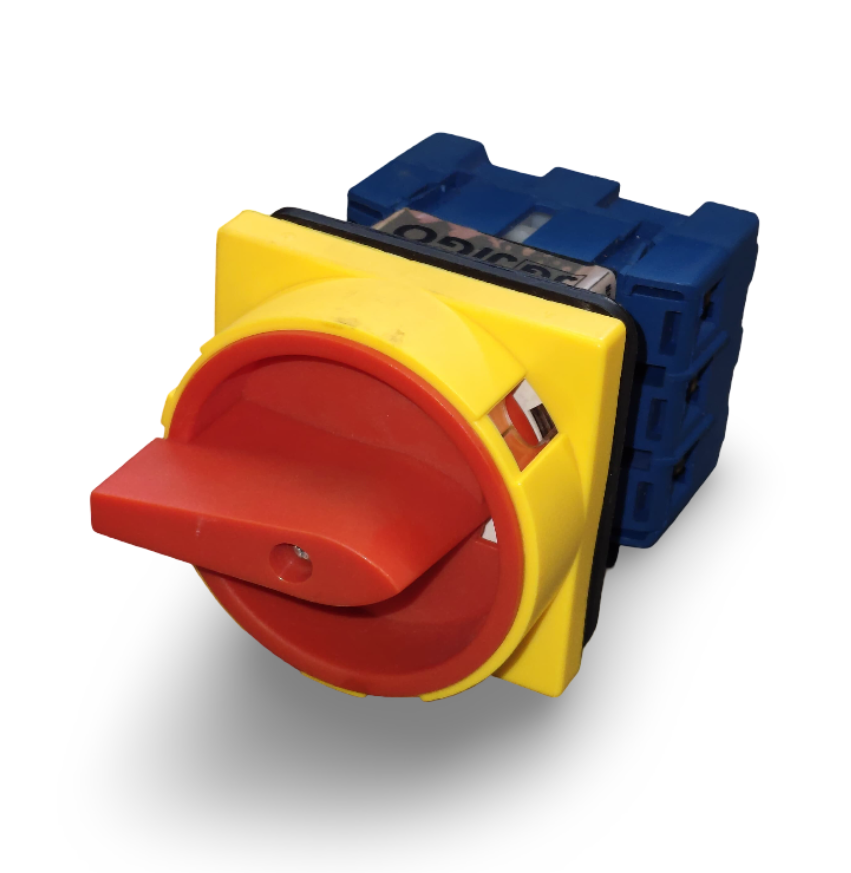

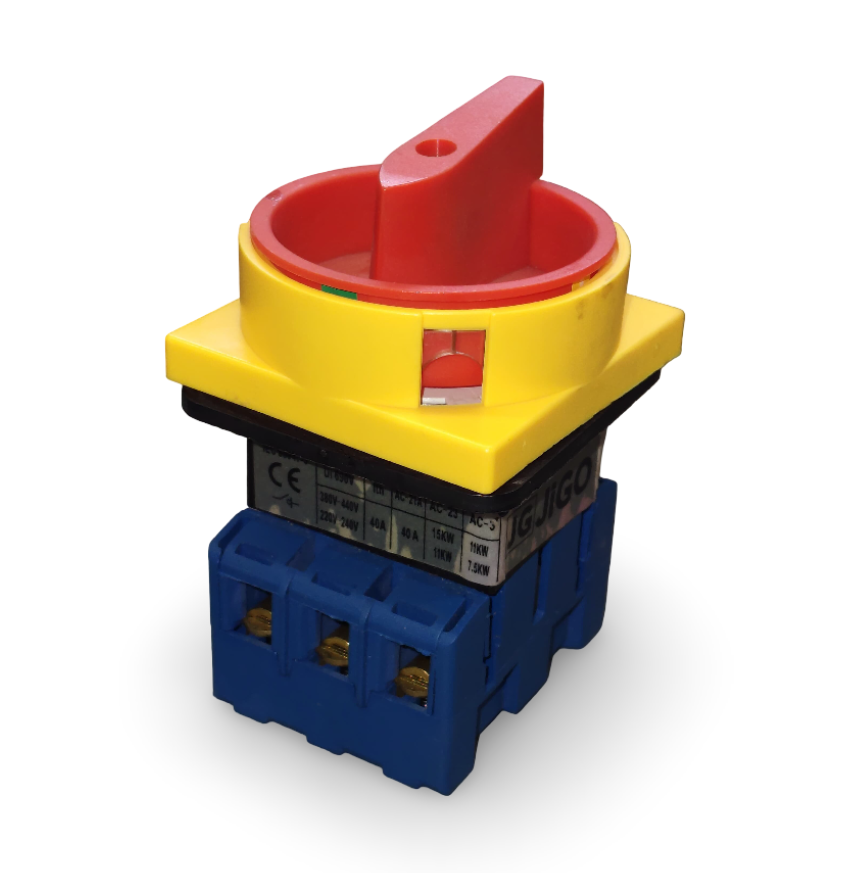

LW40-63 3P Rotary Cam Switch
LW40-63 3P Cam Switch is a high-performance 3-pole rotary cam switch rated at 63A, ideal for manual control, switching, and isolation of power circuits in industrial and commercial electrical systems.
Product Details
Model: LW40-63
Type: 3-Pole Cam Rotary Switch
Rated Current: 63A
Rated Voltage: 440V AC
Contact Configuration: 3P (3 poles)
Operation Mode: Rotary (multi-position switch)
Mounting Type: Panel mounting with screw terminals
Contact Material: Silver alloy contacts for superior conductivity
Body Material: Flame-retardant thermoplastic housing
Insulation Voltage: 690V
Standards Compliance: IEC/EN standards
Protection Class: IP40 (standard), up to IP65 with enclosure
Key Features
High current handling capacity (up to 63A)
Durable rotary mechanism with precise cam switching
Flame-retardant and impact-resistant housing
Silver alloy contacts for longer life and better performance
Easy installation with secure terminal connections
Multiple switching positions configurable as per requirement
Suitable for both AC and DC applications
Compact and robust design for industrial use
Applications
Industrial control panels and switchboards
Generator-to-mains changeover systems
Motor control and isolation
Load distribution and power control
HVAC systems and commercial power systems
Manual override in automation and machinery
Electrical control cabinets
