LW30-63 3P
- Category: CAM SWITCH
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 1500

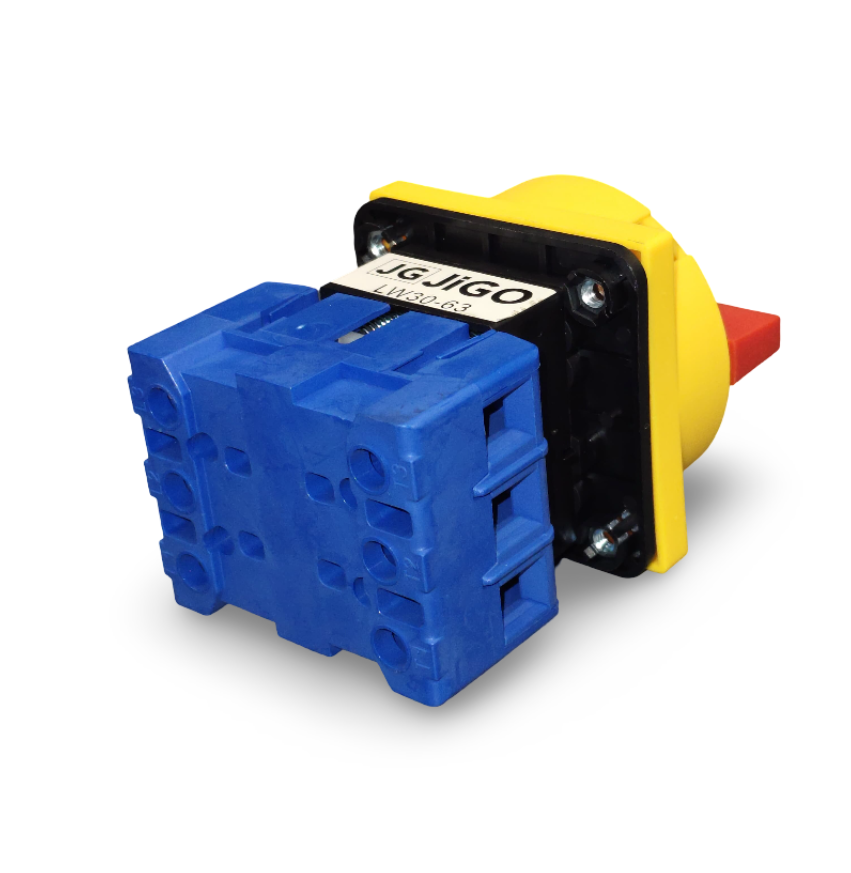

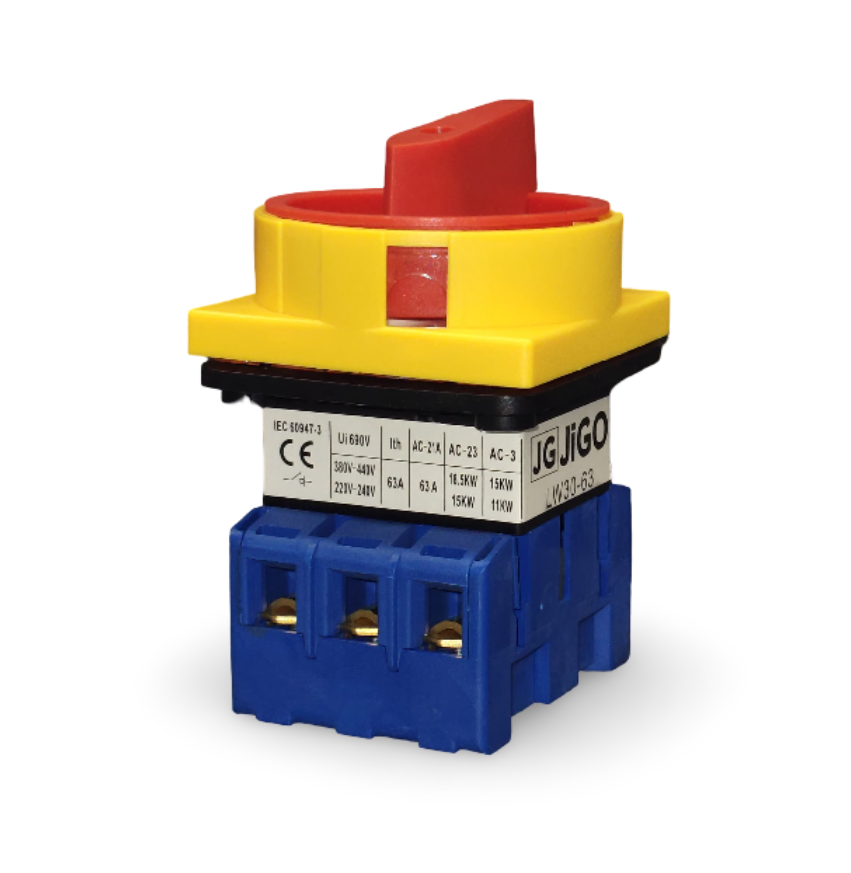

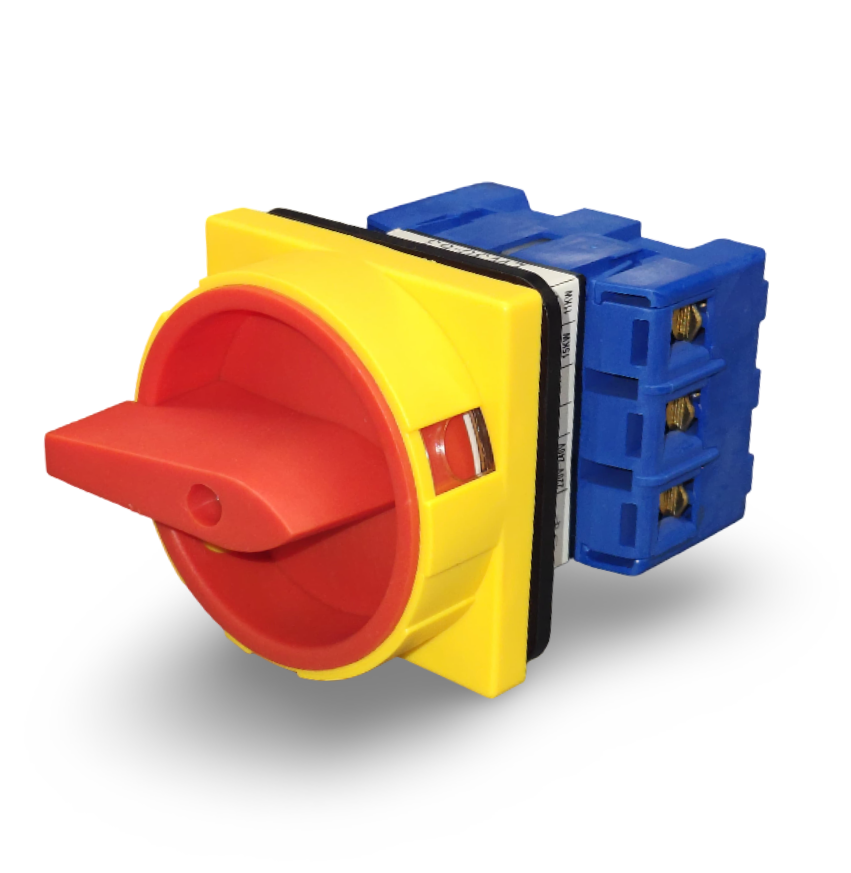

LW30-63 3P Cam Switch is a heavy-duty 3-pole rotary switch rated at 63A, designed for reliable switching, control, and isolation of electrical power circuits. Its robust build and versatile configurations make it ideal for industrial and commercial applications.
Product Details
Model: LW30-63
Type: 3-Pole Cam Rotary Switch
Rated Current: 63A
Rated Voltage: 440V AC
Contact Configuration: 3P (3 poles)
Operation Mode: Rotary with multiple selectable positions
Mounting: Panel mount with screw terminal connections
Contact Material: Silver alloy for enhanced conductivity
Housing Material: Flame-retardant thermoplastic
Insulation Voltage: 660V
Standards Compliance: Conforms to IEC and EN standards
Protection Class: IP40 standard / up to IP65 with enclosure
Key Features
High current capacity (63A) for demanding applications
Strong rotary mechanism with positive position locking
Durable silver contacts ensure long electrical life
Suitable for AC and DC switching
Easy and secure panel mounting design
Multiple cam configurations available
Compact and safe design with insulation protection
Low contact resistance for efficient performance
Applications
Power distribution and load control
Industrial machine control panels
Generator changeover systems
Electrical isolation switches
Manual control of motors and resistive loads
Commercial and industrial switchboards
HVAC systems and pumps
