M12-NPN-NC

    Category: SENSORS
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 300

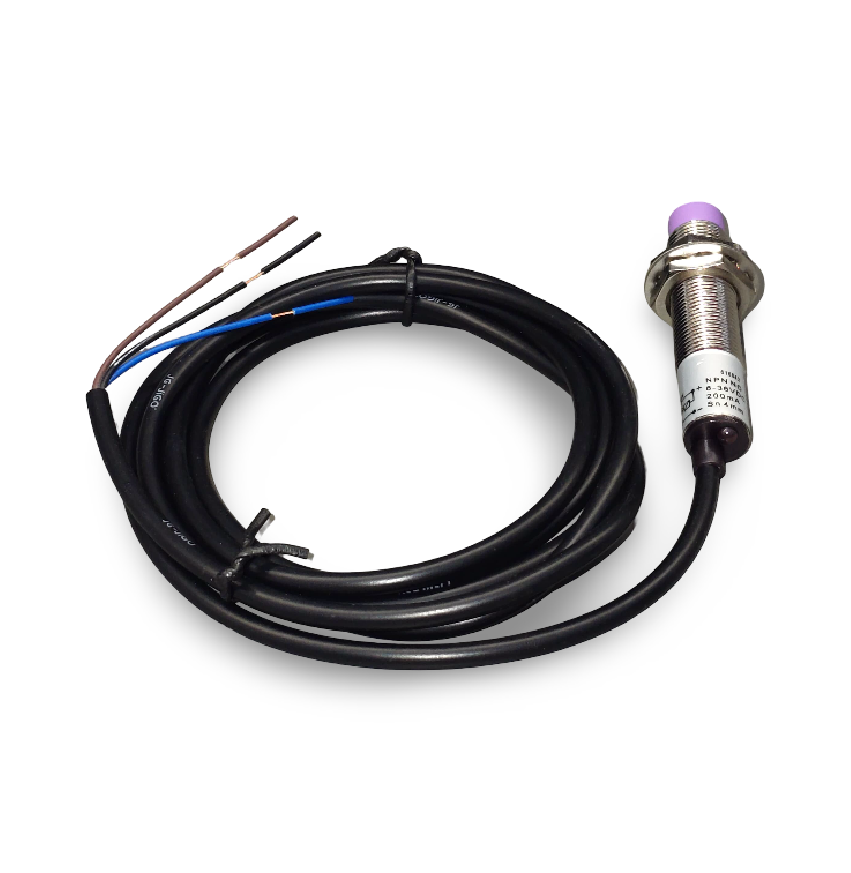

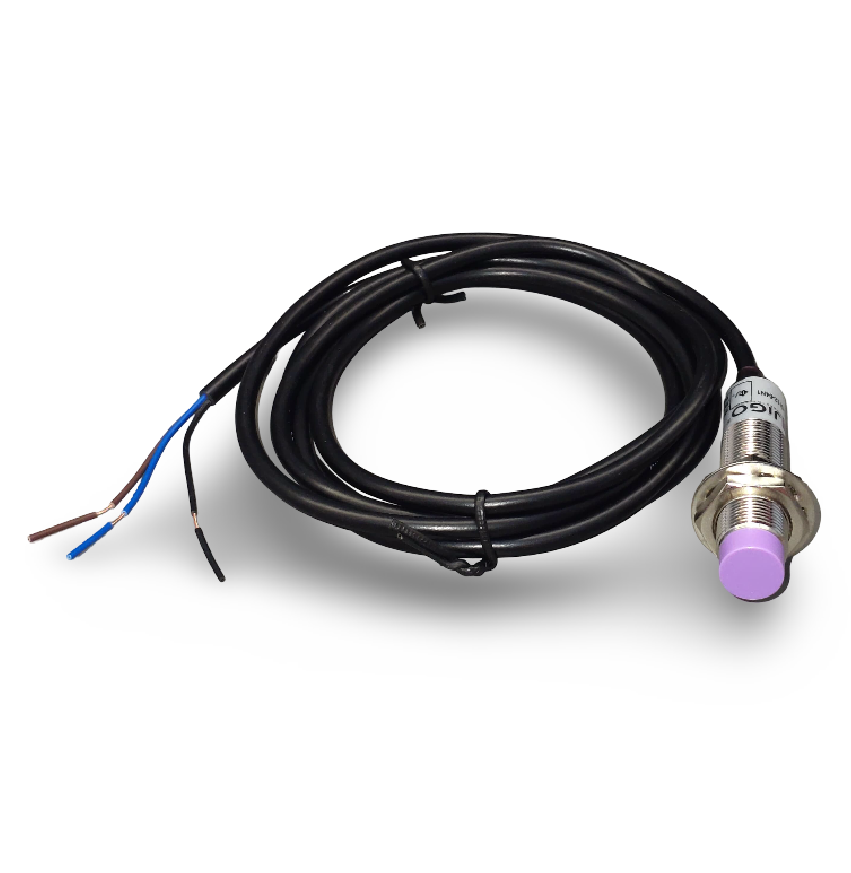

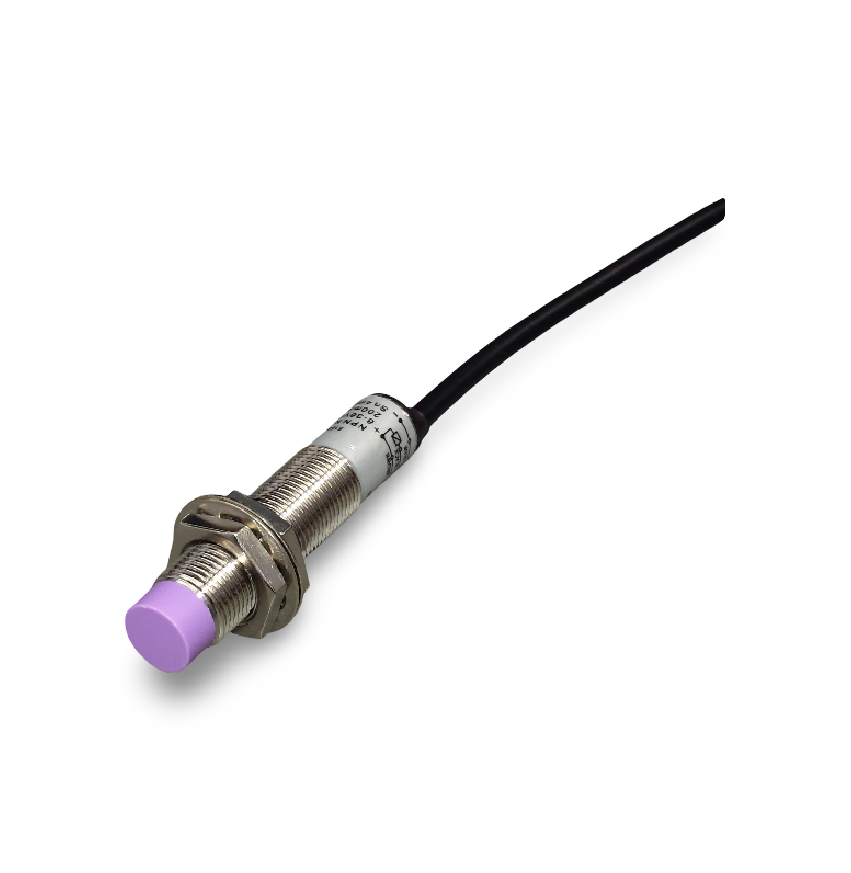

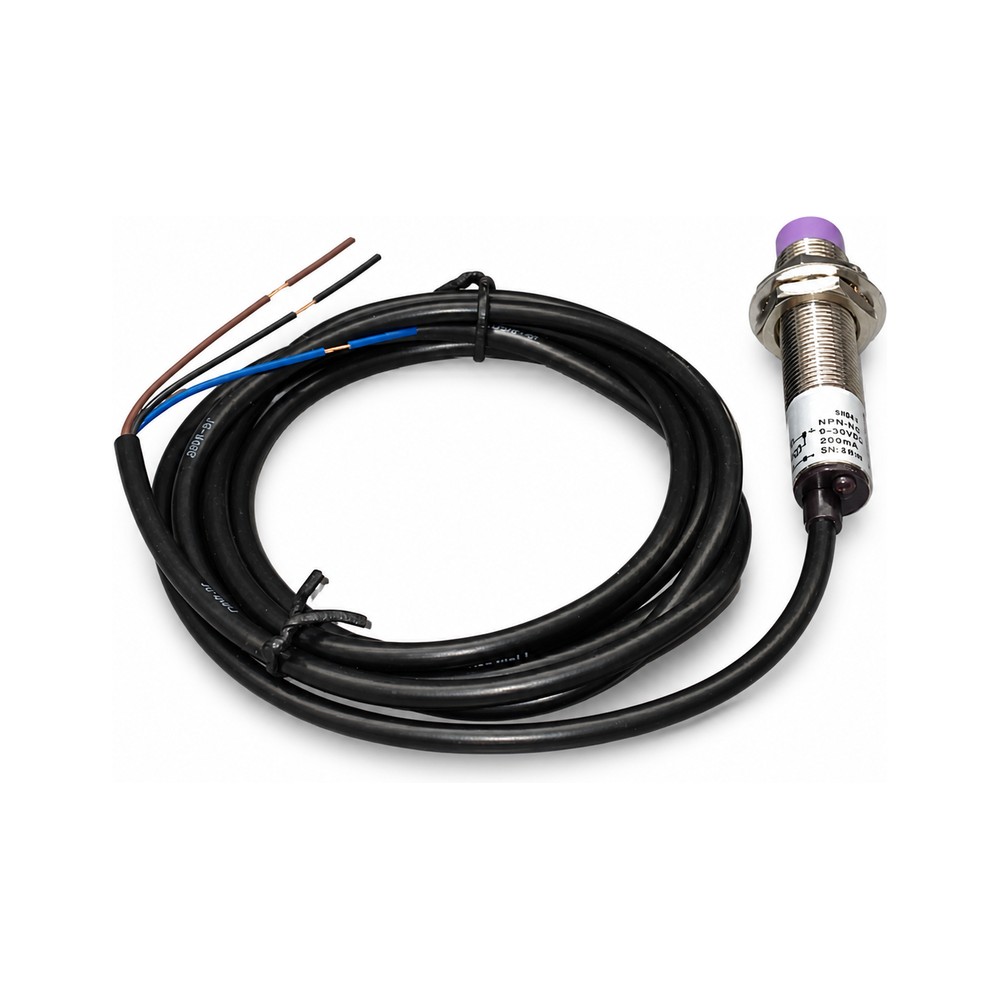

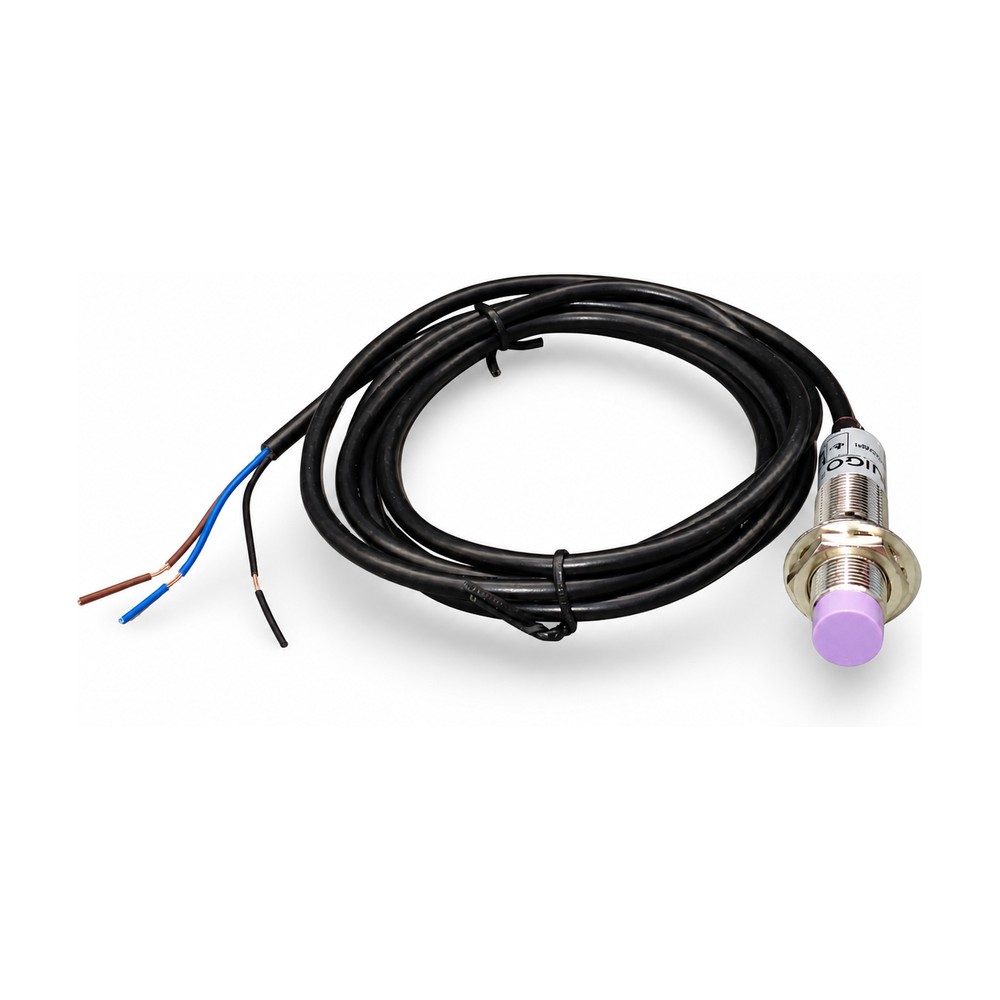

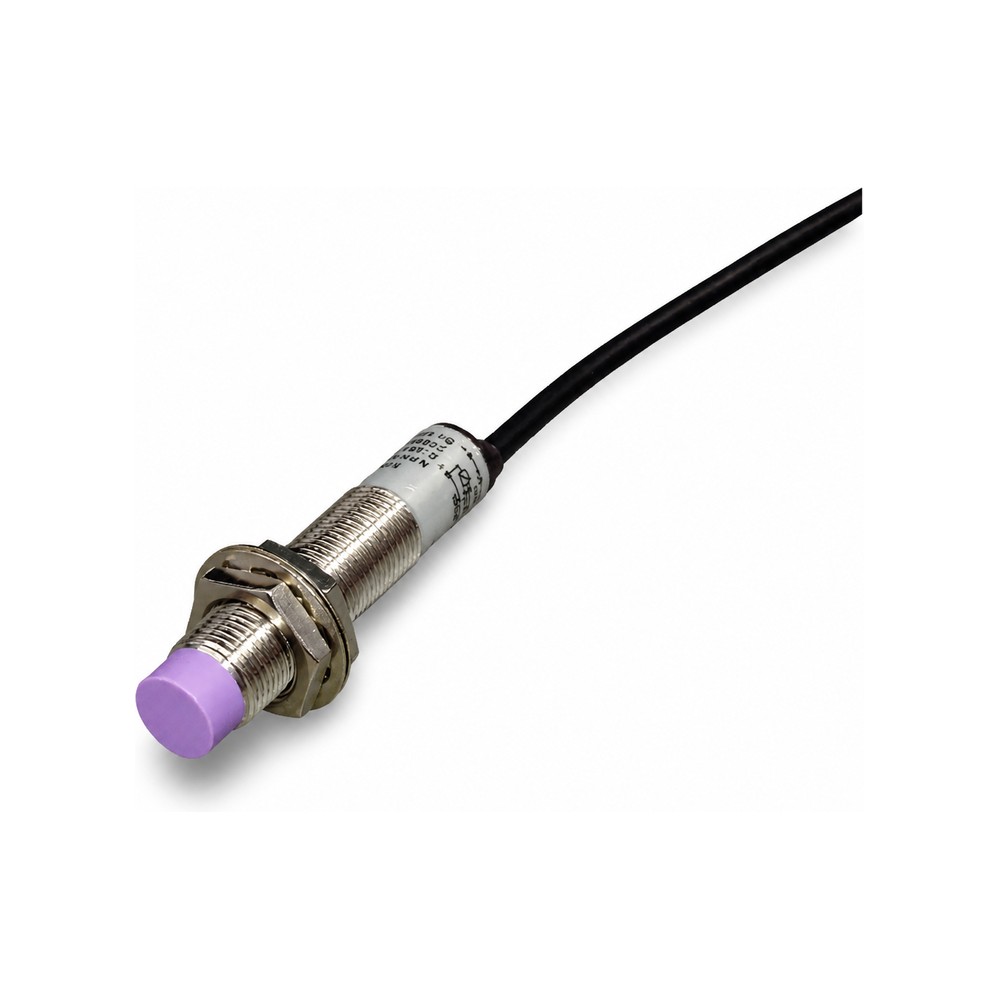

M12 inductive proximity sensor with NPN Normally Closed (NC) output, designed for non-contact metal object detection in demanding industrial environments.



Product Details:

Sensor Type: Inductive Proximity Sensor

Sensor Size: M12 Threaded Cylindrical Body

Output Type: NPN – Normally Closed (NC)

Sensing Distance: Typically 2mm to 5mm (depending on model)

Operating Voltage: 10–30V DC

Output Current: Max 200mA

Response Frequency: Up to 500Hz

Housing Material: Nickel-plated brass or stainless steel

Connection Type: 3-wire with PVC cable or M12 connector

Mounting: Flush or non-flush

Status Indicator: LED for output indication

Protection Features: Reverse polarity, short-circuit, and overload protection

IP Rating: IP67 (dust-tight and waterproof)

Key Features:

Standard M12 size for versatile installation

NPN NC output for fail-safe control systems

High accuracy and reliable switching

LED indicator for quick diagnostics

Rugged, vibration-resistant design

Compatible with various automation systems

Maintenance-free and long-lasting

Applications:

Position detection in industrial automation

Metal part detection on production lines

Robotics and automated machinery

Conveyor and packaging equipment

Limit sensing in CNC and motion systems

Door and gate position control
