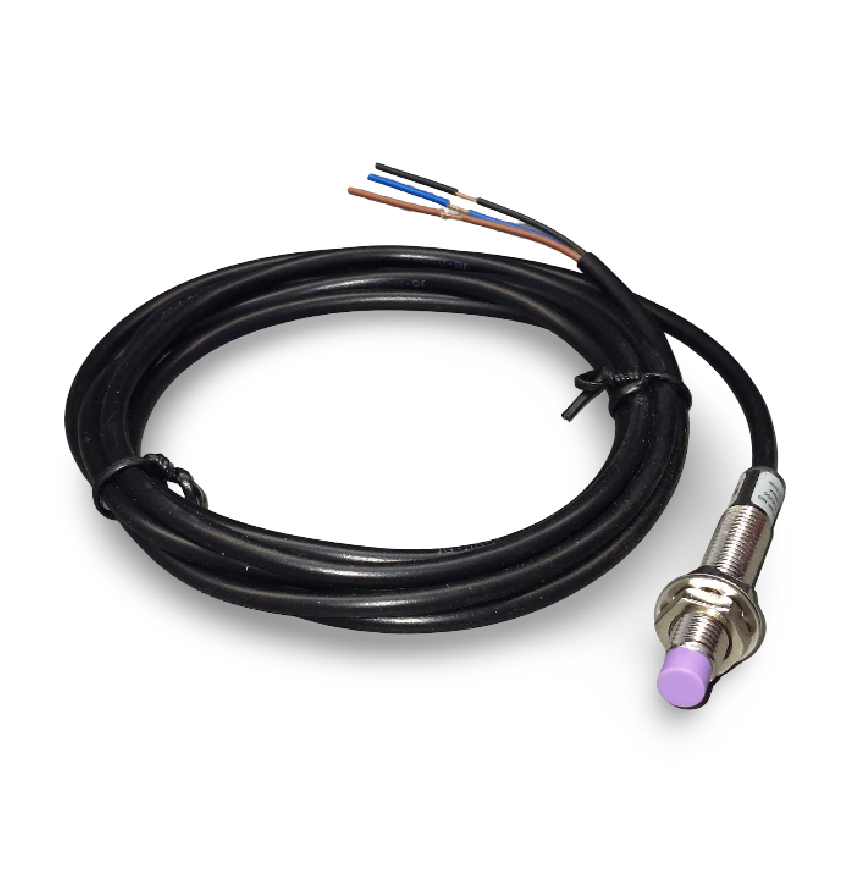

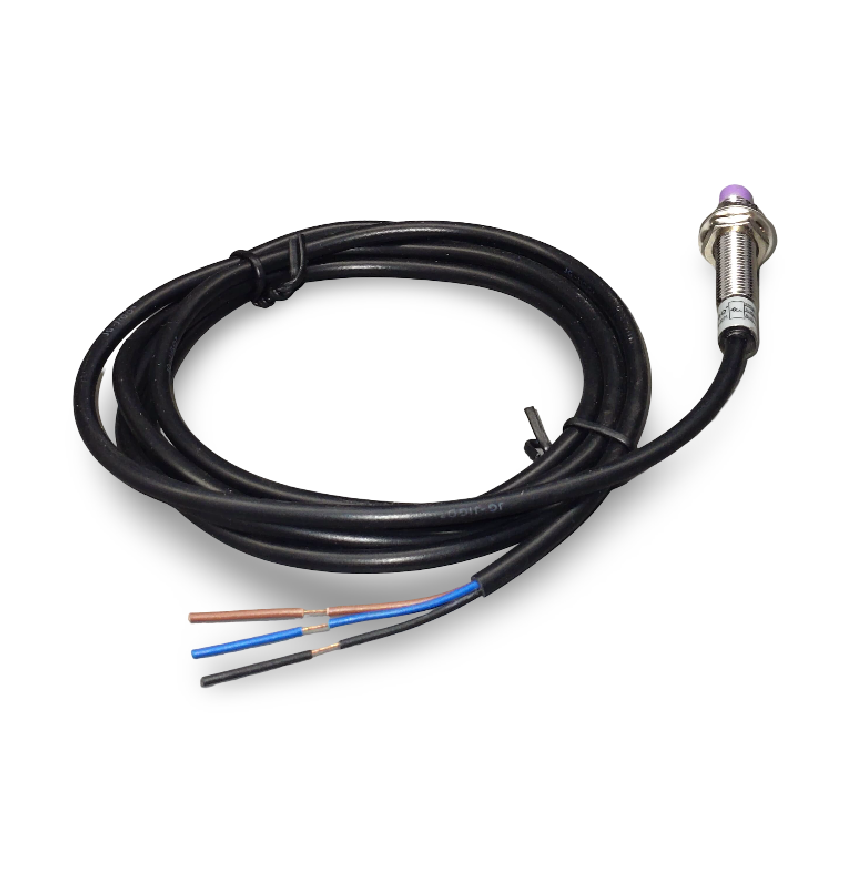

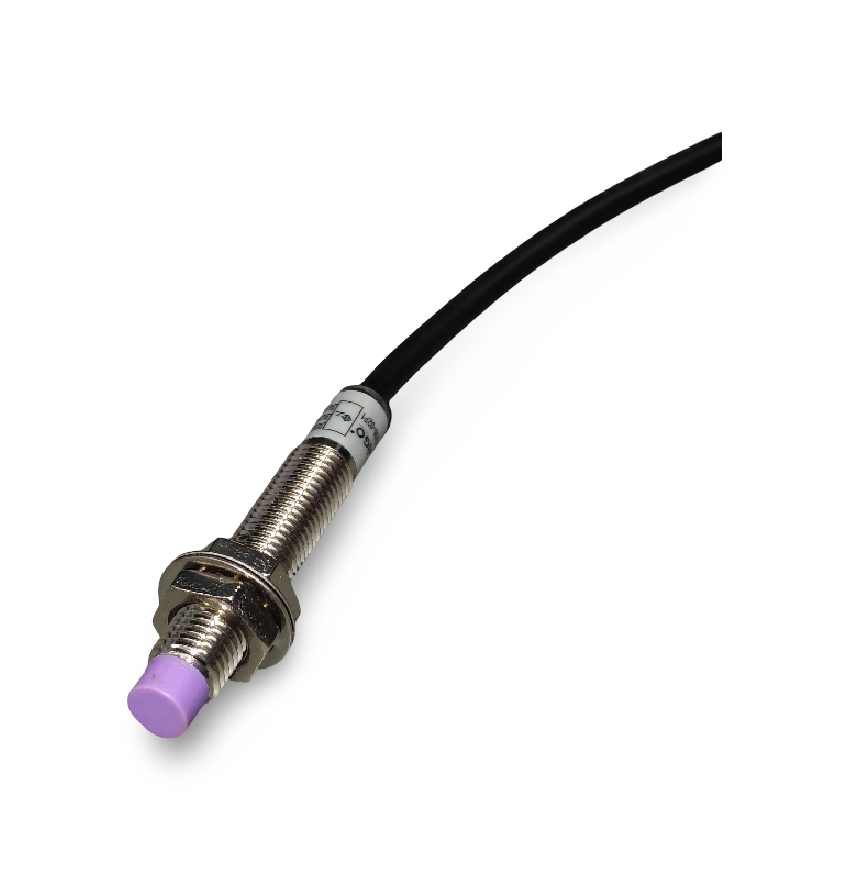

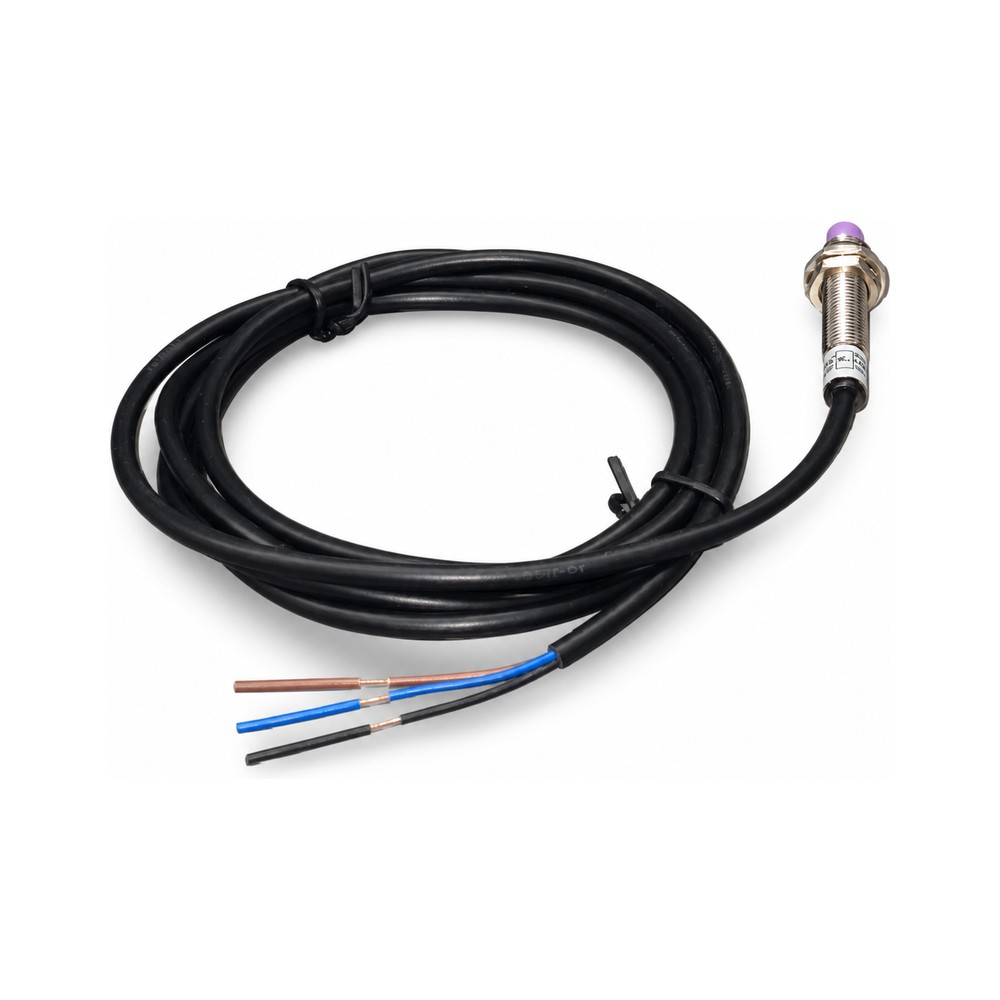

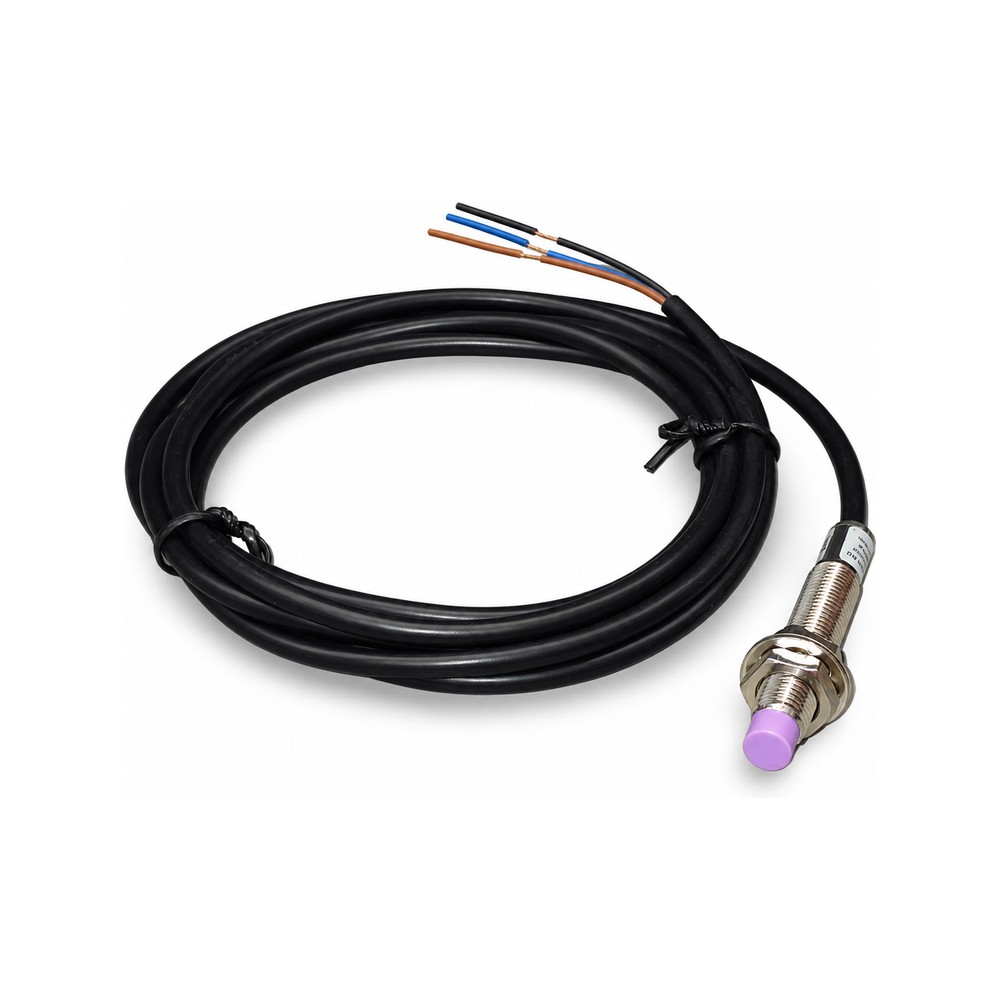

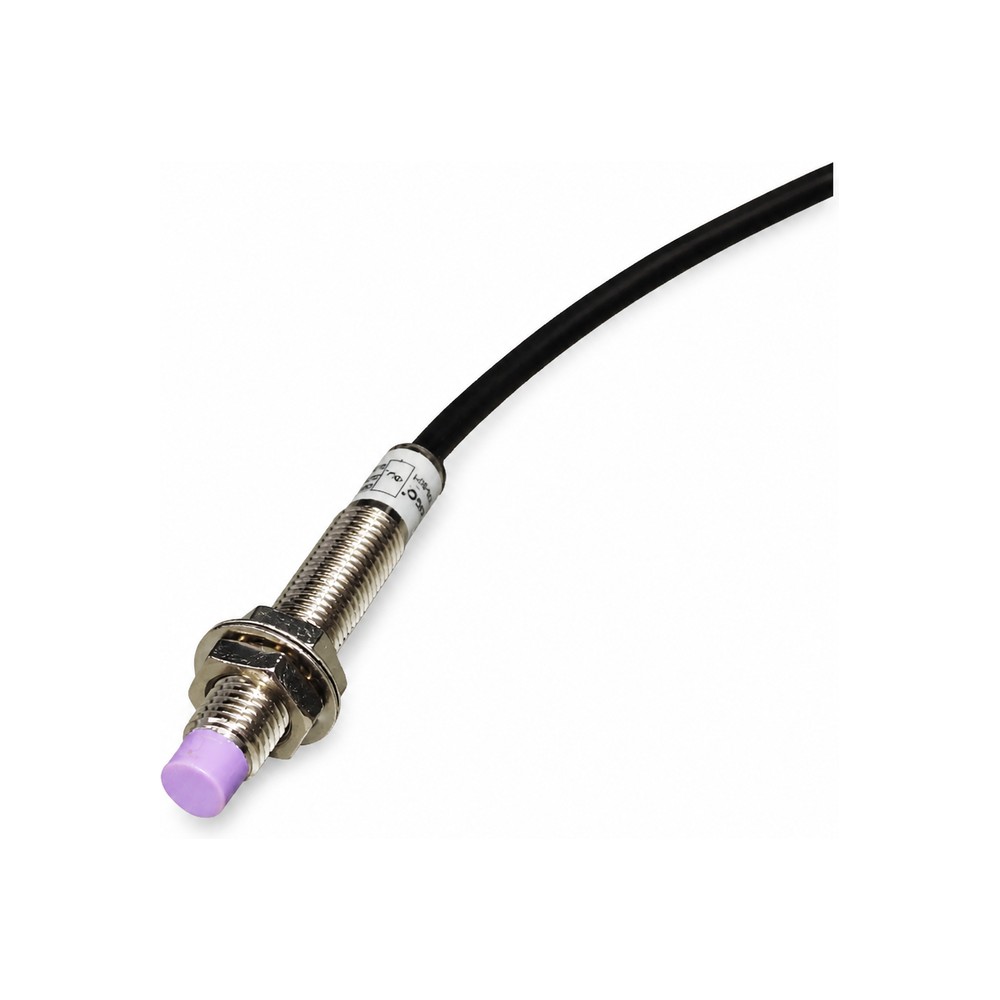

M8-PNP-NO Proximity Sensor
M8 cylindrical inductive proximity sensor with PNP Normally Open (NO) output, engineered for accurate metal object detection in compact industrial spaces.
Product Details:
Sensor Type: Inductive Proximity Sensor
Sensor Size: M8 Threaded (8mm diameter)
Output Type: PNP – Normally Open (NO)
Sensing Distance: 1mm to 3mm (varies by model)
Operating Voltage: 10–30V DC
Max Output Current: 200mA
Response Frequency: Up to 500Hz
Housing Material: Nickel-plated brass or stainless steel
Wiring Type: 3-wire system
Connection Type: PVC cable or M8 connector
Status Indicator: Built-in LED output indicator
Mounting: Flush or non-flush (model-specific)
Protection Features: Reverse polarity, short-circuit, and overload protection
Ingress Protection: IP67 (dust and water resistant)
Key Features:
Slim and rugged M8 cylindrical design
Fast and accurate switching response
PNP NO output for reliable positive logic sensing
Long life with non-contact detection
LED for easy visual status monitoring
High resistance to vibration and harsh conditions
Simple installation with standard threaded mounting
Applications:
Automation and process control systems
Position sensing on robotic arms
Packaging and bottling machinery
Conveyor metal detection
CNC machine part detection
Door and object sensing systems
