M8-NPN-NC

    Category: SENSORS
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 300

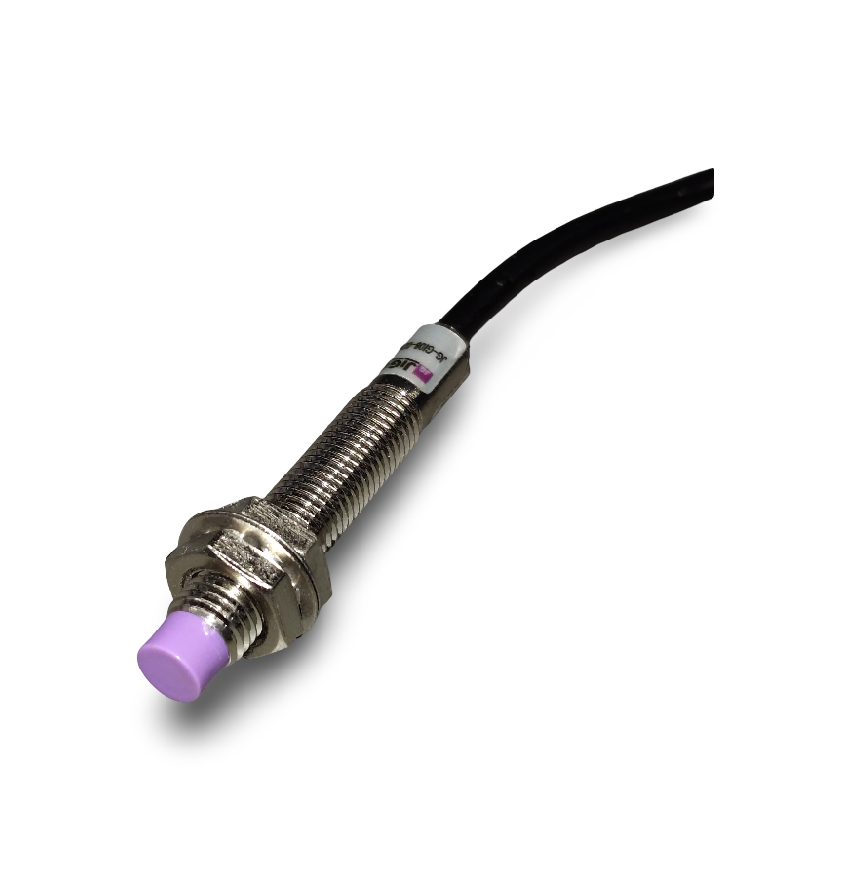

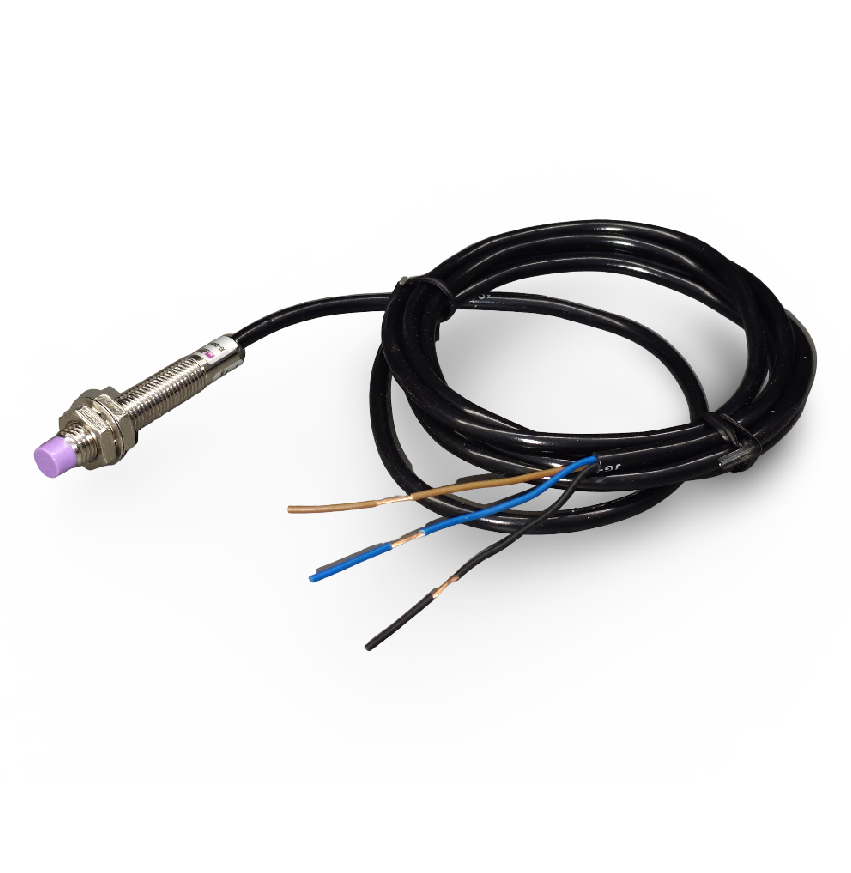

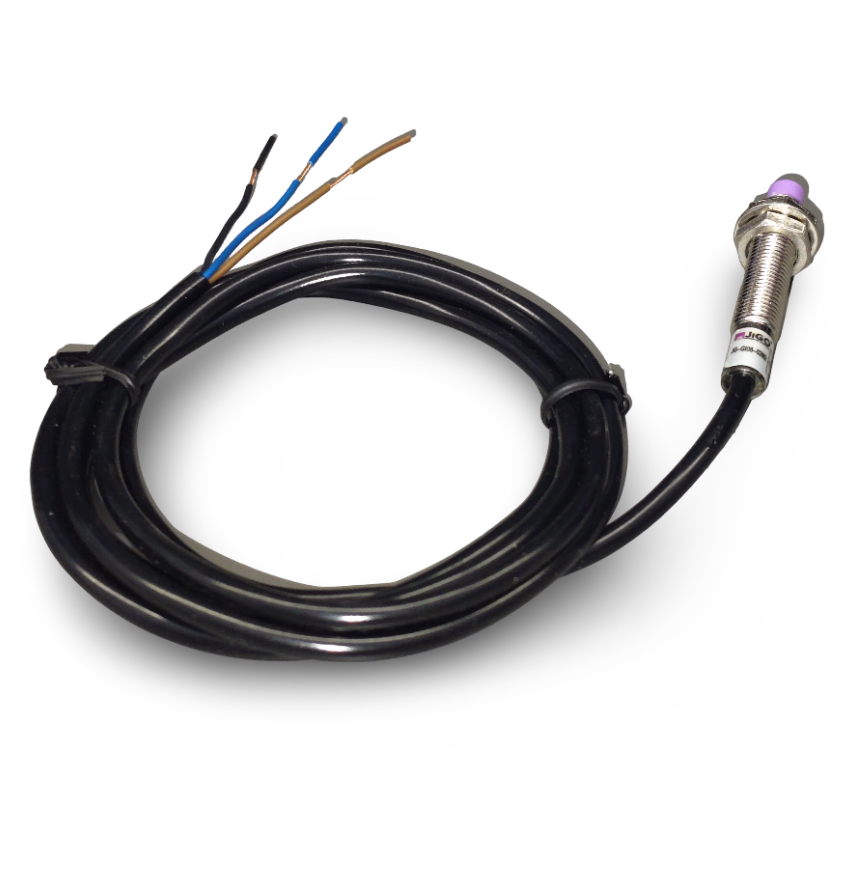

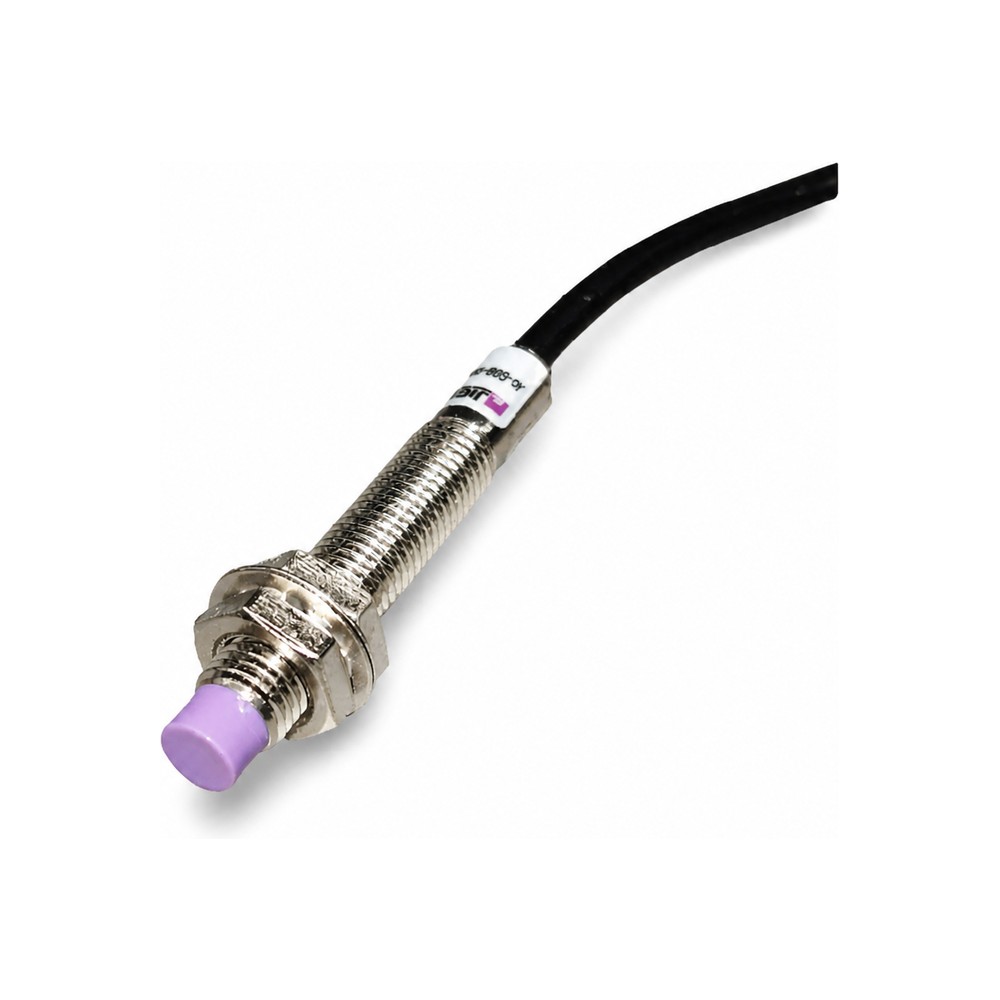

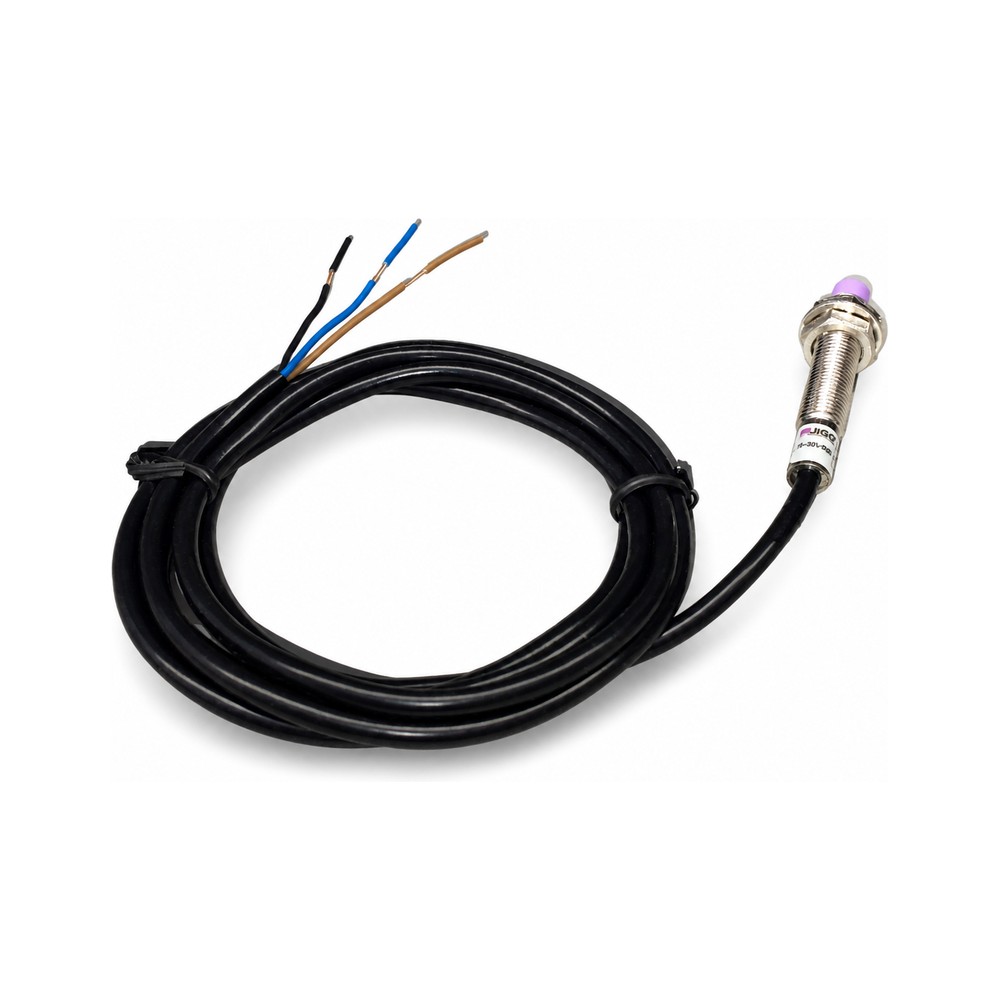

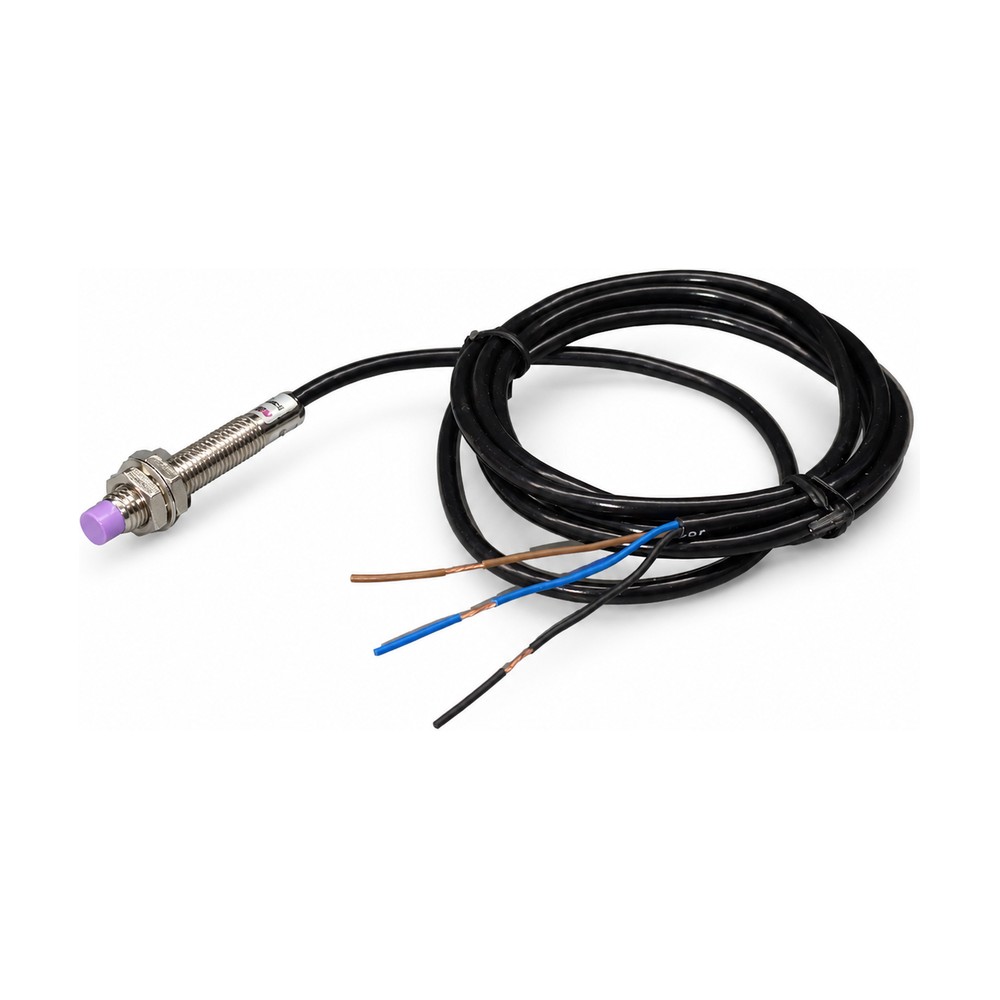

M8 cylindrical inductive proximity sensor with NPN Normally Closed (NC) output, designed for compact and precise metal detection in industrial environments.



Product Details:

Sensor Type: Inductive Proximity Sensor

Sensor Size: M8 Threaded (8mm diameter)

Output Type: NPN – Normally Closed (NC)

Sensing Distance: 1mm to 3mm (varies by model)

Operating Voltage: 10–30V DC

Max Output Current: 200mA

Response Time: ≤2ms

Housing Material: Nickel-plated brass or stainless steel

Connection Type: 3-wire cable or connector

Installation Type: Flush/non-flush mounting

Protection Features: Short-circuit, overload, reverse polarity

Status Indicator: LED for output status

IP Rating: IP67 (dustproof and waterproof)

Key Features:

Compact design ideal for tight spaces

Precise metal detection with NPN NC output

Non-contact operation for long sensor life

LED indicator for easy status monitoring

Rugged, vibration-resistant housing

Easy installation with standard M8 thread

Stable and high-speed switching

Applications:

Industrial automation and control systems

Position and presence detection in machines

Robotics and motion systems

Conveyor lines and packaging units

Assembly line metal detection

Door/gate sensing in automated systems
