JiGO NA-1P Ampere Meter

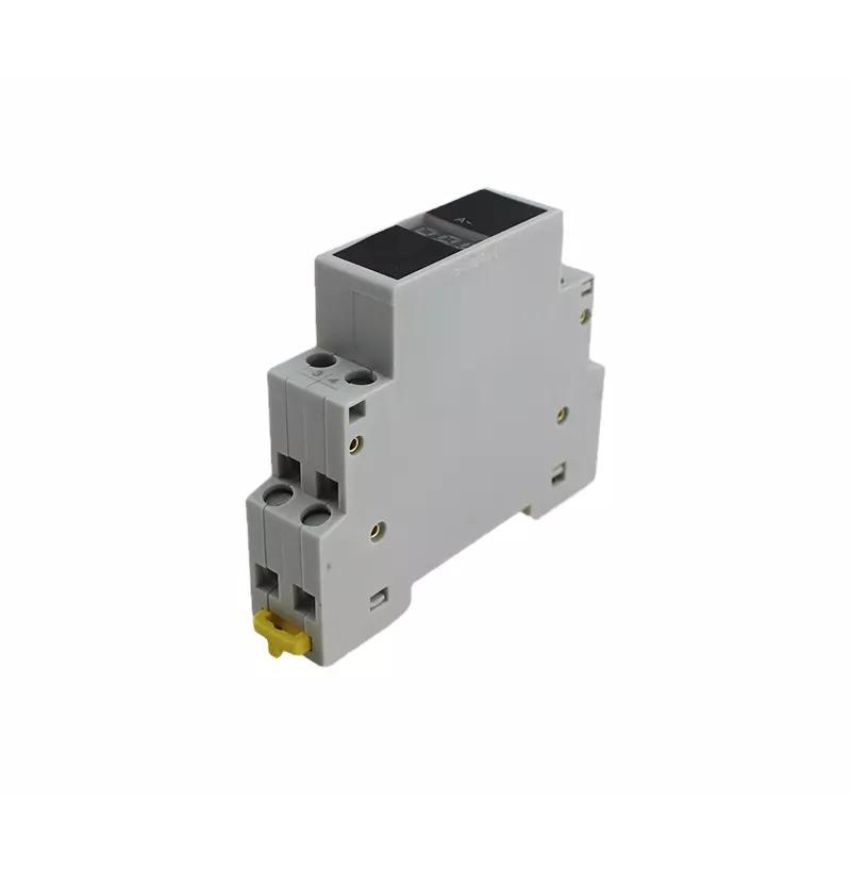

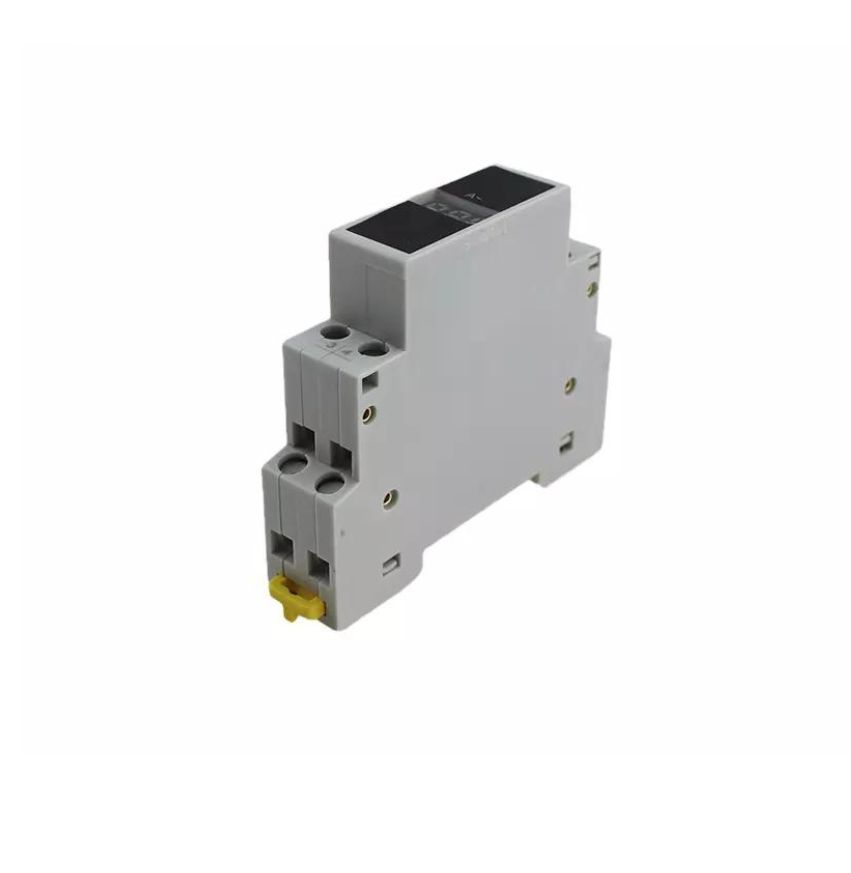

The NA-1P is a single-module DIN rail ammeter with a red LED display, for showing circuit current on the front of a distribution board or control panel without a door-mounted instrument.
Knowing what a circuit is actually drawing changes how a board is maintained. A motor that used to sit at eleven amps and now sits at fourteen is telling you something long before the overload trips. The NA-1P puts that number permanently on the DIN rail, in one 18 mm module, on a red LED display marked A~.
What it is for
- Load monitoring — see what a feeder or a machine is drawing in normal service, so a change is noticeable
- Commissioning — balance loads across phases without a clamp meter and an open panel
- One module wide — fits into a spare way rather than needing a panel-door cut-out and a gasket
- DIN rail mounting — sits next to the breaker protecting the circuit it measures
Used alongside the matching NV-1P voltmeter, two modules give both the voltage and the current on a circuit, which between them answer most of the questions anyone asks when they open a board.
Connection and selection
Check how the unit is to be connected before ordering — direct in line for small loads, or through a current transformer for larger ones. Tell us the circuit rating and we will confirm whether a CT is needed and supply the matching one.
| Model | NA-1P DIN rail ammeter |
|---|---|
| Product type | AC ammeter, DIN rail mounting |

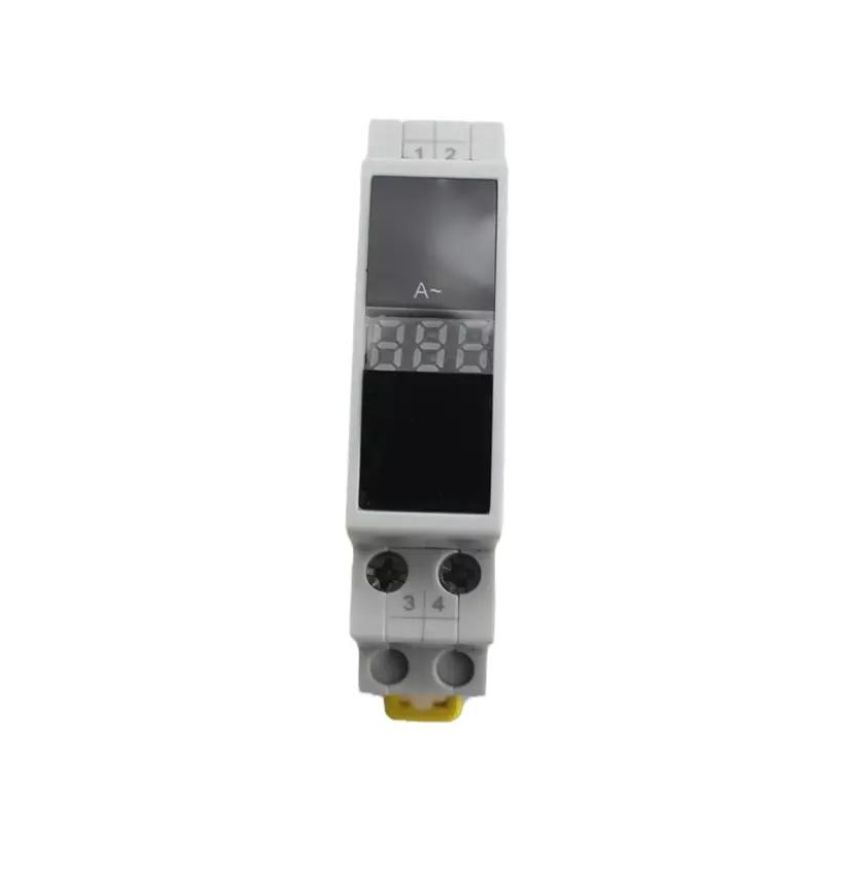

| Display | Red LED digital display, marked A~ |
| Measured quantity | AC current |

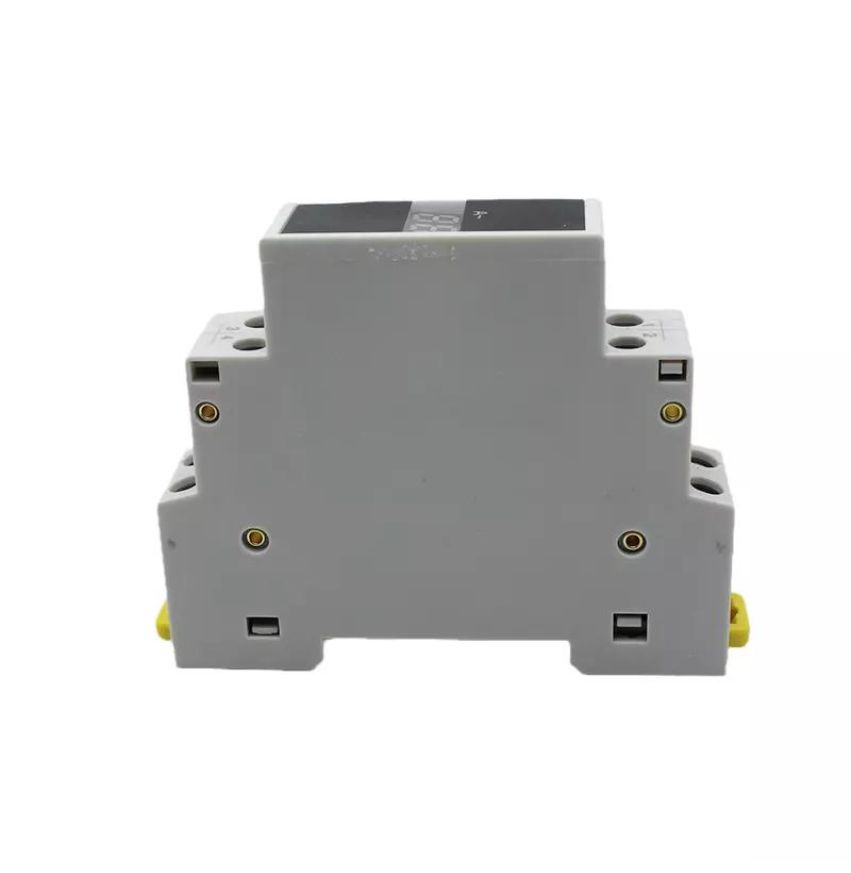

| Width | One module (18 mm) |

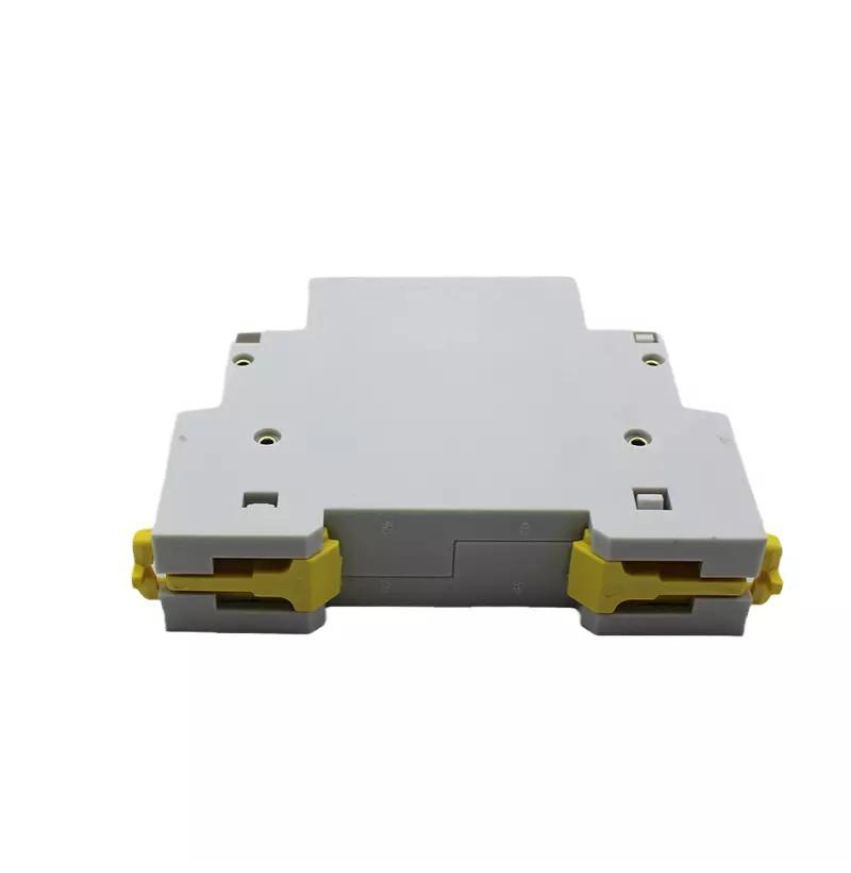

| Mounting | 35 mm DIN rail |

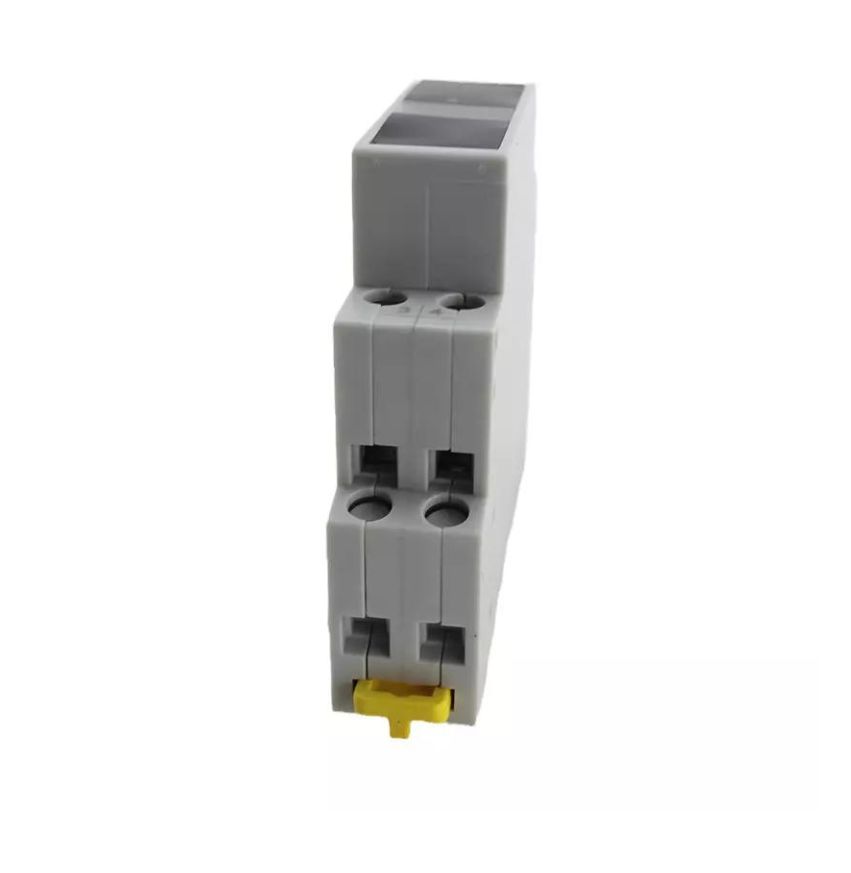

| Connection | Two terminals — direct in line, or via a current transformer on larger circuits |
| Function | Indication only — no switching, protection or logging |
| Related products | NV-1P DIN rail voltmeter; NP4 VA-Protect volt and amp protector; JiGO multifunction meter range |
| Brand | JiGO |
| Supplied by | ATC India, Ludhiana, Punjab |
| Enquiries | +91 99887 74490 · www.arjuntradingcompany.com |
The NA-1P is fitted in motor control centres, distribution boards, DG set panels, pump and irrigation panels, and solar and inverter installations.
- Confirm the connection method: direct or CT operated depends on the circuit rating. Tell us the load and we will specify it correctly and supply the CT if one is needed.
- Pair it with the voltmeter: the NV-1P is the matching single-module voltmeter.
- If you need protection: the NP4 VA-Protect measures voltage and current and disconnects the load on an out-of-range condition.
- Availability: normally 7–10 days from confirmed order; fast-moving sizes are usually in stock in Ludhiana.
- Ordering: prices exclude GST. Call ATC India on +91 99887 74490 or send the model number through www.arjuntradingcompany.com for a quotation.
